USK65L-GKTZKA (2007)
Toyota Sequoia

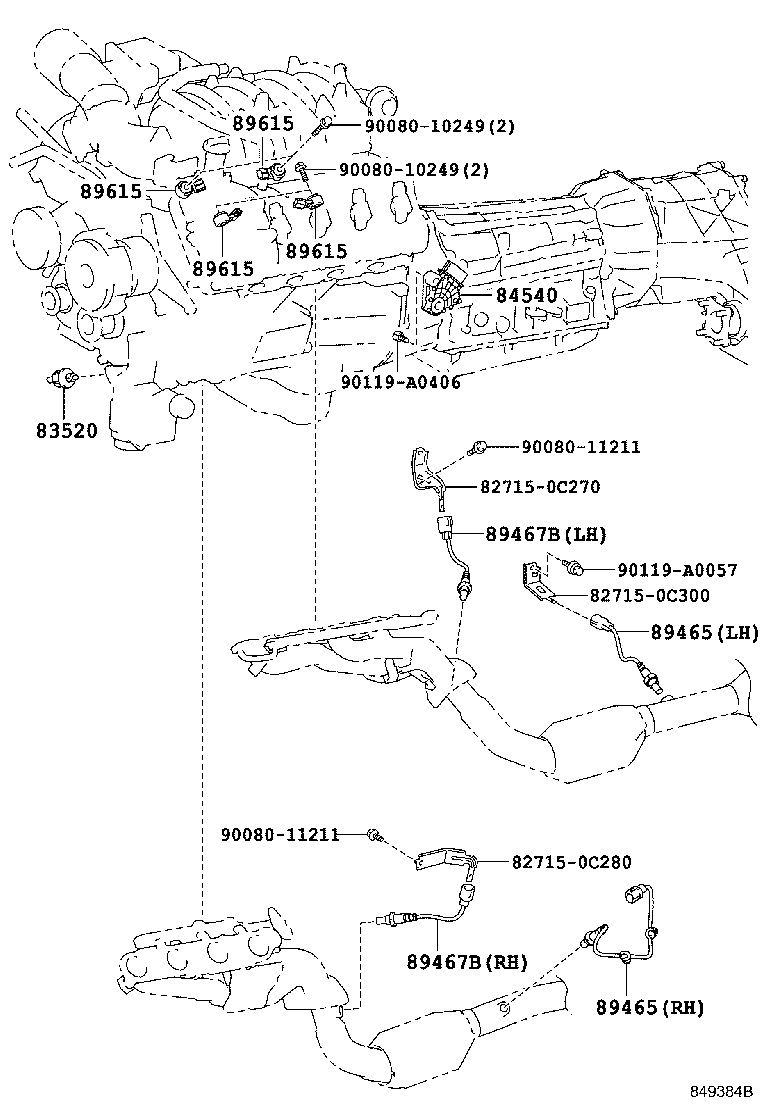

ILLUST NO. 1 OF 9(0711- )USK6#
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-60050 |
USK6# |
1 | ||
| 83520-60051 |
USK6# |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-0C010 |
UCK6#,UPK6#,USK6# |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-0C180 |
USK6#..HTWC LH |
1 | ||
| 89465-34160 |
USK6#..HTWC LH |
1 | ||
| 89465-34170 |
USK6#..HTWC RH |
1 | ||
| 89465-0C190 |
USK6#..HTWC RH |
1 | ||
| 89465-0C290 |
USK6#..HTWC LH |
1 | ||
| 89465-0C300 |
USK6#..HTWC RH |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-0C180 |
USK6#..HTWC LH |
1 | ||
| 89465-34160 |
USK6#..HTWC LH |
1 | ||
| 89465-34170 |
USK6#..HTWC RH |
1 | ||
| 89465-0C190 |
USK6#..HTWC RH |
1 | ||
| 89465-0C290 |
USK6#..HTWC LH |
1 | ||
| 89465-0C300 |
USK6#..HTWC RH |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-22030 |
USK6# RH |
1 | ||
| 89467-0C030 |
USK6# RH |
1 | ||
| 89467-04090 |
USK6#..HTWC LH |
1 | ||
| 89467-34030 |
USK6# LH |
1 | ||
| 89467-04060 |
USK6# RH & LH |
2 | ||
| 89467-0C060 |
USK6#..HTWC LH |
1 | ||
| 89467-0C050 |
USK6#..HTWC RH |
1 | ||
| 89467-04060 |
USK6# LH |
1 | ||
| 89467-0C070 |
USK6#..HTWC RH |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-22030 |
USK6# RH |
1 | ||
| 89467-0C030 |
USK6# RH |
1 | ||
| 89467-04090 |
USK6#..HTWC LH |
1 | ||
| 89467-34030 |
USK6# LH |
1 | ||
| 89467-04060 |
USK6# RH & LH |
2 | ||
| 89467-0C060 |
USK6#..HTWC LH |
1 | ||
| 89467-0C050 |
USK6#..HTWC RH |
1 | ||
| 89467-04060 |
USK6# LH |
1 | ||
| 89467-0C070 |
USK6#..HTWC RH |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
UPK6#,USK6# |
4 | ||
| 89615-20090 |
USK6# (J) |
4 | ||
| 89615-06010 |
USK6# (L) |
4 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
UPK6#,USK6# |
4 | ||
| 89615-20090 |
USK6# (J) |
4 | ||
| 89615-06010 |
USK6# (L) |
4 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
UPK6#,USK6# |
4 | ||
| 89615-20090 |
USK6# (J) |
4 | ||
| 89615-06010 |
USK6# (L) |
4 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
UPK6#,USK6# |
4 | ||
| 89615-20090 |
USK6# (J) |
4 | ||
| 89615-06010 |
USK6# (L) |
4 | ||
| Common parts | ||||
| 82715-0C270 | ||||
| 82715-0C280 | ||||
| 82715-0C300 | ||||
| 90080-10249 | ||||
| 90080-11211 | ||||
| 90119-A0057 | ||||
| 90119-A0406 | ||||

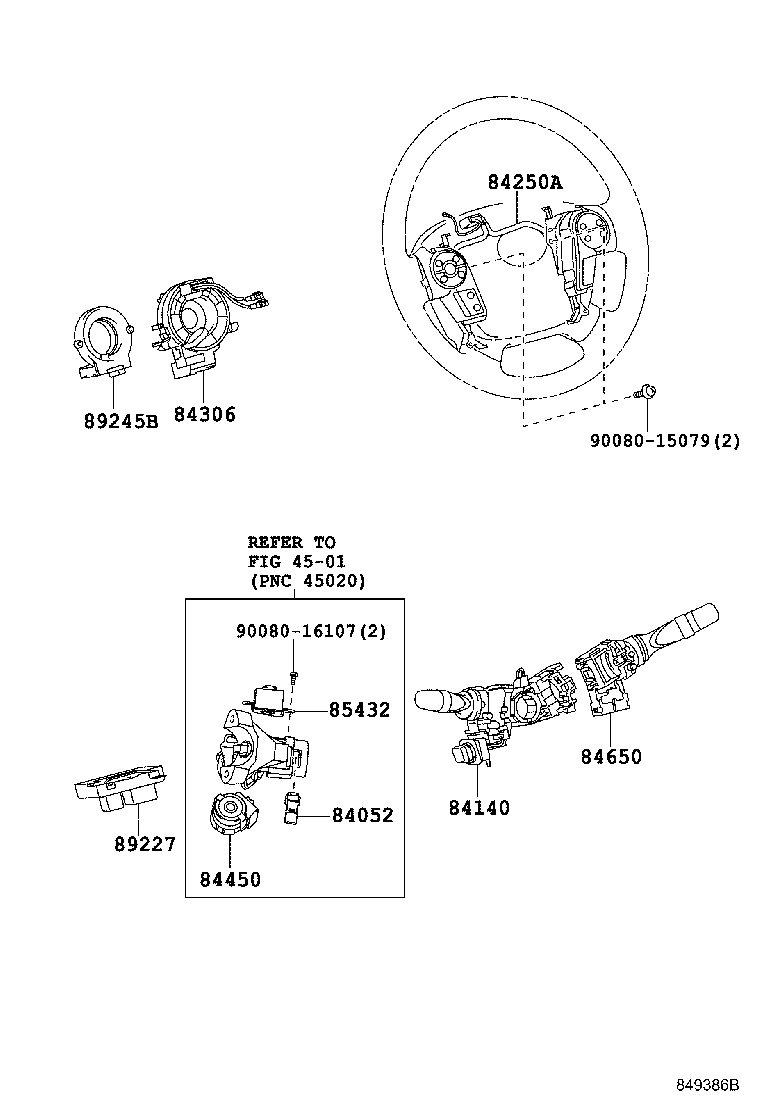

ILLUST NO. 7 OF10(0711-1308)
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-71010 |
UCK6#,UPK6#,USK6# |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-0E011 |
USK6#..PLAT |
1 | ||
| 84140-0C070 |
USK6#..PLAT DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 84140-0E040 |
USK6#..PLAT |
1 | ||
| 84140-0E040 |
USK65..PLAT..HTWC SOUTH AMERICA SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 84140-0C080 |
USK6#..PLAT |
1 | ||
| 84140-0E040 |
USK65..PLAT..HTWC SOUTH AMERICA SPEC |
1 | ||
| 84140-0E040 |
USK65..PLAT..HTWC CANADA SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 84140-0C071 |
USK6#..PLAT DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 84140-0E041 |
USK65..PLAT..HTWC CANADA SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 84140-0C081 |
USK6#..PLAT |
1 | ||
| 84140-0E041 |
USK65..PLAT..HTWC SOUTH AMERICA SPEC |
1 | ||
| 84140-0E041 |
USK65..PLAT..HTWC SOUTH AMERICA SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-0C030C0 |
USK6#..PLAT BLACK,TRIM1#,2#,44 |
1 | ||
| 84250-0C030E0 |
UPK6#,USK6#..LIMD,PLAT DK. BROWN,TRIM44 |
1 | ||
| 84250-0C040C0 |
USK6#..PLAT CRUISE CONTROL-WITH(LASER CRUISE),BLACK,TRIM1#,2#,44 |
1 | ||
| 84250-0C030C0 |
USK6#..PLAT BLACK,TRIM1#,2#,4# |
1 | ||
| 84250-0C040E0 |
USK6#..PLAT CRUISE CONTROL-WITH(LASER CRUISE),DK. BROWN,TRIM44 |
1 | ||
| 84250-0C040C0 |
USK6#..PLAT CRUISE CONTROL-WITH(LASER CRUISE),BLACK,TRIM1#,2#,4# |
1 | ||
| 84250-0C070C0 |
USK6#..PLAT BLACK,TRIM1#,2#,4# |
1 | ||
| 84250-0C080C0 |
USK6#..PLAT CRUISE CONTROL-WITH(LASER CRUISE),BLACK,TRIM1#,2#,4# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-06150 |
USK6# |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-71010 |
UCK6#,UPK6#,USK6# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-0E050 |
UPK6#,USK6# |
1 | ||
| 84652-0E050 |
USK65..HTWC CANADA SPEC |
1 | ||
| 84652-02730 |
USK6# |
1 | ||
| 84652-0E011 |
UCK6#,USK6# |
1 | ||
| 84652-0E050 |
USK65..HTWC SOUTH AMERICA SPEC |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-71010 |
UCK6#,UPK6#,USK6# |
1 | ||
| 89227 - COMPUTER, MULTIPLEX TILT & TELESCOPIC | ||||
| 89227-0C010 |
USK6#..PLAT |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 89245-06040 |
UCK6#,UPK6#,USK6# |
1 | ||
| Common parts | ||||
| 90080-15079 | ||||
| 90080-16107 | ||||
| Linked diagrams | ||||
| 4501 | ||||

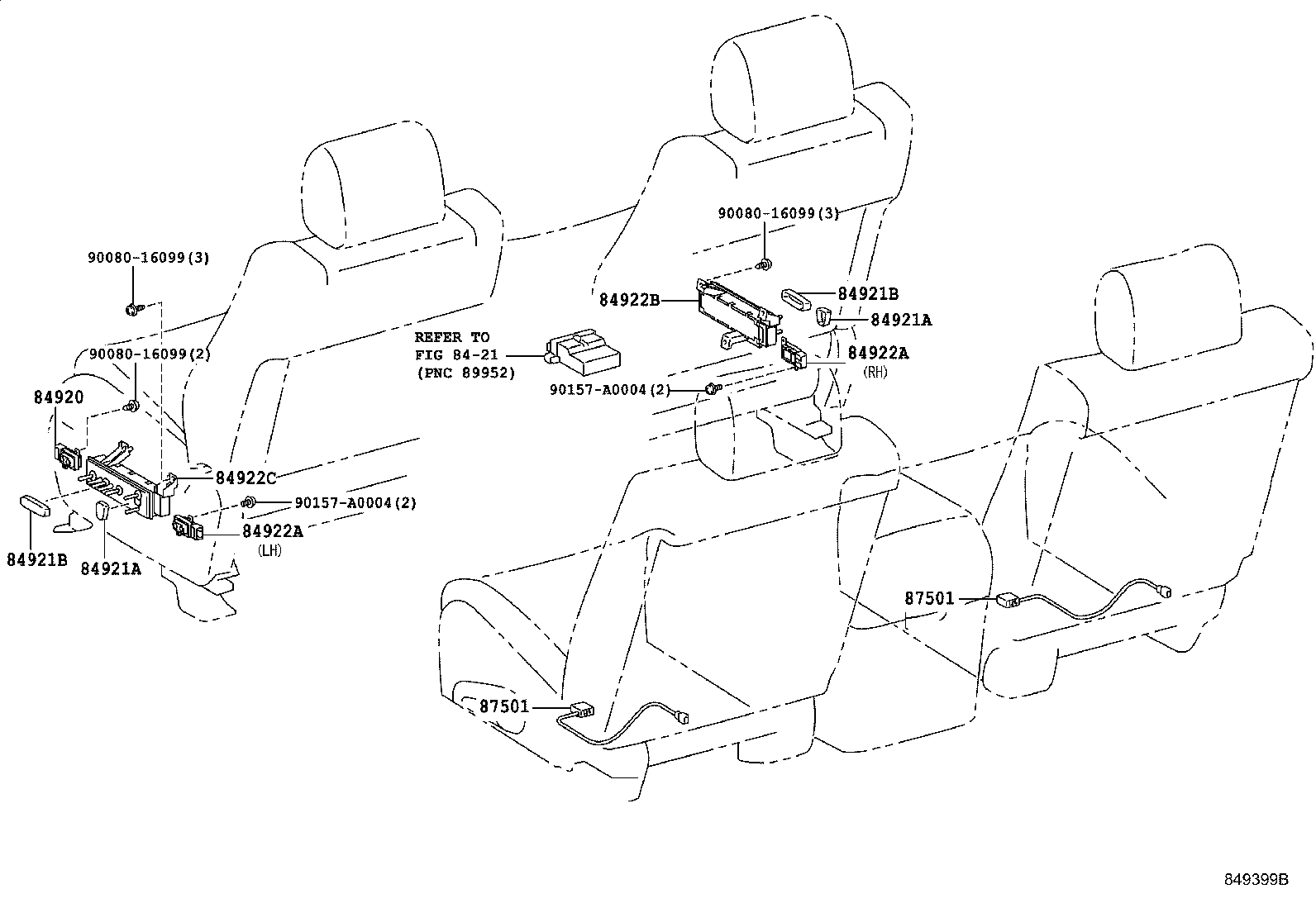

ILLUST NO. 8 OF10(0711- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84920-AC010E0 |
UCK6#,UPK6#,USK6#..LIMD,PLAT SAND BEIGE,TRIM4# |
1 | ||
| 84920-AC010B1 |
UCK6#,UPK6#,USK6#..LIMD,PLAT GRAY,TRIM1# |
1 | ||
| 84920-AC010C0 |
USK6#..PLAT BLACK,TRIM2# |
1 | ||
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-AE010B5 |
UCK6#,UPK6#,USK6#..LIMD,PLAT GRAY,TRIM1# |
2 | ||
| 84921-AE010E2 |
UCK6#,UPK6#,USK6#..LIMD,PLAT SAND BEIGE,TRIM4# |
2 | ||
| 84921-AE010C1 |
USK6#..PLAT BLACK,TRIM2# |
2 | ||
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-AE010B5 |
UCK6#,UPK6#,USK6#..LIMD,PLAT GRAY,TRIM1# |
2 | ||
| 84921-AE010E2 |
UCK6#,UPK6#,USK6#..LIMD,PLAT SAND BEIGE,TRIM4# |
2 | ||
| 84921-AE010C1 |
USK6#..PLAT BLACK,TRIM2# |
2 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-AE020E2 |
UCK6#,UPK6#,USK6#..LIMD,PLAT SAND BEIGE,TRIM4# |
2 | ||
| 84921-AE020C0 |
USK6#..PLAT BLACK,TRIM2# |
2 | ||
| 84921-AE020B4 |
UCK6#,UPK6#,USK6#..LIMD,PLAT GRAY,TRIM1# |
2 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-AE020E2 |
UCK6#,UPK6#,USK6#..LIMD,PLAT SAND BEIGE,TRIM4# |
2 | ||
| 84921-AE020C0 |
USK6#..PLAT BLACK,TRIM2# |
2 | ||
| 84921-AE020B4 |
UCK6#,UPK6#,USK6#..LIMD,PLAT GRAY,TRIM1# |
2 | ||
| 84922A - SWITCH, FRONT POWER SEAT(FOR LUMBAR) | ||||
| 84920-0E010B3 |
UCK6#,UPK6#,USK6#..LIMD,PLAT GRAY,TRIM1#,LH |
1 | ||
| 84920-0E010E2 |
UCK6#,UPK6#,USK6#..LIMD,PLAT SAND BEIGE,TRIM4#,LH |
1 | ||
| 84920-0E020B1 |
UCK6#,UPK6#,USK6#..LIMD,PLAT GRAY,TRIM1#,RH |
1 | ||
| 84920-0E020C0 |
USK6#..PLAT BLACK,TRIM2#,RH |
1 | ||
| 84920-0E020E0 |
UCK6#,UPK6#,USK6#..LIMD,PLAT SAND BEIGE,TRIM4#,RH |
1 | ||
| 84920-0E010C0 |
USK6#..PLAT BLACK,TRIM2#,LH |
1 | ||
| 84922A - SWITCH, FRONT POWER SEAT(FOR LUMBAR) | ||||
| 84920-0E010B3 |
UCK6#,UPK6#,USK6#..LIMD,PLAT GRAY,TRIM1#,LH |
1 | ||
| 84920-0E010E2 |
UCK6#,UPK6#,USK6#..LIMD,PLAT SAND BEIGE,TRIM4#,LH |
1 | ||
| 84920-0E020B1 |
UCK6#,UPK6#,USK6#..LIMD,PLAT GRAY,TRIM1#,RH |
1 | ||
| 84920-0E020C0 |
USK6#..PLAT BLACK,TRIM2#,RH |
1 | ||
| 84920-0E020E0 |
UCK6#,UPK6#,USK6#..LIMD,PLAT SAND BEIGE,TRIM4#,RH |
1 | ||
| 84920-0E010C0 |
USK6#..PLAT BLACK,TRIM2#,LH |
1 | ||
| 84922B - SWITCH, FRONT POWER SEAT, RH | ||||
| 84922-0E010 |
UCK6#,UPK6#,USK6#..LIMD,PLAT |
1 | ||
| 84922C - SWITCH, FRONT POWER SEAT, LH | ||||
| 84070-0C010 |
USK6#..PLAT |
1 | ||
| 87501 - CONTROL SUB-ASSY, SEAT HEATER | ||||
| 87501-0C010 |
USK6#..PLAT |
2 | ||
| 87501 - CONTROL SUB-ASSY, SEAT HEATER | ||||
| 87501-0C010 |
USK6#..PLAT |
2 | ||
| Common parts | ||||
| 90080-16099 | ||||
| 90157-A0004 | ||||
| Linked diagrams | ||||
| 8421 | ||||
ILLUST NO. 4 OF10(0711-1708)
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-0C020 |
USK6# |
1 | ||
| 81980-0C010 |
USK6# DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08294 |
USK6# 40A,TERM.:FEMALE,GRN,ENGINE ROOM |
1 | ||
| 90982-08298 |
USK6# 30A,TERMINAL:FEMALE,INSTRUMENT PANEL |
1 | ||
| 90982-08296 |
USK6# 50A,TERM.:FEMALE,RED,ENGINE ROOM |
1 | ||
| 90982-08295 |
USK6# 30A,TERM.:FEMALE,PNK,ENGINE ROOM |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08294 |
USK6# 40A,TERM.:FEMALE,GRN,ENGINE ROOM |
1 | ||
| 90982-08298 |
USK6# 30A,TERMINAL:FEMALE,INSTRUMENT PANEL |
1 | ||
| 90982-08296 |
USK6# 50A,TERM.:FEMALE,RED,ENGINE ROOM |
1 | ||
| 90982-08295 |
USK6# 30A,TERM.:FEMALE,PNK,ENGINE ROOM |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82052 |
UCK6#,UPK6#,USK6# 15A,MINI FUSE,BLUE,ENGINE ROOM |
1 | ||
| 90080-82051 |
UCK6#,UPK6#,USK6# 10A,MINI FUSE,RED,ENGINE ROOM |
1 | ||
| 90080-82050 |
UCK6#,UPK6#,USK6# 7.5A,MINI FUSE,BROWN,ENGINE ROOM |
1 | ||
| 90080-82053 |
UCK6#,UPK6#,USK6# 20A,MINI FUSE,YELLOW,ENGINE ROOM |
1 | ||
| 90080-82054 |
UCK6#,UPK6#,USK6# 30A,MINI FUSE,GREEN,ENGINE ROOM |
1 | ||
| 90982-09020 |
UCK6#,UPK6#,USK6# 7.5A,MINI FUSE,BROWN,INSTRUMENT PANEL |
1 | ||
| 90982-09021 |
UCK6#,UPK6#,USK6# 10A,MINI FUSE,RED,INSTRUMENT PANEL |
1 | ||
| 90982-09024 |
UCK6#,UPK6#,USK6# 25A,MINI FUSE,INSTRUMENT PANEL |
1 | ||
| 90982-A9001 |
UCK6#,UPK6#,USK6# 5A,MINI FUSE,TAN,ENGINE ROOM |
1 | ||
| 90080-82055 |
UCK6#,UPK6#,USK6# 25A,MINI FUSE,ENGINE ROOM |
1 | ||
| 90982-09022 |
UCK6#,UPK6#,USK6# 15A,MINI FUSE,BLUE,INSTRUMENT PANEL |
1 | ||
| 90982-09025 |
UCK6#,UPK6#,USK6# 30A,MINI FUSE,GRN,INSTRUMENT PANEL |
1 | ||
| 90982-09023 |
UCK6#,UPK6#,USK6# 20A,MINI FUSE,YELLOW,INSTRUMENT PANEL |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82052 |
UCK6#,UPK6#,USK6# 15A,MINI FUSE,BLUE,ENGINE ROOM |
1 | ||
| 90080-82051 |
UCK6#,UPK6#,USK6# 10A,MINI FUSE,RED,ENGINE ROOM |
1 | ||
| 90080-82050 |
UCK6#,UPK6#,USK6# 7.5A,MINI FUSE,BROWN,ENGINE ROOM |
1 | ||
| 90080-82053 |
UCK6#,UPK6#,USK6# 20A,MINI FUSE,YELLOW,ENGINE ROOM |
1 | ||
| 90080-82054 |
UCK6#,UPK6#,USK6# 30A,MINI FUSE,GREEN,ENGINE ROOM |
1 | ||
| 90982-09020 |
UCK6#,UPK6#,USK6# 7.5A,MINI FUSE,BROWN,INSTRUMENT PANEL |
1 | ||
| 90982-09021 |
UCK6#,UPK6#,USK6# 10A,MINI FUSE,RED,INSTRUMENT PANEL |
1 | ||
| 90982-09024 |
UCK6#,UPK6#,USK6# 25A,MINI FUSE,INSTRUMENT PANEL |
1 | ||
| 90982-A9001 |
UCK6#,UPK6#,USK6# 5A,MINI FUSE,TAN,ENGINE ROOM |
1 | ||
| 90080-82055 |
UCK6#,UPK6#,USK6# 25A,MINI FUSE,ENGINE ROOM |
1 | ||
| 90982-09022 |
UCK6#,UPK6#,USK6# 15A,MINI FUSE,BLUE,INSTRUMENT PANEL |
1 | ||
| 90982-09025 |
UCK6#,UPK6#,USK6# 30A,MINI FUSE,GRN,INSTRUMENT PANEL |
1 | ||
| 90982-09023 |
UCK6#,UPK6#,USK6# 20A,MINI FUSE,YELLOW,INSTRUMENT PANEL |
1 | ||
| 82660G - BLOCK ASSY, RELAY | ||||
| 82660-20340 |
USK6# |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-0C080 |
USK6# |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-0C010 |
USK6# |
1 | ||
| 82733A - BLOCK, COWL SIDE JUNCTION, LH | ||||
| 82730-0C180 |
UPK6#,USK6# DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82730-0C191 |
USK6#..PLAT |
1 | ||
| 82730-0C150 |
UPK65,USK65..HTWC CANADA SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82730-0C190 |
USK6#..PLAT |
1 | ||
| 82730-0C181 |
UPK6#,USK6# DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82730-0C192 |
USK6#..PLAT |
1 | ||
| 82730-0C151 |
UPK65,USK65..HTWC CANADA SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82730-0C182 |
UPK6#,USK6# DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82730-0C152 |
USK65..HTWC CANADA SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82730-0C183 |
USK6# DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82730-0C193 |
USK6#..PLAT |
1 | ||
| 82861 - BRACKET, COMPUTER INTEGRATION, NO.1 | ||||
| 82861-0C010 |
UCK6#,USK6# |
1 | ||
| 82861-0C014 |
USK6# |
1 | ||
| 82861-0C013 |
UPK6#,USK6# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-09070 |
USK6# |
1 | ||
| 84340-09310 |
USK6# |
1 | ||
| 84342 - COVER, STOP LAMP SWITCH | ||||
| 84342-08010 |
UCK6#,UPK6#,USK6# |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-08010 |
USK6# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-04030 |
UCK6#,UPK6#,USK6# |
1 | ||
| 85903 - COMPUTER SUB-ASSY, SHIFT LOCK CONTROL | ||||
| 85903-06010 |
UCK6#,UPK6#,USK6# |
1 | ||
| 85916C - RELAY, BACK UP LAMP | ||||
| 90080-87026 |
USK6# (L) |
1 | ||
| 90987-02027 |
USK6# (J) |
1 | ||
| 85930G - RELAY, ACC | ||||
| 90084-98032 |
USK6# |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89111-0C010 |
USK6#..PLAT |
1 | ||
| 89111-0C030 |
USK65..PLAT..HTWC SOUTH AMERICA SPEC |
1 | ||
| 89111-0C030 |
USK6#..PLAT |
1 | ||
| 89533A - COMPUTER, 4 WHEEL DRIVE CONTROL, NO.2 | ||||
| 89533-0C020 |
UCK65,USK65 P/N LABEL=895330C020 |
1 | ||
| 89533-0C021 |
UPK65,USK65 P/N LABEL=895330C021 |
1 | ||
| 89533-0C022 |
USK65 P/N LABEL=895330C022 |
1 | ||
| 89618A - COMPUTER, POWER SOURCE CONTROL | ||||
| 89670-0C011 |
UPK6#,USK6# |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-34010 |
UPK6#,USK6# |
1 | ||
| 89650-34011 |
USK6# |
1 | ||
| Common parts | ||||
| 90080-11353 | ||||
| 90080-15078 | ||||
| 90080-17191 | ||||
| 90105-A0082 | ||||
| 90119-A0334 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8435 | ||||
ILLUST NO. 5 OF10(0711-1107)
INSTRUMENT PANEL 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-0C040 |
USK6#..LIMD,PLAT |
1 | ||
| 84119-0C041 |
USK6#..LIMD,PLAT |
1 | ||
| 84150D - SWITCH ASSY, HEADLAMP CLEANER | ||||
| 84150-0C020 |
USK6#..PLAT |
1 | ||
| 84150-0C021 |
USK6#..PLAT |
1 | ||
| 84170 - SWITCH ASSY, INTERIOR DOME LAMP | ||||
| 84170-0C020 |
USK6# |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-0C011 |
USK6# |
1 | ||
| 84332-0C010 |
USK6# |
1 | ||
| 84415 - SWITCH, CURTAIN AIRBAG CUTOFF | ||||
| 84415-0C030 |
USK65 |
1 | ||
| 84480 - SWITCH ASSY, MAIN | ||||
| 84480-0C040 |
UPK6#,USK6# REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER |
1 | ||
| 84724 - SWITCH, 4 WHEEL DRIVE CONTROL | ||||
| 84724-0C030 |
USK65 |
1 | ||
| 84724-0C010 |
UCK65,USK65 |
1 | ||
| 84810E - SWITCH ASSY, BACK DOOR POWER WINDOW REGULATOR | ||||
| 84810-0C030 |
USK6# |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-0C050 |
USK6#..PLAT TYPE B:REFER ILLUST. |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-0C050 |
USK6#..PLAT TYPE B:REFER ILLUST. |
1 | ||
| 84870D - SWITCH ASSY, OUTER MIRROR, NO.2 | ||||
| 84872-0C010 |
USK6#..PLAT TYPE B:REFER ILLUST. |
1 | ||
| 84870D - SWITCH ASSY, OUTER MIRROR, NO.2 | ||||
| 84872-0C010 |
USK6#..PLAT TYPE B:REFER ILLUST. |
1 | ||
| 84874 - SWITCH, OUTER MIRROR REVERSE GEAR LINK | ||||
| 84874-0C011 |
USK6#..PLAT |
1 | ||
| 84874-0C010 |
USK6#..PLAT |
1 | ||
| 84931C - SWITCH, BACK DOOR CONTROL | ||||
| 84930-0C020 |
USK6#..PLAT |
1 | ||
| 84930-0C021 |
USK6#..PLAT |
1 | ||
| 84965 - SWITCH, POWER BACK DOOR MAIN | ||||
| 84965-0C010 |
USK6#..PLAT |
1 | ||
| 84977 - SWITCH, DRIVE MONITOR | ||||
| 84977-0C030 |
UCK6#,USK6#..LIMD,PLAT |
1 | ||
| 84977-0C090 |
UPK6#,USK6#..LIMD,PLAT |
1 | ||
| 84988F - SWITCH, TRACTION CONTROL | ||||
| 84988-0C020 |
USK6# |
1 | ||
| 84988-0C021 |
USK6# |
1 | ||
| Linked diagrams | ||||
| 8435 | ||||
ILLUST NO. 6 OF10(0711-1708)
INSTRUMENT PANEL 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84725A - SWITCH, DIFFERENTIAL LOCK | ||||
| 84725-0C131 |
USK65 |
1 | ||
| 84725-0C130 |
USK65 |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-0C060 |
USK6#..PLAT RH |
1 | ||
| 84751-0C050 |
USK6#..PLAT LH |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-0C060 |
USK6#..PLAT RH |
1 | ||
| 84751-0C050 |
USK6#..PLAT LH |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-0C060 |
USK6#..PLAT RH |
1 | ||
| 84751-0C050 |
USK6#..PLAT LH |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-0C060 |
USK6#..PLAT RH |
1 | ||
| 84751-0C050 |
USK6#..PLAT LH |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28080 |
USK6# |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-02010 |
USK6# |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
USK6# |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-AE010 |
USK6# |
2 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-AE010 |
USK6# |
2 | ||
| 85530C - SOCKET ASSY, POWER OUTLET, CENTER | ||||
| 85530-AE010 |
USK6#..LIMD,PLAT REAR AUDIO-REAR SEAT ENTERTAINMENT & BLU-RAY PLAYER |
1 | ||
| 85530-AE010 |
USK6# REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER |
1 | ||
| 85530-AE010 |
USK6# |
1 | ||
| 85530E - SOCKET ASSY, POWER OUTLET, NO.3 | ||||
| 85530-73010 |
USK6#..LIMD,PLAT REAR AUDIO-REAR SEAT ENTERTAINMENT & BLU-RAY PLAYER |
1 | ||
| 85530-73010 |
UPK6#,USK6#..LIMD,PLAT REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER |
1 | ||
| 85530-41030 |
UPK6#,USK6# REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-AE010 |
USK6# |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-0C060 |
UPK6#,USK6# |
1 | ||
| 85535-0C050 |
USK6# |
1 | ||
| 85535D - COVER, POWER OUTLET SOCKET, CENTER | ||||
| 85535-AE020C0 |
USK6#..PLAT..HTWC REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER,BLACK,TRIM1#,2# |
1 | ||
| 85535-0C050 |
USK6# |
1 | ||
| 85535-AE020C0 |
USK6#..PLAT..HTWC BLACK,TRIM1#,2# |
1 | ||
| 85535-AE020C0 |
USK6#..PLAT..HTWC REAR AUDIO-REAR SEAT ENTERTAINMENT & BLU-RAY PLAYER,BLACK,TRIM1#,2# |
1 | ||
| 85535-0C050 |
USK6# REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER |
1 | ||
| 85535-0C050 |
USK6#..LIMD,PLAT REAR AUDIO-REAR SEAT ENTERTAINMENT & BLU-RAY PLAYER |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-0C060 |
UCK6#,UPK6#,USK6# |
1 | ||
| 85535-AE020C0 |
USK6#..PLAT..HTWC BLACK,TRIM1#,2# |
1 | ||
| Linked diagrams | ||||
| 8410 | ||||
| 8419 | ||||
| 8601 | ||||
| 8715 | ||||

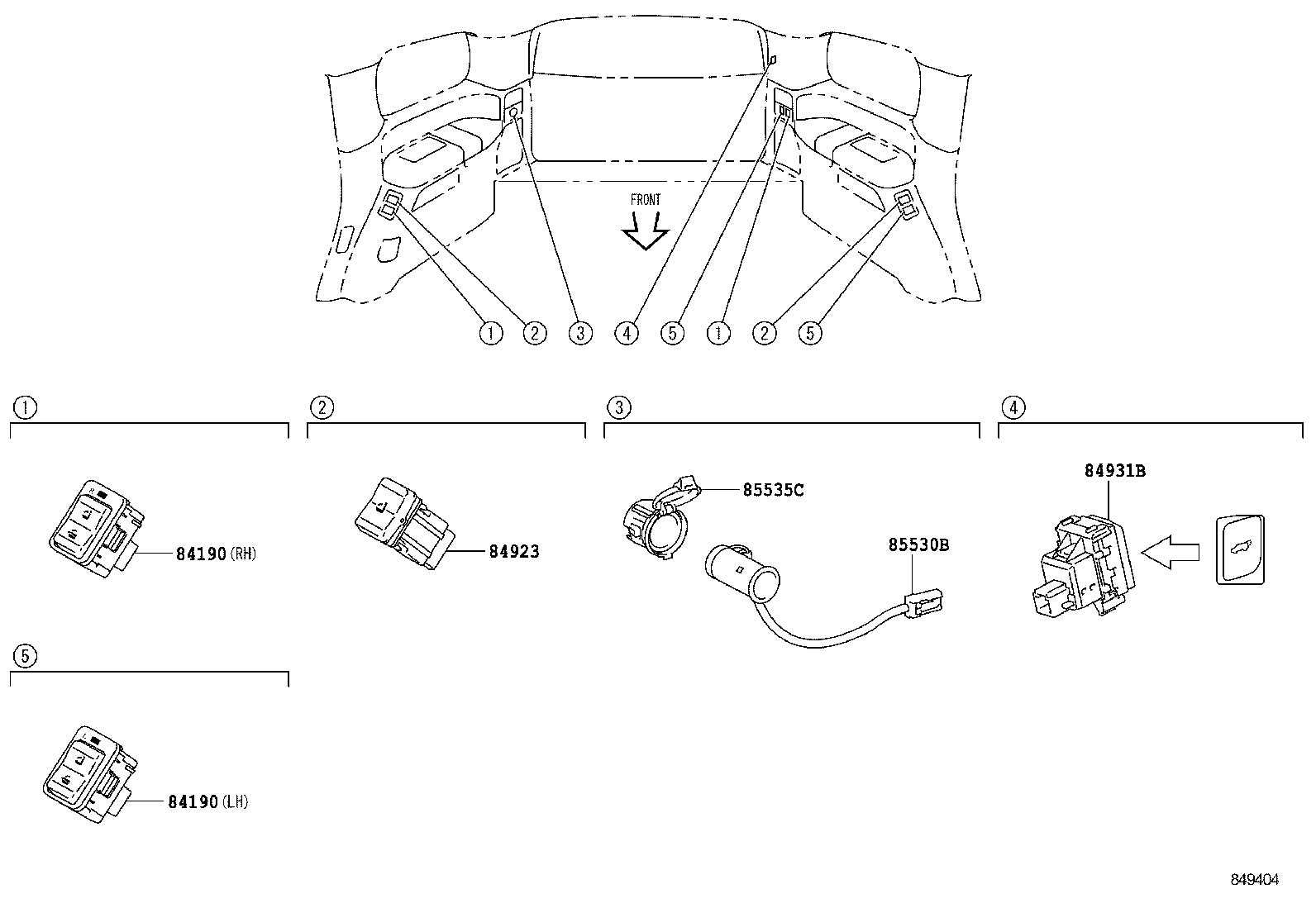

ILLUST NO.10 OF10(0711- )
DOOR & ROOF & FLOOR 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84190 - SWITCH ASSY, FOLD SEAT | ||||
| 84190-0C020 |
USK6#..LIMD,PLAT RH |
2 | ||
| 84190-0C010 |
USK6#..LIMD,PLAT LH |
2 | ||
| 84190 - SWITCH ASSY, FOLD SEAT | ||||
| 84190-0C020 |
USK6#..LIMD,PLAT RH |
2 | ||
| 84190-0C010 |
USK6#..LIMD,PLAT LH |
2 | ||
| 84923 - SWITCH, REAR POWER SEAT | ||||
| 84923-0C010 |
USK6#..LIMD,PLAT |
2 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84930-0C030 |
USK6#..PLAT |
1 | ||
| 85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1 | ||||
| 85530-0C040 |
USK6# |
1 | ||
| 85535C - COVER, POWER OUTLET SOCKET, REAR | ||||
| 85535-AE020C0 |
USK6#..PLAT..HTWC BLACK,TRIM1#,2# |
1 | ||
| 85535-0C050 |
USK6# |
1 | ||

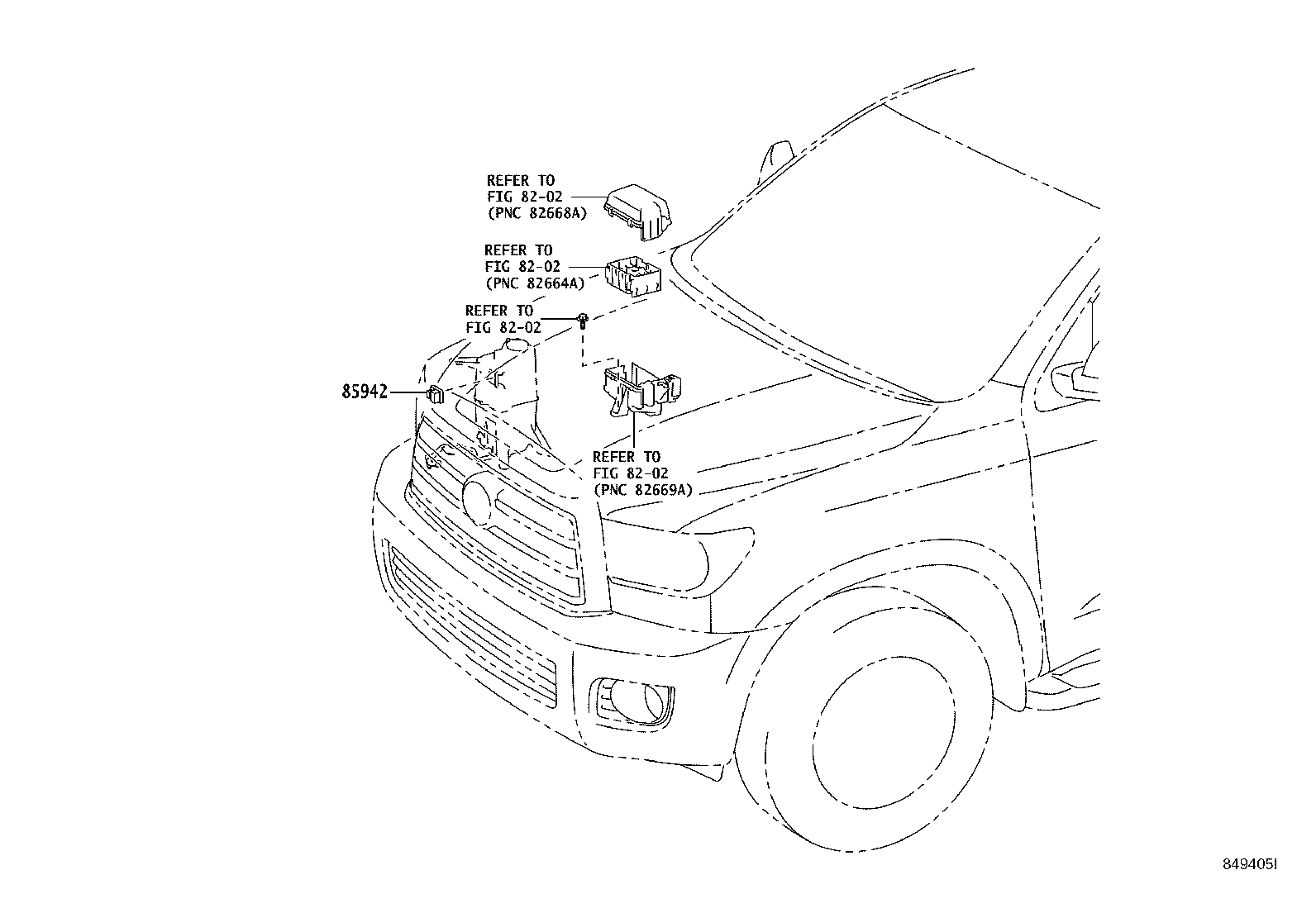

ILLUST NO. 2 OF10(0711-1708)
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85942 - RELAY, HEADLAMP CLEANER CONTROL | ||||
| 85942-30020 |
USK6#..PLAT |
1 | ||
| 85942-58010 |
USK6#..PLAT |
1 | ||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 5 OF10(1107-1708)
INSTRUMENT PANEL 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-0C040 |
USK6#..LIMD,PLAT |
1 | ||
| 84119-0C041 |
USK6#..LIMD,PLAT |
1 | ||
| 84150D - SWITCH ASSY, HEADLAMP CLEANER | ||||
| 84150-0C020 |
USK6#..PLAT |
1 | ||
| 84150-0C021 |
USK6#..PLAT |
1 | ||
| 84170 - SWITCH ASSY, INTERIOR DOME LAMP | ||||
| 84170-0C020 |
USK6# |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-0C011 |
USK6# |
1 | ||
| 84332-0C010 |
USK6# |
1 | ||
| 84415 - SWITCH, CURTAIN AIRBAG CUTOFF | ||||
| 84415-0C030 |
USK65 |
1 | ||
| 84470 - SWITCH ASSY, WARNING CANCELING | ||||
| 84470-0C011 |
USK6#..PLAT |
1 | ||
| 84470-0C010 |
USK6#..PLAT |
1 | ||
| 84724 - SWITCH, 4 WHEEL DRIVE CONTROL | ||||
| 84724-0C030 |
USK65 |
1 | ||
| 84724-0C010 |
UCK65,USK65 |
1 | ||
| 84810E - SWITCH ASSY, BACK DOOR POWER WINDOW REGULATOR | ||||
| 84810-0C030 |
USK6# |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-0C050 |
USK6#..PLAT TYPE B:REFER ILLUST. |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-0C050 |
USK6#..PLAT TYPE B:REFER ILLUST. |
1 | ||
| 84870D - SWITCH ASSY, OUTER MIRROR, NO.2 | ||||
| 84872-0C010 |
USK6#..PLAT TYPE B:REFER ILLUST. |
1 | ||
| 84870D - SWITCH ASSY, OUTER MIRROR, NO.2 | ||||
| 84872-0C010 |
USK6#..PLAT TYPE B:REFER ILLUST. |
1 | ||
| 84874 - SWITCH, OUTER MIRROR REVERSE GEAR LINK | ||||
| 84874-0C011 |
USK6#..PLAT |
1 | ||
| 84874-0C010 |
USK6#..PLAT |
1 | ||
| 84931C - SWITCH, BACK DOOR CONTROL | ||||
| 84930-0C020 |
USK6#..PLAT |
1 | ||
| 84930-0C021 |
USK6#..PLAT |
1 | ||
| 84977 - SWITCH, DRIVE MONITOR | ||||
| 84977-0C030 |
UCK6#,USK6#..LIMD,PLAT |
1 | ||
| 84977-0C090 |
UPK6#,USK6#..LIMD,PLAT |
1 | ||
| 84988F - SWITCH, TRACTION CONTROL | ||||
| 84988-0C020 |
USK6# |
1 | ||
| 84988-0C021 |
USK6# |
1 | ||
| Linked diagrams | ||||
| 8435 | ||||
ILLUST NO. 9 OF10(0711-1708)
DOOR & ROOF & FLOOR 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-0C080 |
UPK6#,USK6#..HTWC |
1 | ||
| 83320-0C023 |
UCK6#,UPK6#,USK6#..HTWC |
1 | ||
| 83320-0C022 |
UCK6#,USK6# |
1 | ||
| 84231A - SWITCH, COURTESY LAMP | ||||
| 84231-0C010 |
USK6# |
4 | ||
| 84231A - SWITCH, COURTESY LAMP | ||||
| 84231-0C010 |
USK6# |
4 | ||
| 84231A - SWITCH, COURTESY LAMP | ||||
| 84231-0C010 |
USK6# |
4 | ||
| 84231A - SWITCH, COURTESY LAMP | ||||
| 84231-0C010 |
USK6# |
4 | ||
| 84751G - SWITCH, SEAT HEATER | ||||
| 84751-0C071 |
USK6#..PLAT LH |
1 | ||
| 84751-0C080 |
USK6#..PLAT RH |
1 | ||
| 84751-0C081 |
USK6#..PLAT RH |
1 | ||
| 84751-0C070 |
USK6#..PLAT LH |
1 | ||
| 84751G - SWITCH, SEAT HEATER | ||||
| 84751-0C071 |
USK6#..PLAT LH |
1 | ||
| 84751-0C080 |
USK6#..PLAT RH |
1 | ||
| 84751-0C081 |
USK6#..PLAT RH |
1 | ||
| 84751-0C070 |
USK6#..PLAT LH |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-0C060 |
USK6# |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-06030 |
USK6# |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-06030 |
USK6# |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-0C030 |
USK6# |
1 | ||
| 84830 - SWITCH ASSY, TAIL GATE CONTROL | ||||
| 84830-35050 |
UCK6#,UPK6#,USK6# |
1 | ||
| 84862 - SWITCH, SLIDE ROOF MOTOR | ||||
| 84862-0C010E0 |
USK6#..PLAT SAND BEIGE,TRIM4# |
1 | ||
| 84862-0C010B0 |
USK6#..PLAT LT.GRAY,TRIM1#,2# |
1 | ||
| 84927 - SWITCH, SEAT MEMORY | ||||
| 84927-0C030 |
USK6#..PLAT |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-0C010 |
USK6# |
1 | ||
| 86210A - INVERTER ASSY, VOLTAGE | ||||
| 86210-34060 |
UPK6#,USK6#..LIMD,PLAT REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER |
1 | ||
| 86210-34060 |
USK6#..LIMD,PLAT REAR AUDIO-REAR SEAT ENTERTAINMENT & BLU-RAY PLAYER |
1 | ||
| 86210-34040 |
UCK6#,USK6# REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER |
1 | ||
| 88161 - BRACKET, BLIND SPOT MONITOR, RH | ||||
| 88161-0C040 |
USK6#..PLAT |
1 | ||
| 88162 - SENSOR, BLIND SPOT MONITOR, RH | ||||
| 88162-0C010 |
USK6#..PLAT |
1 | ||
| 88171 - BRACKET, BLIND SPOT MONITOR, LH | ||||
| 88171-0C040 |
USK6#..PLAT |
1 | ||
| 88172 - SENSOR, BLIND SPOT MONITOR, LH | ||||
| 88172-0C010 |
USK6#..PLAT |
1 | ||
| 89222A - COMPUTER, MULTIPLEX NETWORK DOOR | ||||
| 89222-0C030 |
UCK6#,UPK6#,USK6# |
1 | ||
| 89430 - COMPUTER ASSY, OUTER MIRROR CONTROL | ||||
| 89430-0C020 |
USK6#..PLAT |
1 | ||
| 89715 - COMPUTER, FOLD SEAT CONTROL | ||||
| 89715-0C020 |
USK6#..LIMD,PLAT RH |
1 | ||
| 89715-0C010 |
USK6#..LIMD,PLAT LH |
1 | ||
| 89715 - COMPUTER, FOLD SEAT CONTROL | ||||
| 89715-0C020 |
USK6#..LIMD,PLAT RH |
1 | ||
| 89715-0C010 |
USK6#..LIMD,PLAT LH |
1 | ||
| 89747E - BUZZER, POWER BACK DOOR WARNING | ||||
| 89747-51010 |
USK6#..PLAT |
1 | ||
| Common parts | ||||
| 90080-11546 | ||||
| 90080-14058 | ||||
| 90080-16098 | ||||
| 90080-17182 | ||||
| 90080-17191 | ||||
| 90084-11038 | ||||
| 90159-60507 | ||||
| 90159-A0005 | ||||
| 90159-A0007 | ||||
| 90189-05097 | ||||
| 90189-06227 | ||||
| 90189-06228 | ||||
| 90901-48003 | ||||
ILLUST NO. 7 OF10(1308-1708)
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-71010 |
UCK6#,UPK6#,USK6# |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-0E011 |
USK6#..PLAT |
1 | ||
| 84140-0C070 |
USK6#..PLAT DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 84140-0E040 |
USK6#..PLAT |
1 | ||
| 84140-0E040 |
USK65..PLAT..HTWC SOUTH AMERICA SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 84140-0C080 |
USK6#..PLAT |
1 | ||
| 84140-0E040 |
USK65..PLAT..HTWC SOUTH AMERICA SPEC |
1 | ||
| 84140-0E040 |
USK65..PLAT..HTWC CANADA SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 84140-0C071 |
USK6#..PLAT DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 84140-0E041 |
USK65..PLAT..HTWC CANADA SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 84140-0C081 |
USK6#..PLAT |
1 | ||
| 84140-0E041 |
USK65..PLAT..HTWC SOUTH AMERICA SPEC |
1 | ||
| 84140-0E041 |
USK65..PLAT..HTWC SOUTH AMERICA SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-0C030C0 |
USK6#..PLAT BLACK,TRIM1#,2#,44 |
1 | ||
| 84250-0C030E0 |
UPK6#,USK6#..LIMD,PLAT DK. BROWN,TRIM44 |
1 | ||
| 84250-0C040C0 |
USK6#..PLAT CRUISE CONTROL-WITH(LASER CRUISE),BLACK,TRIM1#,2#,44 |
1 | ||
| 84250-0C030C0 |
USK6#..PLAT BLACK,TRIM1#,2#,4# |
1 | ||
| 84250-0C040E0 |
USK6#..PLAT CRUISE CONTROL-WITH(LASER CRUISE),DK. BROWN,TRIM44 |
1 | ||
| 84250-0C040C0 |
USK6#..PLAT CRUISE CONTROL-WITH(LASER CRUISE),BLACK,TRIM1#,2#,4# |
1 | ||
| 84250-0C070C0 |
USK6#..PLAT BLACK,TRIM1#,2#,4# |
1 | ||
| 84250-0C080C0 |
USK6#..PLAT CRUISE CONTROL-WITH(LASER CRUISE),BLACK,TRIM1#,2#,4# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-06150 |
USK6# |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-71010 |
UCK6#,UPK6#,USK6# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-0E050 |
UPK6#,USK6# |
1 | ||
| 84652-0E050 |
USK65..HTWC CANADA SPEC |
1 | ||
| 84652-02730 |
USK6# |
1 | ||
| 84652-0E011 |
UCK6#,USK6# |
1 | ||
| 84652-0E050 |
USK65..HTWC SOUTH AMERICA SPEC |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-71010 |
UCK6#,UPK6#,USK6# |
1 | ||
| 89227 - COMPUTER, MULTIPLEX TILT & TELESCOPIC | ||||
| 89227-0C010 |
USK6#..PLAT |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 89245-06040 |
UCK6#,UPK6#,USK6# |
1 | ||
| Common parts | ||||
| 90080-15079 | ||||
| 90080-16107 | ||||
| Linked diagrams | ||||
| 4501 | ||||
ILLUST NO. 3 OF10(0711-1708)
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-0A011 |
3UR#..USK6# |
1 | ||
| 28300-0A010 |
3UR#..USK6# |
1 | ||
| 28800L - RELAY, SUB BATTERY | ||||
| 90080-87026 |
3UR#..USK6# |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08294 |
USK6# 40A,TERM.:FEMALE,GRN,ENGINE ROOM |
1 | ||
| 90982-08298 |
USK6# 30A,TERMINAL:FEMALE,INSTRUMENT PANEL |
1 | ||
| 90982-08296 |
USK6# 50A,TERM.:FEMALE,RED,ENGINE ROOM |
1 | ||
| 90982-08295 |
USK6# 30A,TERM.:FEMALE,PNK,ENGINE ROOM |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82052 |
UCK6#,UPK6#,USK6# 15A,MINI FUSE,BLUE,ENGINE ROOM |
1 | ||
| 90080-82051 |
UCK6#,UPK6#,USK6# 10A,MINI FUSE,RED,ENGINE ROOM |
1 | ||
| 90080-82050 |
UCK6#,UPK6#,USK6# 7.5A,MINI FUSE,BROWN,ENGINE ROOM |
1 | ||
| 90080-82053 |
UCK6#,UPK6#,USK6# 20A,MINI FUSE,YELLOW,ENGINE ROOM |
1 | ||
| 90080-82054 |
UCK6#,UPK6#,USK6# 30A,MINI FUSE,GREEN,ENGINE ROOM |
1 | ||
| 90982-09020 |
UCK6#,UPK6#,USK6# 7.5A,MINI FUSE,BROWN,INSTRUMENT PANEL |
1 | ||
| 90982-09021 |
UCK6#,UPK6#,USK6# 10A,MINI FUSE,RED,INSTRUMENT PANEL |
1 | ||
| 90982-09024 |
UCK6#,UPK6#,USK6# 25A,MINI FUSE,INSTRUMENT PANEL |
1 | ||
| 90982-A9001 |
UCK6#,UPK6#,USK6# 5A,MINI FUSE,TAN,ENGINE ROOM |
1 | ||
| 90080-82055 |
UCK6#,UPK6#,USK6# 25A,MINI FUSE,ENGINE ROOM |
1 | ||
| 90982-09022 |
UCK6#,UPK6#,USK6# 15A,MINI FUSE,BLUE,INSTRUMENT PANEL |
1 | ||
| 90982-09025 |
UCK6#,UPK6#,USK6# 30A,MINI FUSE,GRN,INSTRUMENT PANEL |
1 | ||
| 90982-09023 |
UCK6#,UPK6#,USK6# 20A,MINI FUSE,YELLOW,INSTRUMENT PANEL |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
USK6# |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-0C030 |
USK60;USK65..HTWCF;USK65..(LIMD,PLAT)..HTWC |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-0C030 |
UPK6#,USK60;USK65..HTWCF;USK65..(LIMD,PLAT)..HTWC |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-0C100 |
USK6# |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-0C110 |
USK6# |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
USK6#..PLAT |
3 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-26270 |
USK6# |
1 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-52010 |
USK60;USK65..HTWCF;USK65..(LIMD,PLAT)..HTWC |
6 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-0C220 |
UCK6#,USK60;USK65..LIMD,PLAT |
1 | ||
| 82661-0C221 |
UCK6#,USK60;USK65..HTWCF;USK65..(LIMD,PLAT)..HTWC |
1 | ||
| 82661-0C222 |
UPK6#,USK60;USK65..HTWCF;USK65..(LIMD,PLAT)..HTWC |
1 | ||
| 82661-0C223 |
USK6# |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-0C060 |
USK6# |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-0C060 |
USK6# |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-41010 |
USK6# |
1 | ||
| 84794A - RELAY, FR WIPER DEICER | ||||
| 90080-87026 |
USK6# COLD AREA SPEC |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90080-87025 |
USK6# |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90080-87026 |
USK6#..LIMD,PLAT |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90080-87024 |
USK6# |
1 | ||
| 85916Y - RELAY, TOWING TAIL | ||||
| 90080-87026 |
USK6# |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90080-87024 |
USK6# |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02028 |
USK6# |
1 | ||
| 85934A - RELAY CONDENSER FAN | ||||
| 90987-02028 |
USK6# |
1 | ||
| 85941A - RELAY, REAR WINDSHIELD WASHER | ||||
| 90080-87026 |
USK6# |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90080-87026 |
USK6# |
1 | ||
| Common parts | ||||
| 90080-11273 | ||||
| Linked diagrams | ||||
| 8404 | ||||
| 8414 | ||||
| 8419 | ||||
| 8601 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
