USK65L-GKTZKA (2007)
Toyota Sequoia
ILLUST NO. 1 OF12(0711- )

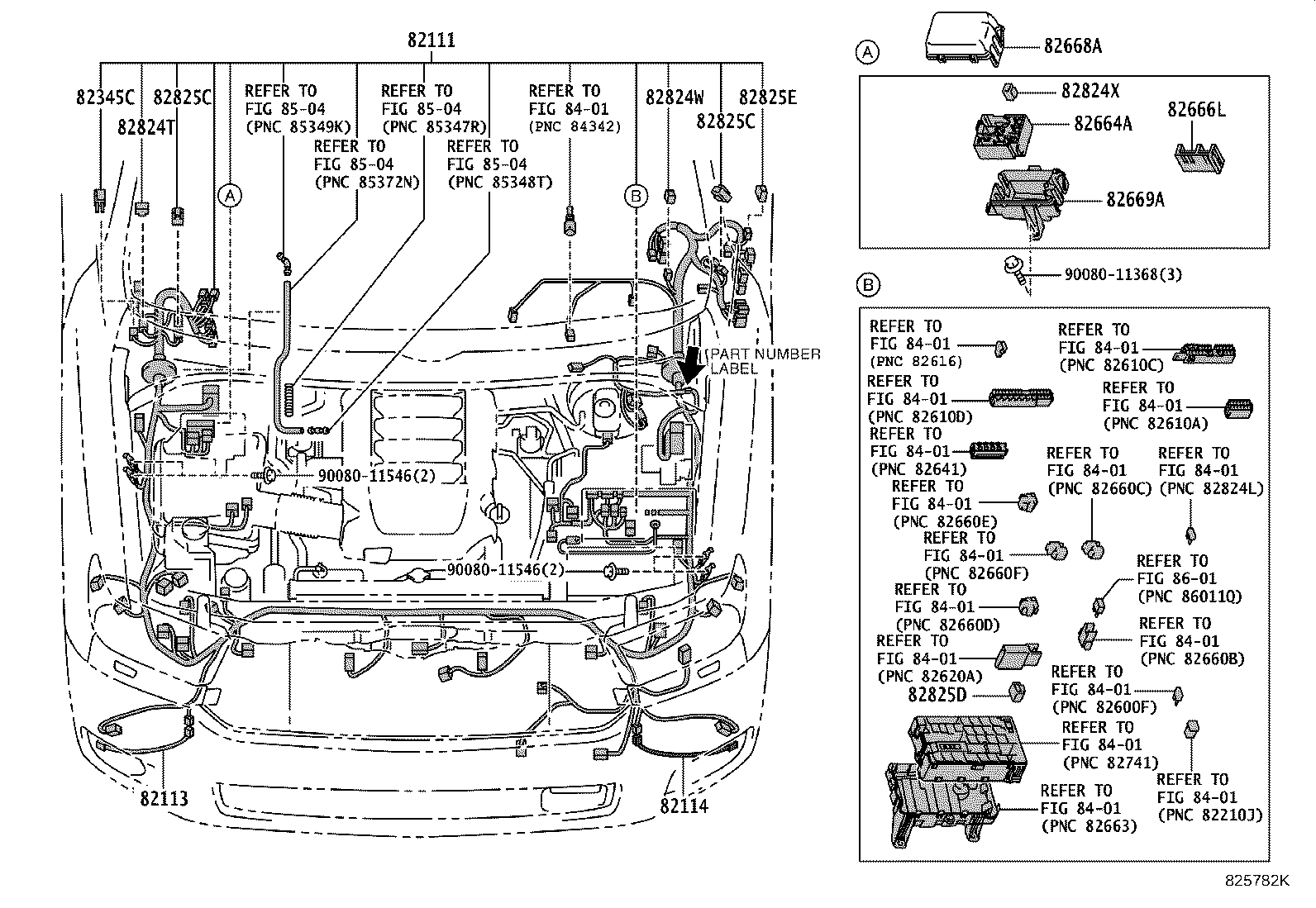

ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-0C670 |
USK65..PLAT..HTWC |
1 | ||
| 82111-0C671 |
USK65..PLAT..HTWC |
1 | ||
| 82111-0C672 |
USK65..PLAT..HTWC |
1 | ||
| 82111-0C673 |
USK65..PLAT..HTWC |
1 | ||
| 82111-0C670 |
USK65..PLAT..HTWC PART NUMBER LABEL=82111-0C670 |
1 | ||
| 82111-0C671 |
USK65..PLAT..HTWC PART NUMBER LABEL=82111-0C671 |
1 | ||
| 82111-0C672 |
USK65..PLAT..HTWC PART NUMBER LABEL=82111-0C672 |
1 | ||
| 82111-0C673 |
USK65..PLAT..HTWC PART NUMBER LABEL=82111-0C673 |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-0C010 |
USK6#..LIMD,PLAT |
1 | ||
| 82113-0C011 |
USK6#..LIMD,PLAT |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-0C010 |
USK6#..LIMD,PLAT |
1 | ||
| 82114-0C011 |
USK6#..LIMD,PLAT |
1 | ||
| 82345C - DIODE | ||||
| 82345-32010 |
USK6# |
1 | ||
| 82664A - BLOCK, CONNECTOR HOLDER | ||||
| 82664-0C010 |
USK6# |
1 | ||
| 82666L - HOLDER, CONNECTOR NO.9 | ||||
| 82666-0C300 |
USK6# |
1 | ||
| 82668A - COVER, CONNECTOR HOLDER BLOCK, UPPER | ||||
| 82668-0C010 |
USK6# |
1 | ||
| 82669A - COVER, CONNECTOR HOLDER BLOCK, LOWER | ||||
| 82669-0C020 |
USK6# |
1 | ||
| 82824T - CONNECTOR, WIRING HARNESS | ||||
| 82824-22070 |
USK6# |
1 | ||
| 82824W - CONNECTOR, WIRING HARNESS | ||||
| 82824-22090 |
USK6# |
1 | ||
| 82824X - CONNECTOR, WIRING HARNESS | ||||
| 82824-28180 |
USK6# |
1 | ||
| 82825C - CONNECTOR, WIRING HARNESS | ||||
| 82824-44020 |
USK6# |
2 | ||
| 82825C - CONNECTOR, WIRING HARNESS | ||||
| 82824-44020 |
USK6# |
2 | ||
| 82825D - CONNECTOR, WIRING HARNESS | ||||
| 82824-50110 |
USK6# |
1 | ||
| 82825E - CONNECTOR, WIRING HARNESS | ||||
| 82824-52280 |
USK6# |
1 | ||
| Common parts | ||||
| 90080-11368 | ||||
| 90080-11546 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8504 | ||||
| 8601 | ||||
ILLUST NO. 4 OF12(0711- )

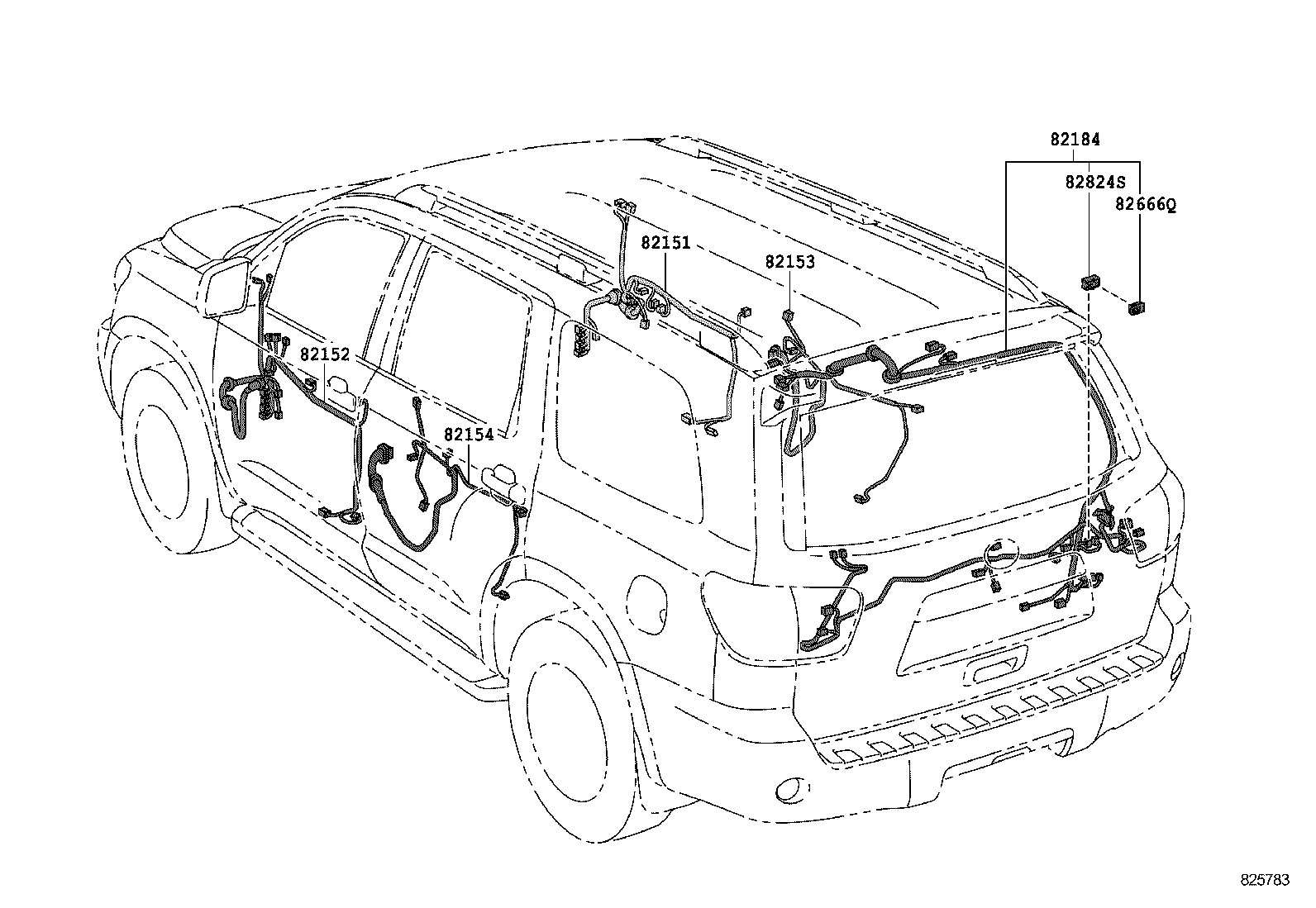

DOOR & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-0C330 |
USK6#..PLAT |
1 | ||
| 82151-0C331 |
USK6#..PLAT |
1 | ||
| 82151-0C420 |
USK6#..PLAT |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-0C310 |
USK6#..PLAT |
1 | ||
| 82152-0C311 |
USK6#..PLAT |
1 | ||
| 82152-0C390 |
USK6#..PLAT |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-0C100 |
UPK6#,USK6#..LIMD,PLAT |
1 | ||
| 82153-0C101 |
USK6#..PLAT |
1 | ||
| 82153-0C131 |
USK6#..PLAT AUDIO-*DA(DELUXE) 12SPEAKER |
1 | ||
| 82153-0C131 |
USK6#..PLAT AUDIO-AVN 12SPEAKER |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82153-0C100 |
UPK6#,USK6#..LIMD,PLAT |
1 | ||
| 82153-0C101 |
USK6#..PLAT |
1 | ||
| 82153-0C131 |
USK6#..PLAT AUDIO-AVN 12SPEAKER |
1 | ||
| 82153-0C131 |
USK6#..PLAT AUDIO-*DA(DELUXE) 12SPEAKER |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-0C070 |
USK6#..PLAT |
1 | ||
| 82184-0C071 |
USK6#..PLAT |
1 | ||
| 82184-0C072 |
USK6#..PLAT |
1 | ||
| 82184-0C073 |
USK6#..PLAT |
1 | ||
| 82666Q - HOLDER, CONNECTOR NO.12 | ||||
| 82666-22080 |
USK6# |
1 | ||
| 82824S - CONNECTOR, WIRING HARNESS | ||||
| 82824-30180 |
USK6# |
1 | ||
ILLUST NO. 6 OF12(0711- )

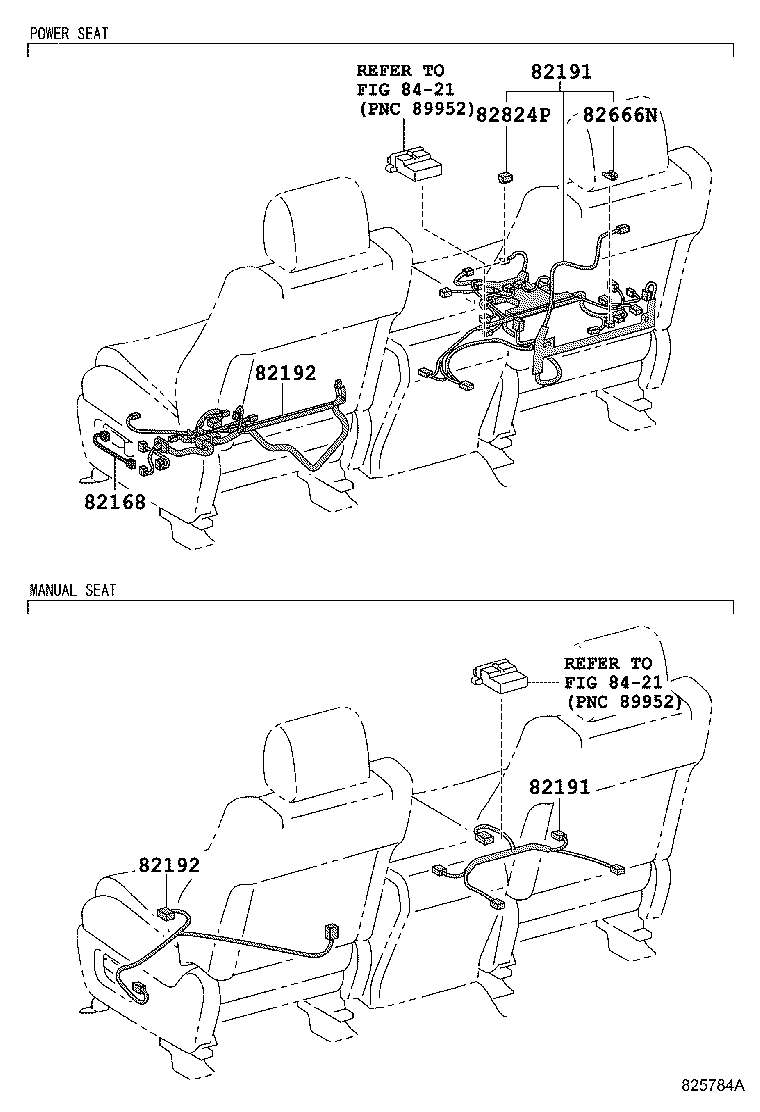

FRONT SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82168 - WIRE, SEAT, NO.2 | ||||
| 82168-AC050 |
USK6#..LIMD,PLAT |
1 | ||
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-0C050 |
USK6#..PLAT |
1 | ||
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-0C050 |
USK6#..PLAT |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-0C050 |
USK6#..PLAT |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-0C050 |
USK6#..PLAT |
1 | ||
| 82666N - HOLDER, CONNECTOR NO.10 | ||||
| 82666-21040 |
USK6#..PLAT |
1 | ||
| 82824P - CONNECTOR, WIRING HARNESS | ||||
| 82824-22070 |
USK6#..PLAT |
1 | ||
| Linked diagrams | ||||
| 8421 | ||||
ILLUST NO. 7 OF12(0711- )

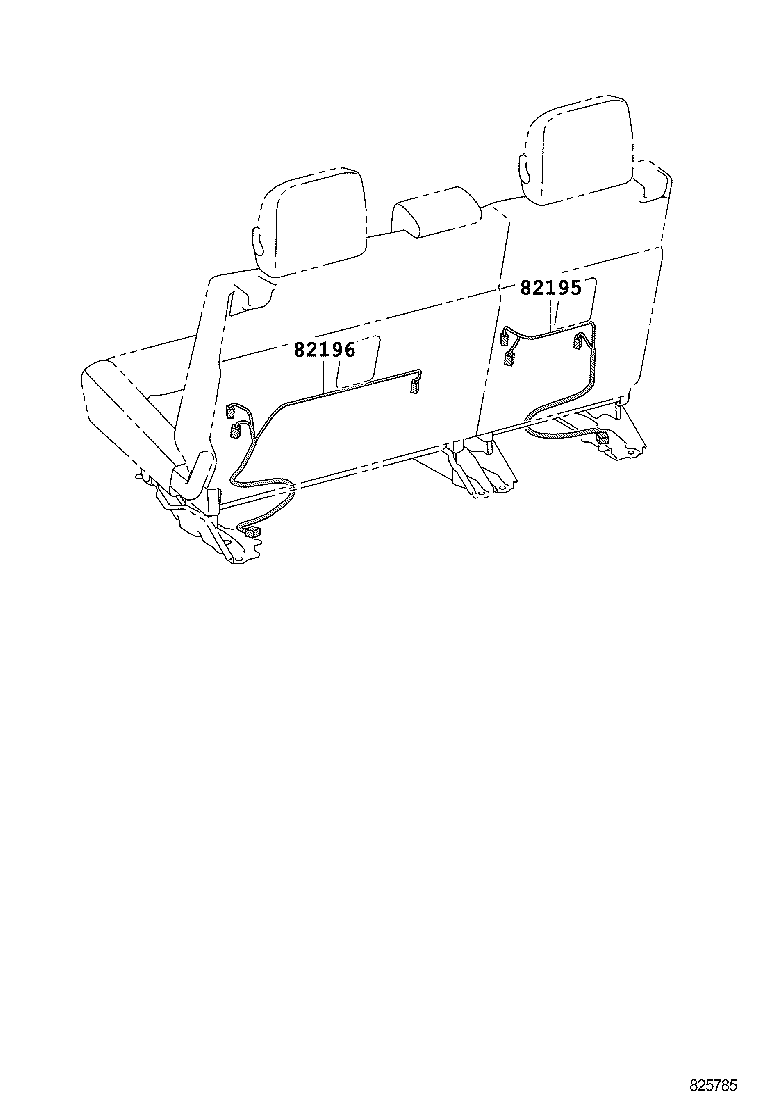

THIRD SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82195 - WIRE, REAR SEAT, RH NO.2 | ||||
| 82195-0C010 |
UCK6#,UPK6#,USK6#..LIMD,PLAT |
1 | ||
| 82196 - WIRE, REAR SEAT, LH NO.2 | ||||
| 82196-0C010 |
UCK6#,UPK6#,USK6#..LIMD,PLAT |
1 | ||
ILLUST NO. 9 OF12(0711- )USK6#

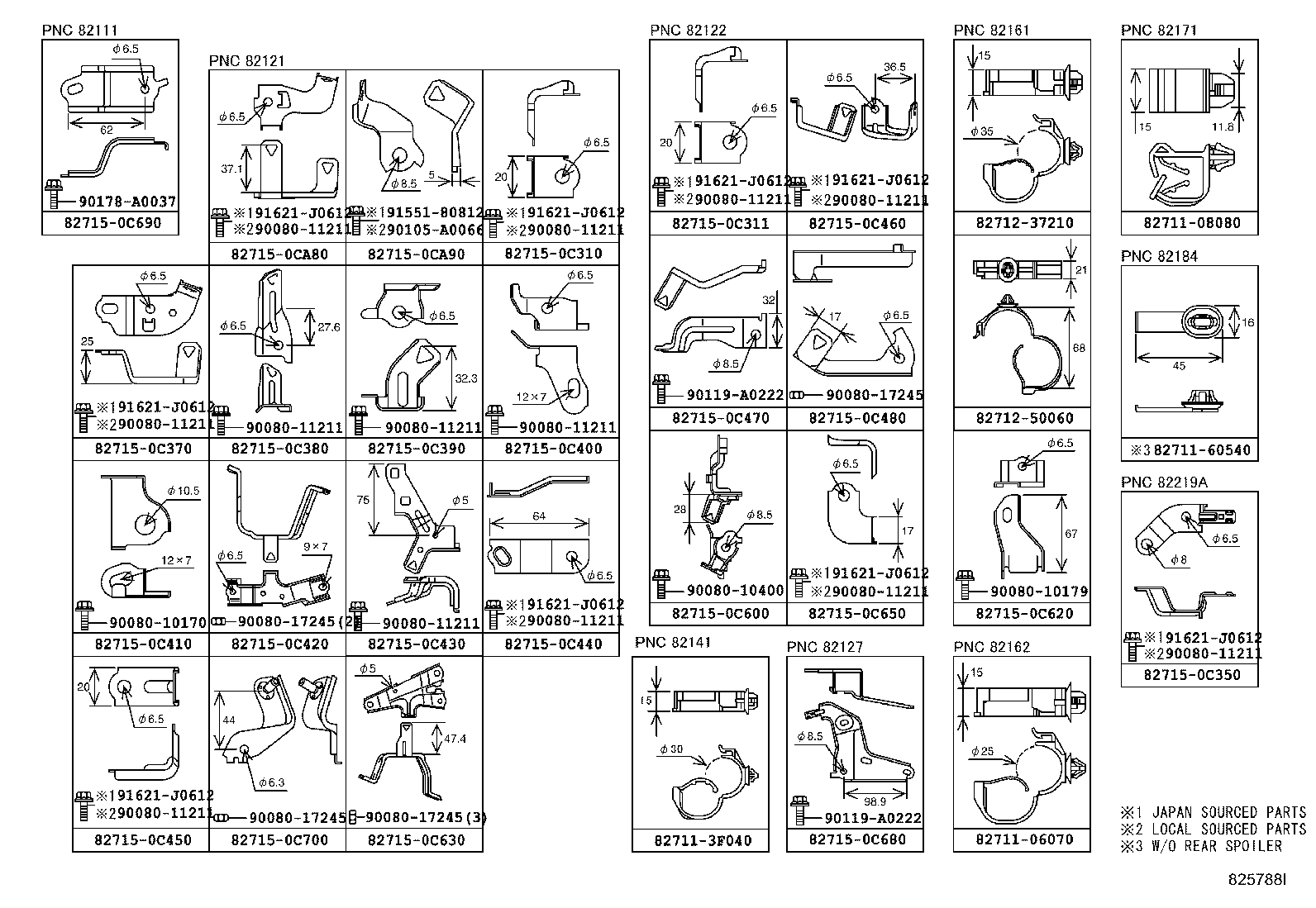

CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-06070 | ||||
| 82711-08080 | ||||
| 82711-3F040 | ||||
| 82711-60540 | ||||
| 82712-37210 | ||||
| 82712-50060 | ||||
| 82715-0C310 | ||||
| 82715-0C311 | ||||
| 82715-0C350 | ||||
| 82715-0C370 | ||||
| 82715-0C380 | ||||
| 82715-0C390 | ||||
| 82715-0C400 | ||||
| 82715-0C410 | ||||
| 82715-0C420 | ||||
| 82715-0C430 | ||||
| 82715-0C440 | ||||
| 82715-0C450 | ||||
| 82715-0C460 | ||||
| 82715-0C470 | ||||
| 82715-0C480 | ||||
| 82715-0C600 | ||||
| 82715-0C620 | ||||
| 82715-0C630 | ||||
| 82715-0C650 | ||||
| 82715-0C680 | ||||
| 82715-0C690 | ||||
| 82715-0C700 | ||||
| 82715-0CA80 | ||||
| 82715-0CA90 | ||||
| 90080-10170 | ||||
| 90080-10179 | ||||
| 90080-10400 | ||||
| 90080-11211 | ||||
| 90080-17245 | ||||
| 90105-A0066 | ||||
| 90119-A0222 | ||||
| 90178-A0037 | ||||
| 91551-80812 | ||||
| 91621-J0612 | ||||
ILLUST NO. 2 OF12(0711- )USK6#

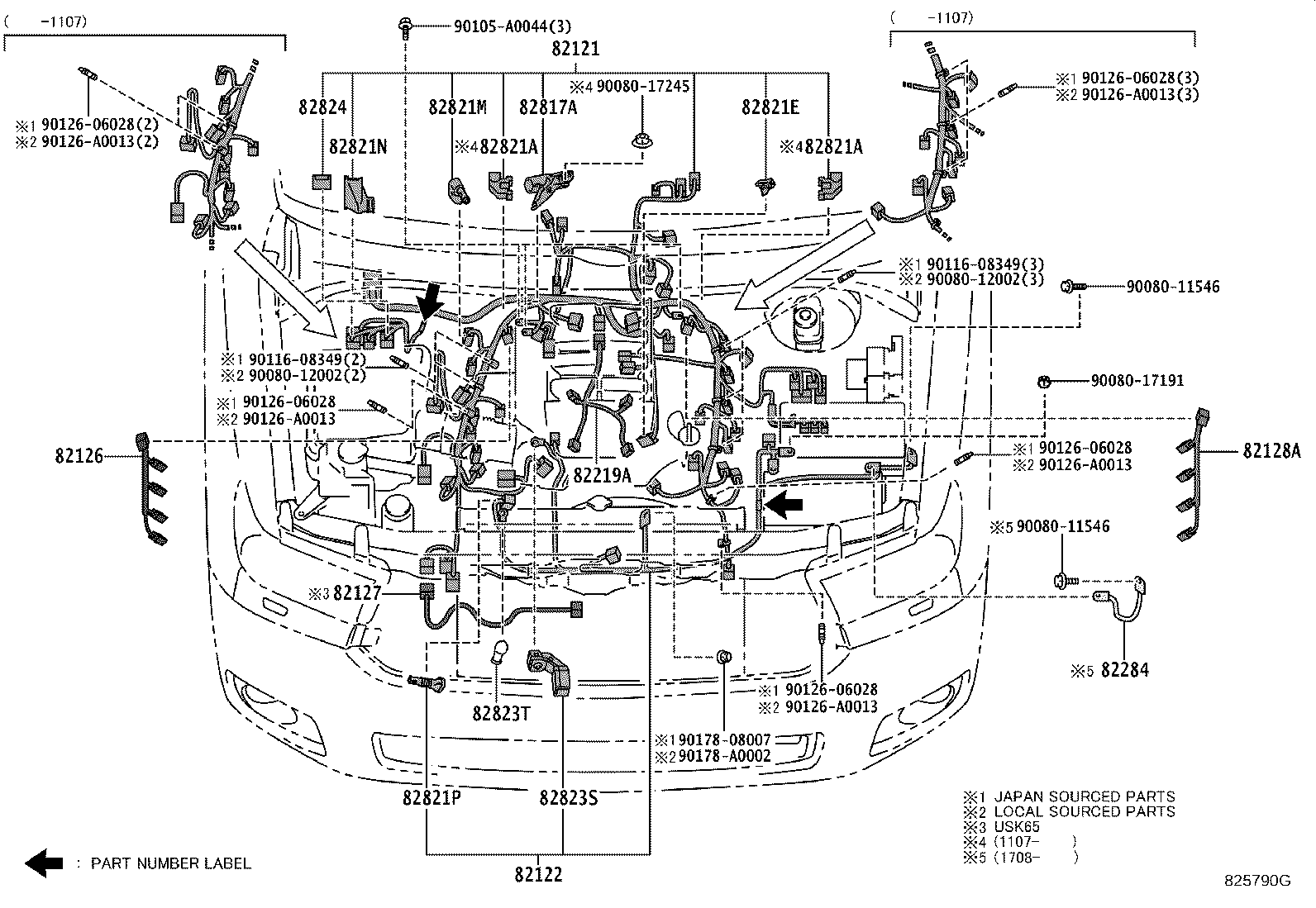

ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-0C192 |
USK65..HTWC |
1 | ||
| 82121-0C190 |
USK65..HTWC |
1 | ||
| 82121-0C191 |
USK65..HTWC |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-0C220 |
USK6#..(LIMD,PLAT)..HTWC |
1 | ||
| 82122-0C190 |
USK6#..HTWC TOWING PACKAGE-WITH |
1 | ||
| 82126 - WIRE, ENGINE | ||||
| 82126-34020 |
USK6# |
1 | ||
| 82126-34021 |
USK6# |
1 | ||
| 82126-0C010 |
USK6# (L) |
1 | ||
| 82126-34021 |
USK6# (J) |
1 | ||
| 82127 - WIRE, DIFFERENTIAL | ||||
| 82127-0C040 |
USK65 |
1 | ||
| 82128A - WIRE, ENGINE, NO.8 | ||||
| 82127-34041 |
UPK6#,USK6# |
1 | ||
| 82127-34050 |
USK6# |
1 | ||
| 82127-0C060 |
USK6# (L) |
1 | ||
| 82127-34050 |
USK6# (J) |
1 | ||
| 82127-34040 |
USK6# |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-0C020 |
USK6# |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-50500 |
USK6# |
2 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-50500 |
USK6# |
2 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-0C020 |
USK6# |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-60040 |
UCK6#,USK6#..HTWC |
1 | ||
| 82823-34010 |
USK6#..HTWC TOWING PACKAGE-WITH |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-30220 |
USK6# |
2 | ||
| Common parts | ||||
| 90080-11546 | ||||
| 90080-12002 | ||||
| 90080-17191 | ||||
| 90080-17245 | ||||
| 90105-A0044 | ||||
| 90116-08349 | ||||
| 90126-06028 | ||||
| 90126-A0013 | ||||
| 90178-08007 | ||||
| 90178-A0002 | ||||
ILLUST NO. 3 OF12(0711- )

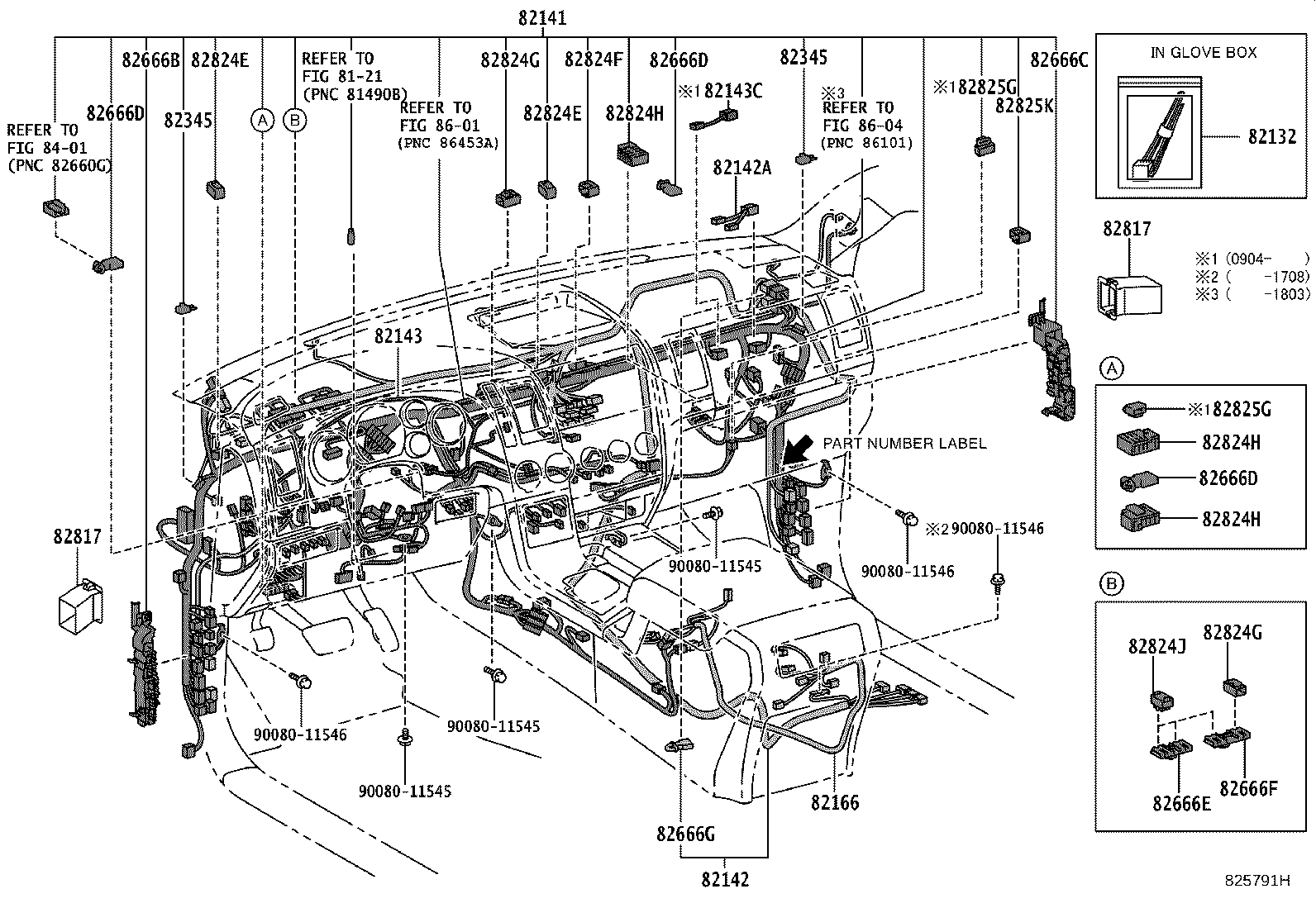

INSTRUMENT PANEL & CONSOLE BOX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82132 - WIRE, COWL, NO.2 | ||||
| 82132-0C010 |
USK6#..HTWC TOWING PACKAGE-WITH |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-0C170 |
USK6#..PLAT |
1 | ||
| 82141-0C171 |
USK6#..PLAT |
1 | ||
| 82141-0C172 |
USK6#..PLAT |
1 | ||
| 82141-0C173 |
USK6#..PLAT |
1 | ||
| 82141-0C430 |
USK6#..PLAT |
1 | ||
| 82141-0C530 |
USK6#..PLAT AUDIO-AVN AM/FM CD DVD 14SPEAKER JBL |
1 | ||
| 82141-0C531 |
USK6#..PLAT |
1 | ||
| 82141-0C532 |
USK6#..PLAT |
1 | ||
| 82141-0C431 |
USK6#..PLAT |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-0C120 |
UCK6#,USK6#..LIMD,PLAT |
1 | ||
| 82142-0C130 |
UCK6#,USK6#..LIMD,PLAT REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER |
1 | ||
| 82142-0C140 |
UCK6#,USK6# AUDIO-AVN AM/FM/CD 14SPEAKER JBL |
1 | ||
| 82142-0C150 |
UCK6#,USK6# AUDIO-AVN AM/FM/CD 14SPEAKER JBL&REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER |
1 | ||
| 82142-0C141 |
UPK6#,USK6#..(LIMD,PLAT)..HTWC USA POSSESSION SPEC&AUDIO-AVN AM/FM/CD 14SPEAKER JBL |
1 | ||
| 82142-0C151 |
UPK6#,USK6#..(LIMD,PLAT)..HTWC USA POSSESSION SPEC&AUDIO-AVN AM/FM/CD 14SPEAKER JBL&REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER |
1 | ||
| 82142-0C200 |
UPK6#,USK6#..LIMD,PLAT AUDIO-AVN AM/FM/CD 14SPEAKER JBL&REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER |
1 | ||
| 82142-0C131 |
UPK6#,USK6#..LIMD,PLAT REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER |
1 | ||
| 82142-0C121 |
UPK6#,USK6#..LIMD,PLAT |
1 | ||
| 82142-0C190 |
UPK6#,USK6#..LIMD,PLAT AUDIO-AVN AM/FM/CD 14SPEAKER JBL |
1 | ||
| 82142-0C122 |
USK6#..LIMD,PLAT |
1 | ||
| 82142-0C152 |
USK6#..LIMD,PLAT AUDIO-AVN AM/FM CD DVD 14SPEAKER JBL&REAR AUDIO-REAR SEAT ENTERTAINMENT & BLU-RAYPLAYER |
1 | ||
| 82142-0C142 |
USK6#..LIMD,PLAT AUDIO-AVN AM/FM CD DVD 14SPEAKER JBL |
1 | ||
| 82142-0C153 |
USK6#..PLAT..HTWC USA POSSESSION SPEC |
1 | ||
| 82142-0C143 |
USK6#..PLAT |
1 | ||
| 82142-0C231 |
USK6#..PLAT..HTWC USA POSSESSION SPEC&AUDIO-AVN 12SPEAKER |
1 | ||
| 82142-0C281 |
USK6#..PLAT AUDIO-AVN 12SPEAKER |
1 | ||
| 82142-0C231 |
USK6#..PLAT..HTWC USA POSSESSION SPEC&AUDIO-*DA(DELUXE) 12SPEAKER |
1 | ||
| 82142-0C281 |
USK6#..PLAT AUDIO-*DA(DELUXE) 12SPEAKER |
1 | ||
| 82142-0C231 |
USK65..PLAT..HTWC SOUTH AMERICA SPEC&AUDIO-*DA(DELUXE) 12SPEAKER |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82140-0C020 |
USK6# |
1 | ||
| 82143 - WIRE, INSTRUMENT PANEL, NO.3 | ||||
| 82143-0C040 |
USK6#..PLAT |
1 | ||
| 82143C - WIRE, INSTRUMENT PANEL, NO.3 | ||||
| 82140-0C030 |
USK6# |
1 | ||
| 82166 - WIRE, CONSOLE BOX | ||||
| 82166-0C160 |
UPK6#,USK6# REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER |
1 | ||
| 82166-0C150 |
USK6# |
1 | ||
| 82166-0C161 |
UPK6#,USK6#..LIMD,PLAT REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER |
1 | ||
| 82166-0C161 |
USK6#..LIMD,PLAT REAR AUDIO-REAR SEAT ENTERTAINMENT & BLU-RAY PLAYER |
1 | ||
| 82345 - DIODE | ||||
| 82345-32010 |
USK6# |
2 | ||
| 82345 - DIODE | ||||
| 82345-32010 |
USK6# |
2 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-0C240 |
USK6# |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-0C250 |
USK6# |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-20270 |
UCK6#,UPK6#;USK65..HTWCF;USK6#..(LIMD,PLAT)..HTWC |
3 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-20270 |
UCK6#,UPK6#;USK65..HTWCF;USK6#..(LIMD,PLAT)..HTWC |
3 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-20270 |
UCK6#,UPK6#;USK65..HTWCF;USK6#..(LIMD,PLAT)..HTWC |
3 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-60220 |
USK6# |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-60310 |
USK6# |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-20270 |
USK6# |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-0C120 |
USK6# |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-0C120 |
USK6# |
2 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-22060 |
UCK6#;UPK6#,USK6#..LIMD,PLAT |
2 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-22060 |
UCK6#;UPK6#,USK6#..LIMD,PLAT |
2 | ||
| 82824F - CONNECTOR, WIRING HARNESS | ||||
| 82824-22070 |
USK6# |
1 | ||
| 82824G - CONNECTOR, WIRING HARNESS | ||||
| 82824-44030 |
USK6# |
2 | ||
| 82824G - CONNECTOR, WIRING HARNESS | ||||
| 82824-44030 |
USK6# |
2 | ||
| 82824H - CONNECTOR, WIRING HARNESS | ||||
| 82824-48080 |
UCK6#;USK65..HTWCF;USK6#..(LIMD,PLAT)..HTWC |
3 | ||
| 82824-48080 |
UPK6#,USK6# |
1 | ||
| 82824H - CONNECTOR, WIRING HARNESS | ||||
| 82824-48080 |
UCK6#;USK65..HTWCF;USK6#..(LIMD,PLAT)..HTWC |
3 | ||
| 82824-48080 |
UPK6#,USK6# |
1 | ||
| 82824H - CONNECTOR, WIRING HARNESS | ||||
| 82824-48080 |
UCK6#;USK65..HTWCF;USK6#..(LIMD,PLAT)..HTWC |
3 | ||
| 82824-48080 |
UPK6#,USK6# |
1 | ||
| 82824J - CONNECTOR, WIRING HARNESS | ||||
| 82824-52280 |
USK6# |
3 | ||
| 82825G - CONNECTOR, WIRING HARNESS | ||||
| 82824-50340 |
UPK6#,USK6#..LIMD,PLAT |
2 | ||
| 82824-50340 |
USK6# |
5 | ||
| 82825G - CONNECTOR, WIRING HARNESS | ||||
| 82824-50340 |
UPK6#,USK6#..LIMD,PLAT |
2 | ||
| 82824-50340 |
USK6# |
5 | ||
| 82825K - CONNECTOR, WIRING HARNESS | ||||
| 82824-50350 |
USK6# |
3 | ||
| 82824-50350 |
UPK6#,USK6# |
2 | ||
| Common parts | ||||
| 90080-11545 | ||||
| 90080-11546 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8401 | ||||
| 8601 | ||||
| 8604 | ||||

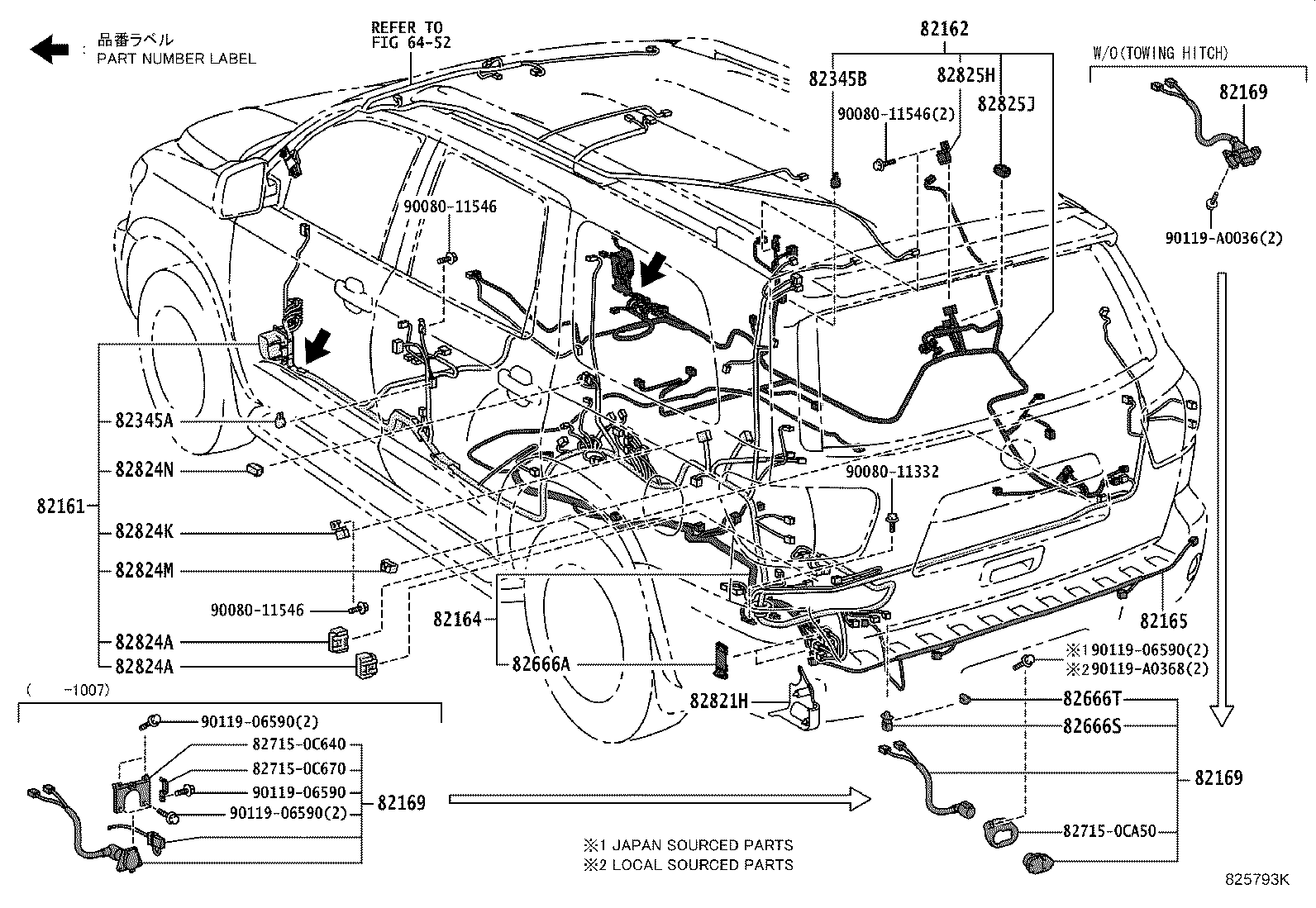

ILLUST NO. 5 OF12(0711- )
FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-0C440 |
USK65..PLAT..HTWC |
1 | ||
| 82161-0C442 |
USK65..PLAT..HTWC |
1 | ||
| 82161-0C443 |
USK65..PLAT..HTWC |
1 | ||
| 82161-0C444 |
USK65..PLAT..HTWC |
1 | ||
| 82161-0C640 |
USK65..PLAT..HTWC |
1 | ||
| 82161-0C641 |
USK65..PLAT..HTWC |
1 | ||
| 82161-0C440 |
USK65..PLAT..HTWC PART NUMBER LABEL=82161-0C440 |
1 | ||
| 82161-0C442 |
USK65..PLAT..HTWC PART NUMBER LABEL=82161-0C442 |
1 | ||
| 82161-0C443 |
USK65..PLAT..HTWC PART NUMBER LABEL=82161-0C443 |
1 | ||
| 82161-0C444 |
USK65..PLAT..HTWC PART NUMBER LABEL=82161-0C444 |
1 | ||
| 82161-0C640 |
USK65..PLAT..HTWC PART NUMBER LABEL=82161-0C640 |
1 | ||
| 82161-0C641 |
USK65..PLAT..HTWC |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-0C331 |
USK6#..PLAT |
1 | ||
| 82162-0C330 |
USK6#..PLAT |
1 | ||
| 82162-0C461 |
USK6#..PLAT |
1 | ||
| 82162-0C460 |
USK6#..PLAT |
1 | ||
| 82162-0C330 |
USK6#..PLAT PART NUMBER LABEL=82162-0C330 |
1 | ||
| 82162-0C331 |
USK6#..PLAT PART NUMBER LABEL=82162-0C331 |
1 | ||
| 82162-0C461 |
USK6#..PLAT |
1 | ||
| 82162-0C460 |
USK6#..PLAT PART NUMBER LABEL=82162-0C460 |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-0C220 |
USK6#..PLAT..HTWC |
1 | ||
| 82165 - WIRE, FRAME, NO.2 | ||||
| 82165-0C051 |
USK6#..LIMD,PLAT |
1 | ||
| 82165-0C050 |
UPK6#,USK6#..LIMD,PLAT |
1 | ||
| 82165-0C052 |
USK6#..LIMD,PLAT |
1 | ||
| 82169 - WIRE FRAME, NO.3 | ||||
| 82169-0C070 |
UPK6#,USK6# |
1 | ||
| 82169-0C090 |
USK6# |
1 | ||
| 82169 - WIRE FRAME, NO.3 | ||||
| 82169-0C070 |
UPK6#,USK6# |
1 | ||
| 82169-0C090 |
USK6# |
1 | ||
| 82169 - WIRE FRAME, NO.3 | ||||
| 82169-0C070 |
UPK6#,USK6# |
1 | ||
| 82169-0C090 |
USK6# |
1 | ||
| 82345A - DIODE | ||||
| 82345-12050 |
USK6# |
1 | ||
| 82345B - DIODE | ||||
| 82345-12050 |
USK6# |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-60610 |
USK65..HTWCF;USK6#..PLAT..HTWC |
2 | ||
| 82666S - HOLDER, CONNECTOR NO.13 | ||||
| 82666-20270 |
USK6# |
1 | ||
| 82666T - HOLDER, CONNECTOR NO.14 | ||||
| 82666-21040 |
USK6# |
1 | ||
| 82821H - COVER, CONNECTOR | ||||
| 82821-0C050 |
USK6# |
1 | ||
| 82824A - CONNECTOR, WIRING HARNESS | ||||
| 82824-50350 |
USK6#..PLAT |
2 | ||
| 82824A - CONNECTOR, WIRING HARNESS | ||||
| 82824-50350 |
USK6#..PLAT |
2 | ||
| 82824K - CONNECTOR, WIRING HARNESS | ||||
| 82824-48010 |
USK6# |
1 | ||
| 82824M - CONNECTOR, WIRING HARNESS | ||||
| 82824-50110 |
USK60;USK65..HTWCF;USK65..(LIMD,PLAT)..HTWC |
1 | ||
| 82824N - CONNECTOR, WIRING HARNESS | ||||
| 82824-44030 |
USK6#..LIMD,PLAT |
1 | ||
| 82825H - CONNECTOR, WIRING HARNESS | ||||
| 82824-48010 |
USK6# |
1 | ||
| 82825J - CONNECTOR, WIRING HARNESS | ||||
| 82824-50360 |
USK6#..LIMD,PLAT |
1 | ||
| 82824-30220 |
USK6#..PLAT |
1 | ||
| Common parts | ||||
| 82715-0C640 | ||||
| 82715-0C670 | ||||
| 82715-0CA50 | ||||
| 90080-11332 | ||||
| 90080-11546 | ||||
| 90119-06590 | ||||
| 90119-A0036 | ||||
| 90119-A0368 | ||||
| Linked diagrams | ||||
| 6452 | ||||
ILLUST NO.10 OF12(0711- )
CONNECTOR 1/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90980-10474 | ||||
| 90980-10859 | ||||
| 90980-10868 | ||||
| 90980-10897 | ||||
| 90980-10906 | ||||
| 90980-10908 | ||||
| 90980-10942 | ||||
| 90980-11002 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11020 | ||||
| 90980-11149 | ||||
| 90980-11162 | ||||
| 90980-11314 | ||||
| 90980-11659 | ||||
| 90980-11875 | ||||

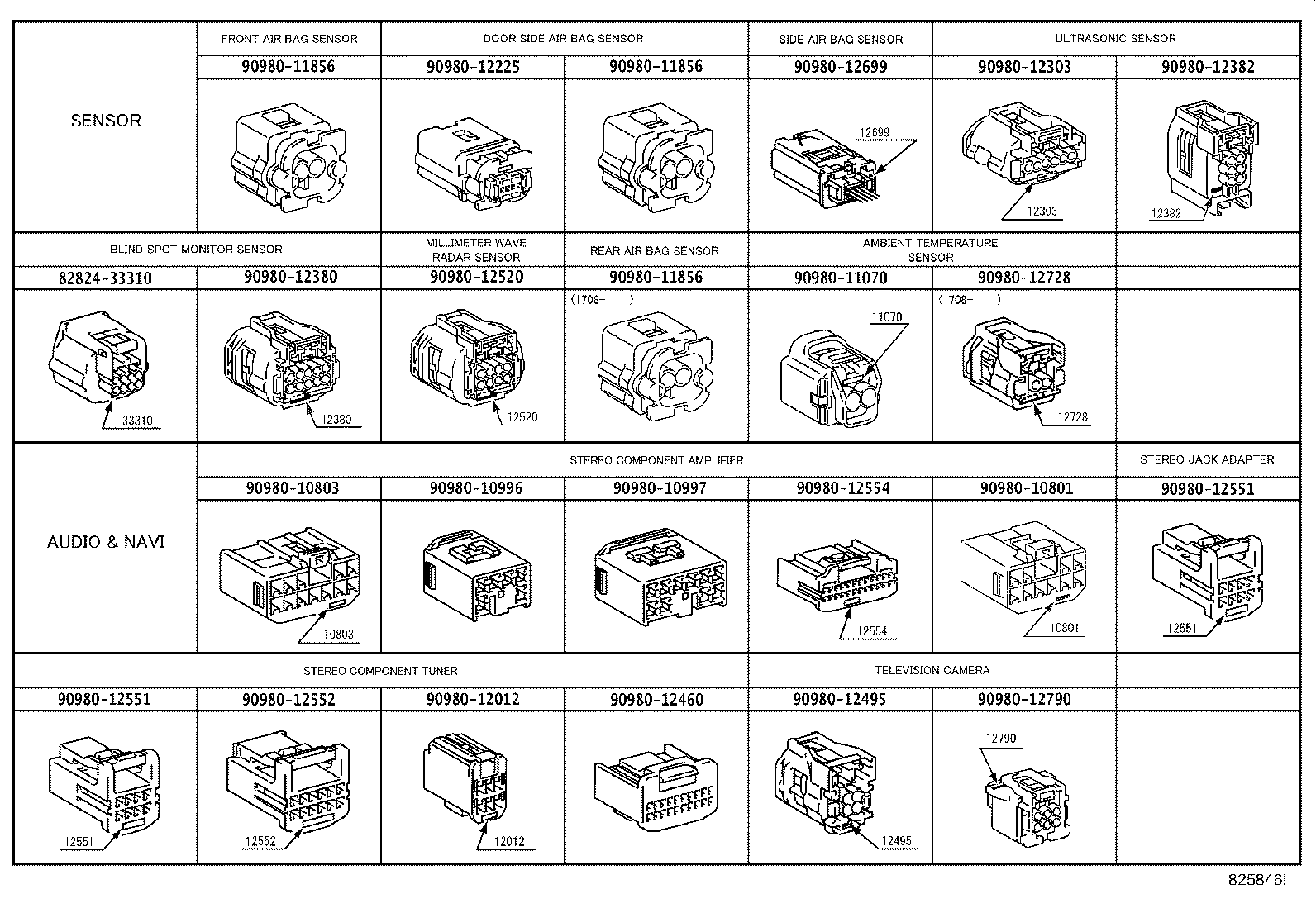

ILLUST NO.11 OF12(0711- )
CONNECTOR 2/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-33310 | ||||
| 90980-10801 | ||||
| 90980-10803 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-11070 | ||||
| 90980-11856 | ||||
| 90980-12012 | ||||
| 90980-12225 | ||||
| 90980-12303 | ||||
| 90980-12380 | ||||
| 90980-12382 | ||||
| 90980-12460 | ||||
| 90980-12495 | ||||
| 90980-12520 | ||||
| 90980-12551 | ||||
| 90980-12552 | ||||
| 90980-12554 | ||||
| 90980-12699 | ||||
| 90980-12728 | ||||
| 90980-12790 | ||||

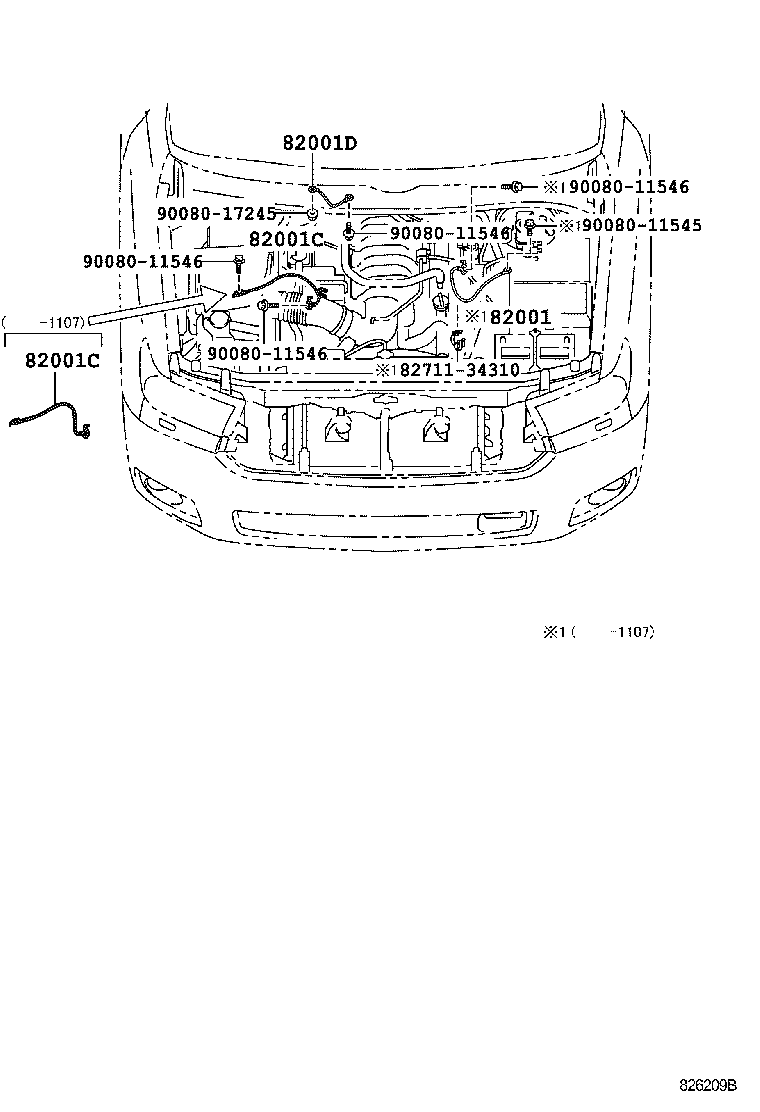

ILLUST NO. 8 OF12(0711- )USK6#
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-A7006 |
USK6# |
1 | ||
| 82001C - CABLE, BOND, NO.2 | ||||
| 90980-A7009 |
USK6# |
1 | ||
| 82001C - CABLE, BOND, NO.2 | ||||
| 90980-A7009 |
USK6# |
1 | ||
| 82001D - CABLE, BOND, NO.3 | ||||
| 90980-A7012 |
USK6# |
1 | ||
| Common parts | ||||
| 82711-34310 | ||||
| 90080-11545 | ||||
| 90080-11546 | ||||
| 90080-17245 | ||||

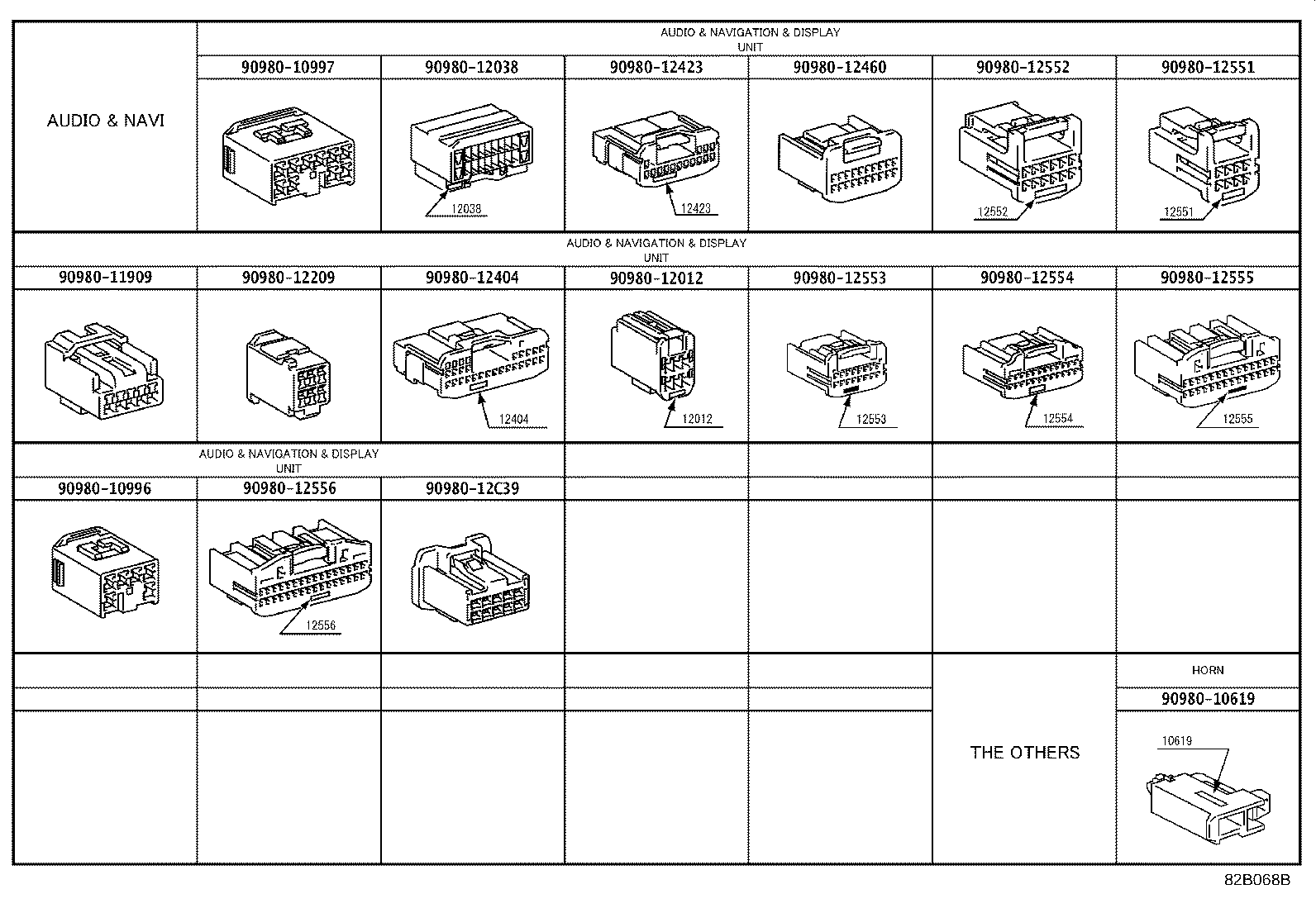

ILLUST NO.12 OF12(0711- )
CONNECTOR 3/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-11909 | ||||
| 90980-12012 | ||||
| 90980-12038 | ||||
| 90980-12209 | ||||
| 90980-12404 | ||||
| 90980-12423 | ||||
| 90980-12460 | ||||
| 90980-12551 | ||||
| 90980-12552 | ||||
| 90980-12553 | ||||
| 90980-12554 | ||||
| 90980-12555 | ||||
| 90980-12556 | ||||
| 90980-12C39 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
