USK65L-GKTZKA (2007)

Toyota Sequoia

Production Nov 2007 - Aug 2017
Engine 3URFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

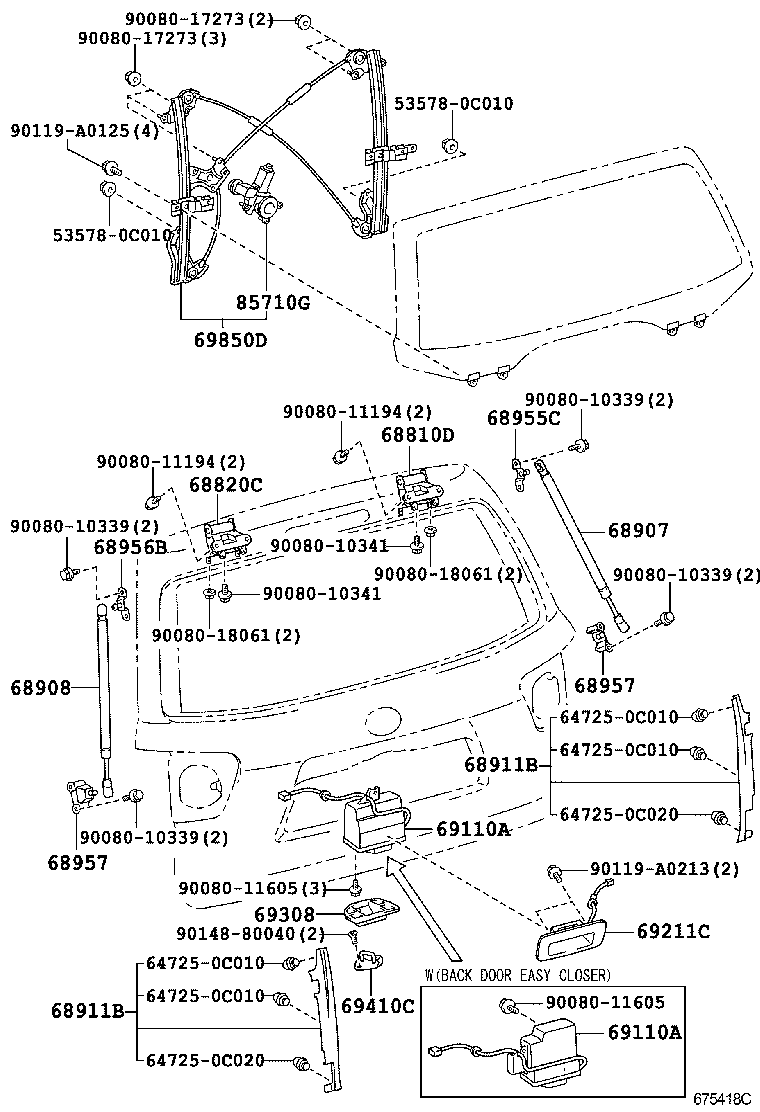

ILLUST NO. 1 OF 2(0711- )

Click highlighted areas on diagram

diagram 535780C010 535780C010 647250C010 647250C010 647250C010 647250C010 647250C020 647250C020 68810D 68820C 68907 68908 68911B 68911B 68955C 68956B 68957 68957 69110A 69110A 69211C 69308 69410C 69850D 85710G 9008010339 9008010339 9008010339 9008010339 9008010341 9008010341 9008011194 9008011194 9008011605 9008011605 9008017273 9008017273 9008018061 9008018061 90119A0125 90119A0213 9014880040
Part # Description Qty Price
68810D - HINGE ASSY, BACK DOOR, RH
68810-0C030

UCK6#,USK6#

 1
68810-0C031

USK6#

 1
68820C - HINGE ASSY, BACK DOOR, LH
68820-0C041

USK6#

 1
68820-0C040

UCK6#,USK6#

 1
68907 - STAY SUB-ASSY, BACK DOOR DAMPER, RH
68907-0C020

USK6#..PLAT

 1
68907-0C021

USK6#..PLAT

 1
68907-0C050

USK6#..PLAT

 1
68908 - STAY SUB-ASSY, BACK DOOR DAMPER, LH
68908-0C020

USK6#..PLAT

 1
68908-0C050

USK6#..PLAT

 1
68908-0C021

USK6#..PLAT

 1
68911B - COVER, BACK DOOR STAY
64457-0C010

USK6#

RH

 1
64458-0C010

USK6#

LH

 1
68911B - COVER, BACK DOOR STAY
64457-0C010

USK6#

RH

 1
64458-0C010

USK6#

LH

 1
68955C - BRACKET, BACK WINDOW STAY, UPPER RH
68955-0C020

USK6#

 1
68956B - BRACKET, BACK DOOR STAY, UPPER LH
68955-0C020

USK6#

 1
68957 - BRACKET, BACK DOOR STAY
68957-0C030

USK6#

RH

 1
68957-0C040

USK6#

LH

 1
68957 - BRACKET, BACK DOOR STAY
68957-0C030

USK6#

RH

 1
68957-0C040

USK6#

LH

 1
69110A - LOCK ASSY, BACK DOOR W/MOTOR
69110-0C040

USK6#..PLAT

 1
69110-0C041

USK6#..PLAT

 1
69110A - LOCK ASSY, BACK DOOR W/MOTOR
69110-0C040

USK6#..PLAT

 1
69110-0C041

USK6#..PLAT

 1
69211C - HANDLE, BACK DOOR OUTSIDE
76802-0C010A1

UCK6#,USK60;USK65..PLAT;USK65..(LIMD,SR5)..HTWC

WHITE PEARL CS.,071

 1
76802-0C010G0

UCK6#,USK6#

DK.GREEN M.M.,6T8

 1
76802-0C010J0

UCK6#,UPK6#,USK6#

DK.BLUE MC.,8S6

 1
76802-0C010E0

UCK6#,USK6#

BEIGE M. M.,4Q2

 1
76802-0C010D0

UCK6#,UPK6#,USK6#

DK RED MC,3Q7

 1
76802-0C010B1

UCK6#,UPK6#,USK6#

GRAY ME.,1F9

 1
76802-0C010C0

UCK6#,UPK6#,USK6#

BLACK,202

 1
76802-0C010E1

UCK6#,UPK6#,USK6#

BRONZE M.M.,4T3

 1
76802-0C010G1

UPK6#,USK6#

DK.GREEN MC.,6V4

 1
76802-0C010B2

UPK6#,USK6#

GRAY ME.,1G3

 1
76802-0C010B0

UCK6#,UPK6#,USK6#

SILVER ME.,1D6

 1
76802-0C010A0

USK65..LIMD,SR5;UCK6#,UPK6#,USK60;USK65..PLAT..HTWC

SUPER WHITE 2,040

 1
76802-0C010E2

UPK6#,USK6#

BEIGE ME.,4T8

 1
76802-0C010D1

UPK6#,USK6#

BLACKISH RED MC.,3R0

 1
76802-0C010A2

USK6#..PLAT

WHITE PEARL CS.,070

 1
69308 - PROTECTOR SUB-ASSY, BACK DOOR LOCK
69308-0C020

USK6#

 1
69410C - PLATE ASSY, BACK DOOR LOCK STRIKER
69410-0C030

USK6#

 1
69850D - REGULATOR ASSY, BACK DOOR POWER WINDOW
69850-0C062

USK6#

 1
69850-0C060

UPK6#,USK6#

 1
85710G - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-0C140

USK6#

 1
Common parts
53578-0C010
64725-0C010
64725-0C020
90080-10339
90080-10341
90080-11194
90080-11605
90080-17273
90080-18061
90119-A0125
90119-A0213
90148-80040

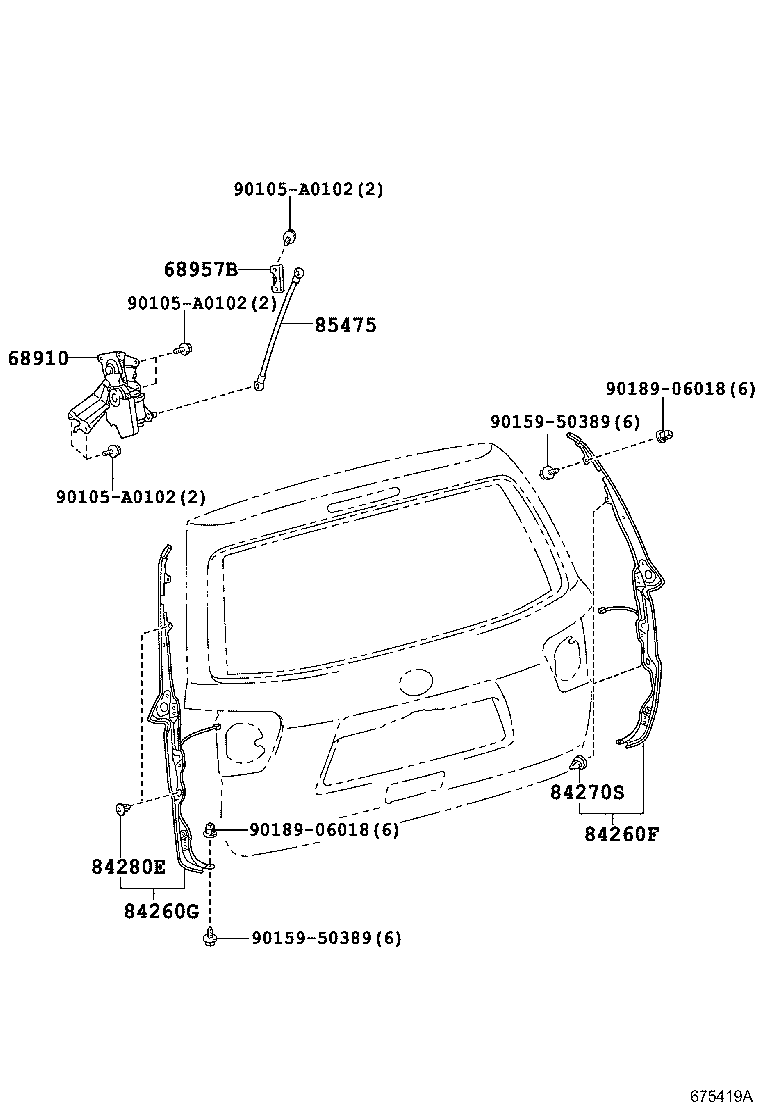

ILLUST NO. 2 OF 2(0711- )LIMD,PLAT ; (1908- )SR5

Click highlighted areas on diagram

POWER BACK DOOR PARTS

diagram 68910 68957B 84260F 84260G 84270S 84280E 85475 90105A0102 90105A0102 90105A0102 9015950389 9015950389 9018906018 9018906018
Part # Description Qty Price
68910 - UNIT ASSY, POWER BACK DOOR
68910-0C010

USK6#..PLAT

 1
68910-0C020

USK6#..PLAT

 1
68957B - BRACKET, BACK DOOR STAY, LOWER
68956-0C010

USK6#..PLAT

 1
84260F - SENSOR ASSY, POWER BACK DOOR, RH
84260-0C011

USK6#..PLAT

 1
84260-0C010

USK6#..PLAT

 1
84260-0C012

USK6#..PLAT

 1
84260G - SENSOR ASSY, POWER BACK DOOR, LH
84260-0C020

USK6#..PLAT

 1
84260-0C022

USK6#..PLAT

 1
84260-0C021

USK6#..PLAT

 1
84270S - CLIP(POWER BACK DOOR SENSOR, RH)
90467-10213C0

USK6#..PLAT

BLACK

 2
84280E - CLIP (FOR POWER BACK DOOR SENSOR, LH)
90467-10213C0

USK6#..PLAT

BLACK

 2
85475 - ROD, POWER BACK DOOR
85475-0C010

USK6#..PLAT

 1
Common parts
90105-A0102
90159-50389
90189-06018
