USK65L-GKTZKA (2007)
Toyota Sequoia
Production
Nov 2007
-
Aug 2017
Engine
3URFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 2(0711- )
Click highlighted areas on diagram
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04437C - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04439-0C010 |
USK6# |
1 | ||
| 04438N - BOOT KIT, REAR DRIVE SHAFT, IN & OUTBOARD JOINT, RH | ||||
| 04429-0C010 |
USK6# |
1 | ||
| 41336J - COVER, REAR DRIVE SHAFT DUST, RH | ||||
| 41336-0C010 |
USK6# |
1 | ||
| 42330 - SHAFT ASSY, REAR DRIVE, RH | ||||
| 42330-0C010 |
USK6# |
1 | ||
| 42341B - RING, SNAP (FOR REAR DRIVE SHAFT RH) | ||||
| 43425-0C020 |
USK6# |
1 | ||
| 42346C - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH) | ||||
| 42345-0C070 |
USK6# ID=114.3 |
1 | ||
| 42346E - CLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT R | ||||
| 42345-0C100 |
USK6# |
1 | ||
| 42347C - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH) | ||||
| 42345-0C090 |
USK6# ID=103.8 |
1 | ||
| 42347E - CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH | ||||
| 42345-0C100 |
USK6# |
1 | ||
| 42360L - RING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT RH | ||||
| 43425-0C050 |
USK6# |
1 | ||

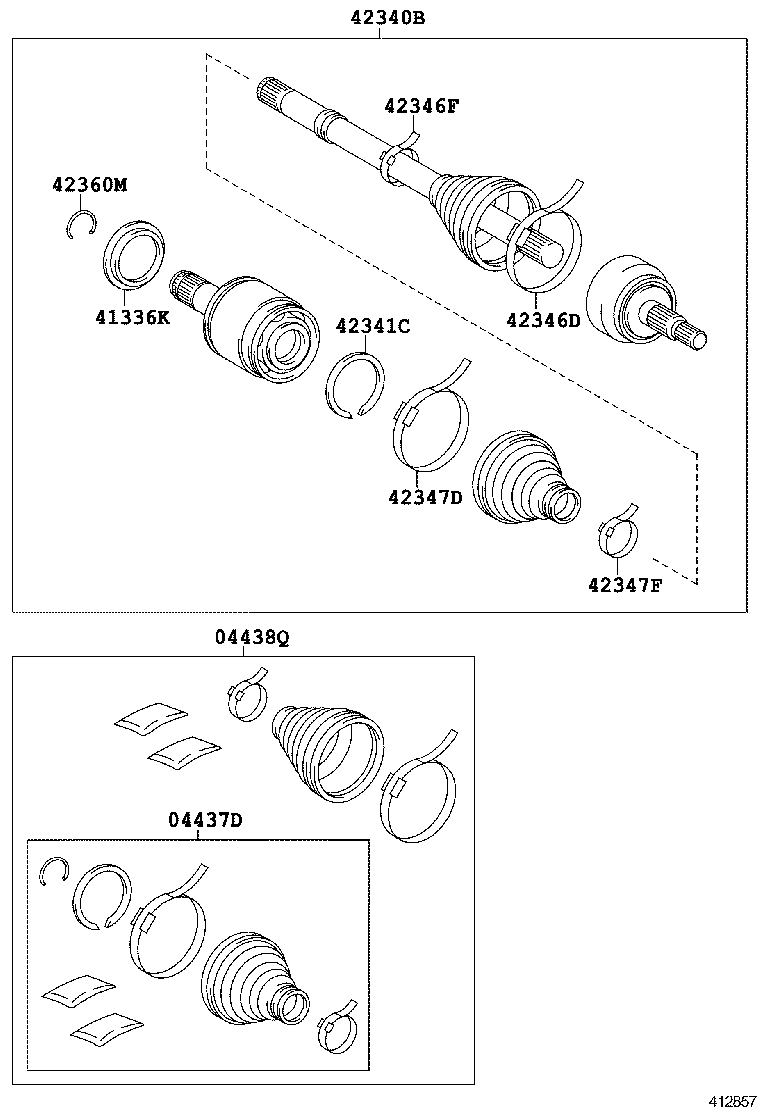

ILLUST NO. 1 OF 2(0711- )
Click highlighted areas on diagram
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04437D - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04439-0C010 |
USK6# |
1 | ||
| 04438Q - BOOT KIT, REAR DRIVE SHAFT, IN & OUTBOARD JOINT, LH | ||||
| 04429-0C010 |
USK6# |
1 | ||
| 41336K - COVER, REAR DRIVE SHAFT DUST, LH | ||||
| 41336-0C010 |
USK6# |
1 | ||
| 42340B - SHAFT ASSY, REAR DRIVE, LH | ||||
| 42340-0C010 |
USK6# |
1 | ||
| 42341C - RING, SNAP (FOR REAR DRIVE SHAFT LH) | ||||
| 43425-0C020 |
USK6# |
1 | ||
| 42346D - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH) | ||||
| 42345-0C070 |
USK6# ID=114.3 |
1 | ||
| 42346F - CLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT L | ||||
| 42345-0C100 |
USK6# |
1 | ||
| 42347D - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH) | ||||
| 42345-0C090 |
USK6# ID=103.8 |
1 | ||
| 42347F - CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH | ||||
| 42345-0C100 |
USK6# |
1 | ||
| 42360M - RING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT LH | ||||
| 43425-0C050 |
USK6# |
1 | ||

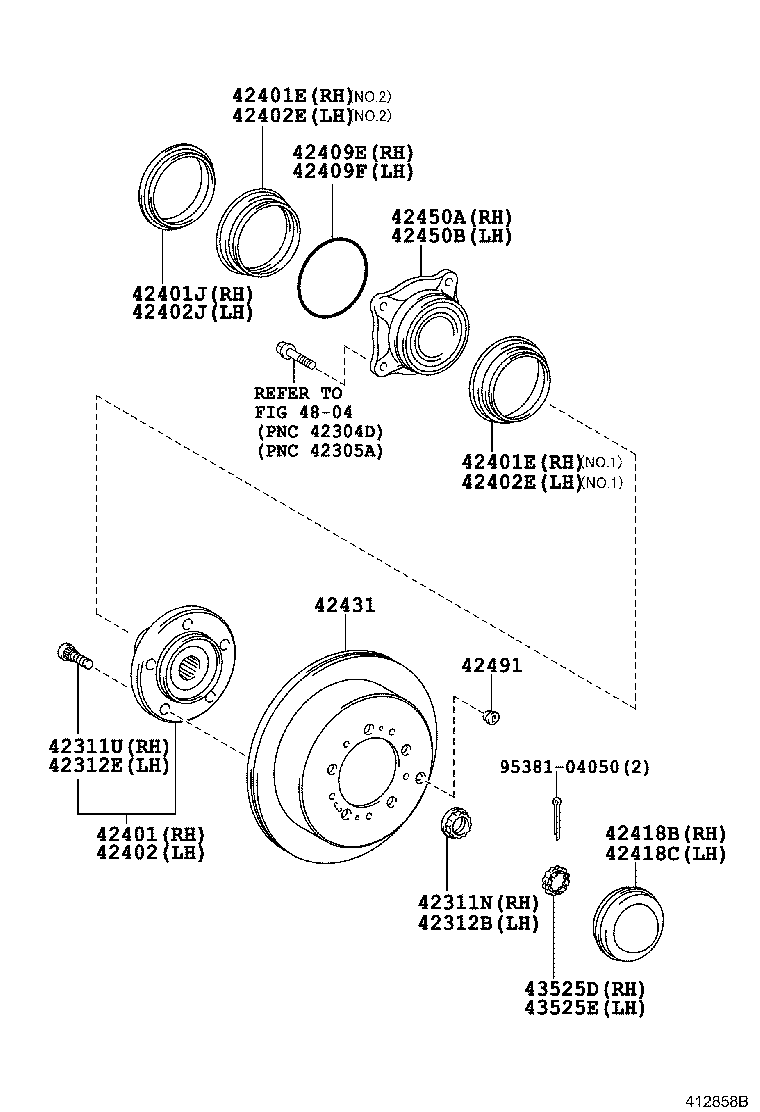

ILLUST NO. 2 OF 2(0711- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311N - NUT (FOR REAR AXLE SHAFT RH) | ||||
| 90179-32007 |
USK6# |
1 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02077 |
UCK6#,USK6# |
5 | ||
| 90942-02083 |
USK6# |
5 | ||
| 42312B - NUT (FOR REAR AXLE SHAFT LH) | ||||
| 90179-32007 |
USK6# |
1 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02077 |
UCK6#,USK6# |
5 | ||
| 90942-02083 |
USK6# |
5 | ||
| 42401 - HUB, REAR AXLE, RH | ||||
| 43502-0C031 |
UPK6#,USK6# |
1 | ||
| 43502-0C031 |
USK6# |
1 | ||
| 43502-34060 |
UPK6#,USK6# |
1 | ||
| 42401E - SEAL, OIL (FOR REAR AXLE HUB RH) | ||||
| 90312-A0002 |
USK6# NO.1 |
1 | ||
| 90316-A0002 |
USK6# NO.2 |
1 | ||
| 42401E - SEAL, OIL (FOR REAR AXLE HUB RH) | ||||
| 90312-A0002 |
USK6# NO.1 |
1 | ||
| 90316-A0002 |
USK6# NO.2 |
1 | ||
| 42401J - SEAL, DUST(FOR REAR AXLE HUB RH) | ||||
| 90304-A0002 |
UCK6#,UPK6#,USK6# |
1 | ||
| 42402 - HUB, REAR AXLE, LH | ||||
| 43502-0C031 |
USK6# |
1 | ||
| 43502-34060 |
UPK6#,USK6# |
1 | ||
| 43502-0C031 |
UPK6#,USK6# |
1 | ||
| 42402E - SEAL, OIL (FOR REAR AXLE HUB LH) | ||||
| 90312-A0002 |
USK6# NO.1 |
1 | ||
| 90316-A0002 |
USK6# NO.2 |
1 | ||
| 42402E - SEAL, OIL (FOR REAR AXLE HUB LH) | ||||
| 90312-A0002 |
USK6# NO.1 |
1 | ||
| 90316-A0002 |
USK6# NO.2 |
1 | ||
| 42402J - SEAL, DUST(FOR REAR AXLE HUB LH) | ||||
| 90304-A0002 |
UCK6#,UPK6#,USK6# |
1 | ||
| 42409E - RING, O (FOR REAR AXLE BEARING RH) | ||||
| 90301-A0020 |
USK6# |
1 | ||
| 42409F - RING, O (FOR REAR AXLE BEARING LH) | ||||
| 90301-A0020 |
USK6# |
1 | ||
| 42418B - CAP, REAR HUB GREASE, RH | ||||
| 43514-34020 |
USK6# |
1 | ||
| 42418C - CAP, REAR HUB GREASE, LH | ||||
| 43514-34020 |
USK6# |
1 | ||
| 42431 - DISC, REAR | ||||
| 42431-0C011 |
UCK6#,UPK6#,USK6# |
2 | ||
| 42450A - HUB & BEARING ASSY, REAR AXLE, RH | ||||
| 42450-0C020 |
USK6# |
1 | ||
| 42450B - HUB & BEARING ASSY, REAR AXLE, LH | ||||
| 42450-0C020 |
USK6# |
1 | ||
| 42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE) | ||||
| 47491-22020 |
UCK6#,UPK6#,USK6# |
2 | ||
| 43525D - CAP, REAR WHEEL ADJUSTING LOCK, RH | ||||
| 43525-0C010 |
USK6# |
1 | ||
| 43525E - CAP, REAR WHEEL ADJUSTING LOCK, LH | ||||
| 43525-0C010 |
USK6# |
1 | ||
| Common parts | ||||
| 95381-04050 | ||||
| Linked diagrams | ||||
| 4804 | ||||
