USK65L-GKTZKA (2007)

Toyota Sequoia

Production Nov 2007 - Aug 2017
Engine 3URFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0711- )1URFE,3UR#

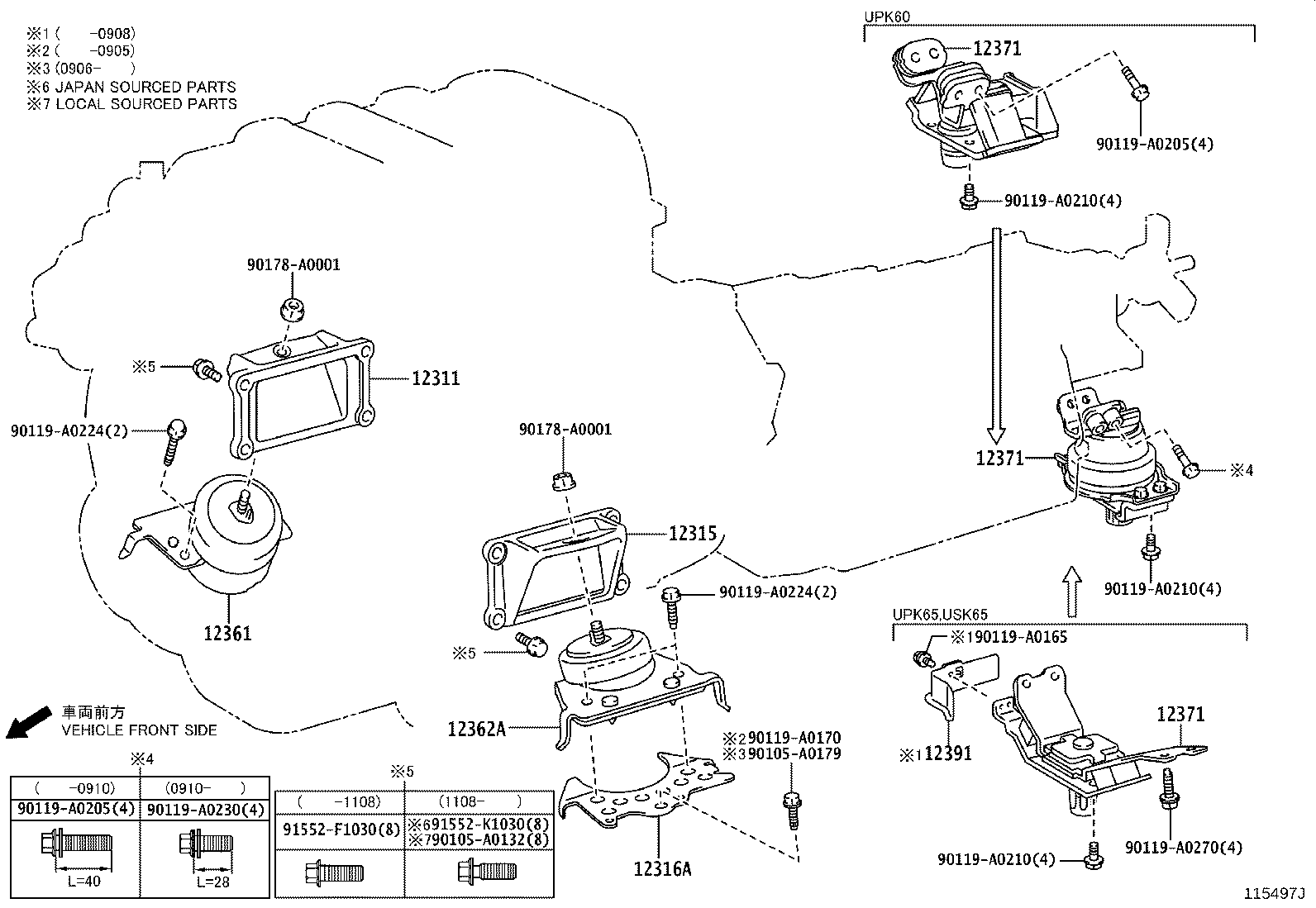

Click highlighted areas on diagram

diagram 12311 12315 12316A 12361 12362A 12371 12371 12371 12391 90105A0132 90105A0179 90119A0165 90119A0170 90119A0205 90119A0205 90119A0210 90119A0210 90119A0210 90119A0224 90119A0224 90119A0230 90119A0270 90178A0001 90178A0001 91552F1030 91552K1030
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-38030

3UR#..USK6#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-38020

3UR#..USK6#

 1
12316A - BRACKET, ENGINE MOUNTING, FR NO.2 LH
12316-0S010

3UR#..USK6#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-0S010

3URFE..USK6#

 1
12361-0S020

3UR#..USK6#

 1
12362A - INSULATOR, ENGINE MOUNTING, FRONT LH
12362-0S010

3UR#..USK6#

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-0S020

3UR#..USK65

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-0S020

3UR#..USK65

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-0S020

3UR#..USK65

 1
12391 - INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH
12391-0F010

1URFE,3UR#..UPK65,USK65

 1
Common parts
90105-A0132
90105-A0179
90119-A0165
90119-A0170
90119-A0205
90119-A0210
90119-A0224
90119-A0230
90119-A0270
90178-A0001
91552-F1030
91552-K1030
