USK65L-GKTSKA (2017)

Toyota Sequoia

Production Aug 2017 - Sep 9999
Engine 3URFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )

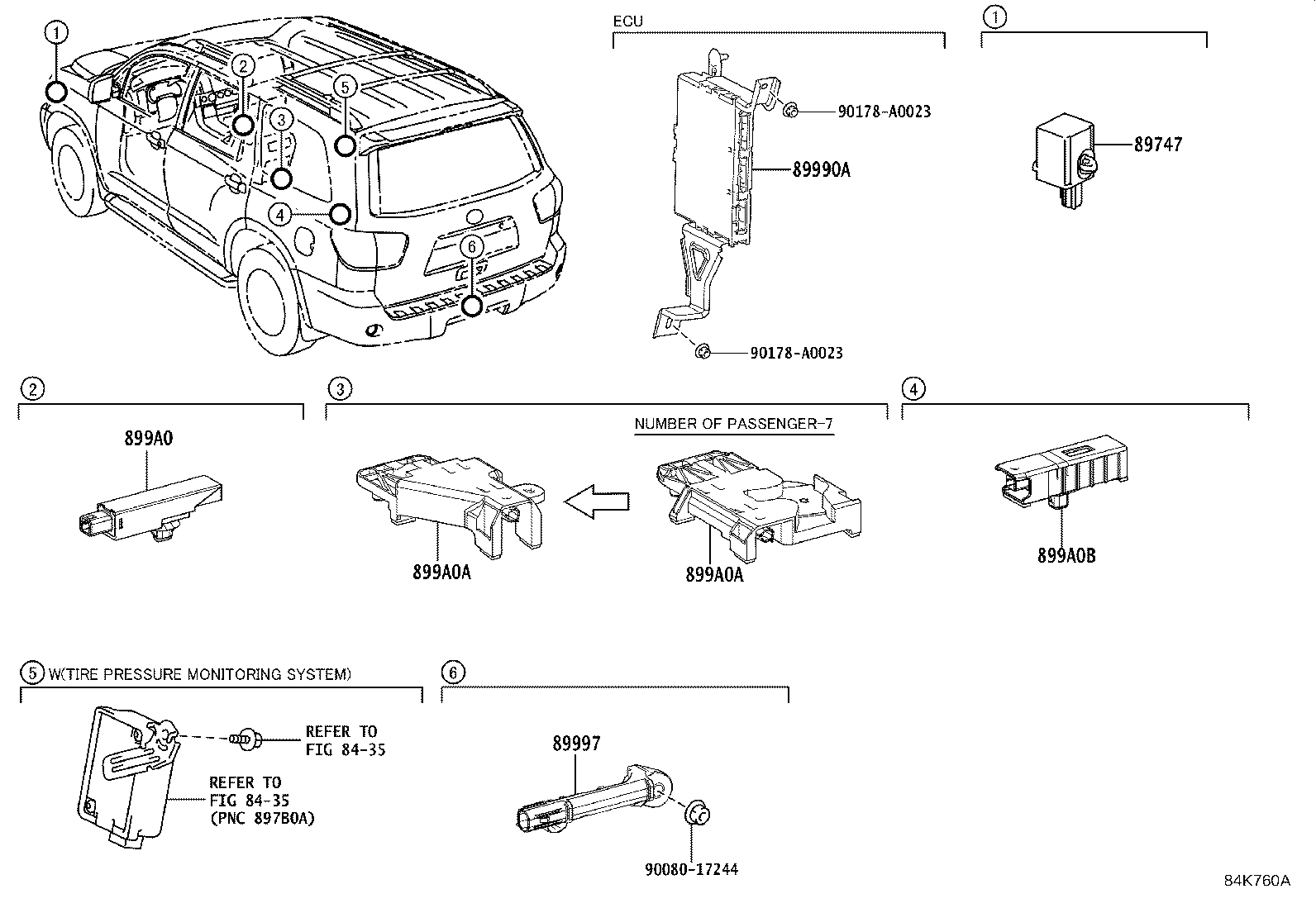

Click highlighted areas on diagram

W(SMART ENTRY)

diagram 8435 8435 89747 89990A 89997 899A0 899A0A 899A0A 899A0B 9008017244 90178A0023 90178A0023
Part # Description Qty Price
89747 - BUZZER, WIRELESS DOOR LOCK
89747-0R020

USK6#

 1
89990A - COMPUTER ASSY, SMART KEY
89990-0C030

USK6#

 1
89990-0C110

USK6#

 1
89997 - ANTENNA, ELECTRICAL KEY
89997-0E050

USK6#

 1
899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
899A0-0R010

USK6#

 1
899A0A - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2
899A0-0C050

USK6#..LIMD,SR5

 1
899A0-0C060

USK6#..LIMD,SR5

NUMBER OF PASSENGER-7

 1
899A0A - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2
899A0-0C050

USK6#..LIMD,SR5

 1
899A0-0C060

USK6#..LIMD,SR5

NUMBER OF PASSENGER-7

 1
899A0B - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3
899A0-0C070

USK6#

 1
Common parts
90080-17244
90178-A0023
Linked diagrams
8435
