USK65L-GKTSGA (2008)

Toyota Sequoia

Production Aug 2008 - Aug 2017
Engine 3URFBE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0711-1708)

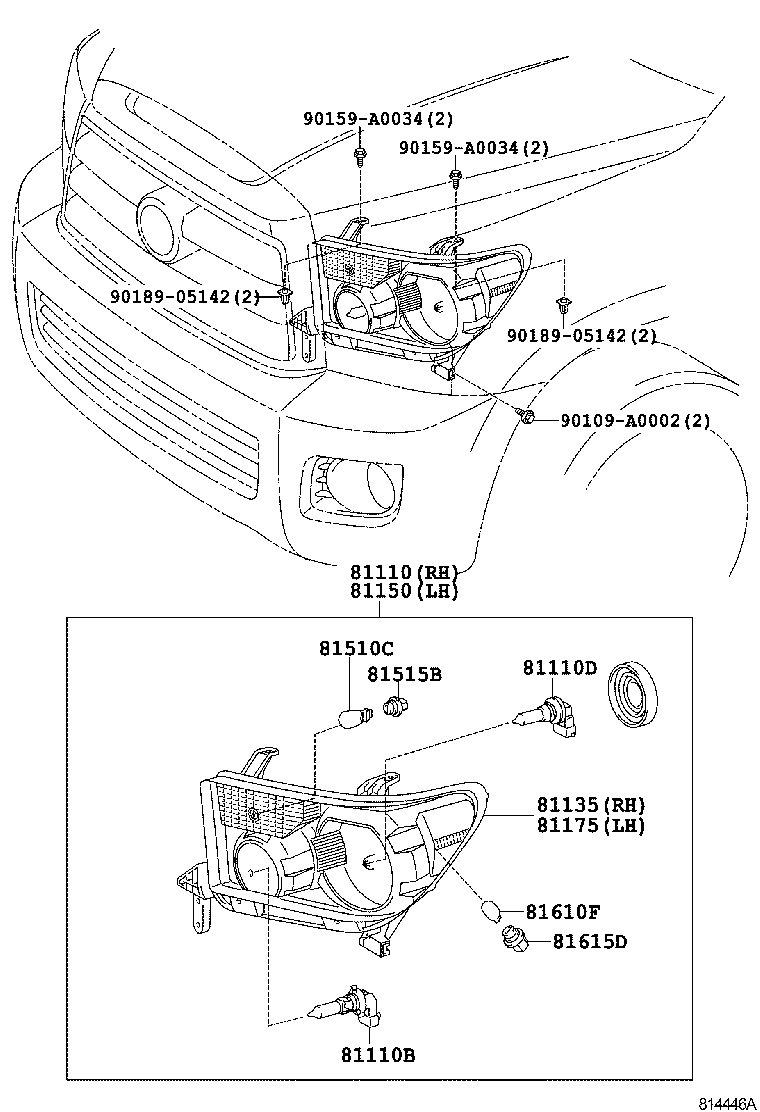

Click highlighted areas on diagram

diagram 81110 81110B 81110D 81135 81150 81175 81510C 81515B 81610F 81615D 90109A0002 90159A0034 90159A0034 9018905142 9018905142
Part # Description Qty Price
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90084-98062

USK6#

12V 27/8W

 2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-60060

USK6#

 2
81610F - BULB(FOR CLEARANCE LAMP)
90080-81059

USK6#

12V 5.0W

 2
81615D - SOCKET, CLEARANCE LAMP
99159-10228

USK6#

 2
Common parts
90109-A0002
90159-A0034
90189-05142
