USK65L-GKTSGA (2008)

Toyota Sequoia

Production Aug 2008 - Aug 2017
Engine 3URFBE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0808-0903)3URFBE

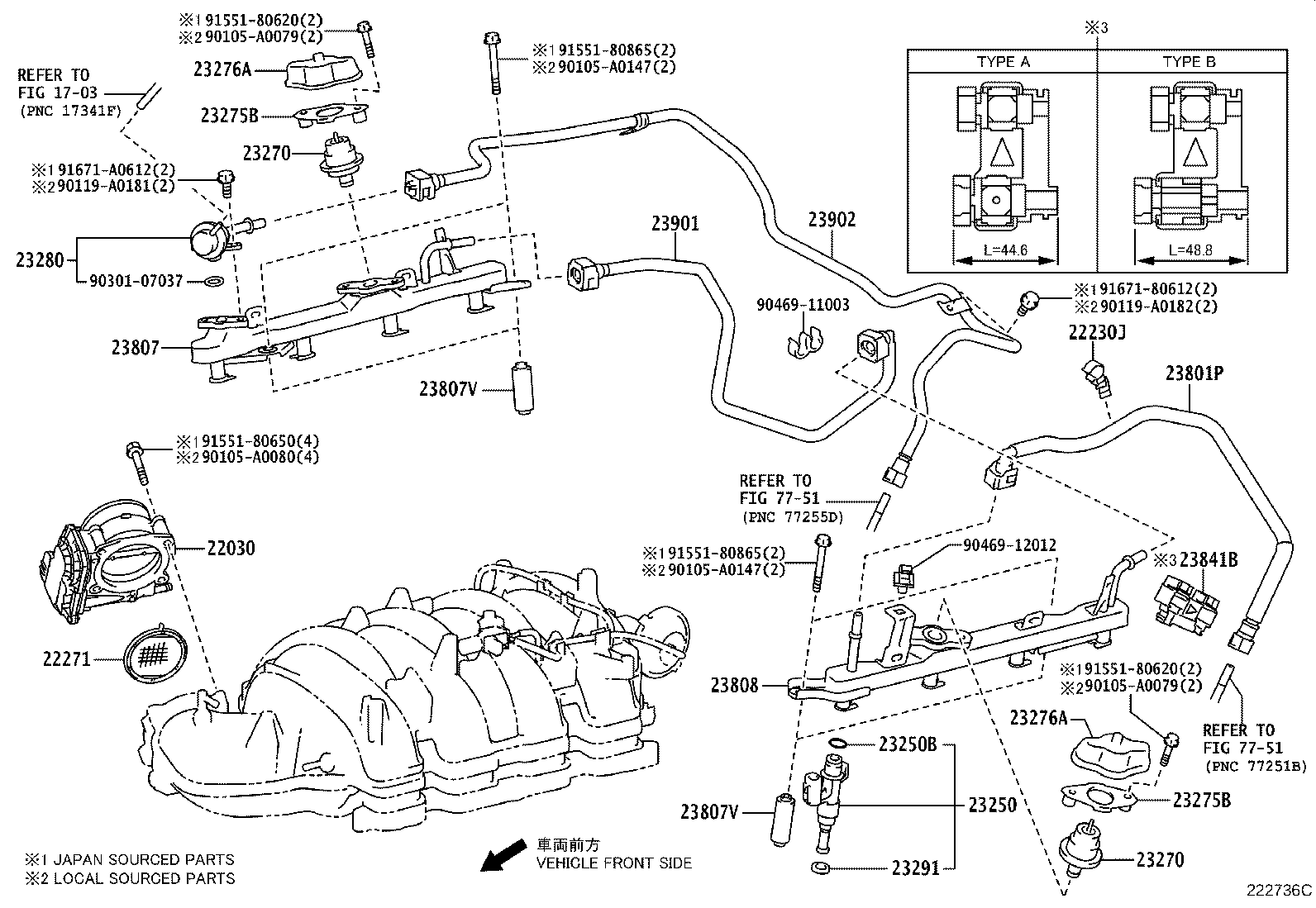

Click highlighted areas on diagram

diagram 1703 22030 22230J 22271 23250 23250B 23270 23270 23275B 23275B 23276A 23276A 23280 23291 23801P 23807 23807V 23807V 23808 23841B 23901 23902 7751 7751 9030107037 9046911003 9046912012 9155180620 9155180620 9155180650 9155180865 9155180865 9167180612 91671A0612
Part # Description Qty Price
22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22030-0S010

3UR#..USK6#

 1
22230J - CLAMP
90464-00817

3UR#..USK6#

PNC 23841B=TYPE A

 1
90464-00856

3UR#..USK6#

PNC 23841B=TYPE B

 1
22271 - GASKET, THROTTLE BODY
22271-0S020

3URFBE..USK65

 1
23250B - RING, O(FOR FUEL INJECTOR)
90301-A0036

3UR#..USK6#

(L)

 8
90301-07037

3UR#..USK6#

(J)

 8
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23270-38020

3URFBE..USK65

 2
23270-38021

3URFBE..USK65

 2
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23270-38020

3URFBE..USK65

 2
23270-38021

3URFBE..USK65

 2
23275B - COVER, FUEL PRESSURE PULSATION DAMPER
23275-38010

3URFBE..USK65

 2
23275B - COVER, FUEL PRESSURE PULSATION DAMPER
23275-38010

3URFBE..USK65

 2
23276A - CAP, FUEL PRESSURE PULSATION DAMPER
23276-38010

3URFBE..USK65

 2
23276A - CAP, FUEL PRESSURE PULSATION DAMPER
23276-38010

3URFBE..USK65

 2
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-38040

3URFBE..USK65

 1
23280-38041

3URFBE..USK65

 1
23801P - PIPE SUB-ASSY, FUEL, NO.1
23271-0S030

3UR#..USK6#

PNC 23841B=TYPE A

 1
23901-0S020

3UR#..USK6#

PNC 23841B=TYPE B

 1
23901-0S050

3UR#..USK6#

 1
23271-0S011

3UR#..USK6#

 1
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23814-38121

3URFBE..USK65

 1
23814-38122

3URFBE..USK65

 1
23814-38120

3URFBE..USK65

 1
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
23891-38020

3UR#..USK6#

 4
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
23891-38020

3UR#..USK6#

 4
23808 - PIPE SUB-ASSY, FUEL DELIVERY, NO.2
23815-38070

3URFBE..USK65

 1
23815-38071

3URFBE..USK65

 1
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-0S010

3UR#..USK6#

TYPE B:REFER ILLUST.

 1
23841-0F010

3UR#..USK6#

TYPE A:REFER ILLUST.

 1
23841-0S020

3UR#..USK6#

 1
23901 - TUBE SUB-ASSY, FUEL
23901-38010

3UR#..USK6#

 1
23901-0S010

3UR#..USK6#

 1
23901-38011

3UR#..USK6#

 1
23902 - TUBE SUB-ASSY, FUEL
23902-0S010

3UR#..USK6#

(L)

 1
23902-38030

3URFBE..USK65

 1
23902-38031

3URFBE..USK65

 1
23902-38031

3UR#..USK6#

(J)

 1
23902-0S011

3UR#..USK6#

 1
Common parts
90301-07037
90469-11003
90469-12012
91551-80620
91551-80650
91551-80865
91671-80612
91671-A0612
Linked diagrams
1703
7751

(0903-1108)3URFBE

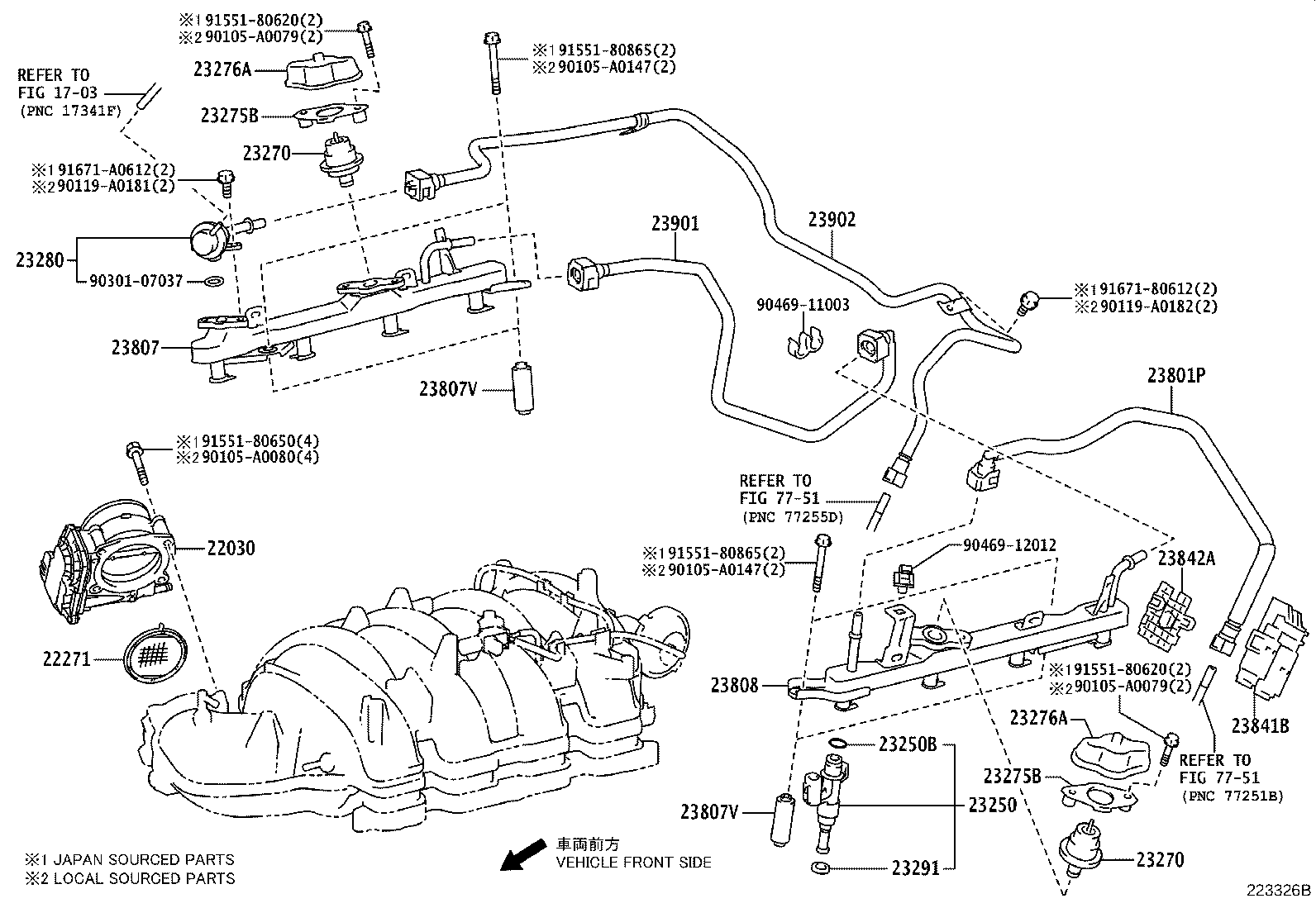

Click highlighted areas on diagram

diagram 1703 22030 22230J 22271 23250 23250B 23270 23270 23275B 23275B 23276A 23276A 23280 23291 23801P 23807 23807V 23807V 23808 23841B 23842A 23901 23902 7751 7751 9030107037 9046911003 9046912012 9155180620 9155180620 9155180650 9155180865 9155180865 9167180612 91671A0612
Part # Description Qty Price
22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22030-0S010

3UR#..USK6#

 1
22230J - CLAMP
90464-00817

3UR#..USK6#

PNC 23841B=TYPE A

 1
90464-00856

3UR#..USK6#

PNC 23841B=TYPE B

 1
22271 - GASKET, THROTTLE BODY
22271-0S020

3URFBE..USK65

 1
23250B - RING, O(FOR FUEL INJECTOR)
90301-A0036

3UR#..USK6#

(L)

 8
90301-07037

3UR#..USK6#

(J)

 8
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23270-38020

3URFBE..USK65

 2
23270-38021

3URFBE..USK65

 2
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23270-38020

3URFBE..USK65

 2
23270-38021

3URFBE..USK65

 2
23275B - COVER, FUEL PRESSURE PULSATION DAMPER
23275-38010

3URFBE..USK65

 2
23275B - COVER, FUEL PRESSURE PULSATION DAMPER
23275-38010

3URFBE..USK65

 2
23276A - CAP, FUEL PRESSURE PULSATION DAMPER
23276-38010

3URFBE..USK65

 2
23276A - CAP, FUEL PRESSURE PULSATION DAMPER
23276-38010

3URFBE..USK65

 2
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-38040

3URFBE..USK65

 1
23280-38041

3URFBE..USK65

 1
23801P - PIPE SUB-ASSY, FUEL, NO.1
23271-0S030

3UR#..USK6#

PNC 23841B=TYPE A

 1
23901-0S020

3UR#..USK6#

PNC 23841B=TYPE B

 1
23901-0S050

3UR#..USK6#

 1
23271-0S011

3UR#..USK6#

 1
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23814-38121

3URFBE..USK65

 1
23814-38122

3URFBE..USK65

 1
23814-38120

3URFBE..USK65

 1
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
23891-38020

3UR#..USK6#

 4
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
23891-38020

3UR#..USK6#

 4
23808 - PIPE SUB-ASSY, FUEL DELIVERY, NO.2
23815-38070

3URFBE..USK65

 1
23815-38071

3URFBE..USK65

 1
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-0S010

3UR#..USK6#

TYPE B:REFER ILLUST.

 1
23841-0F010

3UR#..USK6#

TYPE A:REFER ILLUST.

 1
23841-0S020

3UR#..USK6#

 1
23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI)
23842-0S010

3UR#..USK6#

 1
23842-28010

3UR#..USK6#

 1
23901 - TUBE SUB-ASSY, FUEL
23901-38010

3UR#..USK6#

 1
23901-0S010

3UR#..USK6#

 1
23901-38011

3UR#..USK6#

 1
23902 - TUBE SUB-ASSY, FUEL
23902-0S010

3UR#..USK6#

(L)

 1
23902-38030

3URFBE..USK65

 1
23902-38031

3URFBE..USK65

 1
23902-38031

3UR#..USK6#

(J)

 1
23902-0S011

3UR#..USK6#

 1
Common parts
90301-07037
90469-11003
90469-12012
91551-80620
91551-80650
91551-80865
91671-80612
91671-A0612
Linked diagrams
1703
7751

(1108-1609)3URFBE

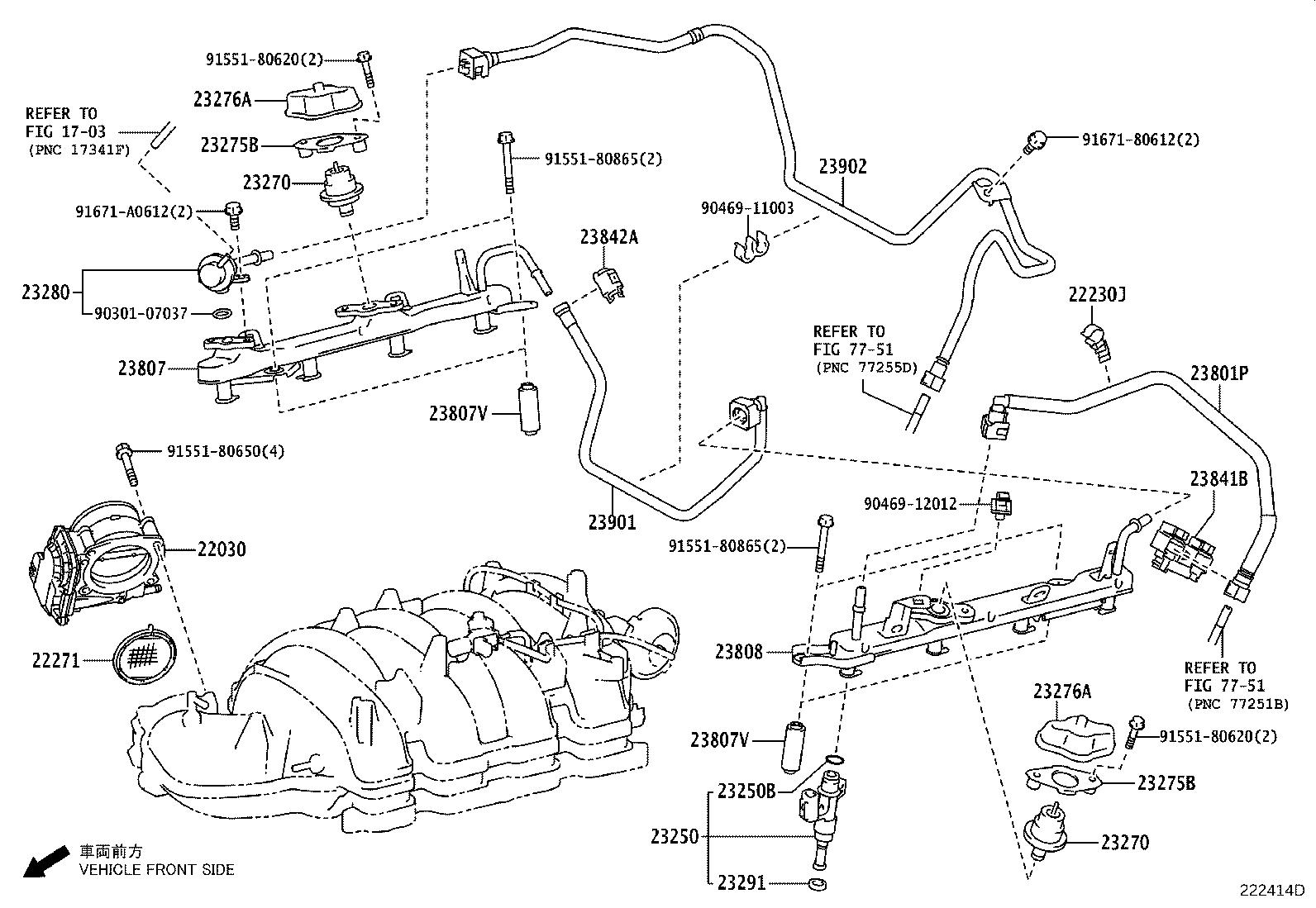

Click highlighted areas on diagram

diagram 1703 22030 22230J 22271 23250 23250B 23270 23270 23275B 23275B 23276A 23276A 23280 23291 23801P 23807 23807V 23807V 23808 23841B 23901 23902 7751 7751 90105A0079 90105A0079 90105A0080 90105A0147 90105A0147 90119A0181 90119A0182 9030107037 9046911003 9046912012 9155180620 9155180620 9155180650 9155180865 9155180865 9167180612 91671A0612
Part # Description Qty Price
22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22030-0S010

3UR#..USK6#

 1
22230J - CLAMP
90464-00817

3UR#..USK6#

PNC 23841B=TYPE A

 1
90464-00856

3UR#..USK6#

PNC 23841B=TYPE B

 1
22271 - GASKET, THROTTLE BODY
22271-0S020

3URFBE..USK65

 1
23250B - RING, O(FOR FUEL INJECTOR)
90301-A0036

3UR#..USK6#

(L)

 8
90301-07037

3UR#..USK6#

(J)

 8
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23270-38020

3URFBE..USK65

 2
23270-38021

3URFBE..USK65

 2
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23270-38020

3URFBE..USK65

 2
23270-38021

3URFBE..USK65

 2
23275B - COVER, FUEL PRESSURE PULSATION DAMPER
23275-38010

3URFBE..USK65

 2
23275B - COVER, FUEL PRESSURE PULSATION DAMPER
23275-38010

3URFBE..USK65

 2
23276A - CAP, FUEL PRESSURE PULSATION DAMPER
23276-38010

3URFBE..USK65

 2
23276A - CAP, FUEL PRESSURE PULSATION DAMPER
23276-38010

3URFBE..USK65

 2
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-38040

3URFBE..USK65

 1
23280-38041

3URFBE..USK65

 1
23801P - PIPE SUB-ASSY, FUEL, NO.1
23271-0S030

3UR#..USK6#

PNC 23841B=TYPE A

 1
23901-0S020

3UR#..USK6#

PNC 23841B=TYPE B

 1
23901-0S050

3UR#..USK6#

 1
23271-0S011

3UR#..USK6#

 1
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23814-38121

3URFBE..USK65

 1
23814-38122

3URFBE..USK65

 1
23814-38120

3URFBE..USK65

 1
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
23891-38020

3UR#..USK6#

 4
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
23891-38020

3UR#..USK6#

 4
23808 - PIPE SUB-ASSY, FUEL DELIVERY, NO.2
23815-38070

3URFBE..USK65

 1
23815-38071

3URFBE..USK65

 1
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-0S010

3UR#..USK6#

TYPE B:REFER ILLUST.

 1
23841-0F010

3UR#..USK6#

TYPE A:REFER ILLUST.

 1
23841-0S020

3UR#..USK6#

 1
23901 - TUBE SUB-ASSY, FUEL
23901-38010

3UR#..USK6#

 1
23901-0S010

3UR#..USK6#

 1
23901-38011

3UR#..USK6#

 1
23902 - TUBE SUB-ASSY, FUEL
23902-0S010

3UR#..USK6#

(L)

 1
23902-38030

3URFBE..USK65

 1
23902-38031

3URFBE..USK65

 1
23902-38031

3UR#..USK6#

(J)

 1
23902-0S011

3UR#..USK6#

 1
Common parts
90105-A0079
90105-A0080
90105-A0147
90119-A0181
90119-A0182
90301-07037
90469-11003
90469-12012
91551-80620
91551-80650
91551-80865
91671-80612
91671-A0612
Linked diagrams
1703
7751

(1609- )3URFBE

Click highlighted areas on diagram

diagram 1703 22030 22271 23250 23250B 23270 23270 23275B 23275B 23276A 23276A 23280 23291 23801P 23807 23807V 23807V 23808 23841B 23842A 23901 23902 7751 7751 90105A0079 90105A0079 90105A0080 90105A0147 90105A0147 90119A0181 90119A0182 9030107037 9046911003 9046912012 9155180620 9155180620 9155180650 9155180865 9155180865 9167180612 91671A0612
Part # Description Qty Price
22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22030-0S010

3UR#..USK6#

 1
22271 - GASKET, THROTTLE BODY
22271-0S020

3URFBE..USK65

 1
23250B - RING, O(FOR FUEL INJECTOR)
90301-A0036

3UR#..USK6#

(L)

 8
90301-07037

3UR#..USK6#

(J)

 8
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23270-38020

3URFBE..USK65

 2
23270-38021

3URFBE..USK65

 2
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23270-38020

3URFBE..USK65

 2
23270-38021

3URFBE..USK65

 2
23275B - COVER, FUEL PRESSURE PULSATION DAMPER
23275-38010

3URFBE..USK65

 2
23275B - COVER, FUEL PRESSURE PULSATION DAMPER
23275-38010

3URFBE..USK65

 2
23276A - CAP, FUEL PRESSURE PULSATION DAMPER
23276-38010

3URFBE..USK65

 2
23276A - CAP, FUEL PRESSURE PULSATION DAMPER
23276-38010

3URFBE..USK65

 2
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-38040

3URFBE..USK65

 1
23280-38041

3URFBE..USK65

 1
23801P - PIPE SUB-ASSY, FUEL, NO.1
23271-0S030

3UR#..USK6#

PNC 23841B=TYPE A

 1
23901-0S020

3UR#..USK6#

PNC 23841B=TYPE B

 1
23901-0S050

3UR#..USK6#

 1
23271-0S011

3UR#..USK6#

 1
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23814-38121

3URFBE..USK65

 1
23814-38122

3URFBE..USK65

 1
23814-38120

3URFBE..USK65

 1
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
23891-38020

3UR#..USK6#

 4
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
23891-38020

3UR#..USK6#

 4
23808 - PIPE SUB-ASSY, FUEL DELIVERY, NO.2
23815-38070

3URFBE..USK65

 1
23815-38071

3URFBE..USK65

 1
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-0S010

3UR#..USK6#

TYPE B:REFER ILLUST.

 1
23841-0F010

3UR#..USK6#

TYPE A:REFER ILLUST.

 1
23841-0S020

3UR#..USK6#

 1
23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI)
23842-0S010

3UR#..USK6#

 1
23842-28010

3UR#..USK6#

 1
23901 - TUBE SUB-ASSY, FUEL
23901-38010

3UR#..USK6#

 1
23901-0S010

3UR#..USK6#

 1
23901-38011

3UR#..USK6#

 1
23902 - TUBE SUB-ASSY, FUEL
23902-0S010

3UR#..USK6#

(L)

 1
23902-38030

3URFBE..USK65

 1
23902-38031

3URFBE..USK65

 1
23902-38031

3UR#..USK6#

(J)

 1
23902-0S011

3UR#..USK6#

 1
Common parts
90105-A0079
90105-A0080
90105-A0147
90119-A0181
90119-A0182
90301-07037
90469-11003
90469-12012
91551-80620
91551-80650
91551-80865
91671-80612
91671-A0612
Linked diagrams
1703
7751
