USK65L-GKTLKA (2017)

Toyota Sequoia

Production Aug 2017 - Sep 9999
Engine 3URFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1708- )

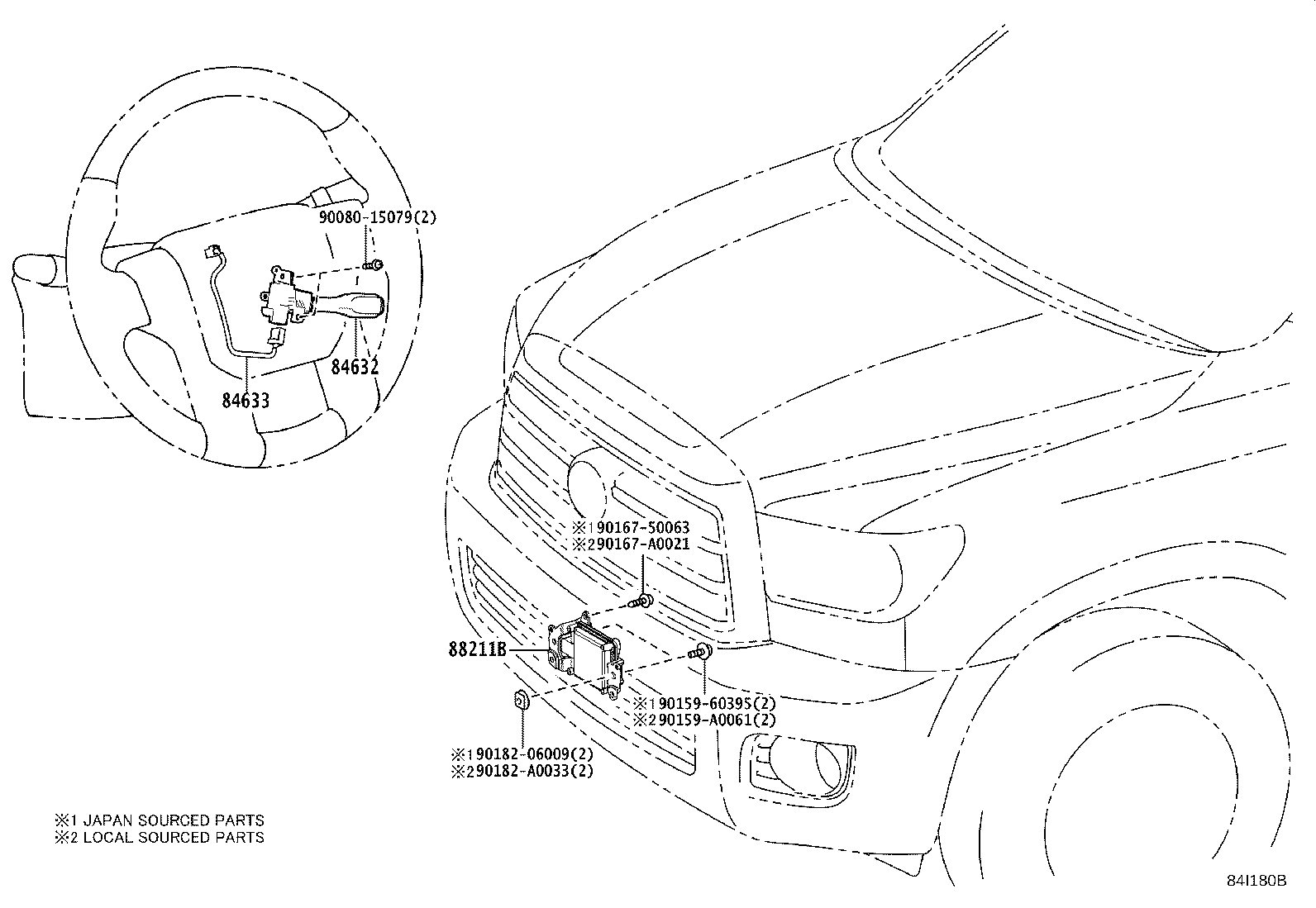

Click highlighted areas on diagram

diagram 84632 84633 88211B 9008015079 9015960395 90159A0061 9016750063 90167A0021 9018206009 90182A0033
Part # Description Qty Price
84632 - SWITCH, CRUISE CONTROL MAIN
84632-08021

USK60;USK65..(LIMD,PLAT)..HTWC

PRE-COLLISION SYSTEM-WITHOUT

 1
84632-02010

USK6#

 1
84633 - WIRE, CRUISE CONTROL SWITCH
84633-0E020

USK6#

 1
88211B - SENSOR ASSY, MILLIMETER WAVE RADAR
88210-0C020

USK6#..HTWC

PRE-COLLISION SYSTEM-WITHOUT

 1
88210-0C020

USK6#

 1
88210-0C040

USK6#

PRE-COLLISION SYSTEM-WITHOUT

 1
88210-0C040

USK6#

 1
88210-0C040

USK65..LIMD,PLAT

SOUTH AMERICA SPEC

 1
88210-0C020

USK65..(LIMD,PLAT)..HTWC

SOUTH AMERICA SPEC

 1
Common parts
90080-15079
90159-60395
90159-A0061
90167-50063
90167-A0021
90182-06009
90182-A0033
