USK65L-GKTLKA (2007)
Toyota Sequoia

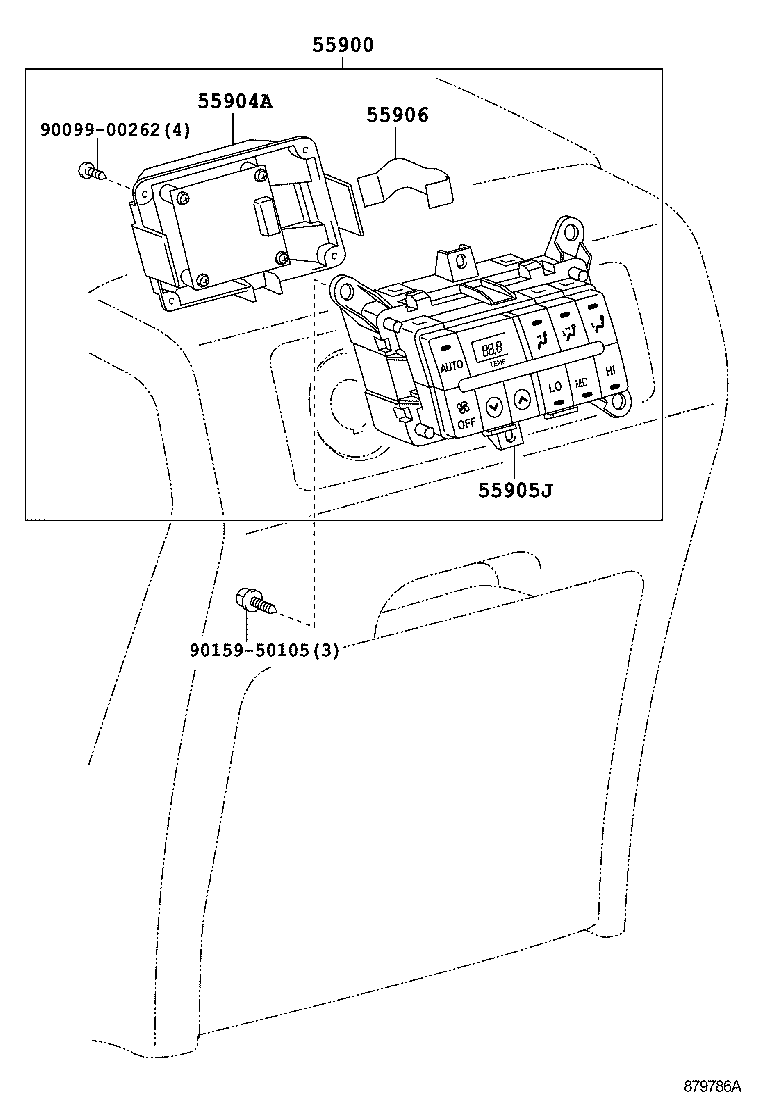

ILLUST NO. 2 OF 5(0711- )
REAR CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-0C050 |
USK6# |
1 | ||
| 55904A - HOUSING SUB-ASSY, HEATER CONTROL | ||||
| 55904-0C010 |
USK6# |
1 | ||
| 55905J - KNOB SUB-ASSY, CONTROL | ||||
| 55905-0C070 |
USK6# |
1 | ||
| 55906 - CABLE SUB-ASSY, HEATER CONTROL | ||||
| 55905-0C080 |
USK6# |
1 | ||
| Common parts | ||||
| 90099-00262 | ||||
| 90159-50105 | ||||
ILLUST NO. 3 OF 5(0711- )
FRONT AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55448C - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55448-0C010 |
USK6# |
1 | ||
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-0C020 |
USK6# |
1 | ||
| 55843-0C050 |
USK6# |
1 | ||
| 55843B - CLIP, HEATER TO REGISTER DUCT | ||||
| 90467-A0001C0 |
UCK6#,UPK6#,USK6# BLACK |
3 | ||
| 90467-A0001C1 |
USK6# BLACK |
3 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-0C030 |
USK6# |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-0C020 |
USK6# |
1 | ||
| 55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-0C020 |
USK6# |
1 | ||
| 55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-0C010 |
USK6# |
1 | ||
| 55990B - NOZZLE ASSY, DEFROSTER, LOWER | ||||
| 55990-0C010 |
USK6# |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87201-0C030 |
USK6# |
1 | ||
| 87201B - DUCT SUB-ASSY, AIR, NO.2 | ||||
| 87201-0C050 |
USK6# |
1 | ||
| 87201F - DUCT SUB-ASSY, AIR, NO.3 | ||||
| 87201-0C040 |
UCK6#,USK6# |
1 | ||
| 87201-0C070 |
USK6# |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87213-0C040 |
USK6# |
1 | ||
| 87212F - DUCT, AIR, REAR NO.2 | ||||
| 87212-0C040 |
USK6# |
1 | ||
| 87212G - DUCT, AIR, REAR NO.3 | ||||
| 87216-0C070 |
USK6# |
1 | ||
| 87212H - DUCT, AIR, REAR NO.4 | ||||
| 87215-0C060 |
USK6# |
1 | ||
| Common parts | ||||
| 90080-15073 | ||||
| 90105-A0044 | ||||
| 90467-07215 | ||||
| Linked diagrams | ||||
| 8714 | ||||
ILLUST NO. 5 OF 5(0711- )
SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625C - THERMISTOR, COOLER | ||||
| 88625-47021 |
USK6# |
1 | ||
| 88625-06040 |
USK6# |
1 | ||
| 88625U - THERMISTOR, COOLER (DUCT SENSOR) | ||||
| 88625-34040E3 |
UPK6#,USK6# DK. BROWN,TRIM44 |
1 | ||
| 88625-34040C0 |
UPK6#,USK6#..LIMD BLACK,TRIM1#,44 |
1 | ||
| 88625-34040C0 |
UPK6#,USK6#..LIMD BLACK,TRIM1#,4# |
1 | ||
| 88790B - THERMISTOR ASSY | ||||
| 88790-06010 |
USK6# |
1 | ||
| 88790-22131 |
USK6# |
1 | ||
| Linked diagrams | ||||
| 8416 | ||||

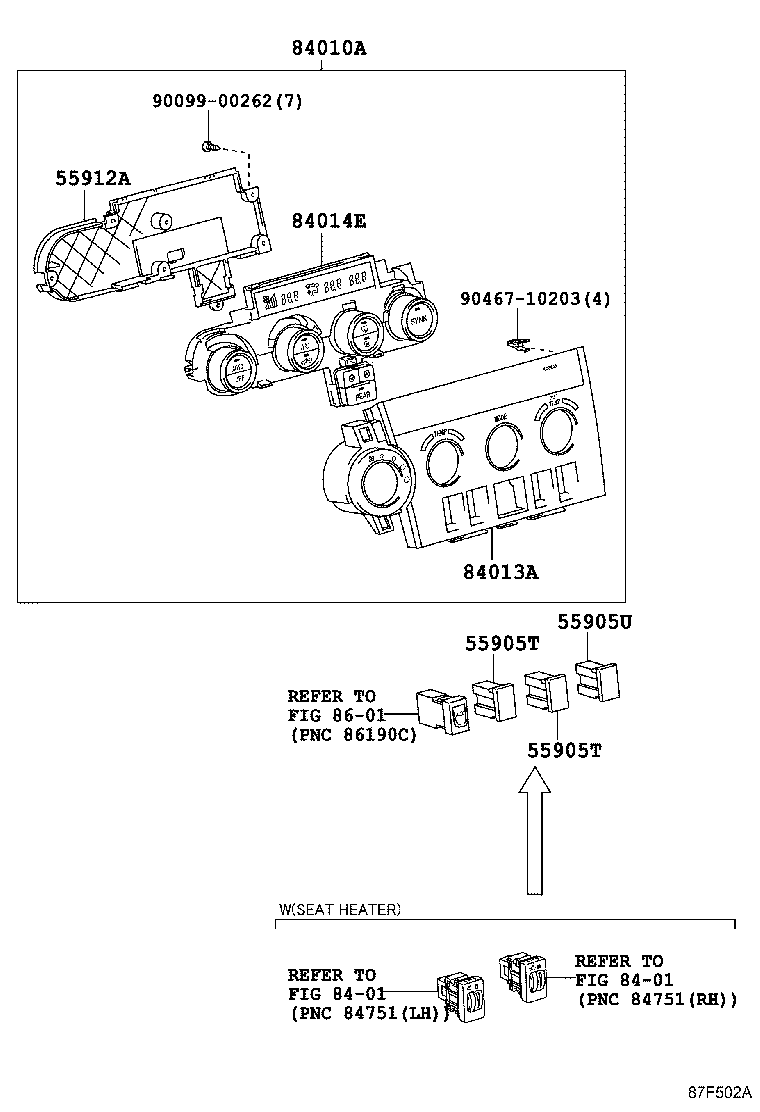

ILLUST NO. 1 OF 5(0711- )
FRONT CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55905U - COVER, SWITCH HOLE, NO.2 | ||||
| 55539-0C110 |
UPK6#,USK6# |
1 | ||
| 55912A - HOUSING, HEATER CONTROL | ||||
| 55912-0C090 |
USK6# |
1 | ||
| 84010A - CONTROL & PANEL ASSY, INTEGRATION | ||||
| 84010-0CD20 |
USK6#..LIMD |
1 | ||
| 84010-0CB30 |
UCK6#,USK6#..LIMD |
1 | ||
| 84013A - PANEL SUB-ASSY, INTEGRATION | ||||
| 84013-0C630 |
UCK6#,USK6#..LIMD,SR5 |
1 | ||
| 84013-0C690 |
USK6#..LIMD,SR5 |
1 | ||
| 84014E - BOARD SUB-ASSY, PRINTED WIRE INTEGRATION | ||||
| 84014-0C790 |
UCK6#,USK6#..LIMD,PLAT |
1 | ||
| 84014-0C490 |
USK6#..LIMD,PLAT |
1 | ||
| Common parts | ||||
| 90099-00262 | ||||
| 90467-10203 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8601 | ||||

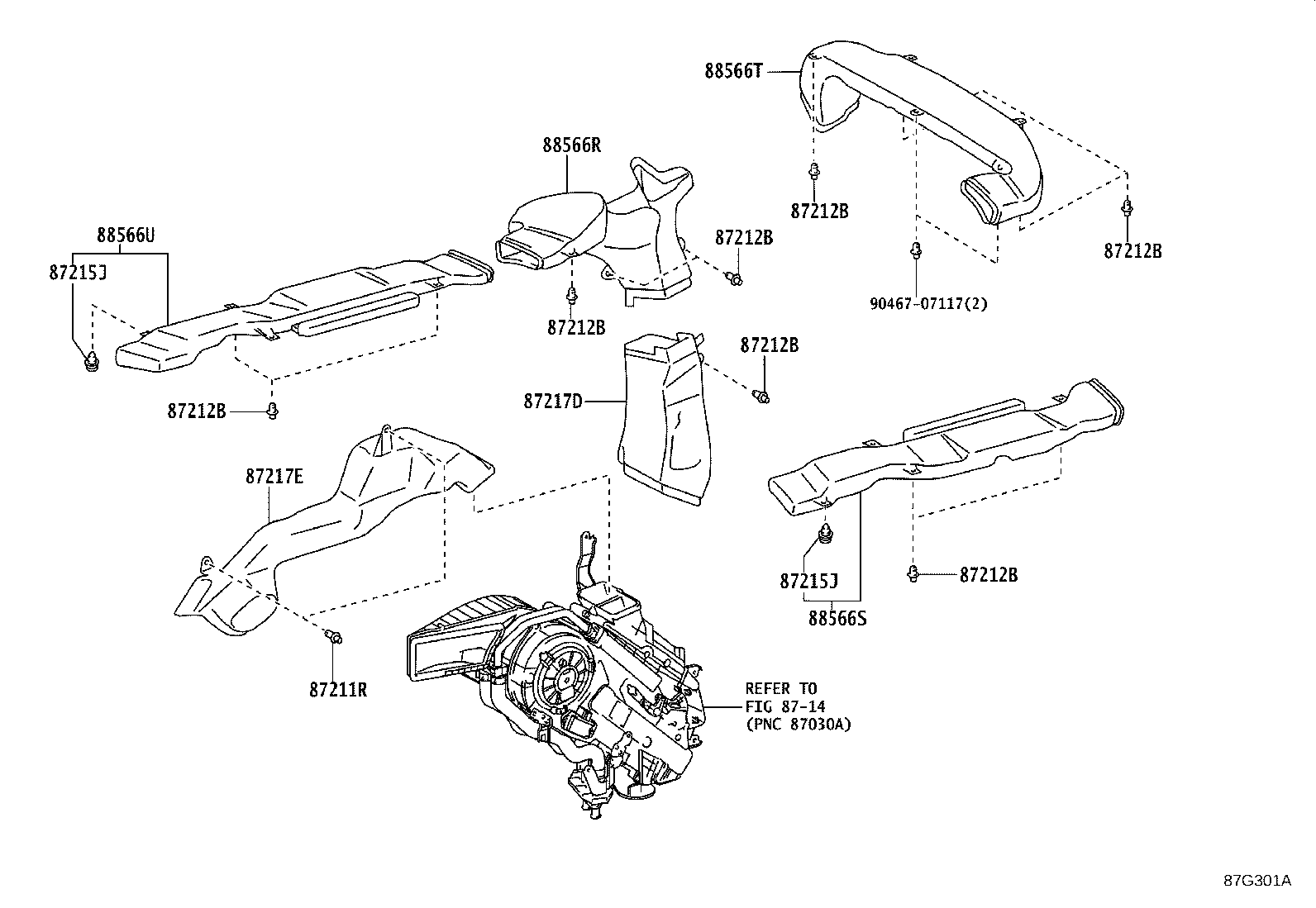

ILLUST NO. 4 OF 5(0711- )
REAR AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87211R - CLIP, AIR DUCT | ||||
| 90467-A0016C0 |
UPK6#,USK6# BLACK |
2 | ||
| 90467-A0016C3 |
USK6# BLACK |
2 | ||
| 90467-07117 |
UCK6#,UPK6#,USK6# |
2 | ||
| 87212B - CLIP, AIR DUCT | ||||
| 90467-A0016C0 |
UPK6#,USK6# BLACK |
11 | ||
| 90467-07117 |
UPK6#,USK6# |
11 | ||
| 90467-A0016C3 |
USK6# BLACK |
11 | ||
| 87212B - CLIP, AIR DUCT | ||||
| 90467-A0016C0 |
UPK6#,USK6# BLACK |
11 | ||
| 90467-07117 |
UPK6#,USK6# |
11 | ||
| 90467-A0016C3 |
USK6# BLACK |
11 | ||
| 87212B - CLIP, AIR DUCT | ||||
| 90467-A0016C0 |
UPK6#,USK6# BLACK |
11 | ||
| 90467-07117 |
UPK6#,USK6# |
11 | ||
| 90467-A0016C3 |
USK6# BLACK |
11 | ||
| 87212B - CLIP, AIR DUCT | ||||
| 90467-A0016C0 |
UPK6#,USK6# BLACK |
11 | ||
| 90467-07117 |
UPK6#,USK6# |
11 | ||
| 90467-A0016C3 |
USK6# BLACK |
11 | ||
| 87212B - CLIP, AIR DUCT | ||||
| 90467-A0016C0 |
UPK6#,USK6# BLACK |
11 | ||
| 90467-07117 |
UPK6#,USK6# |
11 | ||
| 90467-A0016C3 |
USK6# BLACK |
11 | ||
| 87212B - CLIP, AIR DUCT | ||||
| 90467-A0016C0 |
UPK6#,USK6# BLACK |
11 | ||
| 90467-07117 |
UPK6#,USK6# |
11 | ||
| 90467-A0016C3 |
USK6# BLACK |
11 | ||
| 87212B - CLIP, AIR DUCT | ||||
| 90467-A0016C0 |
UPK6#,USK6# BLACK |
11 | ||
| 90467-07117 |
UPK6#,USK6# |
11 | ||
| 90467-A0016C3 |
USK6# BLACK |
11 | ||
| 87215J - CLIP (FOR AIR REAR DUCT) | ||||
| 90467-A0006 |
USK6# |
2 | ||
| 87215J - CLIP (FOR AIR REAR DUCT) | ||||
| 90467-A0006 |
USK6# |
2 | ||
| 87217D - DUCT, AIR, REAR SIDE NO.1 | ||||
| 87218-0C030 |
USK6# |
1 | ||
| 87217E - DUCT, AIR, REAR SIDE NO.2 | ||||
| 87214-0C020 |
USK6# |
1 | ||
| 88566R - DUCT, AIR, REAR ROOF NO.1 | ||||
| 87218-0C040 |
USK6# |
1 | ||
| 87218-0C020 |
USK6# |
1 | ||
| 88566S - DUCT, AIR, REAR ROOF NO.2 | ||||
| 87216-0C080 |
USK6# |
1 | ||
| 88566T - DUCT, AIR, REAR ROOF NO.3 | ||||
| 87217-0C040 |
UCK6#,USK6# |
1 | ||
| 87217-0C050 |
USK6# |
1 | ||
| 88566U - DUCT, AIR, REAR ROOF NO.4 | ||||
| 87215-0C070 |
USK6# |
1 | ||
| Common parts | ||||
| 90467-07117 | ||||
| Linked diagrams | ||||
| 8714 | ||||
