USK65L-GKTLKA (2007)

Toyota Sequoia

Production Nov 2007 - Aug 2017
Engine 3URFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0711- )

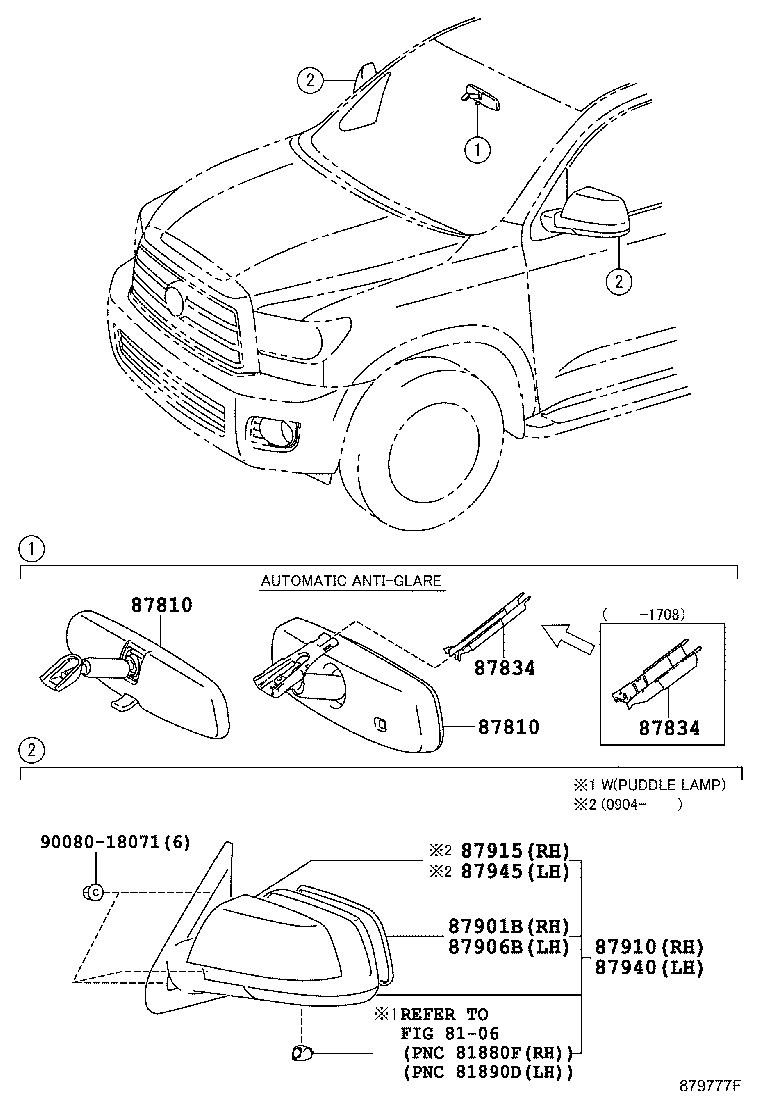

Click highlighted areas on diagram

diagram 8106 87810 87810 87834 87834 87901B 87906B 87910 87915 87940 87945 9008018071
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-0C050

UCK6#,USK6#..LIMD,PLAT

 1
87810-0C080

UPK6#,USK6#

INSIDE REAR VIEW MIRROR-C + 3.5"BACK MONITOR DISP

 1
87810-0C060

UPK6#,USK6#..LIMD,PLAT

 1
87810-0C101

UPK6#,USK6#

INSIDE REAR VIEW MIRROR-C + 3.3"BACK MONITOR DISP

 1
87810-0C180

USK65..HTWC

INSIDE REAR VIEW MIRROR-EC +COMPASS

 1
87810-0C150

USK6#..LIMD,PLAT

 1
87810-0C200

USK6#

INSIDE REAR VIEW MIRROR-C + 3.3"BACK MONITOR DISP

 1
87810 - MIRROR ASSY, INNER REAR VIEW
87810-0C050

UCK6#,USK6#..LIMD,PLAT

 1
87810-0C080

UPK6#,USK6#

INSIDE REAR VIEW MIRROR-C + 3.5"BACK MONITOR DISP

 1
87810-0C060

UPK6#,USK6#..LIMD,PLAT

 1
87810-0C101

UPK6#,USK6#

INSIDE REAR VIEW MIRROR-C + 3.3"BACK MONITOR DISP

 1
87810-0C180

USK65..HTWC

INSIDE REAR VIEW MIRROR-EC +COMPASS

 1
87810-0C150

USK6#..LIMD,PLAT

 1
87810-0C200

USK6#

INSIDE REAR VIEW MIRROR-C + 3.3"BACK MONITOR DISP

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
87818-0C020

UCK6#,USK6#..LIMD,PLAT

 1
87818-0C010

UPK6#,USK6#..LIMD,PLAT

 1
87818-0C011

USK6#..LIMD,PLAT

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
87818-0C020

UCK6#,USK6#..LIMD,PLAT

 1
87818-0C010

UPK6#,USK6#..LIMD,PLAT

 1
87818-0C011

USK6#..LIMD,PLAT

 1
87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH
87903-0C030

UCK6#,USK6#..LIMD,PLAT

 1
87903-0C031

UPK6#,USK6#..LIMD

 1
87903-0C032

UPK6#,USK6#..LIMD

POWER MEMORY PACKAGE

 1
87903-0C032

USK6#..LIMD

 1
87903-0C071

USK6#..LIMD

POWER MEMORY PACKAGE

 1
87903-0C070

USK6#..LIMD

POWER MEMORY PACKAGE

 1
87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH
87906-0C031

UPK6#,USK6#..LIMD

 1
87906-0C032

UPK6#,USK6#..LIMD

POWER MEMORY PACKAGE

 1
87906-0C080

USK6#..LIMD

POWER MEMORY PACKAGE

 1
87906-0C030

UCK6#,USK6#..LIMD,PLAT

 1
87906-0C032

USK6#..LIMD

 1
87906-0C081

USK6#..LIMD

POWER MEMORY PACKAGE

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-0C200

UCK6#,USK6#..LIMD

PLATED

 1
87910-0C210

UCK6#,USK6#..LIMD

PLATED,POWER MEMORY PACKAGE

 1
87910-0C202

UPK6#,USK6#..LIMD

PLATED

 1
87910-0C212

UPK6#,USK6#..LIMD

PLATED,POWER MEMORY PACKAGE

 1
87910-0C213

UPK6#,USK6#..LIMD

PLATED,POWER MEMORY PACKAGE

 1
87910-0C350

UPK6#,USK6#..LIMD

PLATED,POWER MEMORY PACKAGE

 1
87910-0C203

UPK6#,USK6#..LIMD

PLATED

 1
87910-0C320

USK6#..LIMD

PLATED,POWER MEMORY PACKAGE

 1
87910-0C510

USK6#..LIMD

PLATED

 1
87915 - COVER, OUTER MIRROR, RH
87915-0C050

UPK6#,USK6#..LIMD,PLAT

PLATED

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-0C200

UCK6#,USK6#..LIMD

PLATED

 1
87940-0C210

UCK6#,USK6#..LIMD

PLATED,POWER MEMORY PACKAGE

 1
87940-0C202

UPK6#,USK6#..LIMD

PLATED

 1
87940-0C212

UPK6#,USK6#..LIMD

PLATED,POWER MEMORY PACKAGE

 1
87940-0C213

UPK6#,USK6#..LIMD

PLATED,POWER MEMORY PACKAGE

 1
87940-0C370

UPK6#,USK6#..LIMD

PLATED,POWER MEMORY PACKAGE

 1
87940-0C203

UPK6#,USK6#..LIMD

PLATED

 1
87940-0C510

USK6#..LIMD

PLATED

 1
87940-0C520

USK6#..LIMD

PLATED,POWER MEMORY PACKAGE

 1
87945 - COVER, OUTER MIRROR, LH
87945-0C030

UPK6#,USK6#..LIMD,PLAT

PLATED

 1
Common parts
90080-18071
Linked diagrams
8106
