USK65L-GKTLKA (2007)
Toyota Sequoia

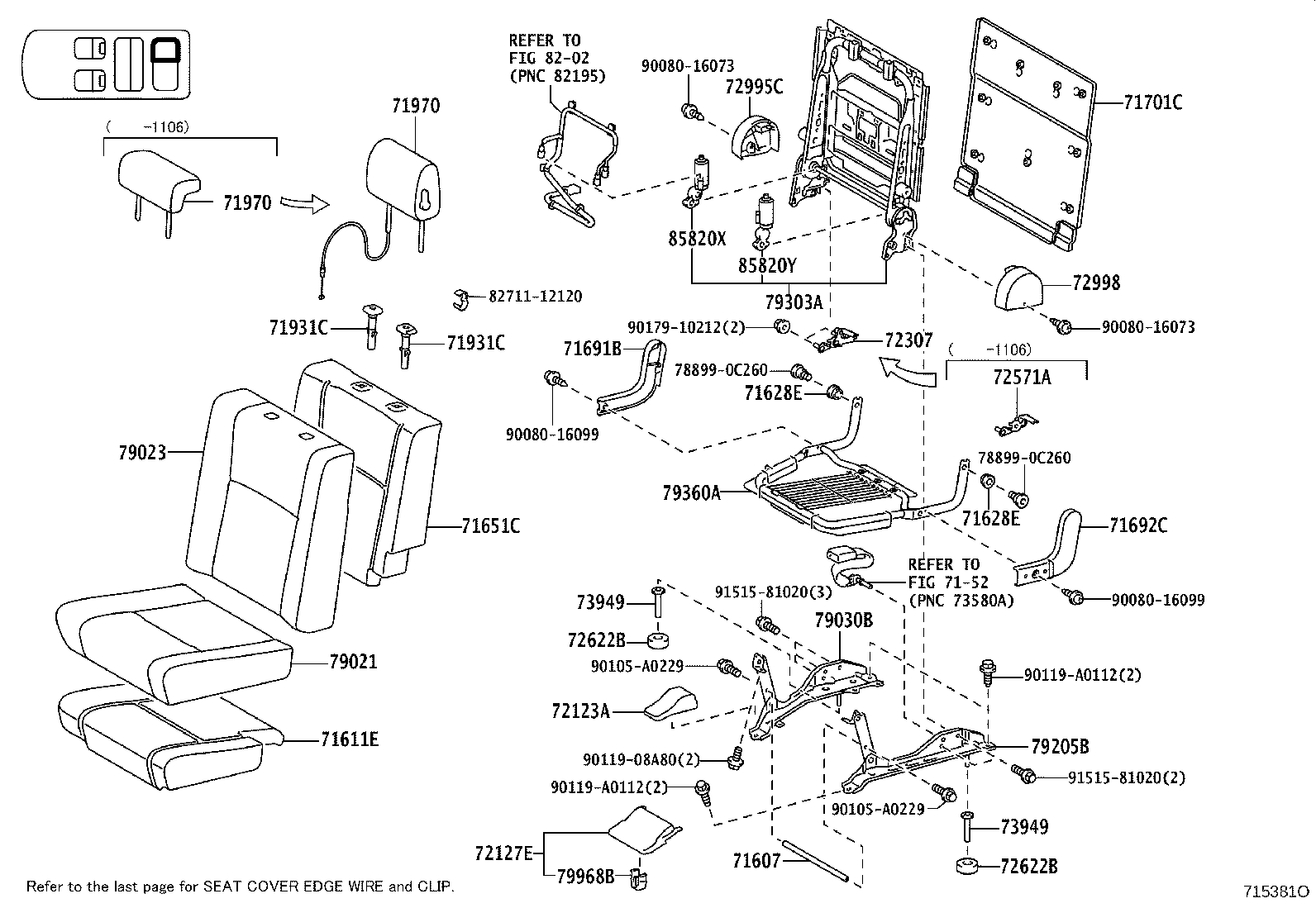

ILLUST NO. 5 OF 5(0711- )
REAR NO.2 SEAT (RH),W(POWER SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71607 - ROD SUB-ASSY, REAR NO.2 SEAT | ||||
| 72606-0C020 |
UCK6#,UPK6#,USK6# RH |
1 | ||
| 72606-0C010 |
UCK6#,UPK6#,USK6# LH |
1 | ||
| 71611E - PAD, REAR NO.2 SEAT CUSHION, A | ||||
| 71611-0C090 |
UCK6#,UPK6#,USK6# |
1 | ||
| 71628E - SPACER, REAR SEAT CUSHION | ||||
| 72749-48010 |
UCK6#;UPK6#,USK6#..LIMD,PLAT |
4 | ||
| 72749-12010 |
UPK6#,USK6# |
4 | ||
| 71628E - SPACER, REAR SEAT CUSHION | ||||
| 72749-48010 |
UCK6#;UPK6#,USK6#..LIMD,PLAT |
4 | ||
| 72749-12010 |
UPK6#,USK6# |
4 | ||
| 71651C - PAD, REAR SEAT BACK, A | ||||
| 71651-0C170 |
UCK6#,UPK6#,USK6#..LIMD,PLAT |
1 | ||
| 71691B - COVER, REAR SEAT LOCK, OUTER RH | ||||
| 71691-0C030E0 |
UCK6#,UPK6#,USK6# SAND BEIGE,TRIM4# |
1 | ||
| 71691-0C030B0 |
UCK6#,UPK6#,USK6# GRAY,TRIM1# |
1 | ||
| 71692C - COVER, REAR SEAT LOCK, INNER LH | ||||
| 71692-0C020B0 |
UCK6#,UPK6#,USK6# GRAY,TRIM1# |
1 | ||
| 71692-0C020E0 |
UCK6#,UPK6#,USK6# SAND BEIGE,TRIM4# |
1 | ||
| 71701C - BOARD SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71701-0C040E0 |
UCK6#,UPK6#,USK6#..LIMD,PLAT SAND BEIGE,TRIM4# |
1 | ||
| 71701-0C040B0 |
UCK6#,UPK6#,USK6#..LIMD,PLAT GRAY,TRIM1# |
1 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71930-42020B8 |
UCK6#,UPK6#,USK6# W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71931-42020B8 |
UCK6#,UPK6#,USK6# W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71990-60010B3 |
UPK6#,USK6# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-42020E3 |
UCK6#,UPK6#,USK6# W(LOCK)&W(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71990-60010E0 |
UPK6#,USK6# W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-42020E3 |
UCK6#,UPK6#,USK6# W(LOCK)&W/O(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71930-42020B8 |
UCK6#,UPK6#,USK6# W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71931-42020B8 |
UCK6#,UPK6#,USK6# W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71990-60010B3 |
UPK6#,USK6# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-42020E3 |
UCK6#,UPK6#,USK6# W(LOCK)&W(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71990-60010E0 |
UPK6#,USK6# W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-42020E3 |
UCK6#,UPK6#,USK6# W(LOCK)&W/O(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71970-0C131B1 |
UPK6#,USK6#..LIMD,PLAT GRAY,TRIM1# |
2 | ||
| 71970-0C130B0 |
UCK6#,UPK6#,USK6#..LIMD,PLAT GRAY,TRIM1# |
2 | ||
| 71970-0C130E0 |
UCK6#,UPK6#,USK6#..LIMD,PLAT SAND BEIGE,TRIM4# |
2 | ||
| 71970-0C131E5 |
UPK6#,USK6#..LIMD,PLAT SAND BEIGE,TRIM4# |
2 | ||
| 71970-0C131E3 |
UPK6#,USK6#..LIMD,PLAT SAND BEIGE,TRIM4# |
2 | ||
| 71970-0C131B2 |
UPK6#,USK6#..LIMD,PLAT GRAY,TRIM1# |
2 | ||
| 71970-0C140E1 |
UPK6#,USK6#..LIMD,PLAT SAND BEIGE,TRIM4# |
2 | ||
| 71970-0C140B0 |
UPK6#,USK6#..LIMD,PLAT GRAY,TRIM1# |
2 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71970-0C131B1 |
UPK6#,USK6#..LIMD,PLAT GRAY,TRIM1# |
2 | ||
| 71970-0C130B0 |
UCK6#,UPK6#,USK6#..LIMD,PLAT GRAY,TRIM1# |
2 | ||
| 71970-0C130E0 |
UCK6#,UPK6#,USK6#..LIMD,PLAT SAND BEIGE,TRIM4# |
2 | ||
| 71970-0C131E5 |
UPK6#,USK6#..LIMD,PLAT SAND BEIGE,TRIM4# |
2 | ||
| 71970-0C131E3 |
UPK6#,USK6#..LIMD,PLAT SAND BEIGE,TRIM4# |
2 | ||
| 71970-0C131B2 |
UPK6#,USK6#..LIMD,PLAT GRAY,TRIM1# |
2 | ||
| 71970-0C140E1 |
UPK6#,USK6#..LIMD,PLAT SAND BEIGE,TRIM4# |
2 | ||
| 71970-0C140B0 |
UPK6#,USK6#..LIMD,PLAT GRAY,TRIM1# |
2 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-0C010B0 |
UPK6#;USK6#..LIMD,PLAT GRAY,TRIM13 |
1 | ||
| 72123-0C010E0 |
UPK6#;USK6#..LIMD,PLAT SAND BEIGE,TRIM44 |
1 | ||
| 72123-0C010C0 |
USK6#..LIMD BLACK,TRIM1#,4# |
1 | ||
| 72127E - COVER, SEAT TRACK BRACKET, INNER FRONT | ||||
| 72127-0C010E0 |
UPK6#;USK6#..LIMD,PLAT SAND BEIGE,TRIM44 |
1 | ||
| 72127-0C010B0 |
UPK6#;USK6#..LIMD,PLAT GRAY,TRIM13 |
1 | ||
| 72127-0C010C0 |
USK6#..LIMD BLACK,TRIM1#,4# |
1 | ||
| 72307 - LINK SUB-ASSY, RECLINING CONTROL, RH | ||||
| 72307-0C020 |
UPK6#,USK6#..LIMD,PLAT |
1 | ||
| 72571A - BASE, RECLINING CONTROL, RH | ||||
| 72595-0C010 |
UCK6#,UPK6#,USK6#..LIMD,PLAT |
1 | ||
| 72622B - BUSH, REAR SEAT BACK STOPPER CONNECTING ROD | ||||
| 72622-0C010 |
UCK6#,UPK6#,USK6# |
4 | ||
| 72622B - BUSH, REAR SEAT BACK STOPPER CONNECTING ROD | ||||
| 72622-0C010 |
UCK6#,UPK6#,USK6# |
4 | ||
| 72995C - COVER, REAR SEAT CUSHION, OUTER RH | ||||
| 72995-0C050B0 |
UCK6#,UPK6#,USK6# GRAY,TRIM1# |
1 | ||
| 72995-0C050E0 |
UCK6#,UPK6#,USK6# SAND BEIGE,TRIM4# |
1 | ||
| 72998 - COVER, REAR SEAT CUSHION, LH | ||||
| 72998-0C040B0 |
UCK6#,UPK6#,USK6# GRAY,TRIM1# |
1 | ||
| 72998-0C040E0 |
UCK6#,UPK6#,USK6# SAND BEIGE,TRIM4# |
1 | ||
| 73949 - CAP | ||||
| 71848-0C010 |
UCK6#,UPK6#,USK6# |
4 | ||
| 73949 - CAP | ||||
| 71848-0C010 |
UCK6#,UPK6#,USK6# |
4 | ||
| 79021 - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79021-0C080E0 |
UCK6#,UPK6#,USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 79021-0C081B0 |
UPK6#,USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 79021-0C081E0 |
UPK6#,USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 79021-0C080B0 |
UCK6#,UPK6#,USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 79021-0C082E3 |
UPK6#,USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 79021-0C083B3 |
USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 79021-0C082B3 |
UPK6#,USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 79021-0C083E3 |
USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79023-0C070B0 |
UCK6#,UPK6#,USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 79023-0C072B3 |
UPK6#,USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 79023-0C072E3 |
UPK6#,USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 79023-0C090B0 |
UPK6#,USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 79023-0C070E0 |
UCK6#,UPK6#,USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 79023-0C090E0 |
UPK6#,USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 79023-0C091E0 |
USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 79023-0C091B0 |
USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 79030B - LEG ASSY, REAR NO.2 SEAT, RH | ||||
| 79305-0C010 |
UCK6#,UPK6#,USK6# |
1 | ||
| 79205B - LEG SUB-ASSY, NO.2 SEAT, RH | ||||
| 79305-0C020 |
UCK6#,UPK6#,USK6# |
1 | ||
| 79303A - FRAME SUB-ASSY, NO.3 SEAT BACK, RH | ||||
| 79303-0C021 |
UCK6#,UPK6#,USK6#..LIMD,PLAT |
1 | ||
| 79303-0C020 |
UCK6#,USK6#..LIMD,PLAT |
1 | ||
| 79360A - SPRING ASSY, NO.3 SEAT CUSHION, RH | ||||
| 79360-0C010 |
UCK6#,UPK6#,USK6# |
1 | ||
| 79968B - CLIP | ||||
| 90467-10201 |
USK6# |
1 | ||
| 85820X - MOTOR ASSY, POWER SEAT | ||||
| 85801-0C010 |
UCK6#,UPK6#,USK6#..LIMD,PLAT |
2 | ||
| 85820Y - MOTOR ASSY, POWER SEAT | ||||
| 85801-0C020 |
UCK6#,UPK6#,USK6#..LIMD,PLAT |
2 | ||
| Common parts | ||||
| 78899-0C260 | ||||
| 82711-12120 | ||||
| 90080-16073 | ||||
| 90080-16099 | ||||
| 90105-A0229 | ||||
| 90119-08A80 | ||||
| 90119-A0112 | ||||
| 90179-10212 | ||||
| 91515-81020 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
ILLUST NO. 5 OF 5(0711- )
REAR NO.2 SEAT (LH),W(POWER SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71607 - ROD SUB-ASSY, REAR NO.2 SEAT | ||||
| 72606-0C020 |
UCK6#,UPK6#,USK6# RH |
1 | ||
| 72606-0C010 |
UCK6#,UPK6#,USK6# LH |
1 | ||
| 71612B - PAD, REAR SEAT CUSHION, B | ||||
| 71612-0C090 |
UCK6#,UPK6#,USK6# |
1 | ||
| 71628E - SPACER, REAR SEAT CUSHION | ||||
| 72749-48010 |
UCK6#;UPK6#,USK6#..LIMD,PLAT |
4 | ||
| 72749-12010 |
UPK6#,USK6# |
4 | ||
| 71628E - SPACER, REAR SEAT CUSHION | ||||
| 72749-48010 |
UCK6#;UPK6#,USK6#..LIMD,PLAT |
4 | ||
| 72749-12010 |
UPK6#,USK6# |
4 | ||
| 71652C - PAD, REAR SEAT BACK, B | ||||
| 71652-0C130 |
UCK6#,UPK6#,USK6#..LIMD,PLAT |
1 | ||
| 71691C - COVER, REAR SEAT LOCK, INNER RH | ||||
| 71691-0C080B0 |
UCK6#,UPK6#,USK6# GRAY,TRIM1# |
1 | ||
| 71691-0C080E0 |
UCK6#,UPK6#,USK6# SAND BEIGE,TRIM4# |
1 | ||
| 71692B - COVER, REAR SEAT LOCK, OUTER LH | ||||
| 71692-0C040B0 |
UCK6#,UPK6#,USK6# GRAY,TRIM1# |
1 | ||
| 71692-0C040E0 |
UCK6#,UPK6#,USK6# SAND BEIGE,TRIM4# |
1 | ||
| 71702C - BOARD SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71702-0C080B0 |
UPK6#,USK6#..LIMD,PLAT GRAY,TRIM1# |
1 | ||
| 71702-0C040B0 |
UCK6#,UPK6#,USK6#..LIMD,PLAT GRAY,TRIM1# |
1 | ||
| 71702-0C040E0 |
UCK6#,UPK6#,USK6#..LIMD,PLAT SAND BEIGE,TRIM4# |
1 | ||
| 71702-0C080E0 |
UPK6#,USK6#..LIMD,PLAT SAND BEIGE,TRIM4# |
1 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71930-42020B8 |
UCK6#,UPK6#,USK6# W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71931-42020B8 |
UCK6#,UPK6#,USK6# W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71990-60010B3 |
UPK6#,USK6# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-42020E3 |
UCK6#,UPK6#,USK6# W(LOCK)&W(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71990-60010E0 |
UPK6#,USK6# W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-42020E3 |
UCK6#,UPK6#,USK6# W(LOCK)&W/O(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71930-42020B8 |
UCK6#,UPK6#,USK6# W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71931-42020B8 |
UCK6#,UPK6#,USK6# W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71990-60010B3 |
UPK6#,USK6# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-42020E3 |
UCK6#,UPK6#,USK6# W(LOCK)&W(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71990-60010E0 |
UPK6#,USK6# W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-42020E3 |
UCK6#,UPK6#,USK6# W(LOCK)&W/O(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71940E - HEADREST ASSY, NO.2 SEAT | ||||
| 71960-0C230B0 |
UCK6#,UPK6#,USK6#..LIMD,PLAT GRAY,TRIM1# |
1 | ||
| 71960-0C231E3 |
UPK6#,USK6#..LIMD,PLAT SAND BEIGE,TRIM4# |
1 | ||
| 71960-0C231B1 |
UPK6#,USK6#..LIMD,PLAT GRAY,TRIM1# |
1 | ||
| 71960-0C230E0 |
UCK6#,UPK6#,USK6#..LIMD,PLAT SAND BEIGE,TRIM4# |
1 | ||
| 71960-0C260B0 |
UPK6#,USK6#..LIMD,PLAT GRAY,TRIM1# |
1 | ||
| 71960-0C231E5 |
UPK6#,USK6#..LIMD,PLAT SAND BEIGE,TRIM4# |
1 | ||
| 71960-0C231B2 |
UPK6#,USK6#..LIMD,PLAT GRAY,TRIM1# |
1 | ||
| 71960-0C260E1 |
UPK6#,USK6#..LIMD,PLAT SAND BEIGE,TRIM4# |
1 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B8 |
UCK6#,UPK6#,USK6# W(LOCK)&W(BUTTON),GRAY,TRIM1# |
1 | ||
| 71930-42020E3 |
UCK6#,UPK6#,USK6# W(LOCK)&W(BUTTON),SAND BEIGE,TRIM4# |
1 | ||
| 71930-52030B4 |
UPK6#,USK6# W(LOCK)&W(BUTTON),GRAY,TRIM1# |
1 | ||
| 71930-52030E4 |
UPK6#,USK6# W(LOCK)&W(BUTTON),SAND BEIGE,TRIM4# |
1 | ||
| 71931-42020B8 |
UCK6#,UPK6#,USK6# W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
1 | ||
| 71931-42020E3 |
UCK6#,UPK6#,USK6# W(LOCK)&W/O(BUTTON),SAND BEIGE,TRIM4# |
1 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B8 |
UCK6#,UPK6#,USK6# W(LOCK)&W(BUTTON),GRAY,TRIM1# |
1 | ||
| 71930-42020E3 |
UCK6#,UPK6#,USK6# W(LOCK)&W(BUTTON),SAND BEIGE,TRIM4# |
1 | ||
| 71930-52030B4 |
UPK6#,USK6# W(LOCK)&W(BUTTON),GRAY,TRIM1# |
1 | ||
| 71930-52030E4 |
UPK6#,USK6# W(LOCK)&W(BUTTON),SAND BEIGE,TRIM4# |
1 | ||
| 71931-42020B8 |
UCK6#,UPK6#,USK6# W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
1 | ||
| 71931-42020E3 |
UCK6#,UPK6#,USK6# W(LOCK)&W/O(BUTTON),SAND BEIGE,TRIM4# |
1 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71970-0C131B1 |
UPK6#,USK6#..LIMD,PLAT GRAY,TRIM1# |
2 | ||
| 71970-0C130B0 |
UCK6#,UPK6#,USK6#..LIMD,PLAT GRAY,TRIM1# |
2 | ||
| 71970-0C130E0 |
UCK6#,UPK6#,USK6#..LIMD,PLAT SAND BEIGE,TRIM4# |
2 | ||
| 71970-0C131E5 |
UPK6#,USK6#..LIMD,PLAT SAND BEIGE,TRIM4# |
2 | ||
| 71970-0C131E3 |
UPK6#,USK6#..LIMD,PLAT SAND BEIGE,TRIM4# |
2 | ||
| 71970-0C131B2 |
UPK6#,USK6#..LIMD,PLAT GRAY,TRIM1# |
2 | ||
| 71970-0C140E1 |
UPK6#,USK6#..LIMD,PLAT SAND BEIGE,TRIM4# |
2 | ||
| 71970-0C140B0 |
UPK6#,USK6#..LIMD,PLAT GRAY,TRIM1# |
2 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71970-0C131B1 |
UPK6#,USK6#..LIMD,PLAT GRAY,TRIM1# |
2 | ||
| 71970-0C130B0 |
UCK6#,UPK6#,USK6#..LIMD,PLAT GRAY,TRIM1# |
2 | ||
| 71970-0C130E0 |
UCK6#,UPK6#,USK6#..LIMD,PLAT SAND BEIGE,TRIM4# |
2 | ||
| 71970-0C131E5 |
UPK6#,USK6#..LIMD,PLAT SAND BEIGE,TRIM4# |
2 | ||
| 71970-0C131E3 |
UPK6#,USK6#..LIMD,PLAT SAND BEIGE,TRIM4# |
2 | ||
| 71970-0C131B2 |
UPK6#,USK6#..LIMD,PLAT GRAY,TRIM1# |
2 | ||
| 71970-0C140E1 |
UPK6#,USK6#..LIMD,PLAT SAND BEIGE,TRIM4# |
2 | ||
| 71970-0C140B0 |
UPK6#,USK6#..LIMD,PLAT GRAY,TRIM1# |
2 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-0C010B0 |
UPK6#;USK6#..LIMD,PLAT GRAY,TRIM13 |
1 | ||
| 72124-0C010E0 |
UPK6#;USK6#..LIMD,PLAT SAND BEIGE,TRIM44 |
1 | ||
| 72124-0C010C0 |
USK6#..LIMD BLACK,TRIM1#,4# |
1 | ||
| 72308 - LINK SUB-ASSY, RECLINING CONTROL, LH | ||||
| 72308-0C020 |
UPK6#,USK6#..LIMD,PLAT |
1 | ||
| 72572A - BASE, RECLINING CONTROL, LH | ||||
| 72596-0C010 |
UCK6#,UPK6#,USK6#..LIMD,PLAT |
1 | ||
| 72622B - BUSH, REAR SEAT BACK STOPPER CONNECTING ROD | ||||
| 72622-0C010 |
UCK6#,UPK6#,USK6# |
4 | ||
| 72622B - BUSH, REAR SEAT BACK STOPPER CONNECTING ROD | ||||
| 72622-0C010 |
UCK6#,UPK6#,USK6# |
4 | ||
| 72995D - COVER, REAR SEAT CUSHION, INNER RH | ||||
| 72995-0C070E0 |
UCK6#,UPK6#,USK6# SAND BEIGE,TRIM4# |
1 | ||
| 72995-0C070B0 |
UCK6#,UPK6#,USK6# GRAY,TRIM1# |
1 | ||
| 72996A - COVER, REAR SEAT BACK | ||||
| 72996-0C040E0 |
UCK6#,UPK6#,USK6# SAND BEIGE,TRIM4# |
1 | ||
| 72996-0C040B0 |
UCK6#,UPK6#,USK6# GRAY,TRIM1# |
1 | ||
| 72998B - COVER, REAR SEAT CUSHION, LH | ||||
| 72998-0C060E0 |
UCK6#,UPK6#,USK6# SAND BEIGE,TRIM4# |
1 | ||
| 72998-0C060B0 |
UCK6#,UPK6#,USK6# GRAY,TRIM1# |
1 | ||
| 73949 - CAP | ||||
| 71848-0C010 |
UCK6#,UPK6#,USK6# |
4 | ||
| 73949 - CAP | ||||
| 71848-0C010 |
UCK6#,UPK6#,USK6# |
4 | ||
| 79022 - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79022-0C060E0 |
UCK6#,UPK6#,USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 79022-0C060B0 |
UCK6#,UPK6#,USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 79022-0C061E0 |
UPK6#,USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 79022-0C061B0 |
UPK6#,USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 79022-0C062B3 |
UPK6#,USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 79022-0C062E3 |
UPK6#,USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 79022-0C063B3 |
USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 79022-0C063E3 |
USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79024-0C070E0 |
UCK6#,UPK6#,USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 79024-0C072B3 |
UPK6#,USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 79024-0C070B0 |
UCK6#,UPK6#,USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 79024-0C090B0 |
UPK6#,USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 79024-0C072E3 |
UPK6#,USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 79024-0C090E0 |
UPK6#,USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 79024-0C091E0 |
USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 79024-0C091B0 |
USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 79040B - LEG ASSY, REAR NO.2 SEAT, LH | ||||
| 79306-0C010 |
UCK6#,UPK6#,USK6#..LIMD,PLAT |
1 | ||
| 79206B - LEG SUB-ASSY, NO.2 SEAT, LH | ||||
| 79306-0C030 |
UCK6#,UPK6#,USK6#..LIMD,PLAT |
1 | ||
| 79304A - FRAME SUB-ASSY, NO.3 SEAT BACK, LH | ||||
| 79304-0C020 |
UCK6#,USK6#..LIMD,PLAT |
1 | ||
| 79304-0C021 |
UCK6#,UPK6#,USK6#..LIMD,PLAT |
1 | ||
| 79370A - SPRING ASSY, NO.3 SEAT CUSHION, LH | ||||
| 79370-0C010 |
UCK6#,UPK6#,USK6# |
1 | ||
| 85820X - MOTOR ASSY, POWER SEAT | ||||
| 85801-0C010 |
UCK6#,UPK6#,USK6#..LIMD,PLAT |
2 | ||
| 85820Y - MOTOR ASSY, POWER SEAT | ||||
| 85801-0C020 |
UCK6#,UPK6#,USK6#..LIMD,PLAT |
2 | ||
| Common parts | ||||
| 78899-0C240 | ||||
| 78899-0C260 | ||||
| 82711-12120 | ||||
| 90080-16073 | ||||
| 90080-16099 | ||||
| 90105-A0229 | ||||
| 90119-08A80 | ||||
| 90119-A0112 | ||||
| 90179-10212 | ||||
| 91515-81020 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||

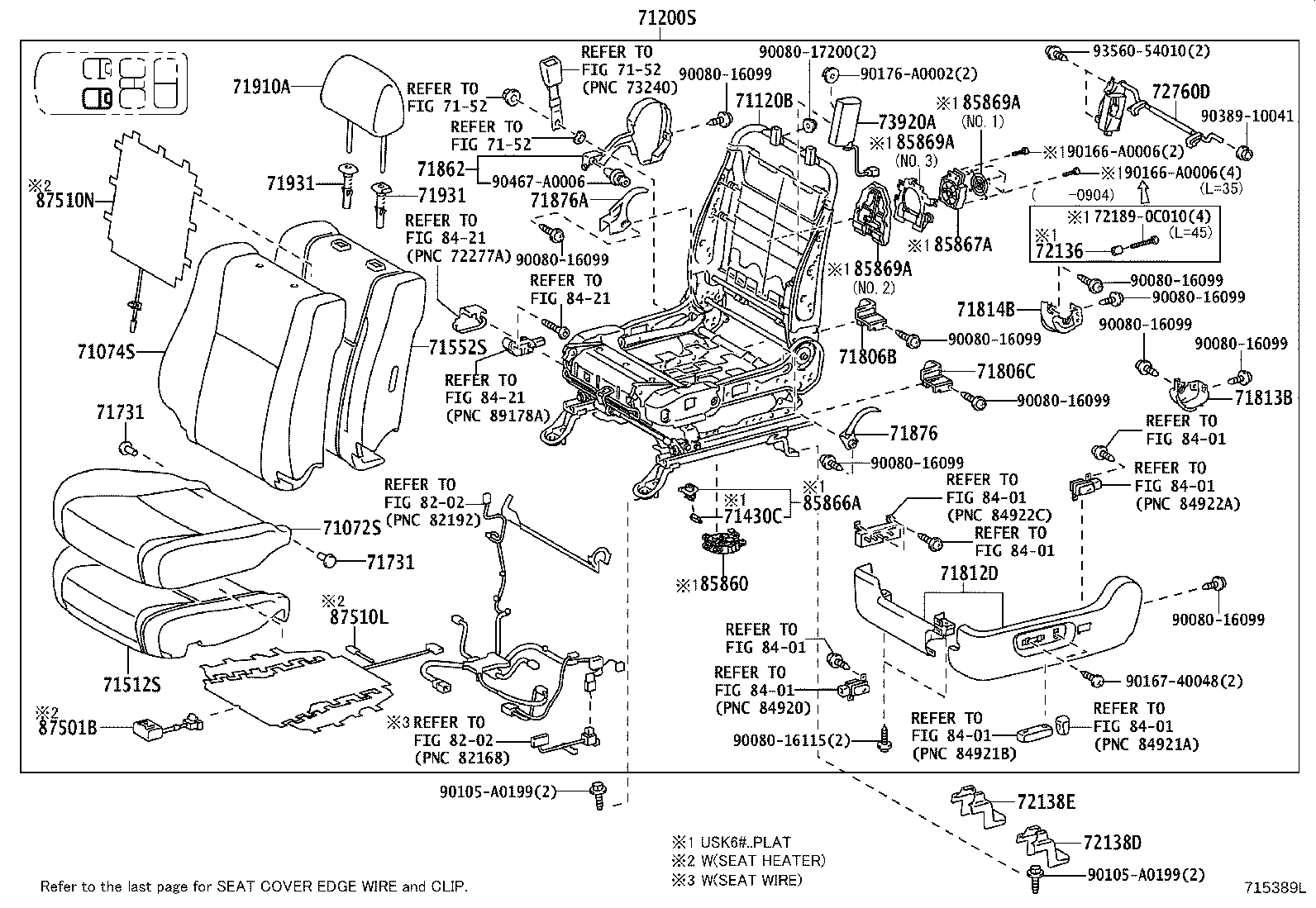

ILLUST NO. 1 OF 5(0711-1708)
DRIVER SEAT,W(POWER SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-0C270E3 |
UCK6#,USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 71072-0C270B2 |
UCK6#,USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 71072-0C420B0 |
UPK6#,USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 71072-0C420E0 |
UPK6#,USK6#..LIMD GRAY,TRIM4# |
1 | ||
| 71072-0C420B1 |
UPK6#,USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 71072-0C420E1 |
UPK6#,USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 71072-0C421E1 |
UPK6#,USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 71072-0C421B1 |
UPK6#,USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 71072-0C421B2 |
USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 71072-0C421E2 |
USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-0C410E3 |
UCK6#,USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 71074-0C410B2 |
UCK6#,USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 71074-0C740B0 |
UPK6#,USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 71074-0C740E0 |
UPK6#,USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 71074-0C741B0 |
UPK6#,USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 71074-0C741E0 |
UPK6#,USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 71074-0C742B1 |
USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 71074-0C742E1 |
USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 71074-0C743E1 |
USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 71074-0C743B1 |
USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 71074-0C840E0 |
USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 71074-0C840B0 |
USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-0C190 |
UCK6#,USK6#..LIMD |
1 | ||
| 71120-0C191 |
UPK6#,USK6#..LIMD |
1 | ||
| 71120-0C192 |
USK6#..LIMD |
1 | ||
| 71200S - SEAT ASSY, FRONT LH | ||||
| 71200-0C540E8 |
UCK6#,USK6#..LIMD POWER MEMORY PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71200-0C530B8 |
UCK6#,USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 71200-0C540B8 |
UCK6#,USK6#..LIMD POWER MEMORY PACKAGE,GRAY,TRIM1# |
1 | ||
| 71200-0C530E8 |
UCK6#,USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 71200-0CB30E0 |
UPK6#,USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 71200-0CB30B0 |
UPK6#,USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 71200-0CB40E0 |
UPK6#,USK6#..LIMD POWER MEMORY PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71200-0CB40B0 |
UPK6#,USK6#..LIMD POWER MEMORY PACKAGE,GRAY,TRIM1# |
1 | ||
| 71200-0CB31B1 |
UPK6#,USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 71200-0CB41E1 |
UPK6#,USK6#..LIMD POWER MEMORY PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71200-0CB41B1 |
UPK6#,USK6#..LIMD POWER MEMORY PACKAGE,GRAY,TRIM1# |
1 | ||
| 71200-0CB32B2 |
UPK6#,USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 71200-0CB31E1 |
UPK6#,USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 71200-0CB32E2 |
UPK6#,USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 71200-0CB42E2 |
UPK6#,USK6#..LIMD POWER MEMORY PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71200-0CB42B2 |
UPK6#,USK6#..LIMD POWER MEMORY PACKAGE,GRAY,TRIM1# |
1 | ||
| 71200-0CB42E3 |
USK6#..LIMD POWER MEMORY PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71200-0CB42B3 |
USK6#..LIMD POWER MEMORY PACKAGE,GRAY,TRIM1# |
1 | ||
| 71200-0CB32E3 |
USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 71200-0CE70B0 |
USK6#..LIMD POWER MEMORY PACKAGE,GRAY,TRIM1# |
1 | ||
| 71200-0CB32B3 |
USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 71200-0CE60B0 |
USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 71200-0CE60E0 |
USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 71200-0CE70E0 |
USK6#..LIMD POWER MEMORY PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-0C080 |
UPK6#,USK6#..LIMD |
1 | ||
| 71512-0C081 |
USK6#..LIMD |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-0C170 |
UCK6#,UPK6#,USK6#..LIMD |
1 | ||
| 71552-0C160 |
UPK6#,USK6#..LIMD |
1 | ||
| 71552-0C270 |
USK6#..LIMD,SR5 |
1 | ||
| 71731 - FASTENER SUB-ASSY, SEAT COVER, A (FOR FRONT SEAT) | ||||
| 71731-0C010 |
USK6#..LIMD,PLAT |
4 | ||
| 71731 - FASTENER SUB-ASSY, SEAT COVER, A (FOR FRONT SEAT) | ||||
| 71731-0C010 |
USK6#..LIMD,PLAT |
4 | ||
| 71806B - SHIELD SUB-ASSY, FRONT SEAT CUSHION, LH NO.1 | ||||
| 71806-0C020B0 |
UPK6#,USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 71806-0C020E0 |
UPK6#,USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 71806-0C020C0 |
USK6#..LIMD BLACK |
1 | ||
| 71806C - SHIELD SUB-ASSY, FRONT SEAT CUSHION, LH NO.2 | ||||
| 71806-0C030B0 |
UPK6#,USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 71806-0C030E0 |
UPK6#,USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 71806-0C030C0 |
USK6#..LIMD BLACK |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71806-0C040E0 |
UCK6#,USK6#..LIMD,PLAT SAND BEIGE,TRIM4# |
1 | ||
| 71806-0C040B0 |
UCK6#,USK6#..LIMD,PLAT GRAY,TRIM1# |
1 | ||
| 71806-0C060B0 |
USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 71806-0C060E0 |
USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 71813B - SHIELD, FRONT SEAT BACK, RH | ||||
| 71813-0E020 |
USK6#..LIMD,PLAT |
1 | ||
| 71814B - SHIELD, FRONT SEAT BACK, LH | ||||
| 71814-0E020 |
USK6#..LIMD,PLAT |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-AA080E1 |
UPK6#,USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 71862-AA080B3 |
UPK6#,USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 71862-0E020B2 |
USK6#..LIMD,PLAT GRAY,TRIM1# |
1 | ||
| 71862-0E020E0 |
USK6#..LIMD,PLAT SAND BEIGE,TRIM4# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71875-0E020E2 |
USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 71875-0E020B5 |
USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-AA090B5 |
USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 71876-AA090E2 |
USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0C210B1 |
UPK6#,USK6#..LIMD,PLAT GRAY,TRIM1# |
2 | ||
| 71910-0C210E2 |
UPK6#,USK6#..LIMD,PLAT SAND BEIGE,TRIM4# |
2 | ||
| 71910-0C250B1 |
UPK6#,USK6#..LIMD,PLAT GRAY,TRIM1# |
2 | ||
| 71910-0C250E3 |
UPK6#,USK6#..LIMD,PLAT SAND BEIGE,TRIM4# |
2 | ||
| 71910-0C250E5 |
USK6#..LIMD,PLAT SAND BEIGE,TRIM4# |
2 | ||
| 71910-0C250B2 |
USK6#..LIMD,PLAT GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B8 |
UPK6#,USK6# W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71931-42020E3 |
USK6# W(LOCK)&W/O(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71931-42020B8 |
USK6# W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-42020E3 |
UPK6#,USK6# W(LOCK)&W(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71930-52030E4 |
USK6# W(LOCK)&W(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71930-52030B4 |
USK6# W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B8 |
UPK6#,USK6# W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71931-42020E3 |
USK6# W(LOCK)&W/O(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71931-42020B8 |
USK6# W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-42020E3 |
UPK6#,USK6# W(LOCK)&W(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71930-52030E4 |
USK6# W(LOCK)&W(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71930-52030B4 |
USK6# W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 72138D - COVER, SEAT TRACK, OUTER, LH | ||||
| 72138-0C030B0 |
USK6#..LIMD,PLAT GRAY,TRIM13 |
1 | ||
| 72138-0C030E0 |
USK6#..LIMD,PLAT SAND BEIGE,TRIM44 |
1 | ||
| 72138-0C030E0 |
USK6#..LIMD,PLAT SAND BEIGE,TRIM4# |
1 | ||
| 72138-0C030B0 |
USK6#..LIMD,PLAT GRAY,TRIM1# |
1 | ||
| 72138-0C030B0 |
USK6#..LIMD,PLAT GRAY,TRIM13 |
1 | ||
| 72138-0C030E0 |
USK6#..LIMD,PLAT SAND BEIGE,TRIM44 |
1 | ||
| 72138-0C030C0 |
USK6#..LIMD BLACK,TRIM1#,4# |
1 | ||
| 72138E - COVER, SEAT TRACK, INNER LH | ||||
| 72138-0C040E0 |
USK6#..LIMD,PLAT SAND BEIGE,TRIM44 |
1 | ||
| 72138-0C040B0 |
USK6#..LIMD,PLAT GRAY,TRIM13 |
1 | ||
| 72138-0C040B0 |
USK6#..LIMD,PLAT GRAY,TRIM1# |
1 | ||
| 72138-0C040E0 |
USK6#..LIMD,PLAT SAND BEIGE,TRIM4# |
1 | ||
| 72138-0C040B0 |
USK6#..LIMD,PLAT GRAY,TRIM13 |
1 | ||
| 72138-0C040E0 |
USK6#..LIMD,PLAT SAND BEIGE,TRIM44 |
1 | ||
| 72138-0C040C0 |
USK6#..LIMD BLACK,TRIM1#,4# |
1 | ||
| 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72760-AC040 |
USK6#..LIMD,SR5 |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-0C040 |
UCK6#,UPK6#,USK6#..LIMD,SR5 |
1 | ||
| 73920-0C070 |
USK6#..LIMD,SR5 |
1 | ||
| 87501B - CONTROL SUB-ASSY, SEAT HEATER, LH | ||||
| 87501-0E020 |
USK6#..LIMD,PLAT |
1 | ||
| 87501-0E060 |
USK6#..LIMD,PLAT |
1 | ||
| 87501-AC010 |
UPK6#,USK6#..LIMD,PLAT |
1 | ||
| 87510L - HEATER ASSY, FRONT SEAT CUSHION, LH | ||||
| 87510-0C030 |
USK6#..LIMD |
1 | ||
| 87510N - HEATER ASSY, FRONT SEAT BACK, LH | ||||
| 87530-0C010 |
USK6#..LIMD |
1 | ||
| Common parts | ||||
| 72189-0C010 | ||||
| 90080-16099 | ||||
| 90080-16115 | ||||
| 90080-17200 | ||||
| 90105-A0199 | ||||
| 90166-A0006 | ||||
| 90167-40048 | ||||
| 90176-A0002 | ||||
| 90389-10041 | ||||
| 90467-A0006 | ||||
| 93560-54010 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8401 | ||||
| 8421 | ||||

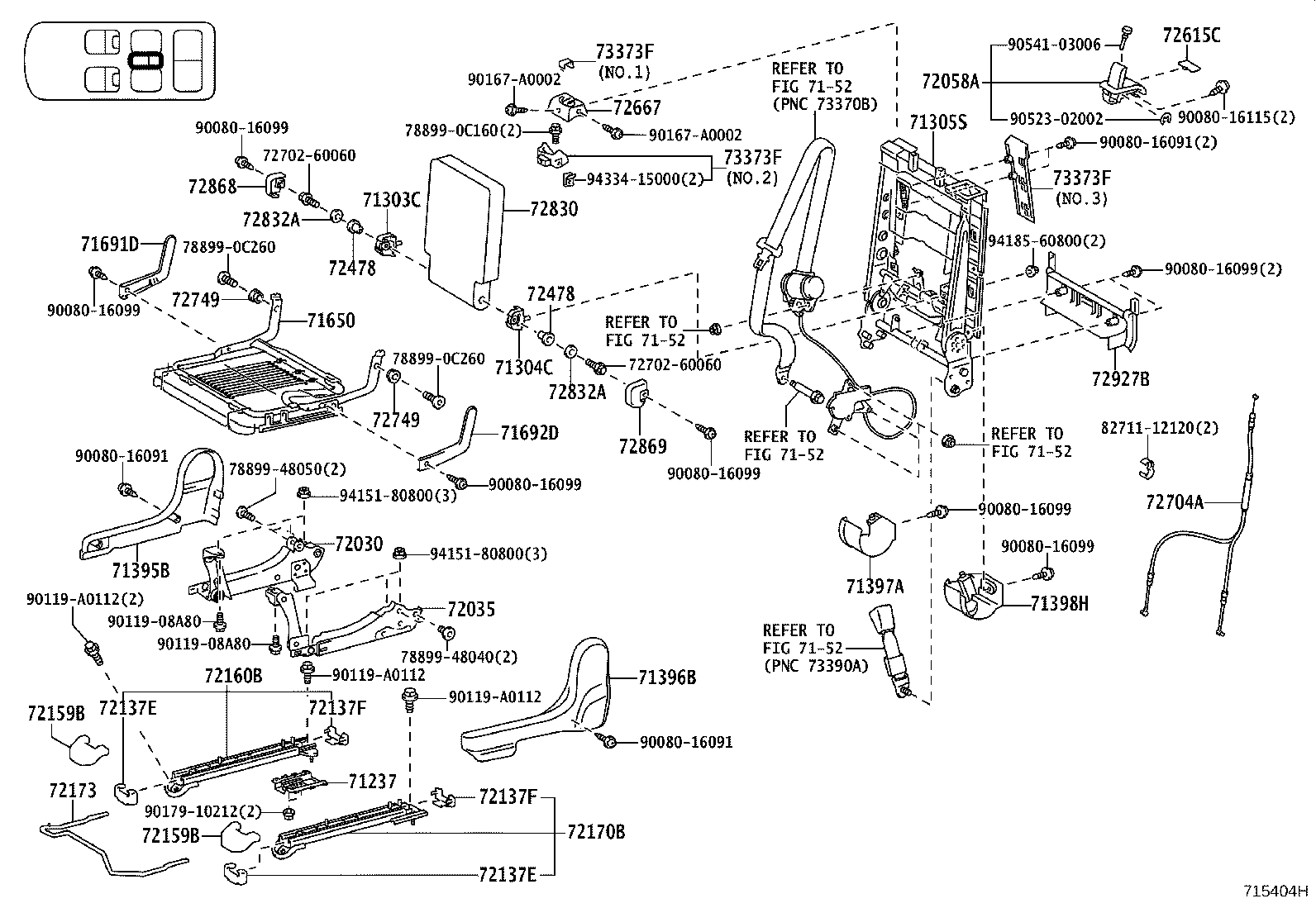

ILLUST NO. 2 OF 5(0711-1708)
PASSENGER SEAT,W(POWER SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-0C440E3 |
UCK6#,USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 71071-0C440B2 |
UCK6#,USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 71071-0C770E0 |
UPK6#,USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 71071-0C770B0 |
UPK6#,USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 71071-0C771B0 |
UPK6#,USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 71071-0C771E0 |
UPK6#,USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 71071-0C771B1 |
USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 71071-0C771E1 |
USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-0C550B2 |
UCK6#,USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 71073-0CC00B0 |
UPK6#,USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 71073-0CC01B0 |
UPK6#,USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 71073-0C550E3 |
UCK6#,USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 71073-0CC00E0 |
UPK6#,USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 71073-0CC01E0 |
UPK6#,USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 71073-0CC02B1 |
USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 71073-0CC02E1 |
USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 71073-0CC03E1 |
USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 71073-0CC03B1 |
USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 71073-0CC70E0 |
USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 71073-0CC70B0 |
USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 71100S - SEAT ASSY, FRONT RH | ||||
| 71100-0C620E7 |
UCK6#,USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 71100-0C620B7 |
UCK6#,USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 71100-0CE00B0 |
UPK6#,USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 71100-0CE00E0 |
UPK6#,USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 71100-0CE01B1 |
UPK6#,USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 71100-0CE01E1 |
UPK6#,USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 71100-0CE02B1 |
UPK6#,USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 71100-0CE02E1 |
UPK6#,USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 71100-0CE02B2 |
USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 71100-0CE02E2 |
USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 71100-0CG40B0 |
USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 71100-0CG40E0 |
USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-0C150 |
UCK6#,USK6#..LIMD |
1 | ||
| 71110-0C151 |
UPK6#,USK6#..LIMD |
1 | ||
| 71110-0C152 |
USK6#..LIMD |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-0C260 |
UPK6#,USK6#..LIMD |
1 | ||
| 71511-0C261 |
USK6#..LIMD |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-AA020 |
UPK6#,USK6#..LIMD,PLAT |
2 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-0C250 |
UCK6#,UPK6#,USK6#..LIMD |
1 | ||
| 71551-0C400 |
USK6#..LIMD,SR5 |
1 | ||
| 71551-0C230 |
UPK6#,USK6#..LIMD |
1 | ||
| 71731 - FASTENER SUB-ASSY, SEAT COVER, A (FOR FRONT SEAT) | ||||
| 71731-0C010 |
USK6#..LIMD,PLAT |
4 | ||
| 71731 - FASTENER SUB-ASSY, SEAT COVER, A (FOR FRONT SEAT) | ||||
| 71731-0C010 |
USK6#..LIMD,PLAT |
4 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71805-0C020B0 |
UCK6#,USK6#..LIMD,PLAT GRAY,TRIM1# |
1 | ||
| 71805-0C020E0 |
UCK6#,USK6#..LIMD,PLAT SAND BEIGE,TRIM4# |
1 | ||
| 71805-0C030B0 |
USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 71805-0C030E0 |
USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 71813A - SHIELD, FRONT SEAT BACK, RH | ||||
| 71813-0E010 |
USK6#..LIMD,PLAT |
1 | ||
| 71814A - SHIELD, FRONT SEAT BACK, LH | ||||
| 71814-0E010 |
USK6#..LIMD,PLAT |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-AA060E1 |
UPK6#,USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 71861-AA060B2 |
UPK6#,USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 71861-0E020B2 |
USK6#..LIMD,PLAT GRAY,TRIM1# |
1 | ||
| 71861-0E020E0 |
USK6#..LIMD,PLAT SAND BEIGE,TRIM4# |
1 | ||
| 71874C - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71874-06070 |
USK6#..LIMD,PLAT |
2 | ||
| 71874C - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71874-06070 |
USK6#..LIMD,PLAT |
2 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-AA090E2 |
USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 71875-AA090B3 |
USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-0E010E2 |
USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 71875-0E010B3 |
USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0C210B1 |
UPK6#,USK6#..LIMD,PLAT GRAY,TRIM1# |
2 | ||
| 71910-0C210E2 |
UPK6#,USK6#..LIMD,PLAT SAND BEIGE,TRIM4# |
2 | ||
| 71910-0C250B1 |
UPK6#,USK6#..LIMD,PLAT GRAY,TRIM1# |
2 | ||
| 71910-0C250E3 |
UPK6#,USK6#..LIMD,PLAT SAND BEIGE,TRIM4# |
2 | ||
| 71910-0C250E5 |
USK6#..LIMD,PLAT SAND BEIGE,TRIM4# |
2 | ||
| 71910-0C250B2 |
USK6#..LIMD,PLAT GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B8 |
UPK6#,USK6# W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71931-42020E3 |
USK6# W(LOCK)&W/O(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71931-42020B8 |
USK6# W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-42020E3 |
UPK6#,USK6# W(LOCK)&W(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71930-52030E4 |
USK6# W(LOCK)&W(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71930-52030B4 |
USK6# W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B8 |
UPK6#,USK6# W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71931-42020E3 |
USK6# W(LOCK)&W/O(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71931-42020B8 |
USK6# W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-42020E3 |
UPK6#,USK6# W(LOCK)&W(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71930-52030E4 |
USK6# W(LOCK)&W(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71930-52030B4 |
USK6# W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 72137C - COVER, SEAT TRACK INNER, RH | ||||
| 72137-0C430B0 |
USK6#..LIMD,PLAT GRAY,TRIM13 |
1 | ||
| 72137-0C430E0 |
USK6#..LIMD,PLAT SAND BEIGE,TRIM4# |
1 | ||
| 72137-0C430E0 |
USK6#..LIMD,PLAT SAND BEIGE,TRIM44 |
1 | ||
| 72137-0C430B0 |
USK6#..LIMD,PLAT GRAY,TRIM1# |
1 | ||
| 72137-0C430C0 |
USK6#..LIMD BLACK,TRIM1#,4# |
1 | ||
| 72137-0C430B0 |
USK6#..LIMD,PLAT GRAY,TRIM13 |
1 | ||
| 72137-0C430E0 |
USK6#..LIMD,PLAT SAND BEIGE,TRIM44 |
1 | ||
| 72137G - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-0C420B0 |
USK6#..LIMD,PLAT GRAY,TRIM13 |
1 | ||
| 72137-0C420E0 |
USK6#..LIMD,PLAT SAND BEIGE,TRIM4# |
1 | ||
| 72137-0C420E0 |
USK6#..LIMD,PLAT SAND BEIGE,TRIM44 |
1 | ||
| 72137-0C420B0 |
USK6#..LIMD,PLAT GRAY,TRIM1# |
1 | ||
| 72137-0C420E0 |
USK6#..LIMD,PLAT SAND BEIGE,TRIM44 |
1 | ||
| 72137-0C420B0 |
USK6#..LIMD,PLAT GRAY,TRIM13 |
1 | ||
| 72137-0C420C0 |
USK6#..LIMD BLACK,TRIM1#,4# |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-07010 |
USK6#..LIMD |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-0C050 |
UCK6#,UPK6#,USK6#..LIMD,SR5 |
1 | ||
| 73910-0C110 |
USK6#..LIMD,SR5 |
1 | ||
| 87501A - CONTROL SUB-ASSY, SEAT HEATER, RH | ||||
| 87501-AC010 |
UPK6#,USK6#..LIMD,PLAT |
1 | ||
| 87501-0E020 |
USK6#..LIMD,PLAT |
1 | ||
| 87501-0E060 |
USK6#..LIMD,PLAT |
1 | ||
| 87510K - HEATER ASSY, FRONT SEAT CUSHION, RH | ||||
| 87510-0C030 |
USK6#..LIMD |
1 | ||
| 87510M - HEATER ASSY, FRONT SEAT BACK, RH | ||||
| 87530-0C010 |
USK6#..LIMD |
1 | ||
| Common parts | ||||
| 72189-0C010 | ||||
| 90080-16099 | ||||
| 90080-16115 | ||||
| 90080-17200 | ||||
| 90105-A0199 | ||||
| 90166-A0006 | ||||
| 90167-40048 | ||||
| 90176-A0002 | ||||
| 90389-10041 | ||||
| 90467-A0006 | ||||
| 93560-54010 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8401 | ||||
| 8421 | ||||
ILLUST NO. 4 OF 5(0711- )
REAR NO.1 SEAT (RH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-0C080 |
UCK6#,UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8 |
1 | ||
| 71017-0C090 |
UCK6#,UPK6#,USK6#..LIMD,SR5 |
1 | ||
| 71017-0C091 |
UPK6#,USK6#..LIMD,SR5 |
1 | ||
| 71017-0C081 |
UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8 |
1 | ||
| 71307D - BRACKET SUB-ASSY, REAR SEAT CUSHION SUPPORT, RH | ||||
| 72358-0C010 |
UCK6#,UPK6#,USK6# |
1 | ||
| 71385B - BRACKET, REAR SEAT CUSHION HOLDER, RH | ||||
| 71385-0C020 |
UCK6#,UPK6#,USK6# |
1 | ||
| 71461A - SPRING, REAR SEAT CUSHION, NO.1 | ||||
| 71461-0C020 |
UCK6#,UPK6#,USK6# |
2 | ||
| 71629A - COVER, REAR SEAT CUSHION HINGE, RH | ||||
| 71629-0C030E0 |
UCK6#,UPK6#,USK6# SAND BEIGE,TRIM4# |
1 | ||
| 71629-0C030B0 |
UCK6#,UPK6#,USK6# GRAY,TRIM1# |
1 | ||
| 71650B - SPRING ASSY, REAR SEAT CUSHION, RH | ||||
| 71650-0C020 |
UCK6#,UPK6#,USK6# |
1 | ||
| 71691E - COVER, REAR SEAT CUSHION HINGE, NO.1 | ||||
| 71691-0C040B0 |
UCK6#,UPK6#,USK6# GRAY,TRIM1# |
1 | ||
| 71691-0C040E0 |
UCK6#,UPK6#,USK6# SAND BEIGE,TRIM4# |
1 | ||
| 71691H - COVER, REAR SEAT CUSHION HINGE, NO.2 | ||||
| 71691-0C050E0 |
UCK6#,UPK6#,USK6# SAND BEIGE,TRIM4# |
1 | ||
| 71691-0C050B0 |
UCK6#,UPK6#,USK6# GRAY,TRIM1# |
1 | ||
| 71692H - COVER, REAR SEAT CUSHION HINGE, NO.3 | ||||
| 71692-0C030B0 |
UCK6#,UPK6#,USK6# GRAY,TRIM1# |
1 | ||
| 71692-0C030E0 |
UCK6#,UPK6#,USK6# SAND BEIGE,TRIM4# |
1 | ||
| 71693 - COVER, REAR SEAT CUSHION HINGE, LOWER RH | ||||
| 71693-0C020E0 |
USK6# SAND BEIGE,TRIM4# |
1 | ||
| 71693-0C020B0 |
USK6# GRAY,TRIM1# |
1 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71834-0C040E0 |
UCK6#,UPK6#,USK6# SAND BEIGE,TRIM4# |
1 | ||
| 71834-0C040B0 |
UCK6#,UPK6#,USK6# GRAY,TRIM1# |
1 | ||
| 71878A - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-0C030B0 |
UCK6#,UPK6#,USK6# GRAY,TRIM1# |
1 | ||
| 71878-0C030E0 |
UCK6#,UPK6#,USK6# SAND BEIGE,TRIM4# |
1 | ||
| 71879A - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71879-0C030B0 |
UCK6#,UPK6#,USK6# GRAY,TRIM1# |
1 | ||
| 71879-0C030E0 |
UCK6#,UPK6#,USK6# SAND BEIGE,TRIM4# |
1 | ||
| 71879B - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71879-0C040E0 |
UCK6#,UPK6#,USK6# SAND BEIGE,TRIM4# |
1 | ||
| 71879-0C040B0 |
UCK6#,UPK6#,USK6# GRAY,TRIM1# |
1 | ||
| 72057 - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH | ||||
| 72057-0E010E0 |
UCK6#;UPK6#,USK6#..LIMD,PLAT SAND BEIGE,TRIM4# |
1 | ||
| 72057-0E030B1 |
UPK6#,USK6# GRAY,TRIM1# |
1 | ||
| 72057-0E010B1 |
UCK6#;UPK6#,USK6#..LIMD,PLAT GRAY,TRIM1# |
1 | ||
| 72057-0E030E0 |
UPK6#,USK6# SAND BEIGE,TRIM4# |
1 | ||
| 72067 - LEVER SUB-ASSY, REAR BACK LOCK CONTROL, RH | ||||
| 72067-0C010 |
UCK6#,UPK6#,USK6# |
1 | ||
| 72069 - CABLE SUB-ASSY, REAR SEAT BACK LOCK CONTROL | ||||
| 72069-0C030 |
UCK6#,UPK6#,USK6# NO.2 |
2 | ||
| 72069-0C020 |
UCK6#,UPK6#,USK6# NO.1 |
2 | ||
| 72069 - CABLE SUB-ASSY, REAR SEAT BACK LOCK CONTROL | ||||
| 72069-0C030 |
UCK6#,UPK6#,USK6# NO.2 |
2 | ||
| 72069-0C020 |
UCK6#,UPK6#,USK6# NO.1 |
2 | ||
| 72137E - COVER, SEAT TRACK, NO.1 | ||||
| 72137-0C270 |
UPK6#,USK6#..LIMD,PLAT |
4 | ||
| 72137-0C270 |
UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8 |
6 | ||
| 72137E - COVER, SEAT TRACK, NO.1 | ||||
| 72137-0C270 |
UPK6#,USK6#..LIMD,PLAT |
4 | ||
| 72137-0C270 |
UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8 |
6 | ||
| 72137F - COVER, SEAT TRACK, NO.2 | ||||
| 72265-0C010 |
UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8 |
6 | ||
| 72265-0C010 |
UPK6#,USK6#..LIMD,PLAT |
4 | ||
| 72137F - COVER, SEAT TRACK, NO.2 | ||||
| 72265-0C010 |
UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8 |
6 | ||
| 72265-0C010 |
UPK6#,USK6#..LIMD,PLAT |
4 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-0C010E1 |
USK6#..LIMD,SR5 SAND BEIGE,TRIM4# |
1 | ||
| 72157-0C010B0 |
UCK6#,USK6#..LIMD,SR5 GRAY,TRIM1# |
1 | ||
| 72157-0C010E1 |
USK6#..LIMD,SR5 SAND BEIGE,TRIM44 |
1 | ||
| 72157-0C010B0 |
USK6#..LIMD,SR5 GRAY,TRIM13 |
1 | ||
| 72157-0C010C0 |
USK6#..LIMD BLACK,TRIM1#,4# |
1 | ||
| 72157-0C020B0 |
UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8,GRAY,TRIM1# |
1 | ||
| 72157-0C020C0 |
USK6#..LIMD,SR5 NUMBER OF PASSENGER-8,BLACK,TRIM1#,4# |
1 | ||
| 72157-0C020E1 |
UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-0C010E1 |
USK6#..LIMD,SR5 SAND BEIGE,TRIM4# |
1 | ||
| 72157-0C010B0 |
UCK6#,USK6#..LIMD,SR5 GRAY,TRIM1# |
1 | ||
| 72157-0C010E1 |
USK6#..LIMD,SR5 SAND BEIGE,TRIM44 |
1 | ||
| 72157-0C010B0 |
USK6#..LIMD,SR5 GRAY,TRIM13 |
1 | ||
| 72157-0C010C0 |
USK6#..LIMD BLACK,TRIM1#,4# |
1 | ||
| 72157-0C020B0 |
UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8,GRAY,TRIM1# |
1 | ||
| 72157-0C020C0 |
USK6#..LIMD,SR5 NUMBER OF PASSENGER-8,BLACK,TRIM1#,4# |
1 | ||
| 72157-0C020E1 |
UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
1 | ||
| 72159B - COVER, REAR SEAT TRACK BRACKET, OUTER | ||||
| 72159-0C060E1 |
USK6#..LIMD,SR5 SAND BEIGE,TRIM4# |
2 | ||
| 72159-0C060B0 |
UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8,GRAY,TRIM1# |
4 | ||
| 72159-0C060E1 |
UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
4 | ||
| 72159-0C060B0 |
USK6#..LIMD,SR5 GRAY,TRIM1# |
2 | ||
| 72159-0C060B0 |
USK6#..LIMD,SR5 GRAY,TRIM13 |
2 | ||
| 72159-0C060C0 |
USK6#..LIMD BLACK,TRIM1#,4# |
2 | ||
| 72159-0C060C0 |
USK6#..LIMD,SR5 NUMBER OF PASSENGER-8,BLACK,TRIM1#,4# |
4 | ||
| 72159-0C060E1 |
USK6#..LIMD,SR5 SAND BEIGE,TRIM44 |
2 | ||
| 72159D - COVER, REAR SEAT TRACK BRACKET, OUTER RH | ||||
| 72159-0C040E1 |
USK6#..LIMD,SR5 SAND BEIGE,TRIM4# |
1 | ||
| 72159-0C040B0 |
USK6#..LIMD,SR5 GRAY,TRIM1# |
1 | ||
| 72159-0C040C0 |
USK6#..LIMD BLACK,TRIM1#,4# |
1 | ||
| 72159-0C040B0 |
USK6#..LIMD,SR5 GRAY,TRIM13 |
1 | ||
| 72159-0C040E1 |
USK6#..LIMD,SR5 SAND BEIGE,TRIM44 |
1 | ||
| 72160C - TRACK ASSY, REAR NO.1 SEAT, OUTER RH | ||||
| 72160-0C022 |
USK6#..LIMD,SR5 |
1 | ||
| 72160-0C060 |
UPK6#,USK6#..LIMD,SR5 |
1 | ||
| 72160-0C050 |
UPK6#,USK6#..LIMD,SR5 |
1 | ||
| 72170C - TRACK ASSY, REAR NO.1 SEAT, INNER RH | ||||
| 72170-0C052 |
UCK6#,UPK6#,USK6# |
1 | ||
| 72170-0C060 |
UPK6#,USK6# |
1 | ||
| 72170-0C022 |
UCK6#,UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8 |
1 | ||
| 72170-0C040 |
UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8 |
1 | ||
| 72173A - HANDLE, REAR SEAT TRACK ADJUSTING, RH | ||||
| 72173-0C030 |
UCK6#,UPK6#,USK6# |
1 | ||
| 72207A - PLATE, SEAT TRACK STOP RH | ||||
| 72207-0C011 |
UCK6#,UPK6#,USK6# |
1 | ||
| 72572B - CAP, RECLINING ADJUSTER KNOB, RH | ||||
| 72572-0C010E0 |
UCK6#,UPK6#,USK6# SAND BEIGE,TRIM4# |
1 | ||
| 72572-0C010B0 |
UCK6#,UPK6#,USK6# GRAY,TRIM1# |
1 | ||
| 72615C - COVER, REAR SEAT BACK LOCK STRIKER | ||||
| 72615-0E010B1 |
UCK6#;UPK6#,USK6#..LIMD,PLAT GRAY,TRIM1# |
2 | ||
| 72615-0E010E0 |
UCK6#;UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
3 | ||
| 72615-0E050B1 |
UPK6#,USK6# GRAY,TRIM1# |
2 | ||
| 72615-0E010E0 |
UCK6#;UPK6#,USK6#..LIMD,PLAT SAND BEIGE,TRIM4# |
2 | ||
| 72615-0E050B1 |
UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8,GRAY,TRIM1# |
3 | ||
| 72615-0E050E0 |
UPK6#,USK6# SAND BEIGE,TRIM4# |
2 | ||
| 72615-0E010B1 |
UCK6#;UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8,GRAY,TRIM1# |
3 | ||
| 72615-0E050E0 |
UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
3 | ||
| 72620B - CABLE ASSY, REAR NO.1 SEAT LOCK | ||||
| 72620-0C010 |
UCK6#,UPK6#,USK6# |
2 | ||
| 72620C - CABLE ASSY, REAR NO.1 SEAT LOCK | ||||
| 72620-0C060 |
UCK6#,UPK6#,USK6# |
2 | ||
| 72630B - ADJUSTER ASSY, REAR NO.1 SEAT, INNER RH | ||||
| 72630-0C011 |
UCK6#,UPK6#,USK6# |
1 | ||
| 72631 - PLATE, REAR SEAT BACK LOCK, RH | ||||
| 72633-0C010 |
UCK6#,UPK6#,USK6# |
1 | ||
| 72704B - CABLE, REAR SEAT RECLINING CONTROL, NO.2 | ||||
| 72704-0C030 |
UCK6#,UPK6#,USK6# |
2 | ||
| 72730E - ADJUSTER ASSY, REAR SEAT BACK, OUTER RH | ||||
| 72730-0C081 |
UCK6#,UPK6#,USK6# |
1 | ||
| 72735 - LEVER, REAR SEAT RECLINING RELEASE | ||||
| 72735-0C010B0 |
UCK6#,UPK6#,USK6# GRAY,TRIM1# |
1 | ||
| 72735-0C010E0 |
UCK6#,UPK6#,USK6# SAND BEIGE,TRIM4# |
1 | ||
| 72741 - PLATE, REAR SEAT RECLINING LOCK, RH | ||||
| 72607-0C010 |
UCK6#,UPK6#,USK6# |
1 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-48010 |
UCK6#;UPK6#,USK6#..LIMD,PLAT |
4 | ||
| 72749-12010 |
UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8 |
6 | ||
| 72749-48010 |
UCK6#;UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8 |
6 | ||
| 72749-12010 |
UPK6#,USK6# |
4 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-48010 |
UCK6#;UPK6#,USK6#..LIMD,PLAT |
4 | ||
| 72749-12010 |
UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8 |
6 | ||
| 72749-48010 |
UCK6#;UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8 |
6 | ||
| 72749-12010 |
UPK6#,USK6# |
4 | ||
| 72810A - ARMREST ASSY, SEAT, RH | ||||
| 72810-0C280B1 |
UCK6#,UPK6#,USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 72810-0C280E1 |
UCK6#,UPK6#,USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 72810-0C281E2 |
UPK6#,USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 72810-0C281B2 |
UPK6#,USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 72848A - CAP, SEAT ARMREST, NO.1 | ||||
| 72848-28030E6 |
UCK6#,UPK6#,USK6#..LIMD,SR5 SAND BEIGE,TRIM4# |
2 | ||
| 72848-28030P0 |
UCK6#,UPK6#,USK6#..LIMD,SR5 GRAY,TRIM1# |
2 | ||
| 72927 - COVER, REAR SEAT CUSHION UNDER, RH | ||||
| 72927-0C040E0 |
UCK6#,UPK6#,USK6# SAND BEIGE,TRIM4# |
1 | ||
| 72927-0C041B0 |
USK6# GRAY,TRIM1# |
1 | ||
| 72927-0C040B0 |
UCK6#,UPK6#,USK6# GRAY,TRIM1# |
1 | ||
| 72927-0C041E0 |
USK6# SAND BEIGE,TRIM4# |
1 | ||
| 72995 - COVER, REAR SEAT CUSHION, RH | ||||
| 72995-0C130 |
UCK6#,UPK6#,USK6# |
1 | ||
| 72996 - COVER, REAR SEAT BACK, RH | ||||
| 72996-0C030 |
UPK6#,USK6#..LIMD,PLAT |
2 | ||
| 72996-0C030 |
UPK6#,USK6#..LIMD,PLAT |
1 | ||
| 72997 - COVER, REAR SEAT BACK, LH | ||||
| 72997-0C020 |
UPK6#,USK6#..LIMD,PLAT |
2 | ||
| 72997-0C020 |
UPK6#,USK6#..LIMD,PLAT |
1 | ||
| Common parts | ||||
| 78899-04010 | ||||
| 78899-48010 | ||||
| 78899-48040 | ||||
| 82711-02130 | ||||
| 82711-12120 | ||||
| 90080-16091 | ||||
| 90080-16099 | ||||
| 90080-16115 | ||||
| 90080-56064 | ||||
| 90119-08A80 | ||||
| 90119-10911 | ||||
| 90119-A0112 | ||||
| 90168-40043 | ||||
| 90168-50078 | ||||
| 90467-A0007 | ||||
| 90467-A0011 | ||||
| 90523-02002 | ||||
| 90541-03006 | ||||
| 90560-08086 | ||||
| 91551-80512 | ||||
| 94151-80800 | ||||
| 96160-00500 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8401 | ||||
ILLUST NO. 4 OF 5(0711- )
REAR NO.1 SEAT (LH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-0C060 |
UCK6#,UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8 |
1 | ||
| 71018-0C070 |
UCK6#,UPK6#,USK6#..LIMD,SR5 |
1 | ||
| 71018-0C061 |
UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8 |
1 | ||
| 71018-0C071 |
UPK6#,USK6#..LIMD,SR5 |
1 | ||
| 71308D - BRACKET SUB-ASSY, REAR SEAT CUSHION SUPPORT, LH | ||||
| 72359-0C010 |
UCK6#,UPK6#,USK6# |
1 | ||
| 71386A - BRACKET, REAR SEAT CUSHION HOLDER, LH | ||||
| 71386-0C030 |
UCK6#,UPK6#,USK6# |
1 | ||
| 71461A - SPRING, REAR SEAT CUSHION, NO.1 | ||||
| 71461-0C020 |
UCK6#,UPK6#,USK6# |
2 | ||
| 71639 - COVER, REAR SEAT CUSHION HINGE, LH | ||||
| 71629-0C040B0 |
UCK6#,UPK6#,USK6# GRAY,TRIM1# |
1 | ||
| 71629-0C040E0 |
UCK6#,UPK6#,USK6# SAND BEIGE,TRIM4# |
1 | ||
| 71660B - SPRING ASSY, REAR SEAT CUSHION, LH | ||||
| 71660-0C020 |
UCK6#,UPK6#,USK6# |
1 | ||
| 71691J - COVER, REAR SEAT CUSHION HINGE, NO.3 | ||||
| 71691-0C070B0 |
UCK6#,UPK6#,USK6# GRAY,TRIM1# |
1 | ||
| 71691-0C070E0 |
UCK6#,UPK6#,USK6# SAND BEIGE,TRIM4# |
1 | ||
| 71691K - COVER, REAR SEAT CUSHION HINGE, NO.4 | ||||
| 71691-0C090E0 |
UCK6#,UPK6#,USK6# SAND BEIGE,TRIM4# |
1 | ||
| 71691-0C090B0 |
UCK6#,UPK6#,USK6# GRAY,TRIM1# |
1 | ||
| 71692J - COVER, REAR SEAT CUSHION HINGE, NO.4 | ||||
| 71692-0C060B0 |
UCK6#,UPK6#,USK6# GRAY,TRIM1# |
1 | ||
| 71692-0C060E0 |
UCK6#,UPK6#,USK6# SAND BEIGE,TRIM4# |
1 | ||
| 71694 - COVER, REAR SEAT CUSHION HINGE, LOWER LH | ||||
| 71694-0C010E0 |
USK6# SAND BEIGE,TRIM4# |
1 | ||
| 71694-0C010B0 |
USK6# GRAY,TRIM1# |
1 | ||
| 71843A - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71843-0C030B0 |
UCK6#,UPK6#,USK6# GRAY,TRIM1# |
1 | ||
| 71843-0C030E0 |
UCK6#,UPK6#,USK6# SAND BEIGE,TRIM4# |
1 | ||
| 71878B - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-0C050E0 |
UCK6#,UPK6#,USK6# SAND BEIGE,TRIM4# |
1 | ||
| 71878-0C050B0 |
UCK6#,UPK6#,USK6# GRAY,TRIM1# |
1 | ||
| 71878C - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-0C060E0 |
UCK6#,UPK6#,USK6# SAND BEIGE,TRIM4# |
1 | ||
| 71878-0C060B0 |
UCK6#,UPK6#,USK6# GRAY,TRIM1# |
1 | ||
| 71879C - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71879-0C050B0 |
UCK6#,UPK6#,USK6# GRAY,TRIM1# |
1 | ||
| 71879-0C050E0 |
UCK6#,UPK6#,USK6# SAND BEIGE,TRIM4# |
1 | ||
| 72058A - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH | ||||
| 72058-0E010B1 |
UCK6#;UPK6#,USK6#..LIMD,PLAT GRAY,TRIM1# |
1 | ||
| 72058-0E010B1 |
UCK6#;UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8,GRAY,TRIM1# |
2 | ||
| 72058-0E010E0 |
UCK6#;UPK6#,USK6#..LIMD,PLAT SAND BEIGE,TRIM4# |
1 | ||
| 72058-0E030B1 |
UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8,GRAY,TRIM1# |
2 | ||
| 72058-0E010E0 |
UCK6#;UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
2 | ||
| 72058-0E030E0 |
UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
2 | ||
| 72058-0E030E0 |
UPK6#,USK6# SAND BEIGE,TRIM4# |
1 | ||
| 72058-0E030B1 |
UPK6#,USK6# GRAY,TRIM1# |
1 | ||
| 72068 - LEVER SUB-ASSY, REAR BACK LOCK CONTROL, LH | ||||
| 72068-0C010 |
UCK6#,UPK6#,USK6# |
1 | ||
| 72069 - CABLE SUB-ASSY, REAR SEAT BACK LOCK CONTROL | ||||
| 72069-0C030 |
UCK6#,UPK6#,USK6# NO.2 |
2 | ||
| 72069-0C020 |
UCK6#,UPK6#,USK6# NO.1 |
2 | ||
| 72069 - CABLE SUB-ASSY, REAR SEAT BACK LOCK CONTROL | ||||
| 72069-0C030 |
UCK6#,UPK6#,USK6# NO.2 |
2 | ||
| 72069-0C020 |
UCK6#,UPK6#,USK6# NO.1 |
2 | ||
| 72137E - COVER, SEAT TRACK, NO.1 | ||||
| 72137-0C270 |
UPK6#,USK6#..LIMD,PLAT |
4 | ||
| 72137-0C270 |
UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8 |
6 | ||
| 72137E - COVER, SEAT TRACK, NO.1 | ||||
| 72137-0C270 |
UPK6#,USK6#..LIMD,PLAT |
4 | ||
| 72137-0C270 |
UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8 |
6 | ||
| 72137F - COVER, SEAT TRACK, NO.2 | ||||
| 72265-0C010 |
UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8 |
6 | ||
| 72265-0C010 |
UPK6#,USK6#..LIMD,PLAT |
4 | ||
| 72137F - COVER, SEAT TRACK, NO.2 | ||||
| 72265-0C010 |
UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8 |
6 | ||
| 72265-0C010 |
UPK6#,USK6#..LIMD,PLAT |
4 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-0C010B0 |
UCK6#,USK6#..LIMD,SR5 GRAY,TRIM1# |
1 | ||
| 72158-0C010E1 |
USK6#..LIMD,SR5 SAND BEIGE,TRIM4# |
1 | ||
| 72158-0C020E1 |
UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
1 | ||
| 72158-0C010E1 |
USK6#..LIMD,SR5 SAND BEIGE,TRIM44 |
1 | ||
| 72158-0C010B0 |
USK6#..LIMD,SR5 GRAY,TRIM13 |
1 | ||
| 72158-0C020B0 |
UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8,GRAY,TRIM1# |
1 | ||
| 72158-0C020C0 |
USK6#..LIMD,SR5 NUMBER OF PASSENGER-8,BLACK,TRIM1#,4# |
1 | ||
| 72158-0C010C0 |
USK6#..LIMD BLACK,TRIM1#,4# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-0C010B0 |
UCK6#,USK6#..LIMD,SR5 GRAY,TRIM1# |
1 | ||
| 72158-0C010E1 |
USK6#..LIMD,SR5 SAND BEIGE,TRIM4# |
1 | ||
| 72158-0C020E1 |
UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
1 | ||
| 72158-0C010E1 |
USK6#..LIMD,SR5 SAND BEIGE,TRIM44 |
1 | ||
| 72158-0C010B0 |
USK6#..LIMD,SR5 GRAY,TRIM13 |
1 | ||
| 72158-0C020B0 |
UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8,GRAY,TRIM1# |
1 | ||
| 72158-0C020C0 |
USK6#..LIMD,SR5 NUMBER OF PASSENGER-8,BLACK,TRIM1#,4# |
1 | ||
| 72158-0C010C0 |
USK6#..LIMD BLACK,TRIM1#,4# |
1 | ||
| 72159B - COVER, REAR SEAT TRACK BRACKET, OUTER | ||||
| 72159-0C060E1 |
USK6#..LIMD,SR5 SAND BEIGE,TRIM4# |
2 | ||
| 72159-0C060B0 |
UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8,GRAY,TRIM1# |
4 | ||
| 72159-0C060E1 |
UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
4 | ||
| 72159-0C060B0 |
USK6#..LIMD,SR5 GRAY,TRIM1# |
2 | ||
| 72159-0C060B0 |
USK6#..LIMD,SR5 GRAY,TRIM13 |
2 | ||
| 72159-0C060C0 |
USK6#..LIMD BLACK,TRIM1#,4# |
2 | ||
| 72159-0C060C0 |
USK6#..LIMD,SR5 NUMBER OF PASSENGER-8,BLACK,TRIM1#,4# |
4 | ||
| 72159-0C060E1 |
USK6#..LIMD,SR5 SAND BEIGE,TRIM44 |
2 | ||
| 72159E - COVER, REAR SEAT TRACK BRACKET, OUTER LH | ||||
| 72159-0C050B0 |
USK6#..LIMD,SR5 GRAY,TRIM1# |
1 | ||
| 72159-0C050E1 |
USK6#..LIMD,SR5 SAND BEIGE,TRIM4# |
1 | ||
| 72159-0C050E1 |
USK6#..LIMD,SR5 SAND BEIGE,TRIM44 |
1 | ||
| 72159-0C050C0 |
USK6#..LIMD BLACK,TRIM1#,4# |
1 | ||
| 72159-0C050B0 |
USK6#..LIMD,SR5 GRAY,TRIM13 |
1 | ||
| 72173B - HANDLE, REAR SEAT TRACK ADJUSTING, LH | ||||
| 72173-0C030 |
UCK6#,UPK6#,USK6# |
1 | ||
| 72208 - PLATE, SEAT TRACK STOP, LH | ||||
| 72208-0C011 |
UCK6#,UPK6#,USK6# |
1 | ||
| 72210A - TRACK ASSY, REAR NO.1 SEAT, OUTER RH | ||||
| 72210-0C052 |
USK6#..LIMD,SR5 |
1 | ||
| 72210-0C070 |
UPK6#,USK6#..LIMD,SR5 |
1 | ||
| 72210-0C080 |
UPK6#,USK6#..LIMD,SR5 |
1 | ||
| 72220 - TRACK ASSY, REAR NO.1 SEAT, INNER LH | ||||
| 72220-0C032 |
UCK6#,UPK6#,USK6# |
1 | ||
| 72220-0C012 |
UCK6#,UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8 |
1 | ||
| 72220-0C040 |
UPK6#,USK6# |
1 | ||
| 72220-0C020 |
UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8 |
1 | ||
| 72572C - CAP, RECLINING ADJUSTER KNOB, LH | ||||
| 72572-0C020B0 |
UCK6#,UPK6#,USK6# GRAY,TRIM1# |
1 | ||
| 72572-0C020E0 |
UCK6#,UPK6#,USK6# SAND BEIGE,TRIM4# |
1 | ||
| 72615C - COVER, REAR SEAT BACK LOCK STRIKER | ||||
| 72615-0E010B1 |
UCK6#;UPK6#,USK6#..LIMD,PLAT GRAY,TRIM1# |
2 | ||
| 72615-0E010E0 |
UCK6#;UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
3 | ||
| 72615-0E050B1 |
UPK6#,USK6# GRAY,TRIM1# |
2 | ||
| 72615-0E010E0 |
UCK6#;UPK6#,USK6#..LIMD,PLAT SAND BEIGE,TRIM4# |
2 | ||
| 72615-0E050B1 |
UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8,GRAY,TRIM1# |
3 | ||
| 72615-0E050E0 |
UPK6#,USK6# SAND BEIGE,TRIM4# |
2 | ||
| 72615-0E010B1 |
UCK6#;UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8,GRAY,TRIM1# |
3 | ||
| 72615-0E050E0 |
UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
3 | ||
| 72620B - CABLE ASSY, REAR NO.1 SEAT LOCK | ||||
| 72620-0C010 |
UCK6#,UPK6#,USK6# |
2 | ||
| 72620C - CABLE ASSY, REAR NO.1 SEAT LOCK | ||||
| 72620-0C060 |
UCK6#,UPK6#,USK6# |
2 | ||
| 72632 - PLATE, REAR SEAT BACK LOCK, LH | ||||
| 72633-0C010 |
UCK6#,UPK6#,USK6# |
1 | ||
| 72640B - ADJUSTER ASSY, REAR NO.1 SEAT, INNER LH | ||||
| 72640-0C011 |
UCK6#,UPK6#,USK6# |
1 | ||
| 72704B - CABLE, REAR SEAT RECLINING CONTROL, NO.2 | ||||
| 72704-0C030 |
UCK6#,UPK6#,USK6# |
2 | ||
| 72736 - LEVER, REAR SEAT RECLINING RELEASE, LH | ||||
| 72736-0C010B0 |
UCK6#,UPK6#,USK6# GRAY,TRIM1# |
1 | ||
| 72736-0C010E0 |
UCK6#,UPK6#,USK6# SAND BEIGE,TRIM4# |
1 | ||
| 72740A - ADJUSTER ASSY, REAR SEAT RECLINING, LH | ||||
| 72740-0C101 |
UCK6#,UPK6#,USK6# |
1 | ||
| 72742 - PLATE, REAR SEAT RECLINING LOCK, LH | ||||
| 72608-0C010 |
UCK6#,UPK6#,USK6# |
1 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-48010 |
UCK6#;UPK6#,USK6#..LIMD,PLAT |
4 | ||
| 72749-12010 |
UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8 |
6 | ||
| 72749-48010 |
UCK6#;UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8 |
6 | ||
| 72749-12010 |
UPK6#,USK6# |
4 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-48010 |
UCK6#;UPK6#,USK6#..LIMD,PLAT |
4 | ||
| 72749-12010 |
UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8 |
6 | ||
| 72749-48010 |
UCK6#;UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8 |
6 | ||
| 72749-12010 |
UPK6#,USK6# |
4 | ||
| 72820A - ARMREST ASSY, SEAT, LH | ||||
| 72820-0C170E1 |
UCK6#,UPK6#,USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 72820-0C171E2 |
UPK6#,USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 72820-0C170B1 |
UCK6#,UPK6#,USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 72820-0C171B2 |
UPK6#,USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 72848A - CAP, SEAT ARMREST, NO.1 | ||||
| 72848-28030E6 |
UCK6#,UPK6#,USK6#..LIMD,SR5 SAND BEIGE,TRIM4# |
2 | ||
| 72848-28030P0 |
UCK6#,UPK6#,USK6#..LIMD,SR5 GRAY,TRIM1# |
2 | ||
| 72928 - COVER, REAR SEAT CUSHION UNDER, LH | ||||
| 72928-0C031E0 |
USK6# SAND BEIGE,TRIM4# |
1 | ||
| 72928-0C030E0 |
UCK6#,UPK6#,USK6# SAND BEIGE,TRIM4# |
1 | ||
| 72928-0C031B0 |
USK6# GRAY,TRIM1# |
1 | ||
| 72928-0C030B0 |
UCK6#,UPK6#,USK6# GRAY,TRIM1# |
1 | ||
| 72996 - COVER, REAR SEAT BACK, RH | ||||
| 72996-0C030 |
UPK6#,USK6#..LIMD,PLAT |
2 | ||
| 72996-0C030 |
UPK6#,USK6#..LIMD,PLAT |
1 | ||
| 72997 - COVER, REAR SEAT BACK, LH | ||||
| 72997-0C020 |
UPK6#,USK6#..LIMD,PLAT |
2 | ||
| 72997-0C020 |
UPK6#,USK6#..LIMD,PLAT |
1 | ||
| 72999 - COVER, REAR SEAT CUSHION LH | ||||
| 72998-0C080 |
UCK6#,UPK6#,USK6# |
1 | ||
| Common parts | ||||
| 78899-04010 | ||||
| 78899-48010 | ||||
| 78899-48040 | ||||
| 82711-02130 | ||||
| 82711-12120 | ||||
| 90080-16091 | ||||
| 90080-16099 | ||||
| 90080-16115 | ||||
| 90080-56064 | ||||
| 90119-08A80 | ||||
| 90119-10911 | ||||
| 90119-A0112 | ||||
| 90168-40043 | ||||
| 90168-50078 | ||||
| 90467-A0007 | ||||
| 90523-02002 | ||||
| 90541-03006 | ||||
| 90560-08086 | ||||
| 91551-80512 | ||||
| 94151-80800 | ||||
| 96160-00500 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8401 | ||||
ILLUST NO. 4 OF 5(0711- )LIMD,SR5
REAR NO.1 SEAT (CENTER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71237 - BRACKET, REAR SEAT | ||||
| 72187-0C010 |
UCK6#,UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8 |
1 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71330-0C010 |
UCK6#,UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8 |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71340-0C010 |
UCK6#,UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8 |
1 | ||
| 71305S - FRAME SUB-ASSY, CENTER SEAT BACK | ||||
| 71305-0C010 |
UCK6#,UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8 |
1 | ||
| 71395B - COVER, CENTER SEAT HINGE, RH | ||||
| 71395-0C030B0 |
UCK6#,UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8,GRAY,TRIM1# |
1 | ||
| 71395-0C030E0 |
UCK6#,UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
1 | ||
| 71396B - COVER, CENTER SEAT HINGE, LH | ||||
| 71396-0C010B0 |
UCK6#,UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8,GRAY,TRIM1# |
1 | ||
| 71396-0C010E0 |
UCK6#,UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
1 | ||
| 71397A - COVER, CENTER SEAT HINGE | ||||
| 71397-0C020E0 |
UCK6#,UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
1 | ||
| 71397-0C020B0 |
UCK6#,UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8,GRAY,TRIM1# |
1 | ||
| 71398H - COVER, CENTER SEAT HINGE, UPPER LH | ||||
| 71398-0C020B0 |
UCK6#,UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8,GRAY,TRIM1# |
1 | ||
| 71398-0C020E0 |
UCK6#,UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
1 | ||
| 71650 - SPRING ASSY, REAR SEAT CUSHION | ||||
| 71650-0C030 |
UCK6#,UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8 |
1 | ||
| 71691D - COVER, REAR SEAT CUSHION HINGE, UPPER RH | ||||
| 71691-0C060B0 |
UCK6#,UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8,GRAY,TRIM1# |
1 | ||
| 71691-0C060E0 |
UCK6#,UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
1 | ||
| 71692D - COVER, REAR SEAT CUSHION HINGE, UPPER LH | ||||
| 71692-0C050B0 |
UCK6#,UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8,GRAY,TRIM1# |
1 | ||
| 71692-0C050E0 |
UCK6#,UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
1 | ||
| 72030 - ADJUSTER ASSY, REAR NO.1 SEAT | ||||
| 72030-0C010 |
UCK6#,UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8 |
1 | ||
| 72030-0C011 |
UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8 |
1 | ||
| 72035 - ADJUSTER SUB-ASSY, REAR NO.1 SEAT | ||||
| 72640-0C020 |
UCK6#,UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8 |
1 | ||
| 72058A - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH | ||||
| 72058-0E010B1 |
UCK6#;UPK6#,USK6#..LIMD,PLAT GRAY,TRIM1# |
1 | ||
| 72058-0E010B1 |
UCK6#;UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8,GRAY,TRIM1# |
2 | ||
| 72058-0E010E0 |
UCK6#;UPK6#,USK6#..LIMD,PLAT SAND BEIGE,TRIM4# |
1 | ||
| 72058-0E030B1 |
UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8,GRAY,TRIM1# |
2 | ||
| 72058-0E010E0 |
UCK6#;UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
2 | ||
| 72058-0E030E0 |
UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
2 | ||
| 72058-0E030E0 |
UPK6#,USK6# SAND BEIGE,TRIM4# |
1 | ||
| 72058-0E030B1 |
UPK6#,USK6# GRAY,TRIM1# |
1 | ||
| 72137E - COVER, SEAT TRACK, NO.1 | ||||
| 72137-0C270 |
UPK6#,USK6#..LIMD,PLAT |
4 | ||
| 72137-0C270 |
UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8 |
6 | ||
| 72137E - COVER, SEAT TRACK, NO.1 | ||||
| 72137-0C270 |
UPK6#,USK6#..LIMD,PLAT |
4 | ||
| 72137-0C270 |
UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8 |
6 | ||
| 72137F - COVER, SEAT TRACK, NO.2 | ||||
| 72265-0C010 |
UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8 |
6 | ||
| 72265-0C010 |
UPK6#,USK6#..LIMD,PLAT |
4 | ||
| 72137F - COVER, SEAT TRACK, NO.2 | ||||
| 72265-0C010 |
UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8 |
6 | ||
| 72265-0C010 |
UPK6#,USK6#..LIMD,PLAT |
4 | ||
| 72159B - COVER, REAR SEAT TRACK BRACKET, OUTER | ||||
| 72159-0C060E1 |
USK6#..LIMD,SR5 SAND BEIGE,TRIM4# |
2 | ||
| 72159-0C060B0 |
UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8,GRAY,TRIM1# |
4 | ||
| 72159-0C060E1 |
UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
4 | ||
| 72159-0C060B0 |
USK6#..LIMD,SR5 GRAY,TRIM1# |
2 | ||
| 72159-0C060B0 |
USK6#..LIMD,SR5 GRAY,TRIM13 |
2 | ||
| 72159-0C060C0 |
USK6#..LIMD BLACK,TRIM1#,4# |
2 | ||
| 72159-0C060C0 |
USK6#..LIMD,SR5 NUMBER OF PASSENGER-8,BLACK,TRIM1#,4# |
4 | ||
| 72159-0C060E1 |
USK6#..LIMD,SR5 SAND BEIGE,TRIM44 |
2 | ||
| 72159B - COVER, REAR SEAT TRACK BRACKET, OUTER | ||||
| 72159-0C060E1 |
USK6#..LIMD,SR5 SAND BEIGE,TRIM4# |
2 | ||
| 72159-0C060B0 |
UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8,GRAY,TRIM1# |
4 | ||
| 72159-0C060E1 |
UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
4 | ||
| 72159-0C060B0 |
USK6#..LIMD,SR5 GRAY,TRIM1# |
2 | ||
| 72159-0C060B0 |
USK6#..LIMD,SR5 GRAY,TRIM13 |
2 | ||
| 72159-0C060C0 |
USK6#..LIMD BLACK,TRIM1#,4# |
2 | ||
| 72159-0C060C0 |
USK6#..LIMD,SR5 NUMBER OF PASSENGER-8,BLACK,TRIM1#,4# |
4 | ||
| 72159-0C060E1 |
USK6#..LIMD,SR5 SAND BEIGE,TRIM44 |
2 | ||
| 72160B - TRACK ASSY, REAR NO.1 SEAT, RH | ||||
| 72160-0C031 |
UCK6#,UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8 |
1 | ||
| 72160-0C080 |
UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8 |
1 | ||
| 72170B - TRACK ASSY, REAR NO.1 SEAT, LH | ||||
| 72170-0C031 |
UCK6#,UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8 |
1 | ||
| 72170-0C070 |
UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8 |
1 | ||
| 72173 - HANDLE, REAR SEAT TRACK ADJUSTING | ||||
| 72173-0C040 |
UCK6#,UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8 |
1 | ||
| 72478 - BUSH, VERTICAL ADJUSTER | ||||
| 72478-0C010 |
UCK6#,UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8 |
2 | ||
| 72478 - BUSH, VERTICAL ADJUSTER | ||||
| 72478-0C010 |
UCK6#,UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8 |
2 | ||
| 72615C - COVER, REAR SEAT BACK LOCK STRIKER | ||||
| 72615-0E010B1 |
UCK6#;UPK6#,USK6#..LIMD,PLAT GRAY,TRIM1# |
2 | ||
| 72615-0E010E0 |
UCK6#;UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
3 | ||
| 72615-0E050B1 |
UPK6#,USK6# GRAY,TRIM1# |
2 | ||
| 72615-0E010E0 |
UCK6#;UPK6#,USK6#..LIMD,PLAT SAND BEIGE,TRIM4# |
2 | ||
| 72615-0E050B1 |
UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8,GRAY,TRIM1# |
3 | ||
| 72615-0E050E0 |
UPK6#,USK6# SAND BEIGE,TRIM4# |
2 | ||
| 72615-0E010B1 |
UCK6#;UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8,GRAY,TRIM1# |
3 | ||
| 72615-0E050E0 |
UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
3 | ||
| 72667 - BEZEL, REAR SEAT BACK LOCK, UPPER | ||||
| 72667-0C040E1 |
USK6#..LIMD,SR5 NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
1 | ||
| 72667-0C040B0 |
USK6#..LIMD,SR5 NUMBER OF PASSENGER-8,GRAY,TRIM1# |
1 | ||
| 72704A - CABLE, REAR SEAT RECLINING CONTROL | ||||
| 72704-0C040 |
UCK6#,UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8 |
1 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-48010 |
UCK6#;UPK6#,USK6#..LIMD,PLAT |
4 | ||
| 72749-12010 |
UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8 |
6 | ||
| 72749-48010 |
UCK6#;UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8 |
6 | ||
| 72749-12010 |
UPK6#,USK6# |
4 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-48010 |
UCK6#;UPK6#,USK6#..LIMD,PLAT |
4 | ||
| 72749-12010 |
UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8 |
6 | ||
| 72749-48010 |
UCK6#;UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8 |
6 | ||
| 72749-12010 |
UPK6#,USK6# |
4 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-0C280E0 |
UCK6#,UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
1 | ||
| 72830-0C281E0 |
UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
1 | ||
| 72830-0C281B0 |
UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8,GRAY,TRIM1# |
1 | ||
| 72830-0C280B0 |
UCK6#,UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8,GRAY,TRIM1# |
1 | ||
| 72832A - PLATE, NO.1 SEAT ARMREST | ||||
| 72832-0C030 |
UCK6#,UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8 |
2 | ||
| 72832A - PLATE, NO.1 SEAT ARMREST | ||||
| 72832-0C030 |
UCK6#,UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8 |
2 | ||
| 72868 - COVER, CENTER ARMREST HINGE, RH | ||||
| 72868-0C040B1 |
UCK6#,UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8,GRAY,TRIM1# |
1 | ||
| 72868-0C040B3 |
UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8,GRAY,TRIM1# |
1 | ||
| 72868-0C040E1 |
UCK6#,UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
1 | ||
| 72868-0C040E3 |
UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
1 | ||
| 72869 - COVER, CENTER ARMREST HINGE, LH | ||||
| 72869-0C020E1 |
UCK6#,UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
1 | ||
| 72869-0C020E3 |
UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
1 | ||
| 72869-0C020B3 |
UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8,GRAY,TRIM1# |
1 | ||
| 72869-0C020B1 |
UCK6#,UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8,GRAY,TRIM1# |
1 | ||
| 72927B - COVER, REAR SEAT CUSHION UNDER | ||||
| 72927-0C071E0 |
USK6#..LIMD,SR5 NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
1 | ||
| 72927-0C071B0 |
USK6#..LIMD,SR5 NUMBER OF PASSENGER-8,GRAY,TRIM1# |
1 | ||
| 72927-0C070B0 |
UCK6#,UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8,GRAY,TRIM1# |
1 | ||
| 72927-0C070E0 |
UCK6#,UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
1 | ||
| 73373F - COVER, REAR SEAT SHOULDER BELT HOLE | ||||
| 73373-0C060E1 |
USK6#..LIMD,SR5 NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4#,NO.1 |
1 | ||
| 73373-0C060B0 |
USK6#..LIMD,SR5 NUMBER OF PASSENGER-8,GRAY,TRIM1#,NO.1 |
1 | ||
| 73373-0C080 |
USK6#..LIMD,SR5 NUMBER OF PASSENGER-8,NO.3 |
1 | ||
| 73373-0C070 |
USK6#..LIMD,SR5 NUMBER OF PASSENGER-8,NO.2 |
1 | ||
| 73373F - COVER, REAR SEAT SHOULDER BELT HOLE | ||||
| 73373-0C060E1 |
USK6#..LIMD,SR5 NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4#,NO.1 |
1 | ||
| 73373-0C060B0 |
USK6#..LIMD,SR5 NUMBER OF PASSENGER-8,GRAY,TRIM1#,NO.1 |
1 | ||
| 73373-0C080 |
USK6#..LIMD,SR5 NUMBER OF PASSENGER-8,NO.3 |
1 | ||
| 73373-0C070 |
USK6#..LIMD,SR5 NUMBER OF PASSENGER-8,NO.2 |
1 | ||
| 73373F - COVER, REAR SEAT SHOULDER BELT HOLE | ||||
| 73373-0C060E1 |
USK6#..LIMD,SR5 NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4#,NO.1 |
1 | ||
| 73373-0C060B0 |
USK6#..LIMD,SR5 NUMBER OF PASSENGER-8,GRAY,TRIM1#,NO.1 |
1 | ||
| 73373-0C080 |
USK6#..LIMD,SR5 NUMBER OF PASSENGER-8,NO.3 |
1 | ||
| 73373-0C070 |
USK6#..LIMD,SR5 NUMBER OF PASSENGER-8,NO.2 |
1 | ||
| Common parts | ||||
| 72702-60060 | ||||
| 78899-0C160 | ||||
| 78899-0C260 | ||||
| 78899-48040 | ||||
| 78899-48050 | ||||
| 82711-12120 | ||||
| 90080-16091 | ||||
| 90080-16099 | ||||
| 90080-16115 | ||||
| 90119-08A80 | ||||
| 90119-A0112 | ||||
| 90167-A0002 | ||||
| 90179-10212 | ||||
| 90523-02002 | ||||
| 90541-03006 | ||||
| 94151-80800 | ||||
| 94185-60800 | ||||
| 94334-15000 | ||||
| Linked diagrams | ||||
| 7152 | ||||
ILLUST NO. 3 OF 5(0711- )
REAR NO.1 SEAT (COVER & CUSHION)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) | ||||
| 71075-0C330E0 |
UCK6#,UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
1 | ||
| 71075-0C350E0 |
UCK6#,UPK6#,USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 71075-0C330B0 |
UCK6#,UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8,GRAY,TRIM1# |
1 | ||
| 71075-0C332B2 |
UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8,GRAY,TRIM1# |
1 | ||
| 71075-0C352E1 |
UPK6#,USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 71075-0C350B0 |
UCK6#,UPK6#,USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 71075-0C352B1 |
UPK6#,USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 71075-0C333B2 |
USK6#..LIMD NUMBER OF PASSENGER-8,GRAY,TRIM1# |
1 | ||
| 71075-0C332E2 |
UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
1 | ||
| 71075-0C333E2 |
USK6#..LIMD NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
1 | ||
| 71075-0C353E1 |
USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 71075-0C353B1 |
USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71076-0C350E0 |
UCK6#,UPK6#,USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 71076-0C330E0 |
UCK6#,UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
1 | ||
| 71076-0C330B0 |
UCK6#,UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8,GRAY,TRIM1# |
1 | ||
| 71076-0C350B0 |
UCK6#,UPK6#,USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 71076-0C332B2 |
UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8,GRAY,TRIM1# |
1 | ||
| 71076-0C332E2 |
UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
1 | ||
| 71076-0C352E1 |
UPK6#,USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 71076-0C333B2 |
USK6#..LIMD NUMBER OF PASSENGER-8,GRAY,TRIM1# |
1 | ||
| 71076-0C352B1 |
UPK6#,USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 71076-0C353B1 |
USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 71076-0C333E2 |
USK6#..LIMD NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
1 | ||
| 71076-0C353E1 |
USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-0C370B0 |
UCK6#,UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8,GRAY,TRIM1# |
1 | ||
| 71077-0C370E0 |
UCK6#,UPK6#,USK6#..LIMD,SR5 NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-0C320B0 |
UCK6#,USK6#..LIMD NUMBER OF PASSENGER-8,GRAY,TRIM1# |
1 | ||
| 71077-0C320E0 |
UCK6#,USK6#..LIMD NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
1 | ||
| 71077-0C340B0 |
UCK6#,USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 71077-0C321B0 |
UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8,GRAY,TRIM1# |
1 | ||
| 71077-0C340E0 |
UCK6#,USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 71077-0C341E0 |
UPK6#,USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 71077-0C321E0 |
UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
1 | ||
| 71077-0C341B0 |
UPK6#,USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 71077-0C322B0 |
UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8,GRAY,TRIM1# |
1 | ||
| 71077-0C342B0 |
UPK6#,USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 71077-0C342E0 |
UPK6#,USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 71077-0C322E0 |
UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
1 | ||
| 71077-0C323B2 |
UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8,GRAY,TRIM1# |
1 | ||
| 71077-0C343E1 |
UPK6#,USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 71077-0C323E2 |
UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
1 | ||
| 71077-0C343B1 |
UPK6#,USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 71077-0C324B2 |
USK6#..LIMD NUMBER OF PASSENGER-8,GRAY,TRIM1# |
1 | ||
| 71077-0C324E2 |
USK6#..LIMD NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
1 | ||
| 71077-0C344E1 |
USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 71077-0C344B1 |
USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-0C240B0 |
UCK6#,USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 71078-0C220E0 |
UCK6#,USK6#..LIMD NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
1 | ||
| 71078-0C240E0 |
UCK6#,USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 71078-0C221B0 |
UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8,GRAY,TRIM1# |
1 | ||
| 71078-0C221E0 |
UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
1 | ||
| 71078-0C220B0 |
UCK6#,USK6#..LIMD NUMBER OF PASSENGER-8,GRAY,TRIM1# |
1 | ||
| 71078-0C222E0 |
UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
1 | ||
| 71078-0C241E0 |
UPK6#,USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 71078-0C242B0 |
UPK6#,USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 71078-0C241B0 |
UPK6#,USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 71078-0C222B0 |
UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8,GRAY,TRIM1# |
1 | ||
| 71078-0C242E0 |
UPK6#,USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 71078-0C223B2 |
UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8,GRAY,TRIM1# |
1 | ||
| 71078-0C223E2 |
UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
1 | ||
| 71078-0C243B1 |
UPK6#,USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 71078-0C243E1 |
UPK6#,USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 71078-0C224E2 |
USK6#..LIMD NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
1 | ||
| 71078-0C244B1 |
USK6#..LIMD GRAY,TRIM1# |
1 | ||
| 71078-0C244E1 |
USK6#..LIMD SAND BEIGE,TRIM4# |
1 | ||
| 71078-0C224B2 |
USK6#..LIMD NUMBER OF PASSENGER-8,GRAY,TRIM1# |
1 | ||
| 71087 - BOARD SUB-ASSY, REAR SEAT BACK | ||||
| 71087-0C010E0 |
UCK6#,UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
1 | ||
| 71087-0C010B0 |
UCK6#,UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8,GRAY,TRIM1# |
1 | ||
| 71095S - COVER SUB-ASSY, CENTER SEAT BACK | ||||
| 71095-0C020B0 |
UCK6#,USK6#..LIMD NUMBER OF PASSENGER-8,GRAY,TRIM1# |
1 | ||
| 71095-0C021E0 |
UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
1 | ||
| 71095-0C020E0 |
UCK6#,USK6#..LIMD NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
1 | ||
| 71095-0C023B2 |
UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8,GRAY,TRIM1# |
1 | ||
| 71095-0C021B0 |
UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8,GRAY,TRIM1# |
1 | ||
| 71095-0C022B0 |
UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8,GRAY,TRIM1# |
1 | ||
| 71095-0C022E0 |
UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
1 | ||
| 71095-0C023E2 |
UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
1 | ||
| 71097S - COVER SUB-ASSY, CENTER SEAT CUSHION | ||||
| 71097-0C020E0 |
UCK6#,UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
1 | ||
| 71097-0C023E1 |
USK6#..LIMD NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
1 | ||
| 71097-0C022E1 |
UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
1 | ||
| 71097-0C020B0 |
UCK6#,UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8,GRAY,TRIM1# |
1 | ||
| 71097-0C022B1 |
UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8,GRAY,TRIM1# |
1 | ||
| 71097-0C023B1 |
USK6#..LIMD NUMBER OF PASSENGER-8,GRAY,TRIM1# |
1 | ||
| 71611A - PAD, REAR SEAT CUSHION, RH | ||||
| 71611-0C080 |
UCK6#,UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8 |
1 | ||
| 71611-0C100 |
UCK6#,UPK6#,USK6#..LIMD,PLAT |
1 | ||
| 71611-0C101 |
UPK6#,USK6#..LIMD,PLAT |
1 | ||
| 71611-0C081 |
UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8 |
1 | ||
| 71612A - PAD, REAR SEAT CUSHION, LH | ||||
| 71612-0C100 |
UCK6#,UPK6#,USK6#..LIMD,PLAT |
1 | ||
| 71612-0C080 |
UCK6#,UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8 |
1 | ||
| 71612-0C101 |
UPK6#,USK6#..LIMD,PLAT |
1 | ||
| 71612-0C081 |
UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8 |
1 | ||
| 71614 - PAD, REAR SEAT CUSHION, CENTER | ||||
| 71614-0C010 |
UCK6#,UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8 |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-0C160 |
UCK6#,UPK6#,USK6#..LIMD |
1 | ||
| 71651-0C141 |
UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8 |
1 | ||
| 71651-0C140 |
UCK6#,UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8 |
1 | ||
| 71651-0C161 |
UPK6#,USK6#..LIMD |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-0C110 |
UCK6#,UPK6#,USK6#..LIMD |
1 | ||
| 71652-0C091 |
UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8 |
1 | ||
| 71652-0C090 |
UCK6#,UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8 |
1 | ||
| 71652-0C111 |
UPK6#,USK6#..LIMD |
1 | ||
| 71667C - PAD, REAR NO.1 SEAT BACK, CENTER | ||||
| 71667-0C010 |
UCK6#,UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8 |
1 | ||
| 71701B - BOARD SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71701-0C020E0 |
UCK6#,UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
1 | ||
| 71701-0C030E0 |
UCK6#,UPK6#,USK6#..LIMD,PLAT SAND BEIGE,TRIM4# |
1 | ||
| 71701-0C030B0 |
UCK6#,UPK6#,USK6#..LIMD,PLAT GRAY,TRIM1# |
1 | ||
| 71701-0C020B0 |
UCK6#,UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8,GRAY,TRIM1# |
1 | ||
| 71702B - BOARD SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71702-0C010E0 |
UCK6#,UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
1 | ||
| 71702-0C010B0 |
UCK6#,UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8,GRAY,TRIM1# |
1 | ||
| 71702-0C020E0 |
UCK6#,UPK6#,USK6#..LIMD,PLAT SAND BEIGE,TRIM4# |
1 | ||
| 71702-0C020B0 |
UCK6#,UPK6#,USK6#..LIMD,PLAT GRAY,TRIM1# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020E3 |
UCK6#,UPK6#,USK6#..LIMD,SR5 W(LOCK)&W(BUTTON),NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
1 | ||
| 71930-42020B8 |
UCK6#,UPK6#,USK6#..LIMD,SR5 W(LOCK)&W(BUTTON),NUMBER OF PASSENGER-8,GRAY,TRIM1# |
1 | ||
| 71930-48010B2 |
UCK6#,UPK6#,USK6#..LIMD,SR5 W(LOCK)&W/O(BUTTON),NUMBER OF PASSENGER-8,GRAY,TRIM1# |
1 | ||
| 71930-52030B4 |
UPK6#,USK6#..LIMD,SR5 W(LOCK)&W(BUTTON),NUMBER OF PASSENGER-8,GRAY,TRIM1# |
1 | ||
| 71930-48010E0 |
UCK6#,UPK6#,USK6#..LIMD,SR5 W(LOCK)&W/O(BUTTON),NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
1 | ||
| 71930-52030E4 |
UPK6#,USK6#..LIMD,SR5 W(LOCK)&W(BUTTON),NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020E3 |
UCK6#,UPK6#,USK6#..LIMD,SR5 W(LOCK)&W(BUTTON),NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
1 | ||
| 71930-42020B8 |
UCK6#,UPK6#,USK6#..LIMD,SR5 W(LOCK)&W(BUTTON),NUMBER OF PASSENGER-8,GRAY,TRIM1# |
1 | ||
| 71930-48010B2 |
UCK6#,UPK6#,USK6#..LIMD,SR5 W(LOCK)&W/O(BUTTON),NUMBER OF PASSENGER-8,GRAY,TRIM1# |
1 | ||
| 71930-52030B4 |
UPK6#,USK6#..LIMD,SR5 W(LOCK)&W(BUTTON),NUMBER OF PASSENGER-8,GRAY,TRIM1# |
1 | ||
| 71930-48010E0 |
UCK6#,UPK6#,USK6#..LIMD,SR5 W(LOCK)&W/O(BUTTON),NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
1 | ||
| 71930-52030E4 |
UPK6#,USK6#..LIMD,SR5 W(LOCK)&W(BUTTON),NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
1 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-42020B8 |
UCK6#,UPK6#,USK6# W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-42020E3 |
UCK6#,UPK6#,USK6# W(LOCK)&W(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71931-42020E3 |
UCK6#,UPK6#,USK6# W(LOCK)&W/O(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71930-52030E4 |
UPK6#,USK6# W(LOCK)&W(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71930-52030B4 |
UPK6#,USK6# W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71931-42020B8 |
UCK6#,UPK6#,USK6# W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-42020B8 |
UCK6#,UPK6#,USK6# W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-42020E3 |
UCK6#,UPK6#,USK6# W(LOCK)&W(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71931-42020E3 |
UCK6#,UPK6#,USK6# W(LOCK)&W/O(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71930-52030E4 |
UPK6#,USK6# W(LOCK)&W(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71930-52030B4 |
UPK6#,USK6# W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71931-42020B8 |
UCK6#,UPK6#,USK6# W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-42020B8 |
UCK6#,UPK6#,USK6# W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-42020E3 |
UCK6#,UPK6#,USK6# W(LOCK)&W(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71931-42020E3 |
UCK6#,UPK6#,USK6# W(LOCK)&W/O(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71930-52030E4 |
UPK6#,USK6# W(LOCK)&W(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71930-52030B4 |
UPK6#,USK6# W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71931-42020B8 |
UCK6#,UPK6#,USK6# W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-42020B8 |
UCK6#,UPK6#,USK6# W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-42020E3 |
UCK6#,UPK6#,USK6# W(LOCK)&W(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71931-42020E3 |
UCK6#,UPK6#,USK6# W(LOCK)&W/O(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71930-52030E4 |
UPK6#,USK6# W(LOCK)&W(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71930-52030B4 |
UPK6#,USK6# W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71931-42020B8 |
UCK6#,UPK6#,USK6# W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-0C210B1 |
UCK6#,UPK6#,USK6#..LIMD,PLAT GRAY,TRIM1# |
2 | ||
| 71940-0C210E2 |
UCK6#,UPK6#,USK6#..LIMD,PLAT SAND BEIGE,TRIM4# |
2 | ||
| 71940-0C340B1 |
UPK6#,USK6#..LIMD,PLAT GRAY,TRIM1# |
2 | ||
| 71940-0C340B2 |
UPK6#,USK6#..LIMD,PLAT GRAY,TRIM1# |
2 | ||
| 71940-0C340E3 |
UPK6#,USK6#..LIMD,PLAT SAND BEIGE,TRIM4# |
2 | ||
| 71940-0C340E5 |
UPK6#,USK6#..LIMD,PLAT SAND BEIGE,TRIM4# |
2 | ||
| 71940-0C410B0 |
UPK6#,USK6#..LIMD,PLAT GRAY,TRIM1# |
2 | ||
| 71940-0C410E1 |
UPK6#,USK6#..LIMD,PLAT SAND BEIGE,TRIM4# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-0C210B1 |
UCK6#,UPK6#,USK6#..LIMD,PLAT GRAY,TRIM1# |
2 | ||
| 71940-0C210E2 |
UCK6#,UPK6#,USK6#..LIMD,PLAT SAND BEIGE,TRIM4# |
2 | ||
| 71940-0C340B1 |
UPK6#,USK6#..LIMD,PLAT GRAY,TRIM1# |
2 | ||
| 71940-0C340B2 |
UPK6#,USK6#..LIMD,PLAT GRAY,TRIM1# |
2 | ||
| 71940-0C340E3 |
UPK6#,USK6#..LIMD,PLAT SAND BEIGE,TRIM4# |
2 | ||
| 71940-0C340E5 |
UPK6#,USK6#..LIMD,PLAT SAND BEIGE,TRIM4# |
2 | ||
| 71940-0C410B0 |
UPK6#,USK6#..LIMD,PLAT GRAY,TRIM1# |
2 | ||
| 71940-0C410E1 |
UPK6#,USK6#..LIMD,PLAT SAND BEIGE,TRIM4# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-0C210B0 |
UCK6#,UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8,GRAY,TRIM1# |
1 | ||
| 71960-0C210E0 |
UCK6#,UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
1 | ||
| 71960-0C240B2 |
UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8,GRAY,TRIM1# |
1 | ||
| 71960-0C240B1 |
UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8,GRAY,TRIM1# |
1 | ||
| 71960-0C240E2 |
UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
1 | ||
| 71960-0C240E1 |
UPK6#,USK6#..LIMD NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4# |
1 | ||
| 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 71077-0C380B0 |
UCK6#,UPK6#,USK6# GRAY,TRIM1# |
1 | ||
| 71077-0C380E0 |
UCK6#,UPK6#,USK6# SAND BEIGE,TRIM4# |
1 | ||
| 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 71077-0C360B0 |
UCK6#,UPK6#,USK6# GRAY,TRIM1# |
1 | ||
| 71077-0C360E0 |
UCK6#,UPK6#,USK6# SAND BEIGE,TRIM4# |
1 | ||
(0711- )
SEAT COVER EDGE WIRE & CLIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 71149-30050 | ||||
| 90080-46007 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
