USK65L-GKTLKA (2007)
Toyota Sequoia
Production
Nov 2007
-
Aug 2017
Engine
3URFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0711- )3UR#

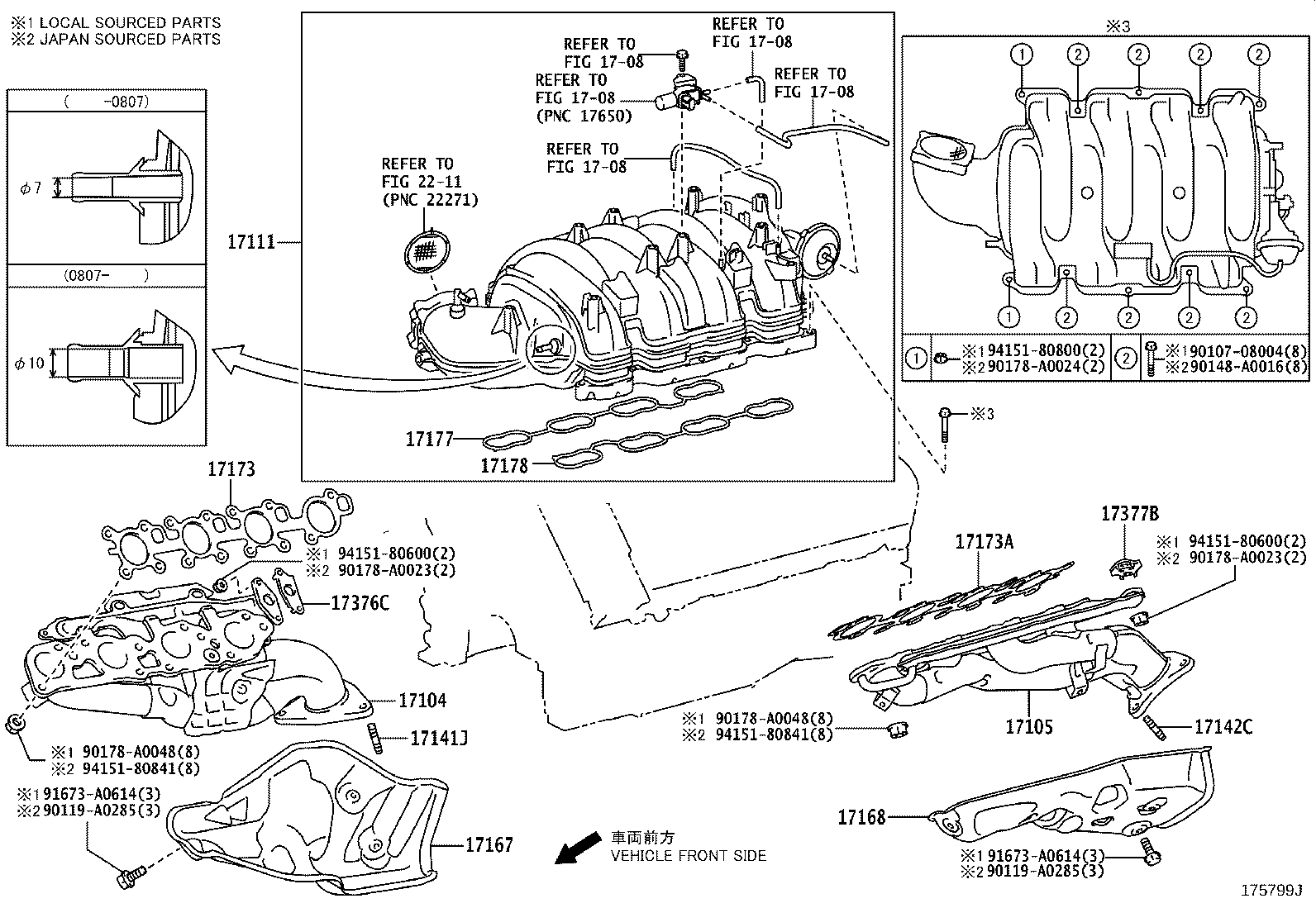

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17104 - MANIFOLD SUB-ASSY, EXHAUST, RH | ||||
| 17104-38010 |
3UR#..USK6# |
1 | ||
| 17104-38011 |
3UR#..USK6# |
1 | ||
| 17105 - MANIFOLD SUB-ASSY, EXHAUST, LH | ||||
| 17105-38010 |
3UR#..USK6# |
1 | ||
| 17105-38011 |
3UR#..USK6# |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17120-0S010 |
3URFE..USK6# |
1 | ||
| 17120-0S011 |
3URFE..USK6# |
1 | ||
| 17120-0S012 |
3URFE..USK6# |
1 | ||
| 17141J - BOLT, STUD(FOR EXHAUST MANIFOLD, RH) | ||||
| 90126-A0011 |
3UR#..USK6# (L) |
3 | ||
| 90126-10033 |
3UR#..USK6# (J) |
3 | ||
| 17142C - BOLT, STUD(FOR EXHAUST MANIFOLD, LH) | ||||
| 90126-10033 |
3UR#..USK6# (J) |
3 | ||
| 90126-A0011 |
3UR#..USK6# (L) |
3 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-0S010 |
3UR#..USK6# (L) |
1 | ||
| 17167-38060 |
3UR#..USK6# (J) |
1 | ||
| 17167-38060 |
3UR#..USK6# |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-38070 |
3UR#..USK6# (J) |
1 | ||
| 17168-38070 |
3UR#..USK6# |
1 | ||
| 17168-0S010 |
3UR#..USK6# (L) |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-38020 |
3UR#..USK6# |
1 | ||
| 17173A - GASKET, EXHAUST MANIFOLD TO HEAD, LH | ||||
| 17173-38020 |
3UR#..USK6# |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17171-0S010 |
3URFE..USK6# |
1 | ||
| 17171-0S030 |
3URFE..USK6# |
1 | ||
| 17178 - GASKET, INTAKE MANIFOLD TO HEAD, NO.2 | ||||
| 17171-0S010 |
3URFE..USK6# |
1 | ||
| 17171-0S030 |
3URFE..USK6# |
1 | ||
| 17376C - GASKET, AIR TUBE | ||||
| 17377-0S010 |
3UR#..USK6# (L) |
1 | ||
| 17377-38010 |
1URFE,3UR#..UPK6#,USK6# |
1 | ||
| 17377-38010 |
3UR#..USK6# (J) |
1 | ||
| 17377B - GASKET, AIR TUBE, NO.2 | ||||
| 17377-38010 |
1URFE,3UR#..UPK6#,USK6# |
1 | ||
| 17377-38010 |
3UR#..USK6# (J) |
1 | ||
| 17377-0S010 |
3UR#..USK6# (L) |
1 | ||
| Common parts | ||||
| 90107-08004 | ||||
| 90119-A0285 | ||||
| 90148-A0016 | ||||
| 90178-A0023 | ||||
| 90178-A0024 | ||||
| 90178-A0048 | ||||
| 91673-A0614 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| 94151-80841 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
