UPK60L-GKTSKA (2009)

Toyota Sequoia

Production Apr 2009 - Aug 2012
Engine 1URFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0904- )UPK6#

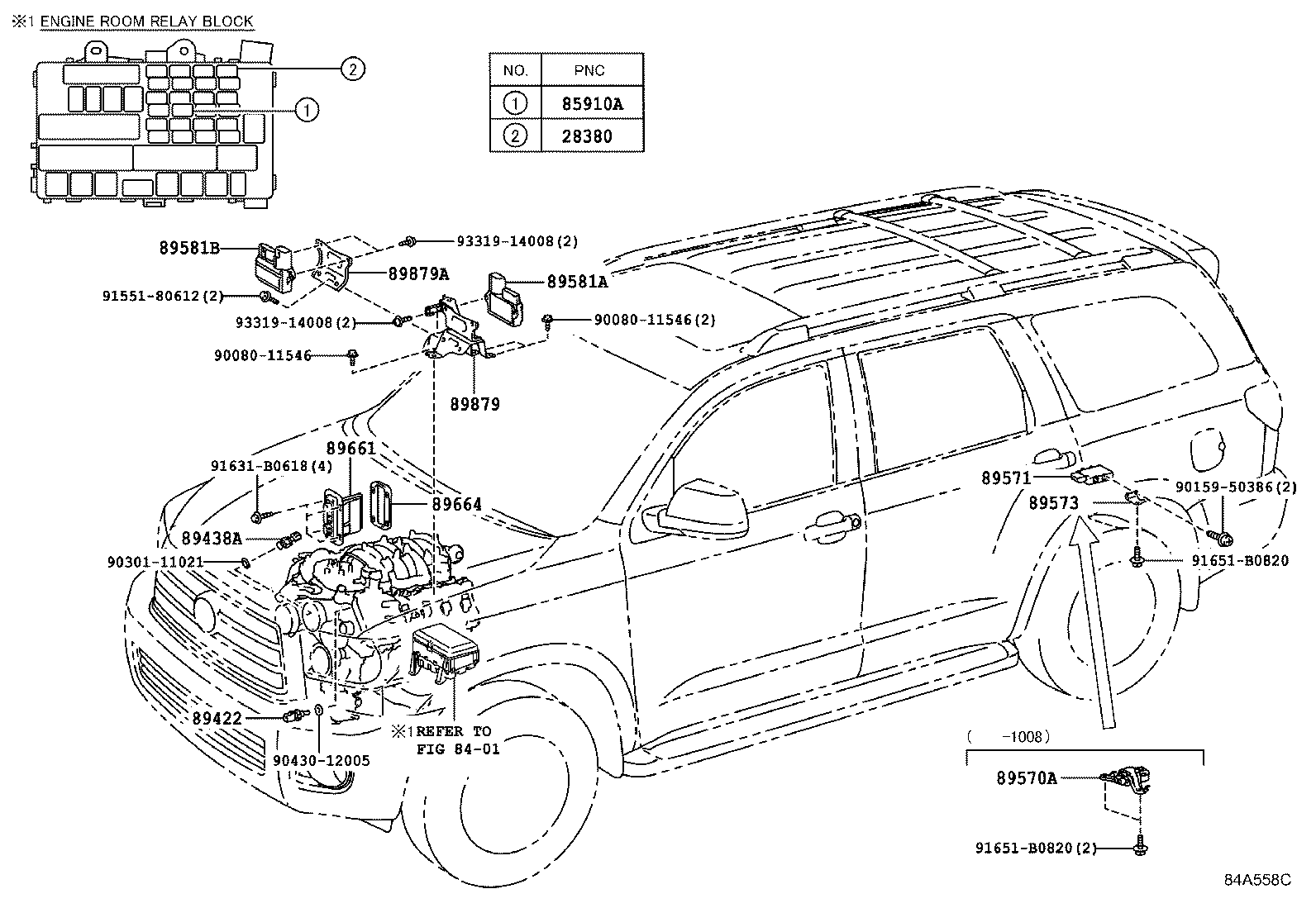

Click highlighted areas on diagram

diagram 28380 8401 85910A 89422 89438A 89570A 89571 89573 89581A 89581B 89661 89664 89879 89879A 9008011546 9008011546 9015950386 9030111021 9043012005 9155180612 91631B0618 91651B0820 91651B0820 9331914008 9331914008
Part # Description Qty Price
28380 - RELAY ASSY, FUEL PUMP
90080-87026

1URFE,3URFE..UPK6#,USK6#

 1
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90080-87026

UPK6#,USK6#..HTWC

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030

UPK6#

 1
89570A - COMPUTER ASSY, FUEL PUMP CONTROL
89570-34040

UPK6#

 1
89571 - COMPUTER, FUEL PUMP CONTROL
89571-34070

UPK6#

 1
89573 - BRACKET, FUEL PUMP CONTROL COMPUTER
89573-34040

UPK6#

 1
89581A - DRIVER, AIR INJECTION CONTROL
89581-34041

UPK6#

 1
89581B - DRIVER, AIR INJECTION CONTROL
89581-34051

UPK6#

 1
89661 - COMPUTER, ENGINE CONTROL
89661-0CJ50

UPK60

TOWING PACKAGE-WITH

 1
89661-0CJ70

UPK60

 1
89661-0CJ51

UPK60

TOWING PACKAGE-WITH

 1
89661-0CJ90

UPK60

MEXICO SPEC

 1
89661-0CL30

UPK6#

 1
89661-0CJ71

UPK60

 1
89661-0CJ52

UPK60

TOWING PACKAGE-WITH

 1
89661-0CM00

UPK60

MEXICO SPEC

 1
89661-0CL31

UPK6#

 1
89661-0CC40

UPK6#

 1
89664 - PLATE, ENGINE CONTROL COMPUTER
89664-34010

UPK6#

 1
89879 - BRACKET, INJECTOR DRIVER
89589-34020

UPK6#

 1
89879A - BRACKET, INJECTOR DRIVER
89589-34030

UPK6#

 1
Common parts
90080-11546
90159-50386
90301-11021
90430-12005
91551-80612
91631-B0618
91651-B0820
93319-14008
Linked diagrams
8401
