UPK60L-GKTSKA (2009)

Toyota Sequoia

Production Apr 2009 - Aug 2012
Engine 1URFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 7 OF10(0711-1308)

Click highlighted areas on diagram

STEERING

diagram 4501 84052 84140 84250A 84306 84450 84650 85432 89227 89245B 9008015079 9008016107
Part # Description Qty Price
84052 - SWITCH ASSY, UN-LOCK WARNING
84052-71010

UCK6#,UPK6#,USK6#

 1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-07112

UPK6#,USK6#..SR5

FRONT FOG LAMP-WITH(CLEAR)&DAYTIME RUNNING LIGHT SYSTEM-WITH

 1
84250A - SWITCH ASSY, STEERING PAD
84250-0C010E0

UPK6#,USK6#..SR5

AUDIO-AM/FM 6CD-CHANGER 14SPEAKER JBL,DK. BROWN,TRIM44

 1
84250-0C010C0

UPK6#,USK6#..SR5

AUDIO-AM/FM CD SDARS BLUETOOTH 8SPEAKER,BLACK,TRIM1#,2#,44

 1
84250-0C010E0

UPK6#,USK6#..SR5

AUDIO-AM/FM CD SDARS BLUETOOTH 8SPEAKER,DK. BROWN,TRIM44

 1
84250-0C010C0

UPK6#,USK6#..SR5

AUDIO-AM/FM 6CD-CHANGER 14SPEAKER JBL,BLACK,TRIM1#,2#,44

 1
84306 - CABLE SUB-ASSY, SPIRAL
84306-06150

UPK6#

 1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-71010

UCK6#,UPK6#,USK6#

 1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-02730

UPK6#

 1
85432 - SOLENOID, KEY INTER LOCK
85432-71010

UCK6#,UPK6#,USK6#

 1
89245B - SENSOR, STEERING
89245-06040

UCK6#,UPK6#,USK6#

 1
Common parts
90080-15079
90080-16107
Linked diagrams
4501

ILLUST NO. 4 OF10(0711-1708)

Click highlighted areas on diagram

COWL

diagram 81980 8202 82210J 82210J 82600F 82600F 82660G 82672A 82673A 82733A 82861 84340 84342 84345 8435 8435 84550 85903 85916C 85930G 89111 89533A 89618A 89650 9008011353 9008015078 9008017191 9008017191 9008017191 9008017191 9008017191 9008017191 90105A0082 90119A0334
Part # Description Qty Price
81980 - FLASHER ASSY, TURN SIGNAL
81980-0C020

UPK6#

 1
81980-0C010

UPK6#

DAYTIME RUNNING LIGHT SYSTEM-WITH

 1
82210J - FUSIBLE LINK
90982-08295

UPK6#

30A,TERM.:FEMALE,PNK,ENGINE ROOM

 1
90982-08298

UPK6#

30A,TERMINAL:FEMALE,INSTRUMENT PANEL

 1
90982-08296

UPK6#

50A,TERM.:FEMALE,RED,ENGINE ROOM

 1
90982-08294

UPK6#

40A,TERM.:FEMALE,GRN,ENGINE ROOM

 1
82210J - FUSIBLE LINK
90982-08295

UPK6#

30A,TERM.:FEMALE,PNK,ENGINE ROOM

 1
90982-08298

UPK6#

30A,TERMINAL:FEMALE,INSTRUMENT PANEL

 1
90982-08296

UPK6#

50A,TERM.:FEMALE,RED,ENGINE ROOM

 1
90982-08294

UPK6#

40A,TERM.:FEMALE,GRN,ENGINE ROOM

 1
82600F - FUSE, FUSE BLOCK
90080-82052

UCK6#,UPK6#,USK6#

15A,MINI FUSE,BLUE,ENGINE ROOM

 1
90080-82051

UCK6#,UPK6#,USK6#

10A,MINI FUSE,RED,ENGINE ROOM

 1
90080-82050

UCK6#,UPK6#,USK6#

7.5A,MINI FUSE,BROWN,ENGINE ROOM

 1
90080-82053

UCK6#,UPK6#,USK6#

20A,MINI FUSE,YELLOW,ENGINE ROOM

 1
90080-82054

UCK6#,UPK6#,USK6#

30A,MINI FUSE,GREEN,ENGINE ROOM

 1
90982-09020

UCK6#,UPK6#,USK6#

7.5A,MINI FUSE,BROWN,INSTRUMENT PANEL

 1
90982-09021

UCK6#,UPK6#,USK6#

10A,MINI FUSE,RED,INSTRUMENT PANEL

 1
90982-09024

UCK6#,UPK6#,USK6#

25A,MINI FUSE,INSTRUMENT PANEL

 1
90982-A9001

UCK6#,UPK6#,USK6#

5A,MINI FUSE,TAN,ENGINE ROOM

 1
90080-82055

UCK6#,UPK6#,USK6#

25A,MINI FUSE,ENGINE ROOM

 1
90982-09022

UCK6#,UPK6#,USK6#

15A,MINI FUSE,BLUE,INSTRUMENT PANEL

 1
90982-09025

UCK6#,UPK6#,USK6#

30A,MINI FUSE,GRN,INSTRUMENT PANEL

 1
90982-09023

UCK6#,UPK6#,USK6#

20A,MINI FUSE,YELLOW,INSTRUMENT PANEL

 1
82600F - FUSE, FUSE BLOCK
90080-82052

UCK6#,UPK6#,USK6#

15A,MINI FUSE,BLUE,ENGINE ROOM

 1
90080-82051

UCK6#,UPK6#,USK6#

10A,MINI FUSE,RED,ENGINE ROOM

 1
90080-82050

UCK6#,UPK6#,USK6#

7.5A,MINI FUSE,BROWN,ENGINE ROOM

 1
90080-82053

UCK6#,UPK6#,USK6#

20A,MINI FUSE,YELLOW,ENGINE ROOM

 1
90080-82054

UCK6#,UPK6#,USK6#

30A,MINI FUSE,GREEN,ENGINE ROOM

 1
90982-09020

UCK6#,UPK6#,USK6#

7.5A,MINI FUSE,BROWN,INSTRUMENT PANEL

 1
90982-09021

UCK6#,UPK6#,USK6#

10A,MINI FUSE,RED,INSTRUMENT PANEL

 1
90982-09024

UCK6#,UPK6#,USK6#

25A,MINI FUSE,INSTRUMENT PANEL

 1
90982-A9001

UCK6#,UPK6#,USK6#

5A,MINI FUSE,TAN,ENGINE ROOM

 1
90080-82055

UCK6#,UPK6#,USK6#

25A,MINI FUSE,ENGINE ROOM

 1
90982-09022

UCK6#,UPK6#,USK6#

15A,MINI FUSE,BLUE,INSTRUMENT PANEL

 1
90982-09025

UCK6#,UPK6#,USK6#

30A,MINI FUSE,GRN,INSTRUMENT PANEL

 1
90982-09023

UCK6#,UPK6#,USK6#

20A,MINI FUSE,YELLOW,INSTRUMENT PANEL

 1
82660G - BLOCK ASSY, RELAY
82660-20340

UPK6#

 1
82672A - COVER, JUNCTION BLOCK
82672-0C080

UPK6#

 1
82673A - BRACKET, JUNCTION BLOCK
82673-0C010

UPK6#

 1
82733A - BLOCK, COWL SIDE JUNCTION, LH
82730-0C181

UPK6#,USK6#

DAYTIME RUNNING LIGHT SYSTEM-WITH

 1
82730-0C170

UPK6#,USK6#..LIMD,SR5

 1
82730-0C180

UPK6#,USK6#

DAYTIME RUNNING LIGHT SYSTEM-WITH

 1
82730-0C182

UPK6#,USK6#

DAYTIME RUNNING LIGHT SYSTEM-WITH

 1
82730-0C171

UPK6#,USK6#..LIMD,SR5

 1
82730-0C172

UPK6#

 1
82730-0C183

UPK6#

DAYTIME RUNNING LIGHT SYSTEM-WITH

 1
82861 - BRACKET, COMPUTER INTEGRATION, NO.1
82861-0C014

UPK6#

 1
82861-0C013

UPK6#,USK6#

 1
84340 - SWITCH ASSY, STOP LAMP
84340-09070

UPK6#

 1
84342 - COVER, STOP LAMP SWITCH
84342-08010

UCK6#,UPK6#,USK6#

 1
84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING
84345-08010

UPK6#

 1
84550 - SWITCH ASSY, PARKING BRAKE
84550-04030

UCK6#,UPK6#,USK6#

 1
85903 - COMPUTER SUB-ASSY, SHIFT LOCK CONTROL
85903-06010

UCK6#,UPK6#,USK6#

 1
85916C - RELAY, BACK UP LAMP
90080-87026

UPK6#

(L)

 1
90987-02027

UPK6#

(J)

 1
85930G - RELAY, ACC
90084-98032

UPK6#

 1
89618A - COMPUTER, POWER SOURCE CONTROL
89670-0C011

UPK6#,USK6#

 1
89650 - COMPUTER ASSY, POWER STEERING
89650-34010

UPK6#,USK6#

 1
89650-34011

UPK6#

 1
Common parts
90080-11353
90080-15078
90080-17191
90105-A0082
90119-A0334
Linked diagrams
8202
8435

ILLUST NO. 5 OF10(0711-1107)

Click highlighted areas on diagram

INSTRUMENT PANEL 1/2

diagram 84119 84150D 84170 84330 8435 84415 84480 84724 84810E 84870A 84870A 84870D 84870D 84874 84931C 84965 84977 84988F
Part # Description Qty Price
84119 - RHEOSTAT, LIGHT CONTROL
84119-0C030

UPK6#..SR5

 1
84150D - SWITCH ASSY, HEADLAMP CLEANER
84150-0C020

UPK6#

HEADLAMP CLEANER-WITH

 1
84170 - SWITCH ASSY, INTERIOR DOME LAMP
84170-0C020

UPK6#

 1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-0C010

UPK6#

 1
84415 - SWITCH, CURTAIN AIRBAG CUTOFF
84415-0C030

UPK60,USK60

 1
84480 - SWITCH ASSY, MAIN
84480-0C040

UPK6#,USK6#

REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER

 1
84810E - SWITCH ASSY, BACK DOOR POWER WINDOW REGULATOR
84810-0C030

UPK6#

 1
84870A - SWITCH ASSY, OUTER MIRROR
84870-08010

UCK6#,UPK6#,USK6#..SR5

TYPE A:REFER ILLUST.

 1
84870A - SWITCH ASSY, OUTER MIRROR
84870-08010

UCK6#,UPK6#,USK6#..SR5

TYPE A:REFER ILLUST.

 1
84870D - SWITCH ASSY, OUTER MIRROR, NO.2
84872-52030

UCK6#,UPK6#,USK6#..SR5

TYPE A:REFER ILLUST.

 1
84870D - SWITCH ASSY, OUTER MIRROR, NO.2
84872-52030

UCK6#,UPK6#,USK6#..SR5

TYPE A:REFER ILLUST.

 1
84977 - SWITCH, DRIVE MONITOR
84977-0C080

UCK6#,UPK6#,USK6#..SR5

CLEARANCE & BACK SONAR-WITH(FRONT & REAR)

 1
84988F - SWITCH, TRACTION CONTROL
84988-0C020

UPK6#

 1
Linked diagrams
8435

ILLUST NO. 6 OF10(0711-1708)

Click highlighted areas on diagram

INSTRUMENT PANEL 2/2

diagram 8410 8419 8419 8419 84725A 84751 84751 84751 84751 85500 85513 85520 85530 85530 85530C 85530E 85533 85535B 85535D 85535E 8601 8715
Part # Description Qty Price
84751 - SWITCH, SEAT HEATER
84751-0C040

UPK6#..SR5

LEATHER PACKAGE,RH

 1
84751-0C030

UPK6#..SR5

LEATHER PACKAGE,LH

 1
84751 - SWITCH, SEAT HEATER
84751-0C040

UPK6#..SR5

LEATHER PACKAGE,RH

 1
84751-0C030

UPK6#..SR5

LEATHER PACKAGE,LH

 1
84751 - SWITCH, SEAT HEATER
84751-0C040

UPK6#..SR5

LEATHER PACKAGE,RH

 1
84751-0C030

UPK6#..SR5

LEATHER PACKAGE,LH

 1
84751 - SWITCH, SEAT HEATER
84751-0C040

UPK6#..SR5

LEATHER PACKAGE,RH

 1
84751-0C030

UPK6#..SR5

LEATHER PACKAGE,LH

 1
85500 - LIGHTER ASSY, CIGARETTE
85500-28080

UPK6#

 1
85513 - COVER, CIGARETTE LIGHTER
85513-02010

UPK6#

 1
85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER
85520-28010

UPK6#

 1
85530 - SOCKET ASSY, POWER OUTLET, NO.1
85530-AE010

UPK6#

 2
85530 - SOCKET ASSY, POWER OUTLET, NO.1
85530-AE010

UPK6#

 2
85530C - SOCKET ASSY, POWER OUTLET, CENTER
85530-AE010

UPK6#

 1
85530-AE010

UPK6#

REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER

 1
85530E - SOCKET ASSY, POWER OUTLET, NO.3
85530-41030

UPK6#,USK6#

REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER

 1
85533 - LENS, CIGARETTE LIGHTER INDICATOR
85533-AE010

UPK6#

 1
85535B - COVER, POWER OUTLET SOCKET, NO.1
85535-0C060

UPK6#,USK6#

 1
85535-0C050

UPK6#

 1
85535D - COVER, POWER OUTLET SOCKET, CENTER
85535-0C050

UPK6#

REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER

 1
85535-0C050

UPK6#

 1
85535E - COVER, POWER OUTLET SOCKET, NO.2
85535-0C060

UCK6#,UPK6#,USK6#

 1
Linked diagrams
8410
8419
8601
8715

ILLUST NO. 2 OF10(0711-1708)

Click highlighted areas on diagram

ENGINE ROOM

diagram 8202 8202 8202 8202 85942
Part # Description Qty Price
85942 - RELAY, HEADLAMP CLEANER CONTROL
85942-30020

UCK6#,UPK6#,USK6#..LIMD,SR5

HEADLAMP CLEANER-WITH

 1
Linked diagrams
8202

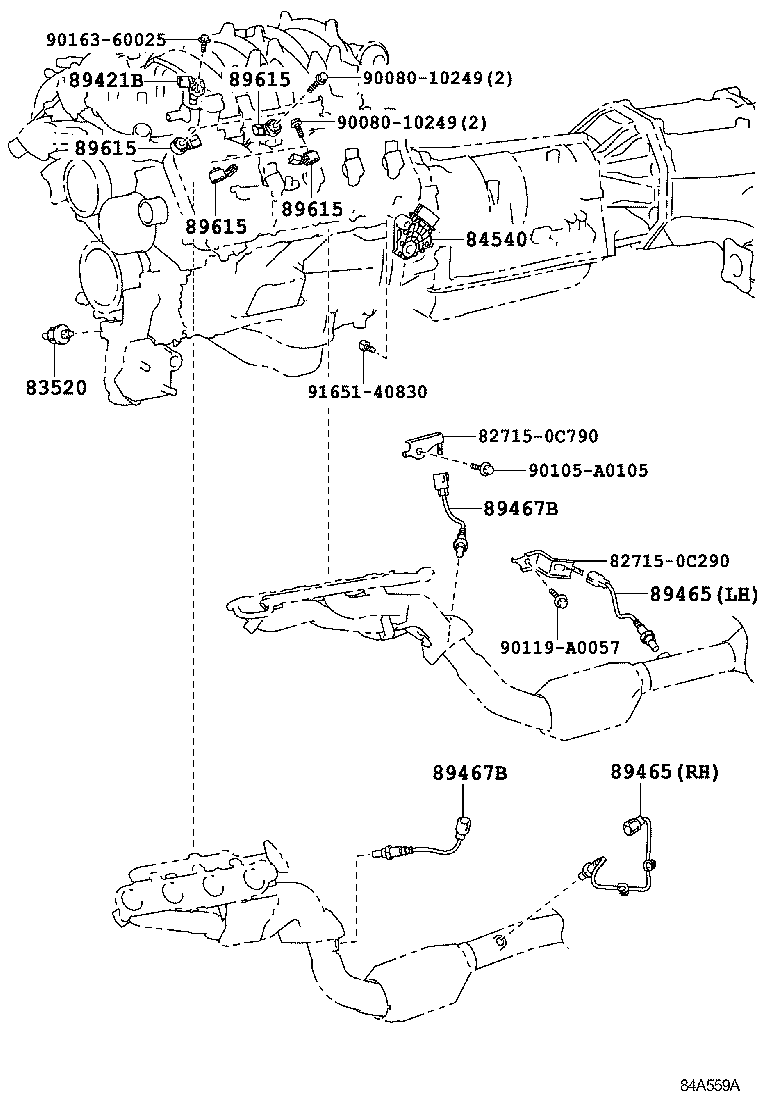

ILLUST NO. 1 OF10(0904-1208)UPK6#

Click highlighted areas on diagram

ENGINE & TRANSMISSION

diagram 827150C290 827150C790 83520 84540 89421B 89465 89465 89467B 89467B 89615 89615 89615 89615 9008010249 9008010249 90105A0105 90119A0057 9016360025 9165140830
Part # Description Qty Price
83520 - GAGE ASSY,OIL PRESSURE SENDER
83520-60050

UPK6#

 1
84540 - SWITCH ASSY, NEUTRAL START
84540-0C010

UCK6#,UPK6#,USK6#

 1
89421B - SENSOR, VACUUM
89421-47010

UPK6#

 1
89421-52010

UPK6#

 1
89465 - SENSOR, OXYGEN
89465-0C190

UPK6#

RH

 1
89465-0C180

UPK6#

LH

 1
89465 - SENSOR, OXYGEN
89465-0C190

UPK6#

RH

 1
89465-0C180

UPK6#

LH

 1
89467B - SENSOR, AIR FUEL RATIO
89467-04060

UPK6#

 2
89467B - SENSOR, AIR FUEL RATIO
89467-04060

UPK6#

 2
89615 - SENSOR, KNOCK CONTROL
89615-20090

UPK6#,USK6#

 4
89615-06010

UPK6#

(L)

 4
89615-20090

UPK6#

(J)

 4
89615 - SENSOR, KNOCK CONTROL
89615-20090

UPK6#,USK6#

 4
89615-06010

UPK6#

(L)

 4
89615-20090

UPK6#

(J)

 4
89615 - SENSOR, KNOCK CONTROL
89615-20090

UPK6#,USK6#

 4
89615-06010

UPK6#

(L)

 4
89615-20090

UPK6#

(J)

 4
89615 - SENSOR, KNOCK CONTROL
89615-20090

UPK6#,USK6#

 4
89615-06010

UPK6#

(L)

 4
89615-20090

UPK6#

(J)

 4
Common parts
82715-0C290
82715-0C790
90080-10249
90105-A0105
90119-A0057
90163-60025
91651-40830

ILLUST NO. 9 OF10(0711-1708)

Click highlighted areas on diagram

DOOR & ROOF & FLOOR 1/2

diagram 83320 84231A 84231A 84231A 84231A 84751G 84751G 84810 84810D 84810D 84820 84830 84862 84927 84930 86210A 88161 88162 88171 88172 89222A 89430 89715 89715 89747E 9008011546 9008011546 9008014058 9008016098 9008017182 9008017182 9008017191 9008411038 9008411038 9008411038 9008411038 9015960507 9015960507 90159A0005 90159A0007 9018905097 9018906227 9018906228 9018906228 9090148003
Part # Description Qty Price
84231A - SWITCH, COURTESY LAMP
84231-0C010

UPK6#

 4
84231A - SWITCH, COURTESY LAMP
84231-0C010

UPK6#

 4
84231A - SWITCH, COURTESY LAMP
84231-0C010

UPK6#

 4
84231A - SWITCH, COURTESY LAMP
84231-0C010

UPK6#

 4
84810 - SWITCH ASSY, POWER WINDOW REGULATOR
84810-0C060

UPK6#

 1
84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR
84810-06030

UPK6#

 2
84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR
84810-06030

UPK6#

 2
84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR
84820-0C030

UPK6#

 1
84830 - SWITCH ASSY, TAIL GATE CONTROL
84830-35050

UCK6#,UPK6#,USK6#

 1
84862 - SWITCH, SLIDE ROOF MOTOR
84862-0C010B0

UCK6#,UPK6#,USK6#..SR5

MOON ROOF-WITH,LT.GRAY,TRIM1#,2#

 1
84862-0C010E0

UCK6#,UPK6#,USK6#..LIMD,SR5

MOON ROOF-WITH,SAND BEIGE,TRIM4#

 1
84930 - SWITCH ASSY, DOOR CONTROL
84930-0C010

UPK6#

 1
86210A - INVERTER ASSY, VOLTAGE
86210-34060

UPK6#,USK6#..SR5

REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER

 1
89222A - COMPUTER, MULTIPLEX NETWORK DOOR
89222-0C030

UCK6#,UPK6#,USK6#

 1
89715 - COMPUTER, FOLD SEAT CONTROL
89715-0C020

UPK6#..SR5

LEATHER PACKAGE,RH

 1
89715-0C010

UPK6#..SR5

LEATHER PACKAGE,LH

 1
89715 - COMPUTER, FOLD SEAT CONTROL
89715-0C020

UPK6#..SR5

LEATHER PACKAGE,RH

 1
89715-0C010

UPK6#..SR5

LEATHER PACKAGE,LH

 1
Common parts
90080-11546
90080-14058
90080-16098
90080-17182
90080-17191
90084-11038
90159-60507
90159-A0005
90159-A0007
90189-05097
90189-06227
90189-06228
90901-48003

ILLUST NO. 3 OF10(0711-1708)

Click highlighted areas on diagram

ENGINE ROOM RELAY BLOCK

diagram 28300 28800L 82210J 82600F 82616 82620A 82641 82660B 82660C 82660D 82660E 82660F 82661 82663 82741 82824L 8404 8404 8404 8414 8419 84794A 85912 85916D 85916P 85916Y 85926 85934 85934A 85941A 8601 86530 9008011273
Part # Description Qty Price
28300 - RELAY ASSY, STARTER
28300-0A010

1URFE..UPK6#

 1
28800L - RELAY, SUB BATTERY
90080-87026

1URFE..UPK6#

 1
82210J - FUSIBLE LINK
90982-08295

UPK6#

30A,TERM.:FEMALE,PNK,ENGINE ROOM

 1
90982-08298

UPK6#

30A,TERMINAL:FEMALE,INSTRUMENT PANEL

 1
90982-08296

UPK6#

50A,TERM.:FEMALE,RED,ENGINE ROOM

 1
90982-08294

UPK6#

40A,TERM.:FEMALE,GRN,ENGINE ROOM

 1
82600F - FUSE, FUSE BLOCK
90080-82052

UCK6#,UPK6#,USK6#

15A,MINI FUSE,BLUE,ENGINE ROOM

 1
90080-82051

UCK6#,UPK6#,USK6#

10A,MINI FUSE,RED,ENGINE ROOM

 1
90080-82050

UCK6#,UPK6#,USK6#

7.5A,MINI FUSE,BROWN,ENGINE ROOM

 1
90080-82053

UCK6#,UPK6#,USK6#

20A,MINI FUSE,YELLOW,ENGINE ROOM

 1
90080-82054

UCK6#,UPK6#,USK6#

30A,MINI FUSE,GREEN,ENGINE ROOM

 1
90982-09020

UCK6#,UPK6#,USK6#

7.5A,MINI FUSE,BROWN,INSTRUMENT PANEL

 1
90982-09021

UCK6#,UPK6#,USK6#

10A,MINI FUSE,RED,INSTRUMENT PANEL

 1
90982-09024

UCK6#,UPK6#,USK6#

25A,MINI FUSE,INSTRUMENT PANEL

 1
90982-A9001

UCK6#,UPK6#,USK6#

5A,MINI FUSE,TAN,ENGINE ROOM

 1
90080-82055

UCK6#,UPK6#,USK6#

25A,MINI FUSE,ENGINE ROOM

 1
90982-09022

UCK6#,UPK6#,USK6#

15A,MINI FUSE,BLUE,INSTRUMENT PANEL

 1
90982-09025

UCK6#,UPK6#,USK6#

30A,MINI FUSE,GRN,INSTRUMENT PANEL

 1
90982-09023

UCK6#,UPK6#,USK6#

20A,MINI FUSE,YELLOW,INSTRUMENT PANEL

 1
82616 - PULLER, FUSE
82616-58010

UPK6#

 1
82620A - BLOCK ASSY, FUSIBLE LINK
82620-0C030

UPK6#

 1
82641 - RELAY, INTEGRATION NO.1
82641-0C030

UPK6#,USK60;USK65..HTWCF;USK65..(LIMD,PLAT)..HTWC

 1
82660B - BLOCK ASSY, RELAY
82660-0C100

UPK6#

 1
82660C - BLOCK ASSY, RELAY
82660-0C110

UPK6#

 1
82660D - BLOCK ASSY, RELAY
82660-0H070

USK65..LIMD..HTWC;UPK6#,USK60..LIMD,SR5;USK65..(LIMD,SR5)..HTWCF

 3
82660-0H070

UPK6#

 2
82660E - BLOCK ASSY, RELAY
82660-26270

UPK6#

 1
82660F - BLOCK ASSY, RELAY
82660-52010

UCK6#,UPK6#;USK65..SR5..HTWC

 5
82661 - COVER, RELAY BLOCK, NO.1
82661-0C223

UPK6#

 1
82663 - COVER, RELAY BLOCK, LOWER
82663-0C060

UPK6#

 1
82741 - BLOCK, ENGINE ROOM RELAY
82741-0C060

UPK6#

 1
82824L - PIN, SHORT
82824-41010

UPK6#

 1
84794A - RELAY, FR WIPER DEICER
90080-87026

UPK6#

COLD AREA SPEC

 1
85912 - RELAY, DEFOGGER
90080-87025

UPK6#

 1
85916D - RELAY, FOG LAMP
90080-87026

UPK6#..SR5

FRONT FOG LAMP-WITH(CLEAR)

 1
85916P - RELAY, HEADLAMP
90080-87024

UPK6#

 1
85916Y - RELAY, TOWING TAIL
90080-87026

UPK6#

 1
85926 - RELAY, HEADLAMP DIMMER
90080-87024

UPK6#

 1
85934 - RELAY, MAGNET-CLUTCH
90987-02028

UPK6#

 1
85934A - RELAY CONDENSER FAN
90987-02028

UPK6#

 1
85941A - RELAY, REAR WINDSHIELD WASHER
90080-87026

UPK6#

 1
86530 - RELAY ASSY, HORN
90080-87026

UPK6#

 1
Common parts
90080-11273
Linked diagrams
8404
8414
8419
8601
