UPK60L-GKTSKA (2009)

Toyota Sequoia

Production Apr 2009 - Aug 2012
Engine 1URFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

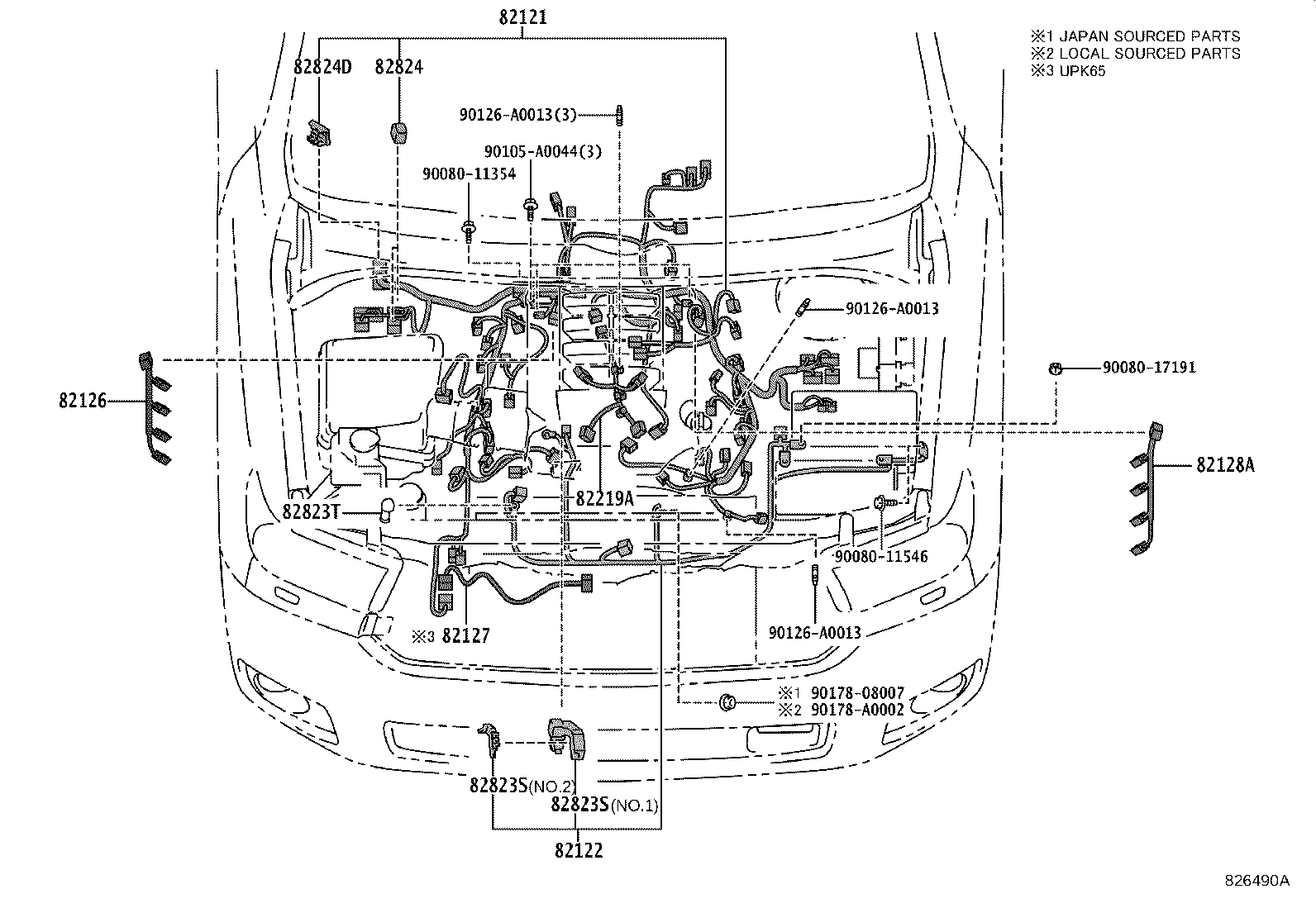

ILLUST NO. 2 OF12(0904-1208)UPK6#

Click highlighted areas on diagram

ENGINE

diagram 82121 82122 82126 82127 82128A 82219A 82823S 82823S 82823T 82824 82824D 9008011354 9008011546 9008017191 90105A0044 90126A0013 90126A0013 90126A0013 9017808007 90178A0002
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-0C300

UPK60

 1
82121-0C301

UPK60

 1
82122 - WIRE, ENGINE, NO.2
82122-0C270

UPK6#..SR5

LEATHER PACKAGE

 1
82122-0C320

UPK6#..SR5

LEATHER PACKAGE&TOWING PACKAGE-WITH

 1
82122-0C270

UPK6#..SR5

REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER

 1
82122-0C320

UPK6#

TOWING PACKAGE-WITH

 1
82122-0C320

UPK6#..SR5

LEATHER PACKAGE&TOWING PACKAGE-WITH&REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER

 1
82122-0C310

UPK6#..SR5

 1
82122-0C270

UPK60..SR5

TOWING PACKAGE-WITHOUT&REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER

 1
82122-0C270

UPK60..SR5

LEATHER PACKAGE&TOWING PACKAGE-WITHOUT&REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER

 1
82122-0C320

UPK6#..SR5

TOWING PACKAGE-WITH&REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER

 1
82122-0C310

UPK60..SR5

TOWING PACKAGE-WITHOUT

 1
82122-0C270

UPK6#..SR5

LEATHER PACKAGE&REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER

 1
82122-0C320

UPK6#

 1
82122-0C270

UPK60..SR5

LEATHER PACKAGE&TOWING PACKAGE-WITHOUT

 1
82128A - WIRE, ENGINE, NO.8
82127-34050

UPK6#

 1
82219A - WIRE, SENSOR
82219-0C040

UPK6#

 1
82823S - CAP, STARTER TERMINAL
82823-0C030

UPK6#

NO.1

 1
82823-0C040

UPK6#

NO.2

 1
82823S - CAP, STARTER TERMINAL
82823-0C030

UPK6#

NO.1

 1
82823-0C040

UPK6#

NO.2

 1
82823T - CAP, ALTERNATOR TERMINAL
82823-34010

UPK6#

TOWING PACKAGE-WITH

 1
82823-34010

UPK6#..SR5

LEATHER PACKAGE&TOWING PACKAGE-WITH&REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER

 1
82823-60040

UPK60..SR5

TOWING PACKAGE-WITHOUT&REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER

 1
82823-60040

UPK60..SR5

LEATHER PACKAGE&TOWING PACKAGE-WITHOUT&REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER

 1
82823-60040

UPK60..SR5

LEATHER PACKAGE&TOWING PACKAGE-WITHOUT

 1
82823-60040

UPK6#

 1
82823-34010

UPK6#..SR5

LEATHER PACKAGE&TOWING PACKAGE-WITH

 1
82823-60040

UPK60

TOWING PACKAGE-WITHOUT

 1
82823-34010

UPK6#..SR5

TOWING PACKAGE-WITH&REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER

 1
82824 - CONNECTOR, WIRING HARNESS
82824-30220

UPK6#

 2
82824D - CONNECTOR, WIRING HARNESS
82824-34100

UPK6#

 1
Common parts
90080-11354
90080-11546
90080-17191
90105-A0044
90126-A0013
90178-08007
90178-A0002

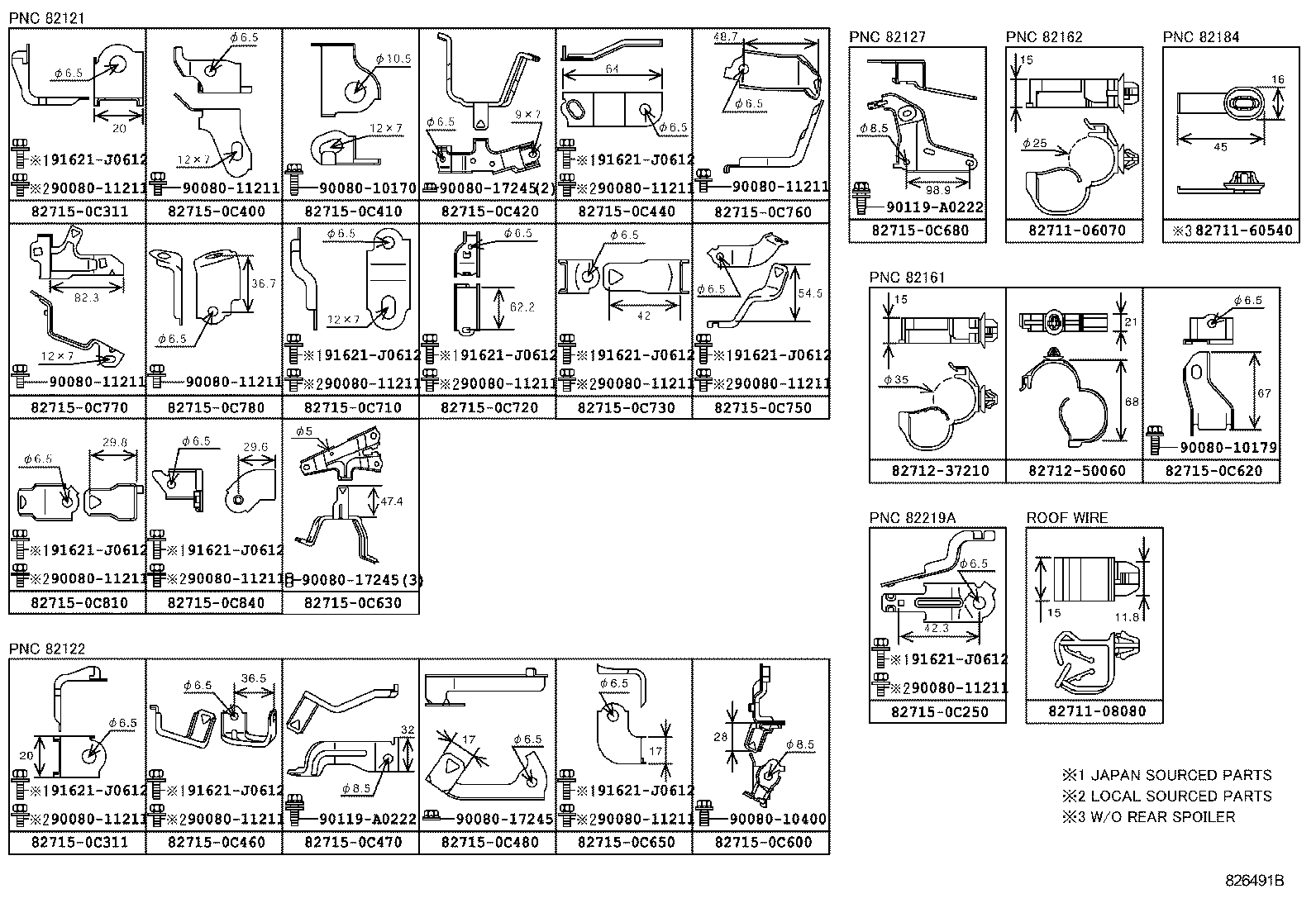

ILLUST NO. 9 OF12(0904- )UPK6#

Click highlighted areas on diagram

CLAMP & BRACKET

diagram 8271106070 8271108080 8271160540 8271237210 8271250060 827150C250 827150C311 827150C311 827150C400 827150C410 827150C420 827150C440 827150C460 827150C470 827150C480 827150C600 827150C620 827150C630 827150C650 827150C680 827150C710 827150C720 827150C730 827150C750 827150C760 827150C770 827150C780 827150C810 827150C840 9008010170 9008010179 9008010400 9008011211 9008011211 9008011211 9008011211 9008011211 9008011211 9008011211 9008011211 9008011211 9008011211 9008011211 9008011211 9008011211 9008011211 9008011211 9008011211 9008017245 9008017245 9008017245 90119A0222 90119A0222 91621J0612 91621J0612 91621J0612 91621J0612 91621J0612 91621J0612 91621J0612 91621J0612 91621J0612 91621J0612 91621J0612 91621J0612
Part # Description Qty Price
Common parts
82711-06070
82711-08080
82711-60540
82712-37210
82712-50060
82715-0C250
82715-0C311
82715-0C400
82715-0C410
82715-0C420
82715-0C440
82715-0C460
82715-0C470
82715-0C480
82715-0C600
82715-0C620
82715-0C630
82715-0C650
82715-0C680
82715-0C710
82715-0C720
82715-0C730
82715-0C750
82715-0C760
82715-0C770
82715-0C780
82715-0C810
82715-0C840
90080-10170
90080-10179
90080-10400
90080-11211
90080-17245
90119-A0222
91621-J0612
