UPK60L-GKTSKA (2009)
Toyota Sequoia
ILLUST NO. 1 OF 5(0711-1708)SR5
DRIVER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-0C360E1 |
UPK6#,USK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 71072-0C420B0 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 71072-0C360B1 |
UPK6#,USK6#..SR5 GRAY,TRIM1# |
1 | ||
| 71072-0C420E0 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,GRAY,TRIM4# |
1 | ||
| 71072-0C380E1 |
UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71072-0C380B1 |
UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE,GRAY,TRIM1# |
1 | ||
| 71072-0C420B1 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 71072-0C380C1 |
UPK6#..SR5 D-POWER SEAT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71072-0C360E2 |
UPK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 71072-0C380B2 |
UPK6#..SR5 D-POWER SEAT PACKAGE,GRAY,TRIM1# |
1 | ||
| 71072-0C360B2 |
UPK6#..SR5 GRAY,TRIM1# |
1 | ||
| 71072-0C421B1 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 71072-0C380E2 |
UPK6#..SR5 D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71072-0C420E1 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71072-0C421E1 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-0C740B0 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 71074-0C730E0 |
UPK6#,USK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 71074-0C730B0 |
UPK6#,USK6#..SR5 GRAY,TRIM1# |
1 | ||
| 71074-0C760C0 |
UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71074-0C760B0 |
UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE,GRAY,TRIM1# |
1 | ||
| 71074-0C740E0 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71074-0C760E0 |
UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71074-0C741B0 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 71074-0C760C1 |
UPK6#..SR5 D-POWER SEAT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71074-0C730E1 |
UPK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 71074-0C741E0 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71074-0C760B1 |
UPK6#..SR5 D-POWER SEAT PACKAGE,GRAY,TRIM1# |
1 | ||
| 71074-0C742B1 |
UPK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 71074-0C730B1 |
UPK6#..SR5 GRAY,TRIM1# |
1 | ||
| 71074-0C760E1 |
UPK6#..SR5 D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71074-0C742E1 |
UPK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71200S - SEAT ASSY, FRONT LH | ||||
| 71200-0CB10E0 |
UPK6#,USK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 71200-0CB20B0 |
UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE,GRAY,TRIM1# |
1 | ||
| 71200-0CB20C0 |
UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71200-0CB20E0 |
UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71200-0CB30E0 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71200-0CB10B1 |
UPK6#,USK6#..SR5 GRAY,TRIM1# |
1 | ||
| 71200-0CB10B0 |
UPK6#,USK6#..SR5 GRAY,TRIM1# |
1 | ||
| 71200-0CB20E1 |
UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71200-0CB31E1 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71200-0CB10E3 |
UPK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 71200-0CB20B1 |
UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE,GRAY,TRIM1# |
1 | ||
| 71200-0CB31B1 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 71200-0CB10B3 |
UPK6#..SR5 GRAY,TRIM1# |
1 | ||
| 71200-0CB20C1 |
UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71200-0CB30B0 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 71200-0CB20B3 |
UPK6#..SR5 D-POWER SEAT PACKAGE,GRAY,TRIM1# |
1 | ||
| 71200-0CB10E1 |
UPK6#,USK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 71200-0CB32B2 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 71200-0CB32E2 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71200-0CB20C3 |
UPK6#..SR5 D-POWER SEAT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71200-0CB20E3 |
UPK6#..SR5 D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-0C080 |
UPK6#,USK6#..SR5 LEATHER PACKAGE |
1 | ||
| 71512-0C060 |
UPK6#..SR5 |
1 | ||
| 71512-0C100 |
UPK6#..SR5 D-POWER SEAT PACKAGE |
1 | ||
| 71512-0C081 |
UPK6#..SR5 LEATHER PACKAGE |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-AA020 |
UPK6#..SR5 D-POWER SEAT PACKAGE |
2 | ||
| 71537-AA020 |
UPK6#,USK6#..SR5 LEATHER PACKAGE |
2 | ||
| 71537-AA020 |
UPK6#..SR5 |
4 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-0C170 |
UCK6#,UPK6#,USK6#..SR5 LEATHER PACKAGE |
1 | ||
| 71552-0C160 |
UCK6#,UPK6#,USK6#..SR5 |
1 | ||
| 71731 - FASTENER SUB-ASSY, SEAT COVER, A (FOR FRONT SEAT) | ||||
| 71731-0C010 |
UPK6#..SR5 LEATHER PACKAGE |
4 | ||
| 71731 - FASTENER SUB-ASSY, SEAT COVER, A (FOR FRONT SEAT) | ||||
| 71731-0C010 |
UPK6#..SR5 LEATHER PACKAGE |
4 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71806-0C070B0 |
UPK6#..SR5 D-POWER SEAT PACKAGE,GRAY,TRIM1# |
1 | ||
| 71812-0C110B0 |
UPK6#..SR5 GRAY,TRIM1# |
1 | ||
| 71806-0C070E0 |
UPK6#..SR5 D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71806-0C070C0 |
UPK6#..SR5 D-POWER SEAT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71812-0C110E0 |
UPK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 71813B - SHIELD, FRONT SEAT BACK, RH | ||||
| 71813-0E020 |
UPK6#..SR5 LEATHER PACKAGE |
1 | ||
| 71875-AA060 |
UPK6#..SR5 |
1 | ||
| 71813-0E020 |
UPK6#..SR5 D-POWER SEAT PACKAGE |
1 | ||
| 71814B - SHIELD, FRONT SEAT BACK, LH | ||||
| 71814-0E020 |
UPK6#..SR5 LEATHER PACKAGE |
1 | ||
| 71814-0E020 |
UPK6#..SR5 D-POWER SEAT PACKAGE |
1 | ||
| 71876-AA060 |
UPK6#..SR5 |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-AA080B3 |
UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE,GRAY,TRIM1# |
1 | ||
| 71862-AA080B3 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 71862-AA080E1 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71862-AA080E1 |
UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71862-0E020C0 |
UPK6#..SR5 D-POWER SEAT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71862-0C080E0 |
UPK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 71862-0C080B0 |
UPK6#..SR5 GRAY,TRIM1# |
1 | ||
| 71862-0E020B2 |
UPK6#..SR5 D-POWER SEAT PACKAGE,GRAY,TRIM1# |
1 | ||
| 71862-0E020B2 |
UPK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 71862-0E020E0 |
UPK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71862-0E020E0 |
UPK6#..SR5 D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-0C060C0 |
UPK6#..SR5 BLACK,TRIM2# |
2 | ||
| 71873-0C060C0 |
UPK6#,USK6#..SR5 BLACK |
2 | ||
| 71874C - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71874-0C030C0 |
UPK6#..SR5 BLACK,TRIM2# |
2 | ||
| 71874-06070 |
UPK6#..SR5 LEATHER PACKAGE |
2 | ||
| 71874-0C030C0 |
UPK6#,USK6#..SR5 BLACK |
2 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71875-0E020B5 |
UPK6#..SR5 D-POWER SEAT PACKAGE,GRAY,TRIM1# |
1 | ||
| 71875-0E020B5 |
UPK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 71876-AD020B0 |
UPK6#..SR5 GRAY,TRIM1# |
1 | ||
| 71875-0E020E2 |
UPK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71876-AD020E1 |
UPK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 71875-0E020E2 |
UPK6#..SR5 D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71875-AD020B0 |
UPK6#..SR5 GRAY,TRIM1# |
1 | ||
| 71876-AA090E2 |
UPK6#..SR5 D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71876-AA090E2 |
UPK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71875-AD020E1 |
UPK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 71876-AA090B5 |
UPK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 71876-AA090B5 |
UPK6#..SR5 D-POWER SEAT PACKAGE,GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0C210E2 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
2 | ||
| 71910-0C210B1 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
2 | ||
| 71910-0C330E0 |
UPK6#..SR5 SAND BEIGE,TRIM4# |
2 | ||
| 71910-0C250E3 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
2 | ||
| 71910-0C330B0 |
UPK6#..SR5 GRAY,TRIM1# |
2 | ||
| 71910-0C250E5 |
UPK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
2 | ||
| 71910-0C250B1 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
2 | ||
| 71910-0C250B2 |
UPK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-42020B8 |
UPK6# W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-52030E4 |
UPK6# W(LOCK)&W(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71931-42020C0 |
UPK6#..SR5 W(LOCK)&W/O(BUTTON),BLACK,TRIM2# |
2 | ||
| 71930-42020B8 |
UPK6#,USK6# W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-42020E3 |
UPK6#,USK6# W(LOCK)&W(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71930-42020C0 |
UPK6#..SR5;USK6#..PLAT W(LOCK)&W(BUTTON),BLACK,TRIM2# |
2 | ||
| 71931-42020E3 |
UPK6# W(LOCK)&W/O(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71930-52030C0 |
UPK6#..SR5 W(LOCK)&W(BUTTON),BLACK,TRIM2# |
2 | ||
| 71930-52030B4 |
UPK6# W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-42020B8 |
UPK6# W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-52030E4 |
UPK6# W(LOCK)&W(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71931-42020C0 |
UPK6#..SR5 W(LOCK)&W/O(BUTTON),BLACK,TRIM2# |
2 | ||
| 71930-42020B8 |
UPK6#,USK6# W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-42020E3 |
UPK6#,USK6# W(LOCK)&W(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71930-42020C0 |
UPK6#..SR5;USK6#..PLAT W(LOCK)&W(BUTTON),BLACK,TRIM2# |
2 | ||
| 71931-42020E3 |
UPK6# W(LOCK)&W/O(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71930-52030C0 |
UPK6#..SR5 W(LOCK)&W(BUTTON),BLACK,TRIM2# |
2 | ||
| 71930-52030B4 |
UPK6# W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 72138D - COVER, SEAT TRACK, OUTER, LH | ||||
| 72138-0C030C0 |
UPK6#..SR5 LEATHER PACKAGE,BLACK,TRIM2# |
1 | ||
| 72138-0C010B0 |
UPK6#,USK6#..SR5 GRAY,TRIM1# |
1 | ||
| 72138-0C030B0 |
UPK6#..SR5 LEATHER PACKAGE,GRAY,TRIM13 |
1 | ||
| 72138-0C010E0 |
UPK6#,USK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 72138-0C030C0 |
UPK6#..SR5 LEATHER PACKAGE,BLACK,TRIM1#,2#,4# |
1 | ||
| 72138-0C030C0 |
UPK6#..SR5 D-POWER SEAT PACKAGE,BLACK,TRIM1#,2#,4# |
1 | ||
| 72138-0C010C0 |
UPK6#..SR5 BLACK,TRIM1#,2#,4# |
1 | ||
| 72138-0C030E0 |
UPK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM44 |
1 | ||
| 72138E - COVER, SEAT TRACK, INNER LH | ||||
| 72138-0C040B0 |
UPK6#..SR5 LEATHER PACKAGE,GRAY,TRIM13 |
1 | ||
| 72137-0C410E0 |
UPK6#,USK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 72138-0C040E0 |
UPK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM44 |
1 | ||
| 72138-0C040C0 |
UPK6#..SR5 LEATHER PACKAGE,BLACK,TRIM2# |
1 | ||
| 72138-0C040C0 |
UPK6#..SR5 LEATHER PACKAGE,BLACK,TRIM1#,2#,4# |
1 | ||
| 72137-0C410B0 |
UPK6#,USK6#..SR5 GRAY,TRIM1# |
1 | ||
| 72137-0C410C0 |
UPK6#..SR5 BLACK,TRIM1#,2#,4# |
1 | ||
| 72138-0C040C0 |
UPK6#..SR5 D-POWER SEAT PACKAGE,BLACK,TRIM1#,2#,4# |
1 | ||
| 72457 - KNOB, VERTICAL SEAT ADJUSTER | ||||
| 72457-0E010E0 |
UPK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 72457-58010E3 |
UPK6#,USK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 72457-0E010B1 |
UPK6#..SR5 GRAY,TRIM1# |
1 | ||
| 72457-58010B5 |
UPK6#,USK6#..SR5 GRAY,TRIM1# |
1 | ||
| 72459A - CAP, VERTICAL SEAT ADJUSTER KNOB | ||||
| 72459-06010E1 |
UPK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 72459-06010B1 |
UPK6#..SR5 GRAY,TRIM1# |
1 | ||
| 72495 - HANDLE, VERTICAL ADJUSTING, LH | ||||
| 72494-06010E1 |
UPK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 72494-06010B1 |
UPK6#..SR5 GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-06020E1 |
UPK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 72526-06020B1 |
UPK6#..SR5 GRAY,TRIM1# |
1 | ||
| 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72760-AC040 |
UPK6# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-0C040 |
UCK6#,UPK6#,USK6#..LIMD,SR5 |
1 | ||
| Common parts | ||||
| 90080-16099 | ||||
| 90080-17200 | ||||
| 90105-A0199 | ||||
| 90168-50078 | ||||
| 90176-A0002 | ||||
| 90389-10041 | ||||
| 90467-10203 | ||||
| 90520-01006 | ||||
| 93560-54010 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8401 | ||||
| 8421 | ||||

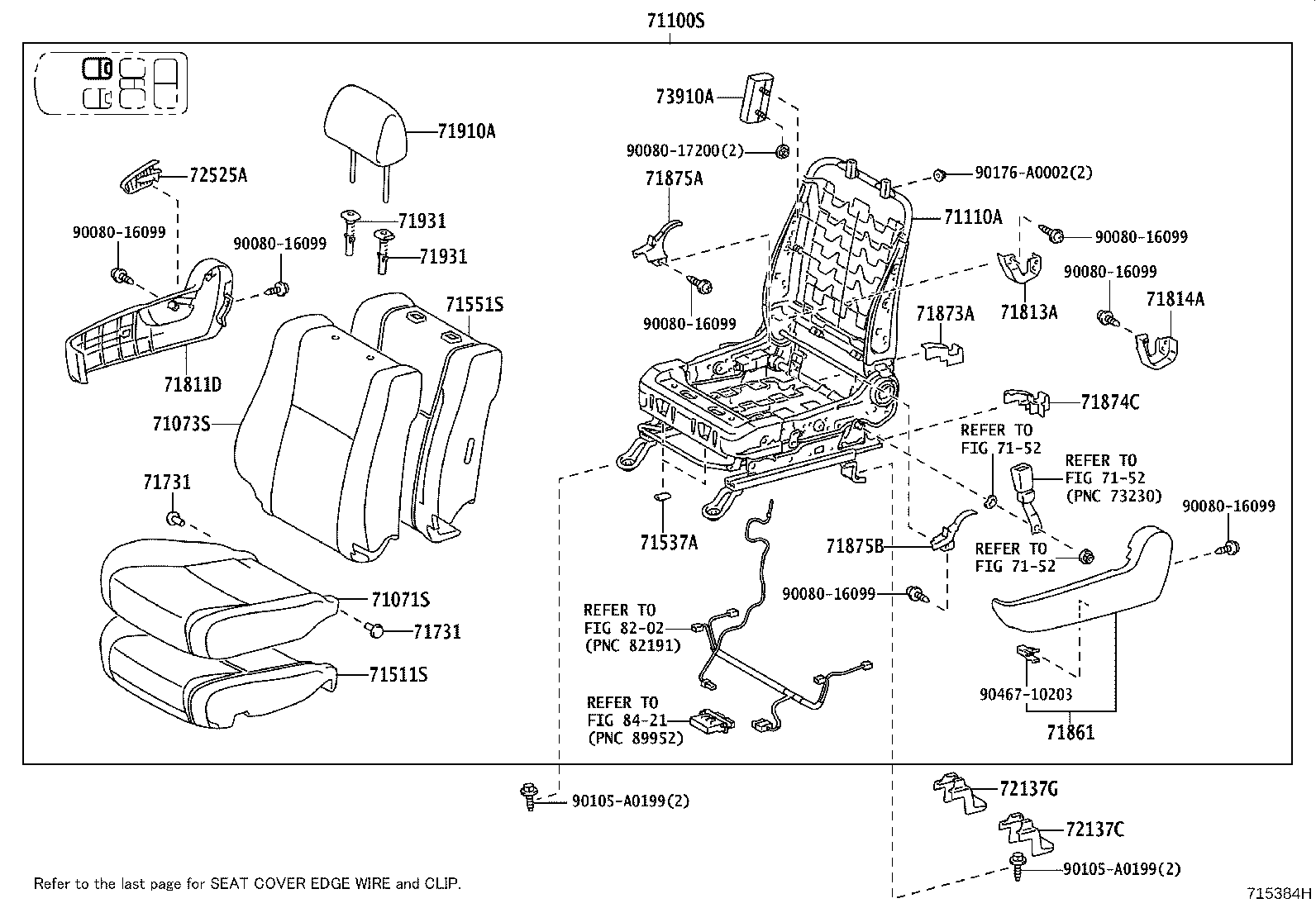

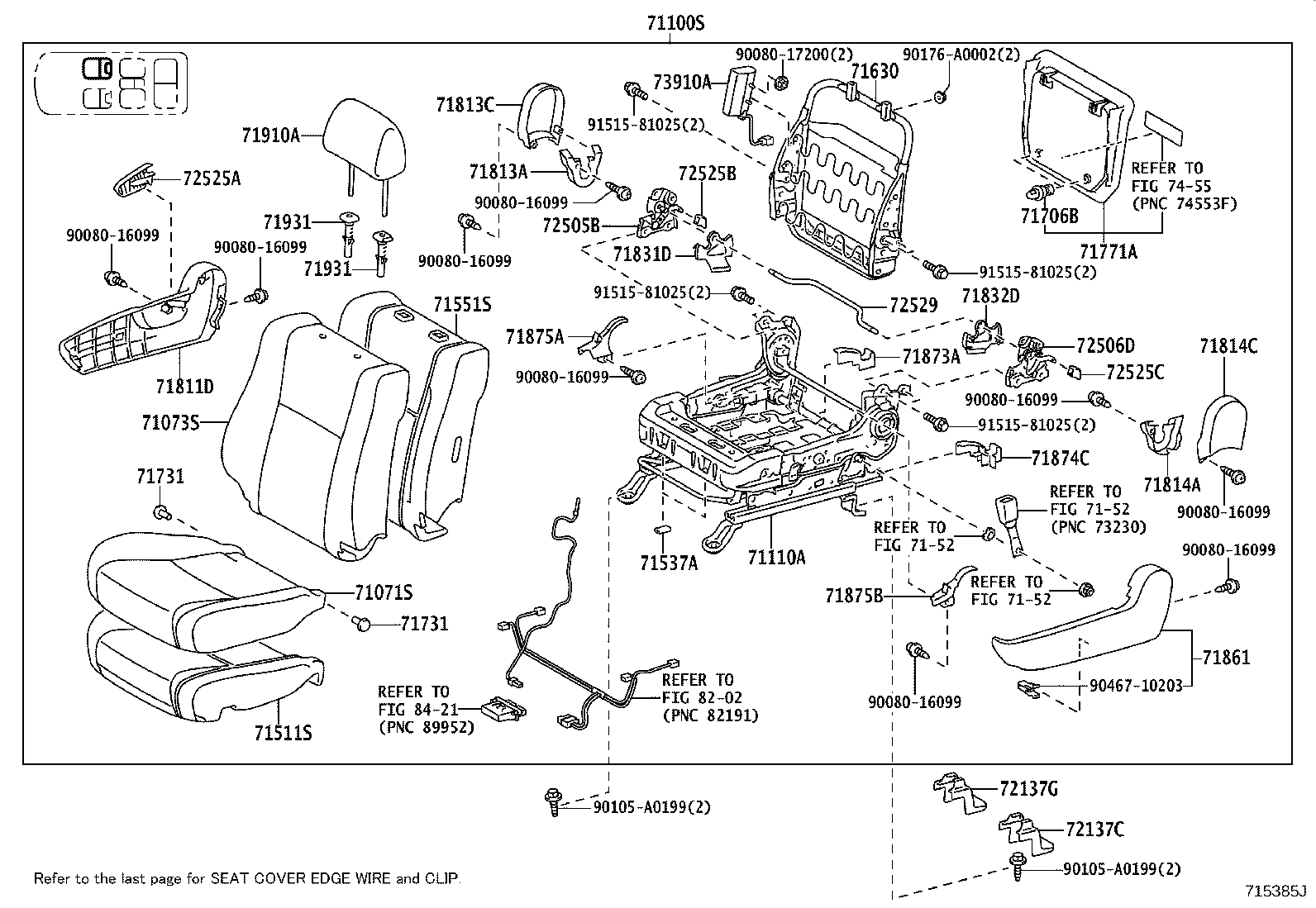

ILLUST NO. 2 OF 5(0711-1708)SR5
PASSENGER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-0C560B1 |
UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE,GRAY,TRIM1# |
1 | ||
| 71071-0C560E1 |
UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71071-0C580E1 |
UPK6#,USK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 71071-0C770B0 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 71071-0C770E0 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71071-0C560B2 |
UPK6#..SR5 D-POWER SEAT PACKAGE,GRAY,TRIM1# |
1 | ||
| 71071-0C580B1 |
UPK6#,USK6#..SR5 GRAY,TRIM1# |
1 | ||
| 71071-0C580E2 |
UPK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 71071-0C560E2 |
UPK6#..SR5 D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71071-0C771B0 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 71071-0C771E0 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71071-0C580B2 |
UPK6#..SR5 GRAY,TRIM1# |
1 | ||
| 71071-0C560C1 |
UPK6#..SR5 D-POWER SEAT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-0CC00E0 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71073-0CB90C0 |
UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71073-0CB90B0 |
UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE,GRAY,TRIM1# |
1 | ||
| 71073-0CC20B0 |
UPK6#,USK6#..SR5 GRAY,TRIM1# |
1 | ||
| 71073-0CB90E0 |
UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71073-0CC00B0 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 71073-0CC20E0 |
UPK6#,USK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 71073-0CB90B1 |
UPK6#..SR5 D-POWER SEAT PACKAGE,GRAY,TRIM1# |
1 | ||
| 71073-0CC01E0 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71073-0CC01B0 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 71073-0CB90C1 |
UPK6#..SR5 D-POWER SEAT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71073-0CC02B1 |
UPK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 71073-0CB90E1 |
UPK6#..SR5 D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71073-0CC20E1 |
UPK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 71073-0CC02E1 |
UPK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71073-0CC20B1 |
UPK6#..SR5 GRAY,TRIM1# |
1 | ||
| 71100S - SEAT ASSY, FRONT RH | ||||
| 71100-0CD80B0 |
UPK6#,USK6#..SR5 GRAY,TRIM1# |
1 | ||
| 71100-0CD80E0 |
UPK6#,USK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 71100-0CE00B0 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 71100-0CD80E1 |
UPK6#,USK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 71100-0CE01B1 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 71100-0CG00E0 |
UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71100-0CD80B1 |
UPK6#,USK6#..SR5 GRAY,TRIM1# |
1 | ||
| 71100-0CE00E0 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71100-0CG00E1 |
UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71100-0CG00B0 |
UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE,GRAY,TRIM1# |
1 | ||
| 71100-0CE01E1 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71100-0CG00C0 |
UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71100-0CG00B1 |
UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE,GRAY,TRIM1# |
1 | ||
| 71100-0CG00C1 |
UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71100-0CE02E1 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71100-0CE02B1 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-0C260 |
UPK6#,USK6#..SR5 LEATHER PACKAGE |
1 | ||
| 71511-0C240 |
UPK6#..SR5 |
1 | ||
| 71511-0C261 |
UPK6#..SR5 LEATHER PACKAGE |
1 | ||
| 71511-0C300 |
UPK6#..SR5 D-POWER SEAT PACKAGE |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-AA020 |
UPK6#..SR5 D-POWER SEAT PACKAGE |
2 | ||
| 71537-AA020 |
UPK6#,USK6#..SR5 LEATHER PACKAGE |
2 | ||
| 71537-AA020 |
UPK6#..SR5 |
4 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-0C210 |
UCK6#,UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE |
1 | ||
| 71551-0C230 |
UCK6#,UPK6#,USK6#..SR5 |
1 | ||
| 71551-0C250 |
UCK6#,UPK6#,USK6#..SR5 LEATHER PACKAGE |
1 | ||
| 71731 - FASTENER SUB-ASSY, SEAT COVER, A (FOR FRONT SEAT) | ||||
| 71731-0C010 |
UPK6#..SR5 LEATHER PACKAGE |
4 | ||
| 71731 - FASTENER SUB-ASSY, SEAT COVER, A (FOR FRONT SEAT) | ||||
| 71731-0C010 |
UPK6#..SR5 LEATHER PACKAGE |
4 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-0C110B0 |
UPK6#..SR5 GRAY,TRIM1# |
1 | ||
| 71811-0C080B0 |
UPK6#..SR5 D-POWER SEAT PACKAGE,GRAY,TRIM1# |
1 | ||
| 71811-0C110E0 |
UPK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 71811-0C080E0 |
UPK6#..SR5 D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71813A - SHIELD, FRONT SEAT BACK, RH | ||||
| 71813-0E010 |
UPK6#..SR5 LEATHER PACKAGE |
1 | ||
| 71875-AD010B0 |
UPK6#..SR5 D-POWER SEAT PACKAGE,GRAY,TRIM1# |
1 | ||
| 71875-AA060 |
UPK6#..SR5 |
1 | ||
| 71875-AD010E1 |
UPK6#..SR5 D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71814A - SHIELD, FRONT SEAT BACK, LH | ||||
| 71814-0E010 |
UPK6#..SR5 LEATHER PACKAGE |
1 | ||
| 71876-AA060 |
UPK6#..SR5 |
1 | ||
| 71876-AD010B0 |
UPK6#..SR5 D-POWER SEAT PACKAGE,GRAY,TRIM1# |
1 | ||
| 71876-AD010E1 |
UPK6#..SR5 D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-0C110B0 |
UPK6#..SR5 GRAY,TRIM1# |
1 | ||
| 71861-AA060E1 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71861-AA060B2 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 71861-0E020B2 |
UPK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 71861-0C080E0 |
UPK6#..SR5 D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71861-0C110E0 |
UPK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 71861-0C080B0 |
UPK6#..SR5 D-POWER SEAT PACKAGE,GRAY,TRIM1# |
1 | ||
| 71861-0E020E0 |
UPK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-0C060C0 |
UPK6#..SR5 BLACK,TRIM2# |
2 | ||
| 71873-0C060C0 |
UPK6#,USK6#..SR5 BLACK |
2 | ||
| 71874C - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71874-0C030C0 |
UPK6#..SR5 BLACK,TRIM2# |
2 | ||
| 71874-06070 |
UPK6#..SR5 LEATHER PACKAGE |
2 | ||
| 71874-0C030C0 |
UPK6#,USK6#..SR5 BLACK |
2 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-AA090B3 |
UPK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 71875-AA090E2 |
UPK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71875-AD020B0 |
UPK6#..SR5 GRAY,TRIM1# |
1 | ||
| 71875-AD020E1 |
UPK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-0E010B3 |
UPK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 71875-0E010E2 |
UPK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71876-AD020B0 |
UPK6#..SR5 GRAY,TRIM1# |
1 | ||
| 71876-AD020E1 |
UPK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0C210E2 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
2 | ||
| 71910-0C210B1 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
2 | ||
| 71910-0C330E0 |
UPK6#..SR5 SAND BEIGE,TRIM4# |
2 | ||
| 71910-0C250E3 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
2 | ||
| 71910-0C330B0 |
UPK6#..SR5 GRAY,TRIM1# |
2 | ||
| 71910-0C250E5 |
UPK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
2 | ||
| 71910-0C250B1 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
2 | ||
| 71910-0C250B2 |
UPK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-42020B8 |
UPK6# W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-52030E4 |
UPK6# W(LOCK)&W(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71931-42020C0 |
UPK6#..SR5 W(LOCK)&W/O(BUTTON),BLACK,TRIM2# |
2 | ||
| 71930-42020B8 |
UPK6#,USK6# W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-42020E3 |
UPK6#,USK6# W(LOCK)&W(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71930-42020C0 |
UPK6#..SR5;USK6#..PLAT W(LOCK)&W(BUTTON),BLACK,TRIM2# |
2 | ||
| 71931-42020E3 |
UPK6# W(LOCK)&W/O(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71930-52030C0 |
UPK6#..SR5 W(LOCK)&W(BUTTON),BLACK,TRIM2# |
2 | ||
| 71930-52030B4 |
UPK6# W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-42020B8 |
UPK6# W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-52030E4 |
UPK6# W(LOCK)&W(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71931-42020C0 |
UPK6#..SR5 W(LOCK)&W/O(BUTTON),BLACK,TRIM2# |
2 | ||
| 71930-42020B8 |
UPK6#,USK6# W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-42020E3 |
UPK6#,USK6# W(LOCK)&W(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71930-42020C0 |
UPK6#..SR5;USK6#..PLAT W(LOCK)&W(BUTTON),BLACK,TRIM2# |
2 | ||
| 71931-42020E3 |
UPK6# W(LOCK)&W/O(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71930-52030C0 |
UPK6#..SR5 W(LOCK)&W(BUTTON),BLACK,TRIM2# |
2 | ||
| 71930-52030B4 |
UPK6# W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 72137C - COVER, SEAT TRACK INNER, RH | ||||
| 72137-0C410B0 |
UPK6#,USK6#..SR5 GRAY,TRIM1# |
1 | ||
| 72137-0C410E0 |
UPK6#,USK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 72137-0C430C0 |
UPK6#..SR5 LEATHER PACKAGE,BLACK,TRIM1#,2#,4# |
1 | ||
| 72137-0C410C0 |
UPK6#..SR5 BLACK,TRIM1#,2#,4# |
1 | ||
| 72137-0C430C0 |
UPK6#..SR5 LEATHER PACKAGE,BLACK,TRIM2# |
1 | ||
| 72137-0C430B0 |
UPK6#..SR5 LEATHER PACKAGE,GRAY,TRIM13 |
1 | ||
| 72137-0C430E0 |
UPK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM44 |
1 | ||
| 72137G - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-0C400B0 |
UPK6#,USK6#..SR5 GRAY,TRIM1# |
1 | ||
| 72137-0C420E0 |
UPK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM44 |
1 | ||
| 72137-0C420C0 |
UPK6#..SR5 LEATHER PACKAGE,BLACK,TRIM2# |
1 | ||
| 72137-0C400E0 |
UPK6#,USK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 72137-0C400C0 |
UPK6#..SR5 BLACK,TRIM1#,2#,4# |
1 | ||
| 72137-0C420C0 |
UPK6#..SR5 LEATHER PACKAGE,BLACK,TRIM1#,2#,4# |
1 | ||
| 72137-0C420B0 |
UPK6#..SR5 LEATHER PACKAGE,GRAY,TRIM13 |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-06020B2 |
UPK6#..SR5 GRAY,TRIM1# |
1 | ||
| 72525-06020E1 |
UPK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-0C050 |
UCK6#,UPK6#,USK6#..LIMD,SR5 |
1 | ||
| 73910-0C060 |
UCK6#,UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE |
1 | ||
| Common parts | ||||
| 90080-16099 | ||||
| 90080-17200 | ||||
| 90105-A0199 | ||||
| 90176-A0002 | ||||
| 90467-10203 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8421 | ||||
ILLUST NO. 2 OF 5(0711-1408)SR5
PASSENGER SEAT,W(SEAT BACK BOARD)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-0C560B1 |
UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE,GRAY,TRIM1# |
1 | ||
| 71071-0C560E1 |
UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71071-0C580E1 |
UPK6#,USK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 71071-0C770B0 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 71071-0C770E0 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71071-0C560B2 |
UPK6#..SR5 D-POWER SEAT PACKAGE,GRAY,TRIM1# |
1 | ||
| 71071-0C580B1 |
UPK6#,USK6#..SR5 GRAY,TRIM1# |
1 | ||
| 71071-0C580E2 |
UPK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 71071-0C560E2 |
UPK6#..SR5 D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71071-0C771B0 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 71071-0C771E0 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71071-0C580B2 |
UPK6#..SR5 GRAY,TRIM1# |
1 | ||
| 71071-0C560C1 |
UPK6#..SR5 D-POWER SEAT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-0CC00E0 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71073-0CB90C0 |
UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71073-0CB90B0 |
UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE,GRAY,TRIM1# |
1 | ||
| 71073-0CC20B0 |
UPK6#,USK6#..SR5 GRAY,TRIM1# |
1 | ||
| 71073-0CB90E0 |
UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71073-0CC00B0 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 71073-0CC20E0 |
UPK6#,USK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 71073-0CB90B1 |
UPK6#..SR5 D-POWER SEAT PACKAGE,GRAY,TRIM1# |
1 | ||
| 71073-0CC01E0 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71073-0CC01B0 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 71073-0CB90C1 |
UPK6#..SR5 D-POWER SEAT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71073-0CC02B1 |
UPK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 71073-0CB90E1 |
UPK6#..SR5 D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71073-0CC20E1 |
UPK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 71073-0CC02E1 |
UPK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71073-0CC20B1 |
UPK6#..SR5 GRAY,TRIM1# |
1 | ||
| 71100S - SEAT ASSY, FRONT RH | ||||
| 71100-0CD80B0 |
UPK6#,USK6#..SR5 GRAY,TRIM1# |
1 | ||
| 71100-0CD80E0 |
UPK6#,USK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 71100-0CE00B0 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 71100-0CD80E1 |
UPK6#,USK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 71100-0CE01B1 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 71100-0CG00E0 |
UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71100-0CD80B1 |
UPK6#,USK6#..SR5 GRAY,TRIM1# |
1 | ||
| 71100-0CE00E0 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71100-0CG00E1 |
UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71100-0CG00B0 |
UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE,GRAY,TRIM1# |
1 | ||
| 71100-0CE01E1 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71100-0CG00C0 |
UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71100-0CG00B1 |
UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE,GRAY,TRIM1# |
1 | ||
| 71100-0CG00C1 |
UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71100-0CE02E1 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71100-0CE02B1 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-0C260 |
UPK6#,USK6#..SR5 LEATHER PACKAGE |
1 | ||
| 71511-0C240 |
UPK6#..SR5 |
1 | ||
| 71511-0C261 |
UPK6#..SR5 LEATHER PACKAGE |
1 | ||
| 71511-0C300 |
UPK6#..SR5 D-POWER SEAT PACKAGE |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-AA020 |
UPK6#..SR5 D-POWER SEAT PACKAGE |
2 | ||
| 71537-AA020 |
UPK6#,USK6#..SR5 LEATHER PACKAGE |
2 | ||
| 71537-AA020 |
UPK6#..SR5 |
4 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-0C210 |
UCK6#,UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE |
1 | ||
| 71551-0C230 |
UCK6#,UPK6#,USK6#..SR5 |
1 | ||
| 71551-0C250 |
UCK6#,UPK6#,USK6#..SR5 LEATHER PACKAGE |
1 | ||
| 71630 - SPRING ASSY, FRONT SEAT BACK, RH | ||||
| 71630-0C100 |
UCK6#,UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE |
1 | ||
| 71706B - CLIP, FRONT SEAT BACK BOARD | ||||
| 71769-0C010 |
UPK6#..SR5 D-POWER SEAT PACKAGE |
2 | ||
| 71731 - FASTENER SUB-ASSY, SEAT COVER, A (FOR FRONT SEAT) | ||||
| 71731-0C010 |
UPK6#..SR5 LEATHER PACKAGE |
4 | ||
| 71731 - FASTENER SUB-ASSY, SEAT COVER, A (FOR FRONT SEAT) | ||||
| 71731-0C010 |
UPK6#..SR5 LEATHER PACKAGE |
4 | ||
| 71771A - BOARD, FRONT SEAT BACK | ||||
| 71771-0C020B0 |
UPK6#..SR5 D-POWER SEAT PACKAGE,GRAY,TRIM1# |
1 | ||
| 71771-0C020E0 |
UPK6#..SR5 D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-0C110B0 |
UPK6#..SR5 GRAY,TRIM1# |
1 | ||
| 71811-0C080B0 |
UPK6#..SR5 D-POWER SEAT PACKAGE,GRAY,TRIM1# |
1 | ||
| 71811-0C110E0 |
UPK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 71811-0C080E0 |
UPK6#..SR5 D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71813A - SHIELD, FRONT SEAT BACK, RH | ||||
| 71813-0E010 |
UPK6#..SR5 LEATHER PACKAGE |
1 | ||
| 71875-AD010B0 |
UPK6#..SR5 D-POWER SEAT PACKAGE,GRAY,TRIM1# |
1 | ||
| 71875-AA060 |
UPK6#..SR5 |
1 | ||
| 71875-AD010E1 |
UPK6#..SR5 D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71813C - SHIELD, FRONT SEAT BACK, RH | ||||
| 71813-AD010E1 |
UPK6#..SR5 D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71813-AD010B0 |
UPK6#..SR5 D-POWER SEAT PACKAGE,GRAY,TRIM1# |
1 | ||
| 71814A - SHIELD, FRONT SEAT BACK, LH | ||||
| 71814-0E010 |
UPK6#..SR5 LEATHER PACKAGE |
1 | ||
| 71876-AA060 |
UPK6#..SR5 |
1 | ||
| 71876-AD010B0 |
UPK6#..SR5 D-POWER SEAT PACKAGE,GRAY,TRIM1# |
1 | ||
| 71876-AD010E1 |
UPK6#..SR5 D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71814C - SHIELD, FRONT SEAT BACK, LH | ||||
| 71814-AD010E1 |
UPK6#..SR5 D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71814-AD010B0 |
UPK6#..SR5 D-POWER SEAT PACKAGE,GRAY,TRIM1# |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-AD010B0 |
UPK6#..SR5 D-POWER SEAT PACKAGE,GRAY,TRIM1# |
1 | ||
| 71831-AD010E1 |
UPK6#..SR5 D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-AD010B0 |
UPK6#..SR5 D-POWER SEAT PACKAGE,GRAY,TRIM1# |
1 | ||
| 71832-AD010E1 |
UPK6#..SR5 D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-0C110B0 |
UPK6#..SR5 GRAY,TRIM1# |
1 | ||
| 71861-AA060E1 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71861-AA060B2 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 71861-0E020B2 |
UPK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 71861-0C080E0 |
UPK6#..SR5 D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71861-0C110E0 |
UPK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 71861-0C080B0 |
UPK6#..SR5 D-POWER SEAT PACKAGE,GRAY,TRIM1# |
1 | ||
| 71861-0E020E0 |
UPK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-0C060C0 |
UPK6#..SR5 BLACK,TRIM2# |
2 | ||
| 71873-0C060C0 |
UPK6#,USK6#..SR5 BLACK |
2 | ||
| 71874C - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71874-0C030C0 |
UPK6#..SR5 BLACK,TRIM2# |
2 | ||
| 71874-06070 |
UPK6#..SR5 LEATHER PACKAGE |
2 | ||
| 71874-0C030C0 |
UPK6#,USK6#..SR5 BLACK |
2 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-AA090B3 |
UPK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 71875-AA090E2 |
UPK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71875-AD020B0 |
UPK6#..SR5 GRAY,TRIM1# |
1 | ||
| 71875-AD020E1 |
UPK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-0E010B3 |
UPK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 71875-0E010E2 |
UPK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71876-AD020B0 |
UPK6#..SR5 GRAY,TRIM1# |
1 | ||
| 71876-AD020E1 |
UPK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0C210E2 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
2 | ||
| 71910-0C210B1 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
2 | ||
| 71910-0C330E0 |
UPK6#..SR5 SAND BEIGE,TRIM4# |
2 | ||
| 71910-0C250E3 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
2 | ||
| 71910-0C330B0 |
UPK6#..SR5 GRAY,TRIM1# |
2 | ||
| 71910-0C250E5 |
UPK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
2 | ||
| 71910-0C250B1 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
2 | ||
| 71910-0C250B2 |
UPK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-42020B8 |
UPK6# W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-52030E4 |
UPK6# W(LOCK)&W(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71931-42020C0 |
UPK6#..SR5 W(LOCK)&W/O(BUTTON),BLACK,TRIM2# |
2 | ||
| 71930-42020B8 |
UPK6#,USK6# W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-42020E3 |
UPK6#,USK6# W(LOCK)&W(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71930-42020C0 |
UPK6#..SR5;USK6#..PLAT W(LOCK)&W(BUTTON),BLACK,TRIM2# |
2 | ||
| 71931-42020E3 |
UPK6# W(LOCK)&W/O(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71930-52030C0 |
UPK6#..SR5 W(LOCK)&W(BUTTON),BLACK,TRIM2# |
2 | ||
| 71930-52030B4 |
UPK6# W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-42020B8 |
UPK6# W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-52030E4 |
UPK6# W(LOCK)&W(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71931-42020C0 |
UPK6#..SR5 W(LOCK)&W/O(BUTTON),BLACK,TRIM2# |
2 | ||
| 71930-42020B8 |
UPK6#,USK6# W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-42020E3 |
UPK6#,USK6# W(LOCK)&W(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71930-42020C0 |
UPK6#..SR5;USK6#..PLAT W(LOCK)&W(BUTTON),BLACK,TRIM2# |
2 | ||
| 71931-42020E3 |
UPK6# W(LOCK)&W/O(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71930-52030C0 |
UPK6#..SR5 W(LOCK)&W(BUTTON),BLACK,TRIM2# |
2 | ||
| 71930-52030B4 |
UPK6# W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 72137C - COVER, SEAT TRACK INNER, RH | ||||
| 72137-0C410B0 |
UPK6#,USK6#..SR5 GRAY,TRIM1# |
1 | ||
| 72137-0C410E0 |
UPK6#,USK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 72137-0C430C0 |
UPK6#..SR5 LEATHER PACKAGE,BLACK,TRIM1#,2#,4# |
1 | ||
| 72137-0C410C0 |
UPK6#..SR5 BLACK,TRIM1#,2#,4# |
1 | ||
| 72137-0C430C0 |
UPK6#..SR5 LEATHER PACKAGE,BLACK,TRIM2# |
1 | ||
| 72137-0C430B0 |
UPK6#..SR5 LEATHER PACKAGE,GRAY,TRIM13 |
1 | ||
| 72137-0C430E0 |
UPK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM44 |
1 | ||
| 72137G - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-0C400B0 |
UPK6#,USK6#..SR5 GRAY,TRIM1# |
1 | ||
| 72137-0C420E0 |
UPK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM44 |
1 | ||
| 72137-0C420C0 |
UPK6#..SR5 LEATHER PACKAGE,BLACK,TRIM2# |
1 | ||
| 72137-0C400E0 |
UPK6#,USK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 72137-0C400C0 |
UPK6#..SR5 BLACK,TRIM1#,2#,4# |
1 | ||
| 72137-0C420C0 |
UPK6#..SR5 LEATHER PACKAGE,BLACK,TRIM1#,2#,4# |
1 | ||
| 72137-0C420B0 |
UPK6#..SR5 LEATHER PACKAGE,GRAY,TRIM13 |
1 | ||
| 72505B - LOCK SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 72505-AD010 |
UPK6#..SR5 D-POWER SEAT PACKAGE |
1 | ||
| 72506D - LOCK SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 72506-AD010 |
UPK6#..SR5 D-POWER SEAT PACKAGE |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-06020B2 |
UPK6#..SR5 GRAY,TRIM1# |
1 | ||
| 72525-06020E1 |
UPK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-01030B1 |
UPK6#..SR5 D-POWER SEAT PACKAGE,GRAY,TRIM1# |
1 | ||
| 72525-01030E1 |
UPK6#..SR5 D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 72525C - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH | ||||
| 72525-01040B1 |
UPK6#..SR5 D-POWER SEAT PACKAGE,GRAY,TRIM1# |
1 | ||
| 72525-01040E1 |
UPK6#..SR5 D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 72529 - ROD, FRONT SEAT BACK LOCK HANDLE | ||||
| 72529-AD010 |
UPK6#..SR5 D-POWER SEAT PACKAGE |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-0C050 |
UCK6#,UPK6#,USK6#..LIMD,SR5 |
1 | ||
| 73910-0C060 |
UCK6#,UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE |
1 | ||
| Common parts | ||||
| 90080-16099 | ||||
| 90080-17200 | ||||
| 90105-A0199 | ||||
| 90176-A0002 | ||||
| 90467-10203 | ||||
| 91515-81025 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 7455 | ||||
| 8202 | ||||
| 8421 | ||||
ILLUST NO. 1 OF 5(0711-1708)
DRIVER SEAT,W(POWER SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-0C360E1 |
UPK6#,USK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 71072-0C420B0 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 71072-0C360B1 |
UPK6#,USK6#..SR5 GRAY,TRIM1# |
1 | ||
| 71072-0C420E0 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,GRAY,TRIM4# |
1 | ||
| 71072-0C380E1 |
UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71072-0C380B1 |
UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE,GRAY,TRIM1# |
1 | ||
| 71072-0C420B1 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 71072-0C380C1 |
UPK6#..SR5 D-POWER SEAT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71072-0C360E2 |
UPK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 71072-0C380B2 |
UPK6#..SR5 D-POWER SEAT PACKAGE,GRAY,TRIM1# |
1 | ||
| 71072-0C360B2 |
UPK6#..SR5 GRAY,TRIM1# |
1 | ||
| 71072-0C421B1 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 71072-0C380E2 |
UPK6#..SR5 D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71072-0C420E1 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71072-0C421E1 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-0C740B0 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 71074-0C730E0 |
UPK6#,USK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 71074-0C730B0 |
UPK6#,USK6#..SR5 GRAY,TRIM1# |
1 | ||
| 71074-0C760C0 |
UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71074-0C760B0 |
UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE,GRAY,TRIM1# |
1 | ||
| 71074-0C740E0 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71074-0C760E0 |
UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71074-0C741B0 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 71074-0C760C1 |
UPK6#..SR5 D-POWER SEAT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71074-0C730E1 |
UPK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 71074-0C741E0 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71074-0C760B1 |
UPK6#..SR5 D-POWER SEAT PACKAGE,GRAY,TRIM1# |
1 | ||
| 71074-0C742B1 |
UPK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 71074-0C730B1 |
UPK6#..SR5 GRAY,TRIM1# |
1 | ||
| 71074-0C760E1 |
UPK6#..SR5 D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71074-0C742E1 |
UPK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71200S - SEAT ASSY, FRONT LH | ||||
| 71200-0CB10E0 |
UPK6#,USK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 71200-0CB20B0 |
UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE,GRAY,TRIM1# |
1 | ||
| 71200-0CB20C0 |
UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71200-0CB20E0 |
UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71200-0CB30E0 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71200-0CB10B1 |
UPK6#,USK6#..SR5 GRAY,TRIM1# |
1 | ||
| 71200-0CB10B0 |
UPK6#,USK6#..SR5 GRAY,TRIM1# |
1 | ||
| 71200-0CB20E1 |
UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71200-0CB31E1 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71200-0CB10E3 |
UPK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 71200-0CB20B1 |
UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE,GRAY,TRIM1# |
1 | ||
| 71200-0CB31B1 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 71200-0CB10B3 |
UPK6#..SR5 GRAY,TRIM1# |
1 | ||
| 71200-0CB20C1 |
UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71200-0CB30B0 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 71200-0CB20B3 |
UPK6#..SR5 D-POWER SEAT PACKAGE,GRAY,TRIM1# |
1 | ||
| 71200-0CB10E1 |
UPK6#,USK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 71200-0CB32B2 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 71200-0CB32E2 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71200-0CB20C3 |
UPK6#..SR5 D-POWER SEAT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71200-0CB20E3 |
UPK6#..SR5 D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-0C080 |
UPK6#,USK6#..SR5 LEATHER PACKAGE |
1 | ||
| 71512-0C060 |
UPK6#..SR5 |
1 | ||
| 71512-0C100 |
UPK6#..SR5 D-POWER SEAT PACKAGE |
1 | ||
| 71512-0C081 |
UPK6#..SR5 LEATHER PACKAGE |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-0C170 |
UCK6#,UPK6#,USK6#..SR5 LEATHER PACKAGE |
1 | ||
| 71552-0C160 |
UCK6#,UPK6#,USK6#..SR5 |
1 | ||
| 71731 - FASTENER SUB-ASSY, SEAT COVER, A (FOR FRONT SEAT) | ||||
| 71731-0C010 |
UPK6#..SR5 LEATHER PACKAGE |
4 | ||
| 71731 - FASTENER SUB-ASSY, SEAT COVER, A (FOR FRONT SEAT) | ||||
| 71731-0C010 |
UPK6#..SR5 LEATHER PACKAGE |
4 | ||
| 71806B - SHIELD SUB-ASSY, FRONT SEAT CUSHION, LH NO.1 | ||||
| 71806-0C020E0 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71806-0C020B0 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 71806-0C020B0 |
UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE,GRAY,TRIM1# |
1 | ||
| 71806-0C020E0 |
UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71806-0C020C0 |
UPK6#..SR5 LEATHER PACKAGE,BLACK |
1 | ||
| 71806C - SHIELD SUB-ASSY, FRONT SEAT CUSHION, LH NO.2 | ||||
| 71806-0C030B0 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 71806-0C030B0 |
UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE,GRAY,TRIM1# |
1 | ||
| 71806-0C030E0 |
UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71806-0C030E0 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71806-0C030C0 |
UPK6#..SR5 LEATHER PACKAGE,BLACK |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71806-0C070B0 |
UPK6#..SR5 D-POWER SEAT PACKAGE,GRAY,TRIM1# |
1 | ||
| 71812-0C110B0 |
UPK6#..SR5 GRAY,TRIM1# |
1 | ||
| 71806-0C070E0 |
UPK6#..SR5 D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71806-0C070C0 |
UPK6#..SR5 D-POWER SEAT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71812-0C110E0 |
UPK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 71813B - SHIELD, FRONT SEAT BACK, RH | ||||
| 71813-0E020 |
UPK6#..SR5 LEATHER PACKAGE |
1 | ||
| 71875-AA060 |
UPK6#..SR5 |
1 | ||
| 71813-0E020 |
UPK6#..SR5 D-POWER SEAT PACKAGE |
1 | ||
| 71814B - SHIELD, FRONT SEAT BACK, LH | ||||
| 71814-0E020 |
UPK6#..SR5 LEATHER PACKAGE |
1 | ||
| 71814-0E020 |
UPK6#..SR5 D-POWER SEAT PACKAGE |
1 | ||
| 71876-AA060 |
UPK6#..SR5 |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-AA080B3 |
UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE,GRAY,TRIM1# |
1 | ||
| 71862-AA080B3 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 71862-AA080E1 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71862-AA080E1 |
UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71862-0E020C0 |
UPK6#..SR5 D-POWER SEAT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71862-0C080E0 |
UPK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 71862-0C080B0 |
UPK6#..SR5 GRAY,TRIM1# |
1 | ||
| 71862-0E020B2 |
UPK6#..SR5 D-POWER SEAT PACKAGE,GRAY,TRIM1# |
1 | ||
| 71862-0E020B2 |
UPK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 71862-0E020E0 |
UPK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71862-0E020E0 |
UPK6#..SR5 D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71875-0E020B5 |
UPK6#..SR5 D-POWER SEAT PACKAGE,GRAY,TRIM1# |
1 | ||
| 71875-0E020B5 |
UPK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 71876-AD020B0 |
UPK6#..SR5 GRAY,TRIM1# |
1 | ||
| 71875-0E020E2 |
UPK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71876-AD020E1 |
UPK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 71875-0E020E2 |
UPK6#..SR5 D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71875-AD020B0 |
UPK6#..SR5 GRAY,TRIM1# |
1 | ||
| 71876-AA090E2 |
UPK6#..SR5 D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71876-AA090E2 |
UPK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71875-AD020E1 |
UPK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 71876-AA090B5 |
UPK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 71876-AA090B5 |
UPK6#..SR5 D-POWER SEAT PACKAGE,GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0C210E2 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
2 | ||
| 71910-0C210B1 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
2 | ||
| 71910-0C330E0 |
UPK6#..SR5 SAND BEIGE,TRIM4# |
2 | ||
| 71910-0C250E3 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
2 | ||
| 71910-0C330B0 |
UPK6#..SR5 GRAY,TRIM1# |
2 | ||
| 71910-0C250E5 |
UPK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
2 | ||
| 71910-0C250B1 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
2 | ||
| 71910-0C250B2 |
UPK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-42020B8 |
UPK6# W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-52030E4 |
UPK6# W(LOCK)&W(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71931-42020C0 |
UPK6#..SR5 W(LOCK)&W/O(BUTTON),BLACK,TRIM2# |
2 | ||
| 71930-42020B8 |
UPK6#,USK6# W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-42020E3 |
UPK6#,USK6# W(LOCK)&W(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71930-42020C0 |
UPK6#..SR5;USK6#..PLAT W(LOCK)&W(BUTTON),BLACK,TRIM2# |
2 | ||
| 71931-42020E3 |
UPK6# W(LOCK)&W/O(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71930-52030C0 |
UPK6#..SR5 W(LOCK)&W(BUTTON),BLACK,TRIM2# |
2 | ||
| 71930-52030B4 |
UPK6# W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-42020B8 |
UPK6# W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-52030E4 |
UPK6# W(LOCK)&W(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71931-42020C0 |
UPK6#..SR5 W(LOCK)&W/O(BUTTON),BLACK,TRIM2# |
2 | ||
| 71930-42020B8 |
UPK6#,USK6# W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-42020E3 |
UPK6#,USK6# W(LOCK)&W(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71930-42020C0 |
UPK6#..SR5;USK6#..PLAT W(LOCK)&W(BUTTON),BLACK,TRIM2# |
2 | ||
| 71931-42020E3 |
UPK6# W(LOCK)&W/O(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71930-52030C0 |
UPK6#..SR5 W(LOCK)&W(BUTTON),BLACK,TRIM2# |
2 | ||
| 71930-52030B4 |
UPK6# W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 72138D - COVER, SEAT TRACK, OUTER, LH | ||||
| 72138-0C030C0 |
UPK6#..SR5 LEATHER PACKAGE,BLACK,TRIM2# |
1 | ||
| 72138-0C010B0 |
UPK6#,USK6#..SR5 GRAY,TRIM1# |
1 | ||
| 72138-0C030B0 |
UPK6#..SR5 LEATHER PACKAGE,GRAY,TRIM13 |
1 | ||
| 72138-0C010E0 |
UPK6#,USK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 72138-0C030C0 |
UPK6#..SR5 LEATHER PACKAGE,BLACK,TRIM1#,2#,4# |
1 | ||
| 72138-0C030C0 |
UPK6#..SR5 D-POWER SEAT PACKAGE,BLACK,TRIM1#,2#,4# |
1 | ||
| 72138-0C010C0 |
UPK6#..SR5 BLACK,TRIM1#,2#,4# |
1 | ||
| 72138-0C030E0 |
UPK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM44 |
1 | ||
| 72138E - COVER, SEAT TRACK, INNER LH | ||||
| 72138-0C040B0 |
UPK6#..SR5 LEATHER PACKAGE,GRAY,TRIM13 |
1 | ||
| 72137-0C410E0 |
UPK6#,USK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 72138-0C040E0 |
UPK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM44 |
1 | ||
| 72138-0C040C0 |
UPK6#..SR5 LEATHER PACKAGE,BLACK,TRIM2# |
1 | ||
| 72138-0C040C0 |
UPK6#..SR5 LEATHER PACKAGE,BLACK,TRIM1#,2#,4# |
1 | ||
| 72137-0C410B0 |
UPK6#,USK6#..SR5 GRAY,TRIM1# |
1 | ||
| 72137-0C410C0 |
UPK6#..SR5 BLACK,TRIM1#,2#,4# |
1 | ||
| 72138-0C040C0 |
UPK6#..SR5 D-POWER SEAT PACKAGE,BLACK,TRIM1#,2#,4# |
1 | ||
| 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72760-AC040 |
UPK6# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-0C040 |
UCK6#,UPK6#,USK6#..LIMD,SR5 |
1 | ||
| 87501B - CONTROL SUB-ASSY, SEAT HEATER, LH | ||||
| 87501-0E020 |
UPK6#..SR5 LEATHER PACKAGE |
1 | ||
| 87501-AC010 |
UPK6#,USK6#..SR5 LEATHER PACKAGE |
1 | ||
| 87510L - HEATER ASSY, FRONT SEAT CUSHION, LH | ||||
| 87510-0C030 |
UPK6#..SR5 LEATHER PACKAGE |
1 | ||
| 87510N - HEATER ASSY, FRONT SEAT BACK, LH | ||||
| 87530-0C010 |
UPK6#..SR5 LEATHER PACKAGE |
1 | ||
| Common parts | ||||
| 72189-0C010 | ||||
| 90080-16099 | ||||
| 90080-16115 | ||||
| 90080-17200 | ||||
| 90105-A0199 | ||||
| 90166-A0006 | ||||
| 90167-40048 | ||||
| 90176-A0002 | ||||
| 90389-10041 | ||||
| 90467-A0006 | ||||
| 93560-54010 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8401 | ||||
| 8421 | ||||
ILLUST NO. 2 OF 5(0711-1708)
PASSENGER SEAT,W(POWER SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-0C560B1 |
UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE,GRAY,TRIM1# |
1 | ||
| 71071-0C560E1 |
UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71071-0C580E1 |
UPK6#,USK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 71071-0C770B0 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 71071-0C770E0 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71071-0C560B2 |
UPK6#..SR5 D-POWER SEAT PACKAGE,GRAY,TRIM1# |
1 | ||
| 71071-0C580B1 |
UPK6#,USK6#..SR5 GRAY,TRIM1# |
1 | ||
| 71071-0C580E2 |
UPK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 71071-0C560E2 |
UPK6#..SR5 D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71071-0C771B0 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 71071-0C771E0 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71071-0C580B2 |
UPK6#..SR5 GRAY,TRIM1# |
1 | ||
| 71071-0C560C1 |
UPK6#..SR5 D-POWER SEAT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-0CC00E0 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71073-0CB90C0 |
UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71073-0CB90B0 |
UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE,GRAY,TRIM1# |
1 | ||
| 71073-0CC20B0 |
UPK6#,USK6#..SR5 GRAY,TRIM1# |
1 | ||
| 71073-0CB90E0 |
UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71073-0CC00B0 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 71073-0CC20E0 |
UPK6#,USK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 71073-0CB90B1 |
UPK6#..SR5 D-POWER SEAT PACKAGE,GRAY,TRIM1# |
1 | ||
| 71073-0CC01E0 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71073-0CC01B0 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 71073-0CB90C1 |
UPK6#..SR5 D-POWER SEAT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71073-0CC02B1 |
UPK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 71073-0CB90E1 |
UPK6#..SR5 D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71073-0CC20E1 |
UPK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 71073-0CC02E1 |
UPK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71073-0CC20B1 |
UPK6#..SR5 GRAY,TRIM1# |
1 | ||
| 71100S - SEAT ASSY, FRONT RH | ||||
| 71100-0CD80B0 |
UPK6#,USK6#..SR5 GRAY,TRIM1# |
1 | ||
| 71100-0CD80E0 |
UPK6#,USK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 71100-0CE00B0 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 71100-0CD80E1 |
UPK6#,USK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 71100-0CE01B1 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 71100-0CG00E0 |
UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71100-0CD80B1 |
UPK6#,USK6#..SR5 GRAY,TRIM1# |
1 | ||
| 71100-0CE00E0 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71100-0CG00E1 |
UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71100-0CG00B0 |
UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE,GRAY,TRIM1# |
1 | ||
| 71100-0CE01E1 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71100-0CG00C0 |
UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71100-0CG00B1 |
UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE,GRAY,TRIM1# |
1 | ||
| 71100-0CG00C1 |
UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71100-0CE02E1 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71100-0CE02B1 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-0C260 |
UPK6#,USK6#..SR5 LEATHER PACKAGE |
1 | ||
| 71511-0C240 |
UPK6#..SR5 |
1 | ||
| 71511-0C261 |
UPK6#..SR5 LEATHER PACKAGE |
1 | ||
| 71511-0C300 |
UPK6#..SR5 D-POWER SEAT PACKAGE |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-AA020 |
UPK6#..SR5 D-POWER SEAT PACKAGE |
2 | ||
| 71537-AA020 |
UPK6#,USK6#..SR5 LEATHER PACKAGE |
2 | ||
| 71537-AA020 |
UPK6#..SR5 |
4 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-0C210 |
UCK6#,UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE |
1 | ||
| 71551-0C230 |
UCK6#,UPK6#,USK6#..SR5 |
1 | ||
| 71551-0C250 |
UCK6#,UPK6#,USK6#..SR5 LEATHER PACKAGE |
1 | ||
| 71731 - FASTENER SUB-ASSY, SEAT COVER, A (FOR FRONT SEAT) | ||||
| 71731-0C010 |
UPK6#..SR5 LEATHER PACKAGE |
4 | ||
| 71731 - FASTENER SUB-ASSY, SEAT COVER, A (FOR FRONT SEAT) | ||||
| 71731-0C010 |
UPK6#..SR5 LEATHER PACKAGE |
4 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-0C110B0 |
UPK6#..SR5 GRAY,TRIM1# |
1 | ||
| 71811-0C080B0 |
UPK6#..SR5 D-POWER SEAT PACKAGE,GRAY,TRIM1# |
1 | ||
| 71811-0C110E0 |
UPK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 71811-0C080E0 |
UPK6#..SR5 D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71813A - SHIELD, FRONT SEAT BACK, RH | ||||
| 71813-0E010 |
UPK6#..SR5 LEATHER PACKAGE |
1 | ||
| 71875-AD010B0 |
UPK6#..SR5 D-POWER SEAT PACKAGE,GRAY,TRIM1# |
1 | ||
| 71875-AA060 |
UPK6#..SR5 |
1 | ||
| 71875-AD010E1 |
UPK6#..SR5 D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71814A - SHIELD, FRONT SEAT BACK, LH | ||||
| 71814-0E010 |
UPK6#..SR5 LEATHER PACKAGE |
1 | ||
| 71876-AA060 |
UPK6#..SR5 |
1 | ||
| 71876-AD010B0 |
UPK6#..SR5 D-POWER SEAT PACKAGE,GRAY,TRIM1# |
1 | ||
| 71876-AD010E1 |
UPK6#..SR5 D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-0C110B0 |
UPK6#..SR5 GRAY,TRIM1# |
1 | ||
| 71861-AA060E1 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71861-AA060B2 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 71861-0E020B2 |
UPK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 71861-0C080E0 |
UPK6#..SR5 D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71861-0C110E0 |
UPK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 71861-0C080B0 |
UPK6#..SR5 D-POWER SEAT PACKAGE,GRAY,TRIM1# |
1 | ||
| 71861-0E020E0 |
UPK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71874C - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71874-0C030C0 |
UPK6#..SR5 BLACK,TRIM2# |
2 | ||
| 71874-06070 |
UPK6#..SR5 LEATHER PACKAGE |
2 | ||
| 71874-0C030C0 |
UPK6#,USK6#..SR5 BLACK |
2 | ||
| 71874C - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71874-0C030C0 |
UPK6#..SR5 BLACK,TRIM2# |
2 | ||
| 71874-06070 |
UPK6#..SR5 LEATHER PACKAGE |
2 | ||
| 71874-0C030C0 |
UPK6#,USK6#..SR5 BLACK |
2 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-AA090B3 |
UPK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 71875-AA090E2 |
UPK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71875-AD020B0 |
UPK6#..SR5 GRAY,TRIM1# |
1 | ||
| 71875-AD020E1 |
UPK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-0E010B3 |
UPK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 71875-0E010E2 |
UPK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71876-AD020B0 |
UPK6#..SR5 GRAY,TRIM1# |
1 | ||
| 71876-AD020E1 |
UPK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0C210E2 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
2 | ||
| 71910-0C210B1 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
2 | ||
| 71910-0C330E0 |
UPK6#..SR5 SAND BEIGE,TRIM4# |
2 | ||
| 71910-0C250E3 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
2 | ||
| 71910-0C330B0 |
UPK6#..SR5 GRAY,TRIM1# |
2 | ||
| 71910-0C250E5 |
UPK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM4# |
2 | ||
| 71910-0C250B1 |
UPK6#,USK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
2 | ||
| 71910-0C250B2 |
UPK6#..SR5 LEATHER PACKAGE,GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-42020B8 |
UPK6# W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-52030E4 |
UPK6# W(LOCK)&W(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71931-42020C0 |
UPK6#..SR5 W(LOCK)&W/O(BUTTON),BLACK,TRIM2# |
2 | ||
| 71930-42020B8 |
UPK6#,USK6# W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-42020E3 |
UPK6#,USK6# W(LOCK)&W(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71930-42020C0 |
UPK6#..SR5;USK6#..PLAT W(LOCK)&W(BUTTON),BLACK,TRIM2# |
2 | ||
| 71931-42020E3 |
UPK6# W(LOCK)&W/O(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71930-52030C0 |
UPK6#..SR5 W(LOCK)&W(BUTTON),BLACK,TRIM2# |
2 | ||
| 71930-52030B4 |
UPK6# W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-42020B8 |
UPK6# W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-52030E4 |
UPK6# W(LOCK)&W(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71931-42020C0 |
UPK6#..SR5 W(LOCK)&W/O(BUTTON),BLACK,TRIM2# |
2 | ||
| 71930-42020B8 |
UPK6#,USK6# W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-42020E3 |
UPK6#,USK6# W(LOCK)&W(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71930-42020C0 |
UPK6#..SR5;USK6#..PLAT W(LOCK)&W(BUTTON),BLACK,TRIM2# |
2 | ||
| 71931-42020E3 |
UPK6# W(LOCK)&W/O(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71930-52030C0 |
UPK6#..SR5 W(LOCK)&W(BUTTON),BLACK,TRIM2# |
2 | ||
| 71930-52030B4 |
UPK6# W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 72137C - COVER, SEAT TRACK INNER, RH | ||||
| 72137-0C410B0 |
UPK6#,USK6#..SR5 GRAY,TRIM1# |
1 | ||
| 72137-0C410E0 |
UPK6#,USK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 72137-0C430C0 |
UPK6#..SR5 LEATHER PACKAGE,BLACK,TRIM1#,2#,4# |
1 | ||
| 72137-0C410C0 |
UPK6#..SR5 BLACK,TRIM1#,2#,4# |
1 | ||
| 72137-0C430C0 |
UPK6#..SR5 LEATHER PACKAGE,BLACK,TRIM2# |
1 | ||
| 72137-0C430B0 |
UPK6#..SR5 LEATHER PACKAGE,GRAY,TRIM13 |
1 | ||
| 72137-0C430E0 |
UPK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM44 |
1 | ||
| 72137G - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-0C400B0 |
UPK6#,USK6#..SR5 GRAY,TRIM1# |
1 | ||
| 72137-0C420E0 |
UPK6#..SR5 LEATHER PACKAGE,SAND BEIGE,TRIM44 |
1 | ||
| 72137-0C420C0 |
UPK6#..SR5 LEATHER PACKAGE,BLACK,TRIM2# |
1 | ||
| 72137-0C400E0 |
UPK6#,USK6#..SR5 SAND BEIGE,TRIM4# |
1 | ||
| 72137-0C400C0 |
UPK6#..SR5 BLACK,TRIM1#,2#,4# |
1 | ||
| 72137-0C420C0 |
UPK6#..SR5 LEATHER PACKAGE,BLACK,TRIM1#,2#,4# |
1 | ||
| 72137-0C420B0 |
UPK6#..SR5 LEATHER PACKAGE,GRAY,TRIM13 |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-07010 |
UPK6#..SR5 LEATHER PACKAGE |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-0C050 |
UCK6#,UPK6#,USK6#..LIMD,SR5 |
1 | ||
| 73910-0C060 |
UCK6#,UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE |
1 | ||
| 87501A - CONTROL SUB-ASSY, SEAT HEATER, RH | ||||
| 87501-0E020 |
UPK6#..SR5 LEATHER PACKAGE |
1 | ||
| 87501-AC010 |
UPK6#,USK6#..SR5 LEATHER PACKAGE |
1 | ||
| 87510K - HEATER ASSY, FRONT SEAT CUSHION, RH | ||||
| 87510-0C030 |
UPK6#..SR5 LEATHER PACKAGE |
1 | ||
| 87510M - HEATER ASSY, FRONT SEAT BACK, RH | ||||
| 87530-0C010 |
UPK6#..SR5 LEATHER PACKAGE |
1 | ||
| Common parts | ||||
| 72189-0C010 | ||||
| 90080-16099 | ||||
| 90080-16115 | ||||
| 90080-17200 | ||||
| 90105-A0199 | ||||
| 90166-A0006 | ||||
| 90167-40048 | ||||
| 90176-A0002 | ||||
| 90389-10041 | ||||
| 90467-A0006 | ||||
| 93560-54010 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8401 | ||||
| 8421 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
