UPK60L-GKTSKA (2009)

Toyota Sequoia

Production Apr 2009 - Aug 2012
Engine 1URFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0904- )UPK6#

Click highlighted areas on diagram

A760E,A760F

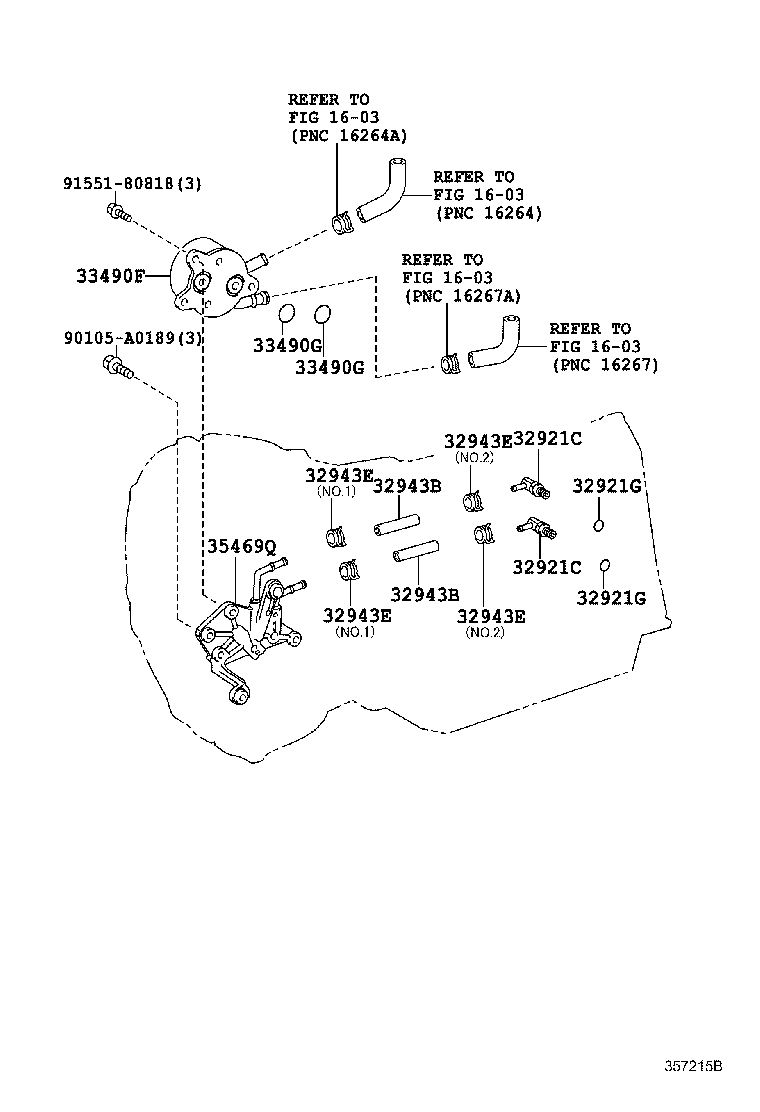

diagram 1603 1603 1603 1603 32921C 32921C 32921G 32921G 32943B 32943B 32943E 32943E 32943E 32943E 33490F 33490G 33490G 35469Q 90105A0189 9155180818
Part # Description Qty Price
32921C - UNION(FOR OIL COOLER TUBE)
90407-14033

UPK6#

 2
32921C - UNION(FOR OIL COOLER TUBE)
90407-14033

UPK6#

 2
32943B - HOSE, TRANSMISSION OIL COOLER
32943-34040

UPK6#

 2
32943B - HOSE, TRANSMISSION OIL COOLER
32943-34040

UPK6#

 2
32943E - CLIP, NO.3(FOR OIL COOLER HOSE)
90467-A0012

UPK6#

NO.2

 2
90466-16004

UPK6#

NO.1

 2
90466-A0014

UPK6#

NO.2

 2
32943E - CLIP, NO.3(FOR OIL COOLER HOSE)
90467-A0012

UPK6#

NO.2

 2
90466-16004

UPK6#

NO.1

 2
90466-A0014

UPK6#

NO.2

 2
32943E - CLIP, NO.3(FOR OIL COOLER HOSE)
90467-A0012

UPK6#

NO.2

 2
90466-16004

UPK6#

NO.1

 2
90466-A0014

UPK6#

NO.2

 2
32943E - CLIP, NO.3(FOR OIL COOLER HOSE)
90467-A0012

UPK6#

NO.2

 2
90466-16004

UPK6#

NO.1

 2
90466-A0014

UPK6#

NO.2

 2
33490F - COOLER ASSY, TRANSMISSION OIL
33493-34030

UPK6#

 1
33490G - RING, O (FOR TRANSMISSION OIL COOLER)
90301-20012

UPK6#

 2
33490G - RING, O (FOR TRANSMISSION OIL COOLER)
90301-20012

UPK6#

 2
35469Q - SPACER (FOR TRANSMISSION OIL COOLER)
35469-34040

UPK6#

 1
Common parts
90105-A0189
91551-80818
Linked diagrams
1603
