UPK60L-GKTSKA (2009)
Toyota Sequoia
Production
Apr 2009
-
Aug 2012
Engine
1URFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

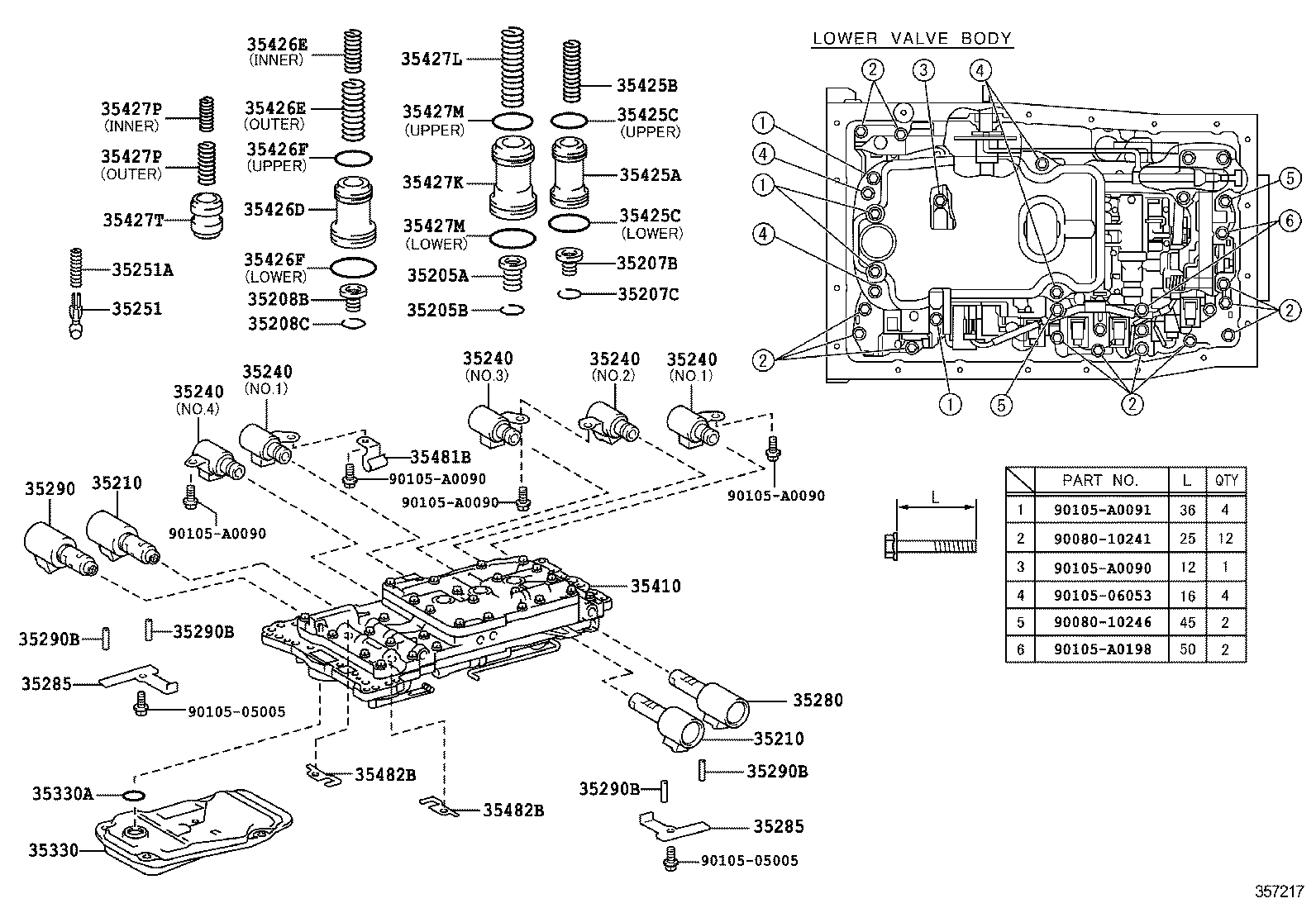

ILLUST NO. 1 OF 2(0904-1208)UPK6#
Click highlighted areas on diagram
A760E,A760F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35205A - SPRING SUB-ASSY, B-3 ACCUMULATOR | ||||
| 35205-60010 |
UPK6# |
1 | ||
| 35205B - RING, HOLE SNAP (FOR B-3 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
UPK6# |
1 | ||
| 35207B - SPRING SUB-ASSY, C-2 ACCUMULATOR | ||||
| 35207-22010 |
UCK6#,UPK6# |
1 | ||
| 35207C - RING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
UPK6# |
1 | ||
| 35208B - SPRING SUB-ASSY, C-3 ACCUMULATOR | ||||
| 35208-35010 |
UPK6# |
1 | ||
| 35208C - RING, HOLE SNAP (FOR C-3 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
UPK6# |
1 | ||
| 35210 - SOLENOID ASSY, CLUTCH CONTROL, NO.1 | ||||
| 35210-50010 |
UPK6# |
2 | ||
| 35210 - SOLENOID ASSY, CLUTCH CONTROL, NO.1 | ||||
| 35210-50010 |
UPK6# |
2 | ||
| 35240 - SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY | ||||
| 35240-50040 |
UPK6# NO.2 |
1 | ||
| 35240-50030 |
UPK6# NO.1 |
2 | ||
| 35240-50050 |
UPK6# NO.3 |
1 | ||
| 35240-50060 |
UPK6# NO.4 |
1 | ||
| 35240 - SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY | ||||
| 35240-50040 |
UPK6# NO.2 |
1 | ||
| 35240-50030 |
UPK6# NO.1 |
2 | ||
| 35240-50050 |
UPK6# NO.3 |
1 | ||
| 35240-50060 |
UPK6# NO.4 |
1 | ||
| 35240 - SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY | ||||
| 35240-50040 |
UPK6# NO.2 |
1 | ||
| 35240-50030 |
UPK6# NO.1 |
2 | ||
| 35240-50050 |
UPK6# NO.3 |
1 | ||
| 35240-50060 |
UPK6# NO.4 |
1 | ||
| 35240 - SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY | ||||
| 35240-50040 |
UPK6# NO.2 |
1 | ||
| 35240-50030 |
UPK6# NO.1 |
2 | ||
| 35240-50050 |
UPK6# NO.3 |
1 | ||
| 35240-50060 |
UPK6# NO.4 |
1 | ||
| 35240 - SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY | ||||
| 35240-50040 |
UPK6# NO.2 |
1 | ||
| 35240-50030 |
UPK6# NO.1 |
2 | ||
| 35240-50050 |
UPK6# NO.3 |
1 | ||
| 35240-50060 |
UPK6# NO.4 |
1 | ||
| 35251 - BODY, CHECK BALL | ||||
| 35251-30020 |
UPK6# |
1 | ||
| 35251A - SPRING, COMPRESSION (FOR CHECK BALL BODY) | ||||
| 90501-03005 |
UPK6# |
1 | ||
| 35280 - SOLENOID ASSY, LOCK UP CONTROL | ||||
| 35280-34010 |
UPK6# |
1 | ||
| 35285 - PLATE, SOLENOID LOCK | ||||
| 35285-50020 |
UPK6# |
2 | ||
| 35285 - PLATE, SOLENOID LOCK | ||||
| 35285-50020 |
UPK6# |
2 | ||
| 35290 - SOLENOID ASSY, LINE PRESSURE CONTROL | ||||
| 35290-34010 |
UPK6# |
1 | ||
| 35290B - PIN, STRAIGHT (FOR LINE PRESSURE CONTOROL SOLENOID) | ||||
| 90250-A0003 |
UPK6# |
4 | ||
| 35290B - PIN, STRAIGHT (FOR LINE PRESSURE CONTOROL SOLENOID) | ||||
| 90250-A0003 |
UPK6# |
4 | ||
| 35290B - PIN, STRAIGHT (FOR LINE PRESSURE CONTOROL SOLENOID) | ||||
| 90250-A0003 |
UPK6# |
4 | ||
| 35290B - PIN, STRAIGHT (FOR LINE PRESSURE CONTOROL SOLENOID) | ||||
| 90250-A0003 |
UPK6# |
4 | ||
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-60060 |
UPK6# |
1 | ||
| 35330A - RING, O (FOR OIL STRAINER) | ||||
| 90301-31014 |
UPK6# |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-0C050 |
UPK6# |
1 | ||
| 35425A - PISTON, C-2 ACCUMULATOR | ||||
| 35425-50020 |
UPK6# |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-A0036 |
UPK6# |
1 | ||
| 90501-22062 |
UPK6# |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-20008 |
UPK6# UPPER |
1 | ||
| 90301-28008 |
UPK6# LOWER |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-20008 |
UPK6# UPPER |
1 | ||
| 90301-28008 |
UPK6# LOWER |
1 | ||
| 35426D - PISTON, C-3 ACCUMULATOR | ||||
| 35426-50020 |
UPK6# |
1 | ||
| 35426E - SPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90501-A0035 |
UPK6# INNER |
1 | ||
| 90501-24038 |
UPK6# INNER |
1 | ||
| 90501-A0034 |
UPK6# OUTER |
1 | ||
| 90501-25028 |
UPK6# OUTER |
1 | ||
| 35426E - SPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90501-A0035 |
UPK6# INNER |
1 | ||
| 90501-24038 |
UPK6# INNER |
1 | ||
| 90501-A0034 |
UPK6# OUTER |
1 | ||
| 90501-25028 |
UPK6# OUTER |
1 | ||
| 35426F - RING, O (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90301-26011 |
UPK6# UPPER |
1 | ||
| 90301-34011 |
UPK6# LOWER |
1 | ||
| 35426F - RING, O (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90301-26011 |
UPK6# UPPER |
1 | ||
| 90301-34011 |
UPK6# LOWER |
1 | ||
| 35427K - PISTON, B-3 ACCUMULATOR | ||||
| 35427-50020 |
UPK6# |
1 | ||
| 35427L - SPRING, COMPRESSION (FOR B-3 ACCUMULATOR PISTON) | ||||
| 90501-A0033 |
UPK6# |
1 | ||
| 90501-27036 |
UPK6# |
1 | ||
| 35427M - RING, O (FOR B-3 ACCUMULATOR PISTON) | ||||
| 90301-23010 |
UPK6# UPPER |
1 | ||
| 90301-34011 |
UPK6# LOWER |
1 | ||
| 35427M - RING, O (FOR B-3 ACCUMULATOR PISTON) | ||||
| 90301-23010 |
UPK6# UPPER |
1 | ||
| 90301-34011 |
UPK6# LOWER |
1 | ||
| 35427P - SPRING, COMPRESSION, NO.1(FOR B-1 ACCUMULATOR PISTON) | ||||
| 90501-A0025 |
UPK6#,USK6# INNER |
1 | ||
| 90501-16181 |
UPK6# OUTER |
1 | ||
| 90501-A0026 |
UPK6#,USK6# OUTER |
1 | ||
| 90501-24039 |
UPK6# INNER |
1 | ||
| 35427P - SPRING, COMPRESSION, NO.1(FOR B-1 ACCUMULATOR PISTON) | ||||
| 90501-A0025 |
UPK6#,USK6# INNER |
1 | ||
| 90501-16181 |
UPK6# OUTER |
1 | ||
| 90501-A0026 |
UPK6#,USK6# OUTER |
1 | ||
| 90501-24039 |
UPK6# INNER |
1 | ||
| 35427T - VALVE, B-1 ACCUMULATOR | ||||
| 35424-60030 |
UPK6# |
1 | ||
| 35481B - CLAMP, VALVE BODY WIRE HARNESS | ||||
| 35481-34010 |
UPK6# |
1 | ||
| 35482B - CLAMP, TEMPERATURE SENSOR | ||||
| 35482-60040 |
UPK6# |
2 | ||
| 35482B - CLAMP, TEMPERATURE SENSOR | ||||
| 35482-60040 |
UPK6# |
2 | ||
| Common parts | ||||
| 90080-10241 | ||||
| 90080-10246 | ||||
| 90105-05005 | ||||
| 90105-06053 | ||||
| 90105-A0090 | ||||
| 90105-A0091 | ||||
| 90105-A0198 | ||||

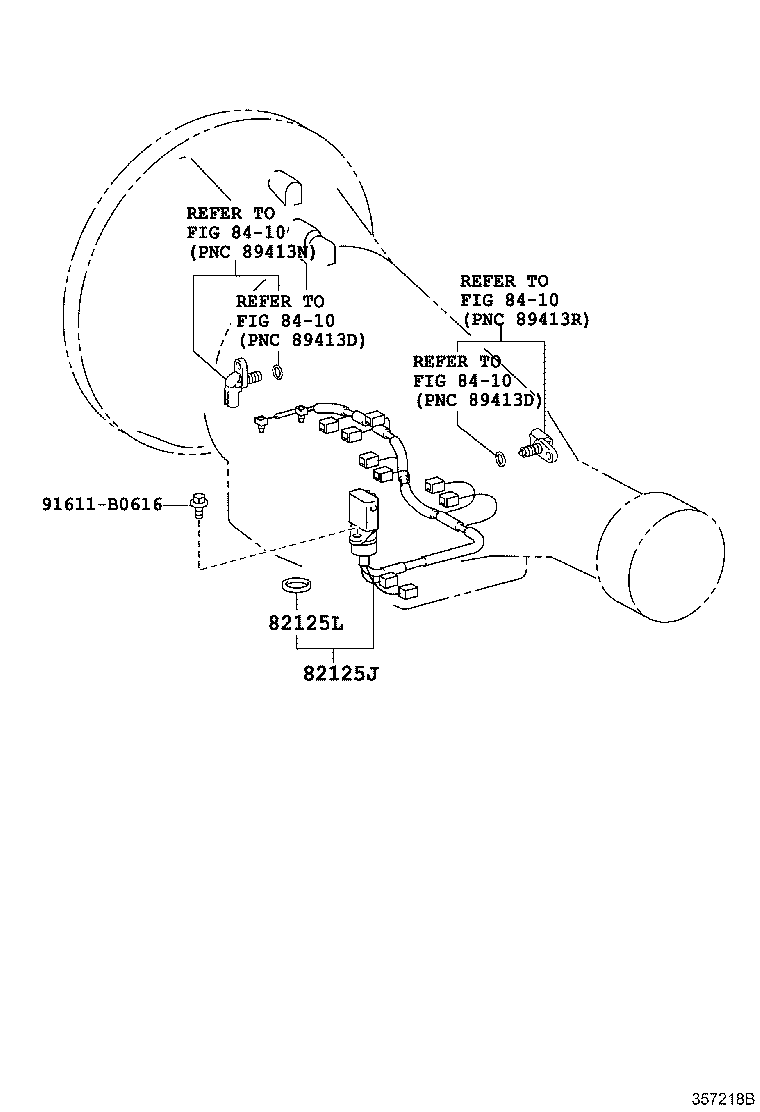

ILLUST NO. 2 OF 2(0904- )UPK6#
Click highlighted areas on diagram
A760E,A760F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82125J - WIRE, TRANSMISSION | ||||
| 82125-34010 |
UPK6# |
1 | ||
| 82125L - RING, O(FOR TRANSMISSION WIRE) | ||||
| 90301-21009 |
UPK6# |
1 | ||
| Common parts | ||||
| 91611-B0616 | ||||
| Linked diagrams | ||||
| 8410 | ||||
