UPK60L-GKTSKA (2009)

Toyota Sequoia

Production Apr 2009 - Aug 2012
Engine 1URFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0904- )UPK6#

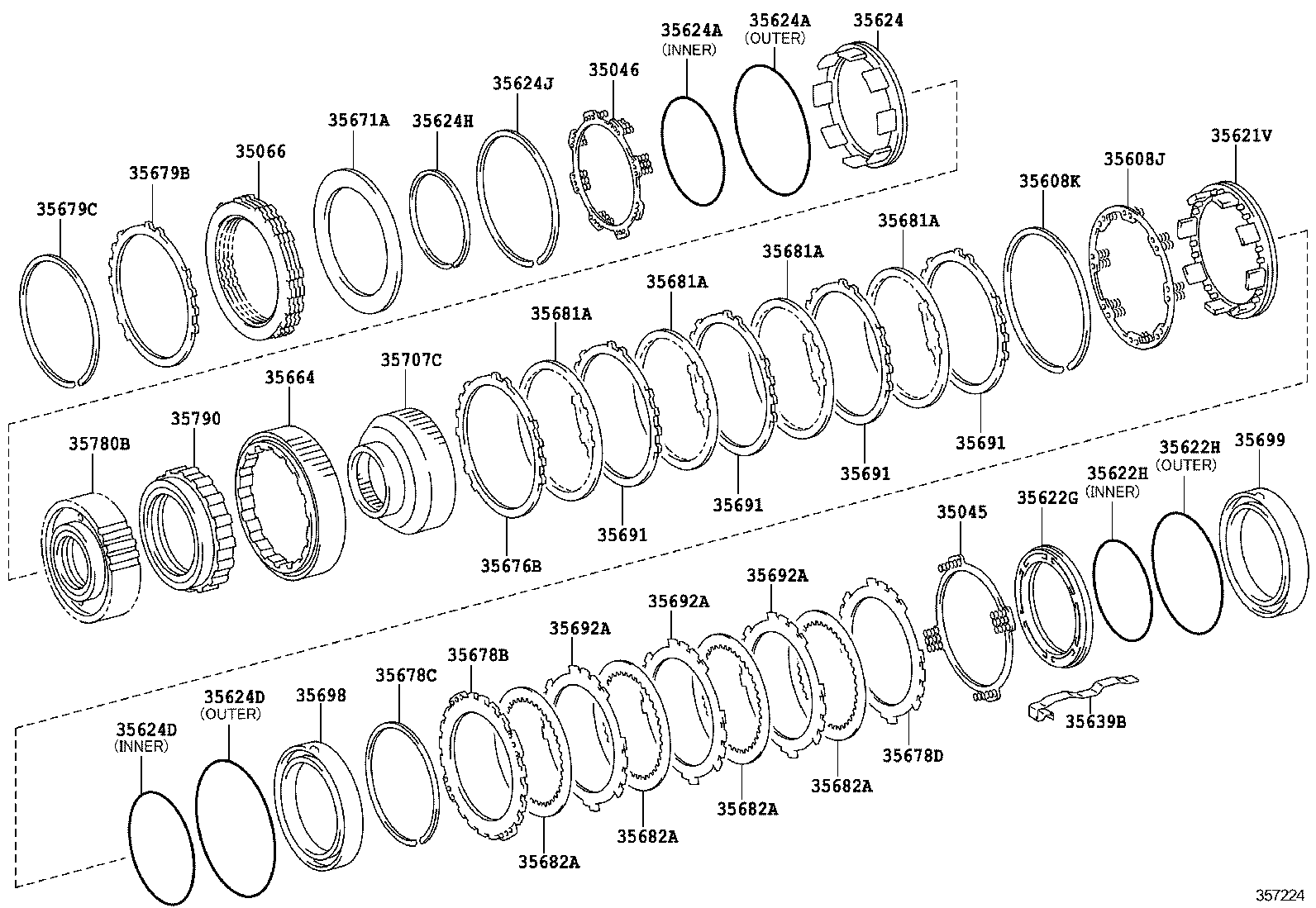

Click highlighted areas on diagram

A760E,A760F

diagram 35045 35046 35066 35608J 35608K 35621V 35622G 35622H 35622H 35624 35624A 35624A 35624D 35624D 35624H 35624J 35639B 35664 35671A 35676B 35678B 35678C 35678D 35679B 35679C 35681A 35681A 35681A 35681A 35682A 35682A 35682A 35682A 35691 35691 35691 35691 35692A 35692A 35692A 35698 35699 35707C 35780B 35790
Part # Description Qty Price
35045 - SPRING SUB-ASSY, BRAKE PISTON RETURN,NO.2
35045-0C040

UPK6#

 1
35046 - SPRING SUB-ASSY, BRAKE PISTON RETURN, NO.3
35046-0C010

UPK6#

 1
35066 - DISC SET, 2ND BRAKE
35066-0C010

UPK6#

 1
35608J - SPRING SUB-ASSY, BRAKE PISTON RETURN
35608-0C010

UPK6#

 1
35608K - RING, SNAP (FOR BRAKE PISTON RETURN SPRING)
90520-99039

UPK6#

 1
35621V - PISTON, BRAKE, NO.1
35621-60030

UPK6#

 1
35622G - PISTON, BRAKE, NO.2
35622-50010

UPK6#

 1
35622H - RING, O (FOR BRAKE PISTON NO.2)
90301-99095

UPK6#

OUTER

 1
90301-99118

UPK6#

INNER

 1
35622H - RING, O (FOR BRAKE PISTON NO.2)
90301-99095

UPK6#

OUTER

 1
90301-99118

UPK6#

INNER

 1
35624 - PISTON, 2ND BRAKE
35624-60010

UPK6#

 1
35624A - RING, O (FOR 2ND BRAKE PISTON)
90301-99095

UPK6#

INNER

 1
90301-99115

UPK6#

OUTER

 1
35624A - RING, O (FOR 2ND BRAKE PISTON)
90301-99095

UPK6#

INNER

 1
90301-99115

UPK6#

OUTER

 1
35624D - RING, O (FOR BRAKE PISTON NO.4)
90301-99142

UPK6#

INNER

 1
90301-99126

UPK6#

OUTER

 1
35624D - RING, O (FOR BRAKE PISTON NO.4)
90301-99142

UPK6#

INNER

 1
90301-99126

UPK6#

OUTER

 1
35624H - RING, SNAP (FOR 2ND BRAKE PISTON)
90520-99077

UPK6#

 1
35624J - RING, HOLE SNAP (FOR 2ND BRAKE PISTON)
90521-99130

UPK6#

 1
35639B - SPRING, BRAKE PLATE STOPPER
35639-60010

UPK6#

 1
35664 - CYLINDER, 2ND BRAKE
35664-60010

UPK6#

 1
35671A - PLATE, BRAKE CUSHION
35671-60010

UPK6#

 1
35676B - FLANGE, BRAKE, NO.1
35676-0C040

UPK6#

T=2.6,MARK 3

 1
35676-0C010

UPK6#

T=2.0,MARK 0

 1
35676-0C030

UPK6#

T=2.4,MARK 2

 1
35676-0C020

UPK6#

T=2.2,MARK 1

 1
35678B - FLANGE, BRAKE, NO.2
35678-0C010

UPK6#

T=4.6

 1
35678C - RING, SNAP (FOR BRAKE NO.2)
90520-99075

UPK6#

 1
35678D - FLANGE, BRAKE, NO.2
35678-0C170

UPK6#

T=2.6,MARK 6

 1
35678-0C110

UPK6#

T=2.0,MARK 0

 1
35678-0C120

UPK6#

T=2.1,MARK 1

 1
35678-0C160

UPK6#

T=2.5,MARK 5

 1
35678-0C150

UPK6#

T=2.4,MARK 4

 1
35678-0C130

UPK6#

T=2.2,MARK 2

 1
35678-0C140

UPK6#

T=2.3,MARK 3

 1
35678-0C180

UPK6#

T=2.7,MARK 7

 1
35679B - FLANGE, BRAKE, NO.3
35679-0C010

UPK6#

 1
35679C - RING, SNAP (FOR BRAKE NO.3)
90520-99080

UPK6#

 1
35681A - DISC, BRAKE, NO.1
35681-0C040

UPK6#

 4
35681A - DISC, BRAKE, NO.1
35681-0C040

UPK6#

 4
35681A - DISC, BRAKE, NO.1
35681-0C040

UPK6#

 4
35681A - DISC, BRAKE, NO.1
35681-0C040

UPK6#

 4
35682A - DISC, BRAKE, NO.2
35682-0C040

UPK6#

 4
35682A - DISC, BRAKE, NO.2
35682-0C040

UPK6#

 4
35682A - DISC, BRAKE, NO.2
35682-0C040

UPK6#

 4
35682A - DISC, BRAKE, NO.2
35682-0C040

UPK6#

 4
35691 - PLATE, BRAKE, NO.1
35691-0C010

UPK6#

 4
35691 - PLATE, BRAKE, NO.1
35691-0C010

UPK6#

 4
35691 - PLATE, BRAKE, NO.1
35691-0C010

UPK6#

 4
35691 - PLATE, BRAKE, NO.1
35691-0C010

UPK6#

 4
35692A - PLATE, BRAKE, NO.2
35692-0C010

UPK6#

 3
35692A - PLATE, BRAKE, NO.2
35692-0C010

UPK6#

 3
35692A - PLATE, BRAKE, NO.2
35692-0C010

UPK6#

 3
35698 - CYLINDER, BRAKE, NO.1
35698-60010

UPK6#

 1
35699 - CYLINDER, BRAKE, NO.2
35699-60010

UPK6#

 1
35707C - RACE SUB-ASSY, 1 WAY CLUTCH, INNER
35707-0C010

UPK6#

 1
35780B - CLUTCH ASSY, 1 WAY N0.2
35780-50040

UPK6#

 1
35790 - CLUTCH ASSY, 1 WAY
35790-0C010

UPK6#

 1
