UPK60L-GKTSKA (2009)
Toyota Sequoia
(0904- )UPK6#
A760E,A760F

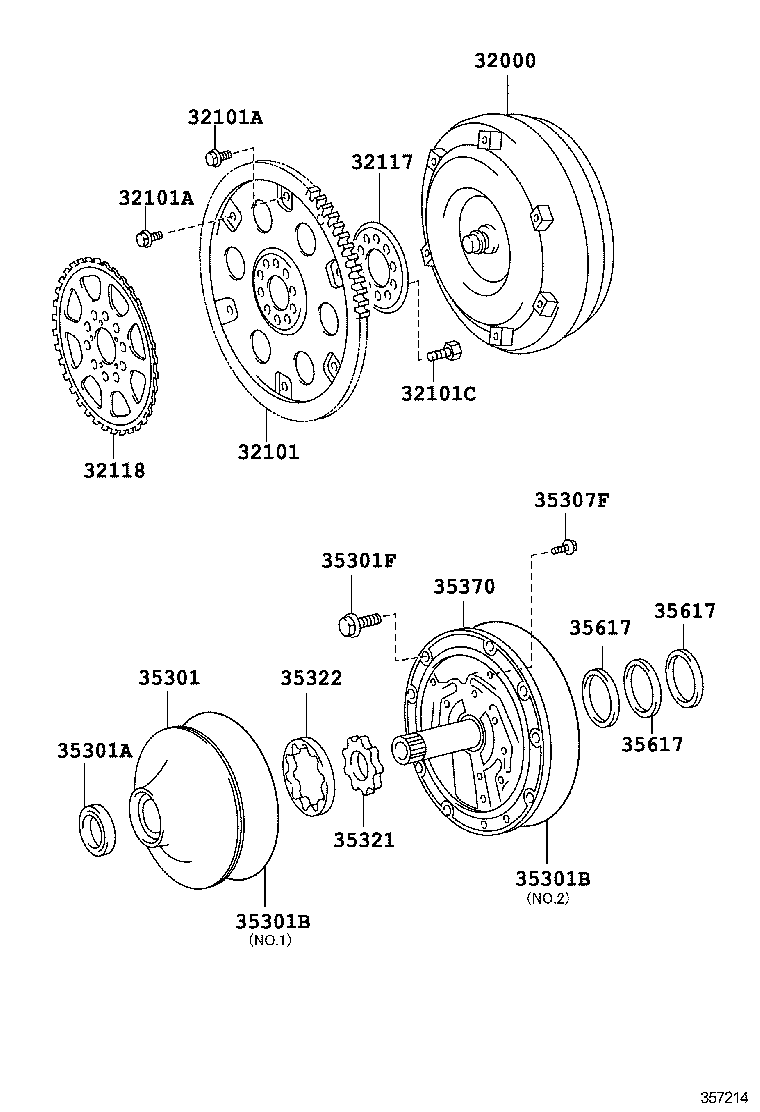

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32000 - CONVERTER ASSY, TORQUE | ||||
| 32000-0C050 |
UPK6# |
1 | ||
| 32101 - GEAR SUB-ASSY, DRIVE PLATE & RING | ||||
| 32101-50021 |
UPK6# |
1 | ||
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90105-10551 |
UPK6# *10-1.25PX16-12.9,BLACK |
1 | ||
| 90105-10552 |
UPK6# *10-1.25PX16-13,SILVER WHITE |
5 | ||
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90105-10551 |
UPK6# *10-1.25PX16-12.9,BLACK |
1 | ||
| 90105-10552 |
UPK6# *10-1.25PX16-13,SILVER WHITE |
5 | ||
| 32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING) | ||||
| 90910-A2002 |
UPK6# *10-1.25PX23-16,(L) |
10 | ||
| 90910-02129 |
UPK6# *10-1.25PX23-16,(J) |
10 | ||
| 32117 - SPACER, DRIVE PLATE, REAR | ||||
| 32117-34010 |
UPK6# |
1 | ||
| 32118 - ROTOR, CRANKSHAFT ANGLE SENSOR | ||||
| 32118-34020 |
UPK6# |
1 | ||
| 35301 - BODY SUB-ASSY, FRONT OIL PUMP | ||||
| 35301-0C010 |
UPK6# |
1 | ||
| 35301A - SEAL, OIL (FOR FRONT OIL PUMP) | ||||
| 90311-38083 |
UPK6# |
1 | ||
| 35301B - RING, O (FOR FRONT OIL PUMP BODY) | ||||
| 90301-99148 |
UPK6# NO.1 |
1 | ||
| 90301-99139 |
UPK6# NO.2 |
1 | ||
| 35301B - RING, O (FOR FRONT OIL PUMP BODY) | ||||
| 90301-99148 |
UPK6# NO.1 |
1 | ||
| 90301-99139 |
UPK6# NO.2 |
1 | ||
| 35301F - BOLT (FOR FRONT OIL PUMP SETTING) | ||||
| 90105-08451 |
UPK6# *8-1.25PX40-30 |
10 | ||
| 35307F - BOLT (FOR STATOR SHAFT) | ||||
| 90148-60079 |
UPK6# |
14 | ||
| 35321 - GEAR, FRONT OIL PUMP DRIVE | ||||
| 35321-0C020 |
UPK6# T=10.76,MARK 1 |
1 | ||
| 35321-0C050 |
UPK6# T=10.76,MARK 4 |
1 | ||
| 35321-0C010 |
UPK6# T=10.76,MARK 0 |
1 | ||
| 35321-0C040 |
UPK6# T=10.76,MARK 3 |
1 | ||
| 35321-0C070 |
UPK6# T=10.76,MARK 6 |
1 | ||
| 35321-0C030 |
UPK6# T=10.76,MARK 2 |
1 | ||
| 35321-0C060 |
UPK6# T=10.76,MARK 5 |
1 | ||
| 35322 - GEAR, FRONT OIL PUMP DRIVEN | ||||
| 35322-0C010 |
UPK6# T=10.76,MARK 0 |
1 | ||
| 35322-0C030 |
UPK6# T=10.76,MARK 2 |
1 | ||
| 35322-0C040 |
UPK6# T=10.76,MARK 3 |
1 | ||
| 35322-0C050 |
UPK6# T=10.76,MARK 4 |
1 | ||
| 35322-0C070 |
UPK6# T=10.76,MARK 6 |
1 | ||
| 35322-0C020 |
UPK6# T=10.76,MARK 1 |
1 | ||
| 35322-0C060 |
UPK6# T=10.76,MARK 5 |
1 | ||
| 35370 - SHAFT ASSY, STATOR | ||||
| 35370-0C010 |
UPK6# |
1 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-50030 |
UPK6# |
3 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-50030 |
UPK6# |
3 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-50030 |
UPK6# |
3 | ||
