UPK60L-GKTSKA (2009)

Toyota Sequoia

Production Apr 2009 - Aug 2012
Engine 1URFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0904- )1URFE

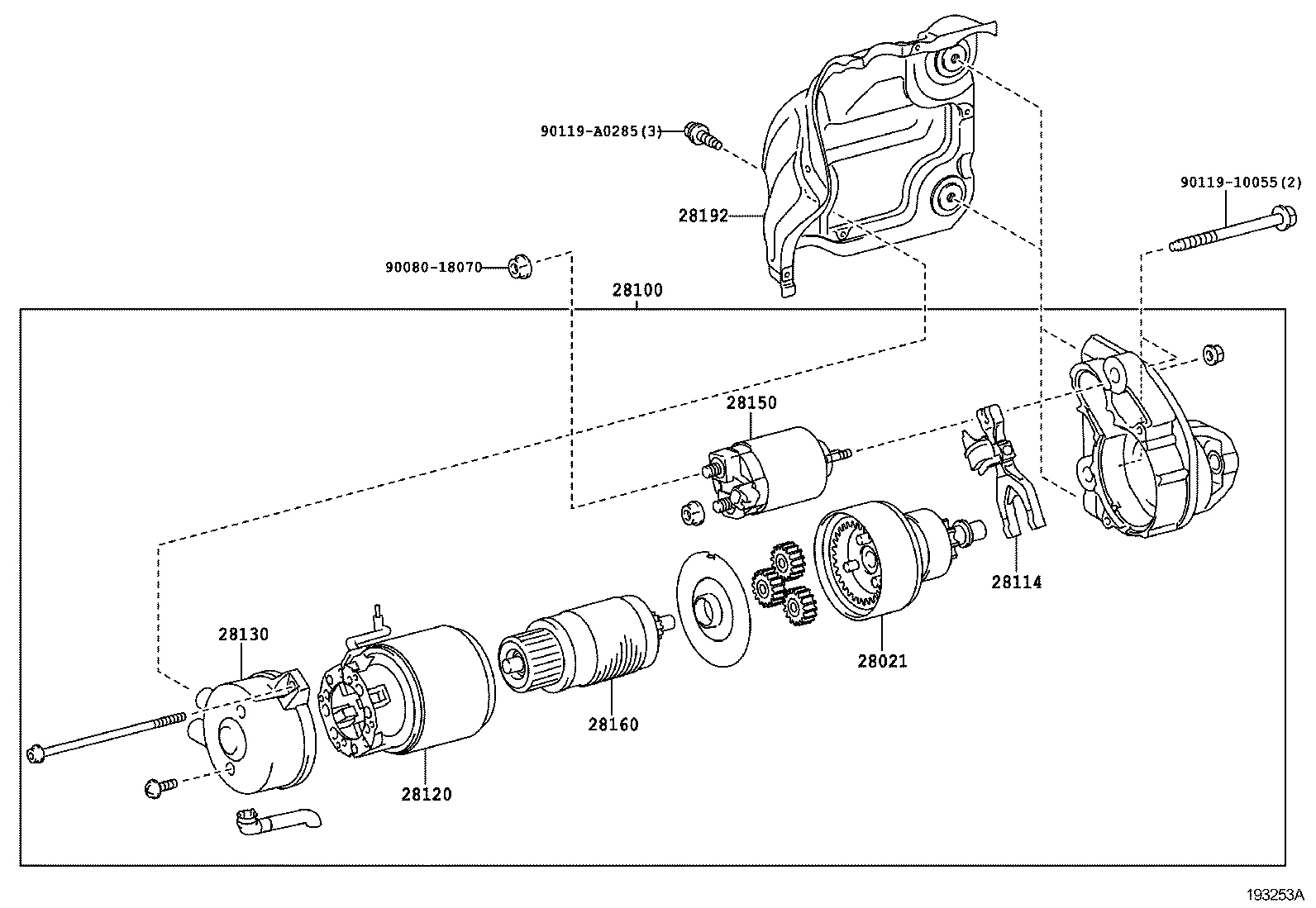

Click highlighted areas on diagram

12V 2.0KW

diagram 28021 28100 28114 28120 28130 28150 28160 28192 9008018070 9011910055 90119A0285
Part # Description Qty Price
28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING
28021-38040

1URFE..UPK6#

COLD AREA SPEC

 1
28021-0S031

1URFE..UPK6#

 1
28100 - STARTER ASSY
28100-0S031

1URFE..UPK6#

12V 1.6KW

 1
28100-0S021

1URFE..UPK6#

12V 2.0KW,COLD AREA SPEC

 1
28100-0S060

1URFE..UPK6#

12V 2.0KW,COLD AREA SPEC

 1
28114 - PIN, STARTER DRIVE LEVER SET
28114-38020

1URFE..UPK6#

COLD AREA SPEC

 1
28120 - YOKE ASSY, STARTER
28120-38020

1URFE..UPK6#

COLD AREA SPEC

 1
28120-0S030

1URFE..UPK6#

 1
28120-38070

1URFE..UPK6#

COLD AREA SPEC

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-38030

1URFE..UPK6#

COLD AREA SPEC

 1
28150-0S020

1URFE..UPK6#

 1
28160 - ARMATURE ASSY, STARTER
28160-38020

1URFE..UPK6#

COLD AREA SPEC

 1
28160-37050

1URFE..UPK6#

 1
28160-38070

1URFE..UPK6#

COLD AREA SPEC

 1
28192 - COVER, STARTER
28192-0S030

1URFE..UPK6#

 1
Common parts
90080-18070
90119-10055
90119-A0285

(0904- )1URFE

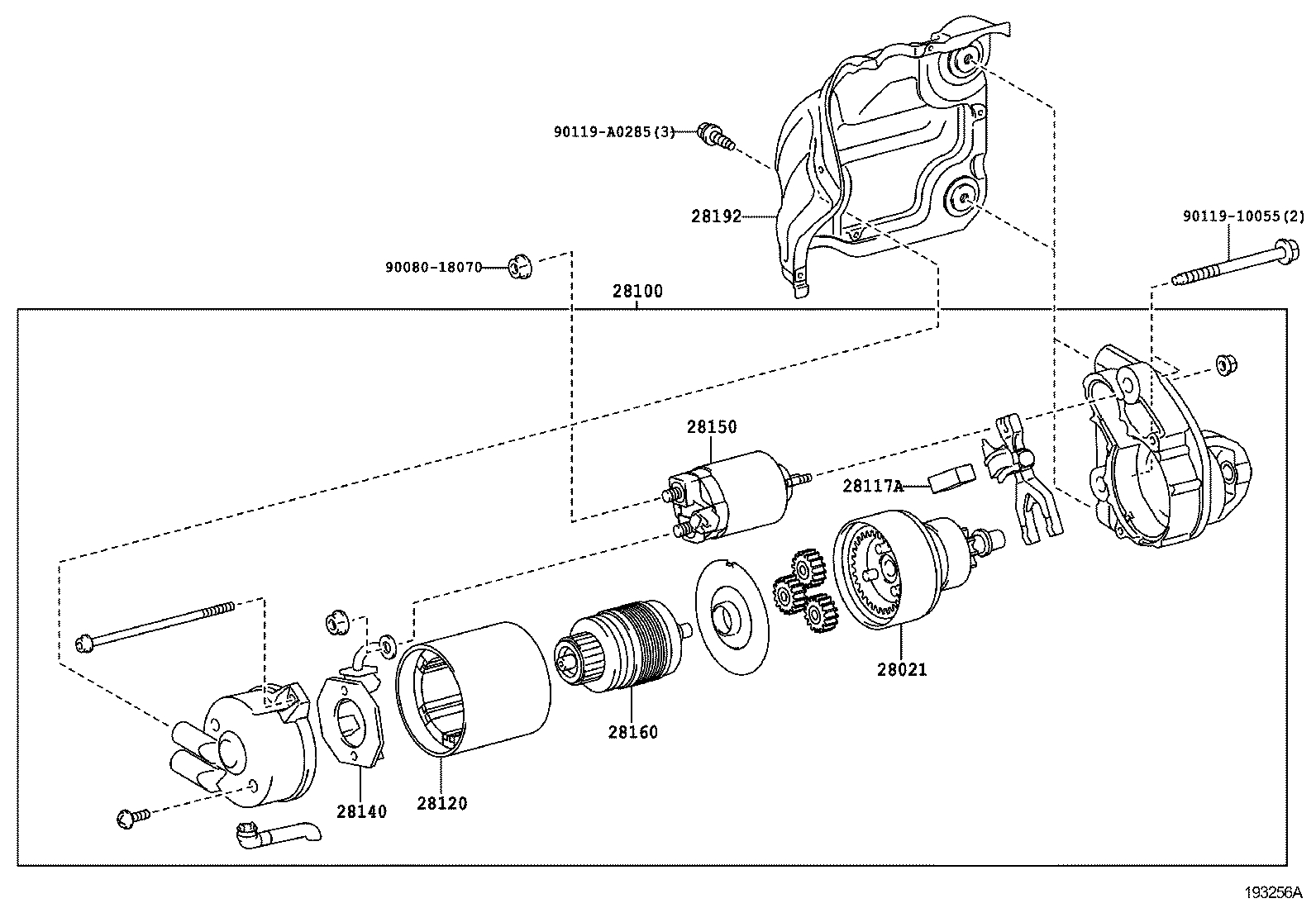

Click highlighted areas on diagram

12V 1.6KW

diagram 28021 28100 28117A 28120 28140 28150 28160 28192 9008018070 9011910055 90119A0285
Part # Description Qty Price
28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING
28021-38040

1URFE..UPK6#

COLD AREA SPEC

 1
28021-0S031

1URFE..UPK6#

 1
28100 - STARTER ASSY
28100-0S031

1URFE..UPK6#

12V 1.6KW

 1
28100-0S021

1URFE..UPK6#

12V 2.0KW,COLD AREA SPEC

 1
28100-0S060

1URFE..UPK6#

12V 2.0KW,COLD AREA SPEC

 1
28117A - SEAL, RUBBER
28117-0H090

1URFE..UPK6#

 1
28120 - YOKE ASSY, STARTER
28120-38020

1URFE..UPK6#

COLD AREA SPEC

 1
28120-0S030

1URFE..UPK6#

 1
28120-38070

1URFE..UPK6#

COLD AREA SPEC

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-37050

1URFE..UPK6#

 1
28140-38070

1URFE..UPK6#

COLD AREA SPEC

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-38030

1URFE..UPK6#

COLD AREA SPEC

 1
28150-0S020

1URFE..UPK6#

 1
28160 - ARMATURE ASSY, STARTER
28160-38020

1URFE..UPK6#

COLD AREA SPEC

 1
28160-37050

1URFE..UPK6#

 1
28160-38070

1URFE..UPK6#

COLD AREA SPEC

 1
28192 - COVER, STARTER
28192-0S030

1URFE..UPK6#

 1
Common parts
90080-18070
90119-10055
90119-A0285
