UPK60L-GKTSKA (2009)

Toyota Sequoia

Production Apr 2009 - Aug 2012
Engine 1URFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0904- )1URFE

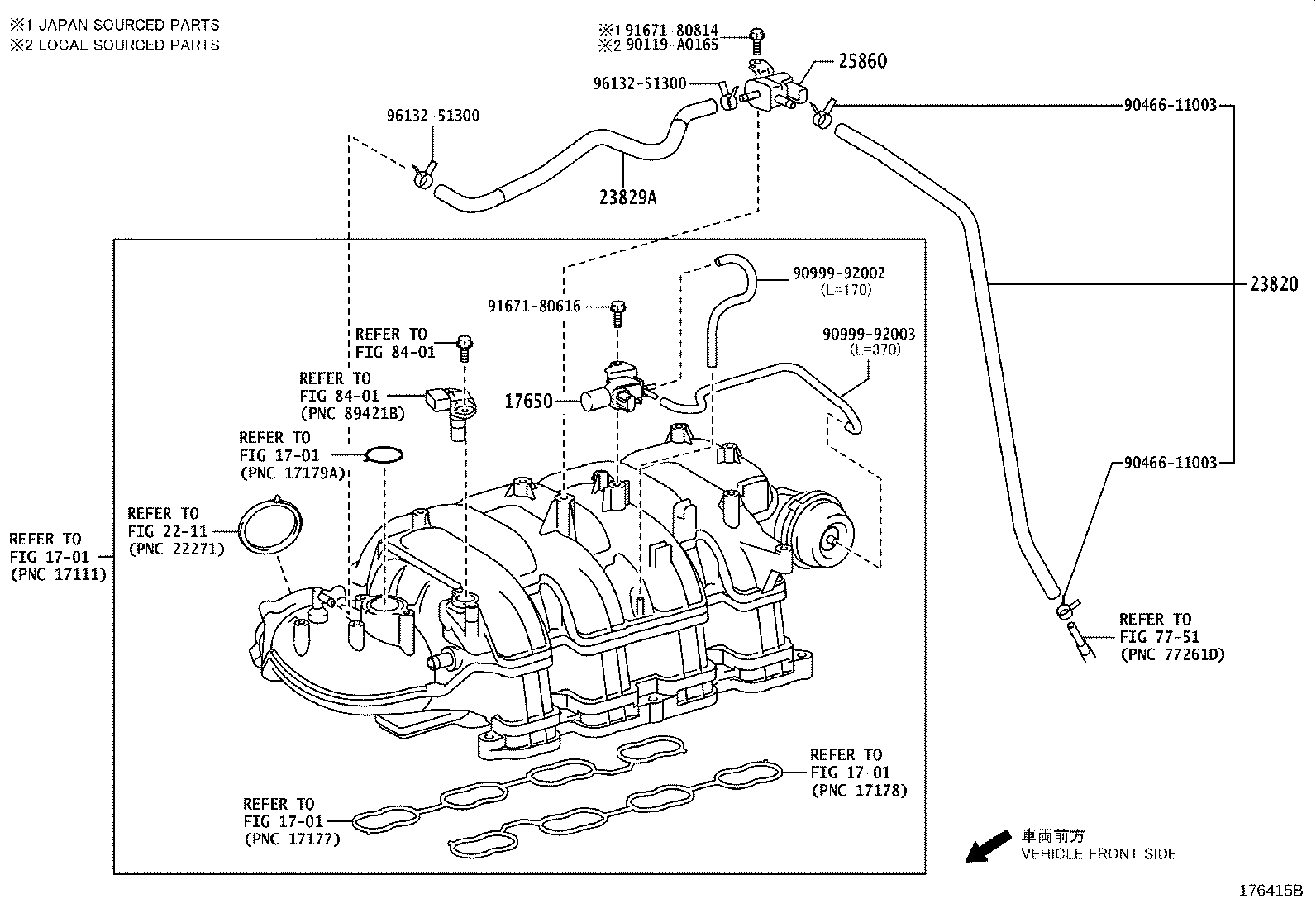

Click highlighted areas on diagram

diagram 1701 1701 1701 1701 17650 2211 23820 23829A 25860 7751 8401 8401 90119A0165 9046611003 9046611003 9099992002 9099992003 9167180616 9167180814 9613251300 9613251300
Part # Description Qty Price
17650 - VALVE ASSY, VACUUM SWITCHING
25860-0S010

1URFE..UPK6#

 1
23820 - HOSE ASSY, FUEL VAPOR FEED
23820-0S020

1URFE..UPK6#

 1
23829A - HOSE, FUEL VAPOR FEED
23829-38060

1URFE..UPK6#

 1
Common parts
90119-A0165
90466-11003
90999-92002
90999-92003
91671-80616
91671-80814
96132-51300
Linked diagrams
1701
2211
7751
8401
