UPK60L-GKTSKA (2009)

Toyota Sequoia

Production Apr 2009 - Aug 2012
Engine 1URFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0904- )1URFE

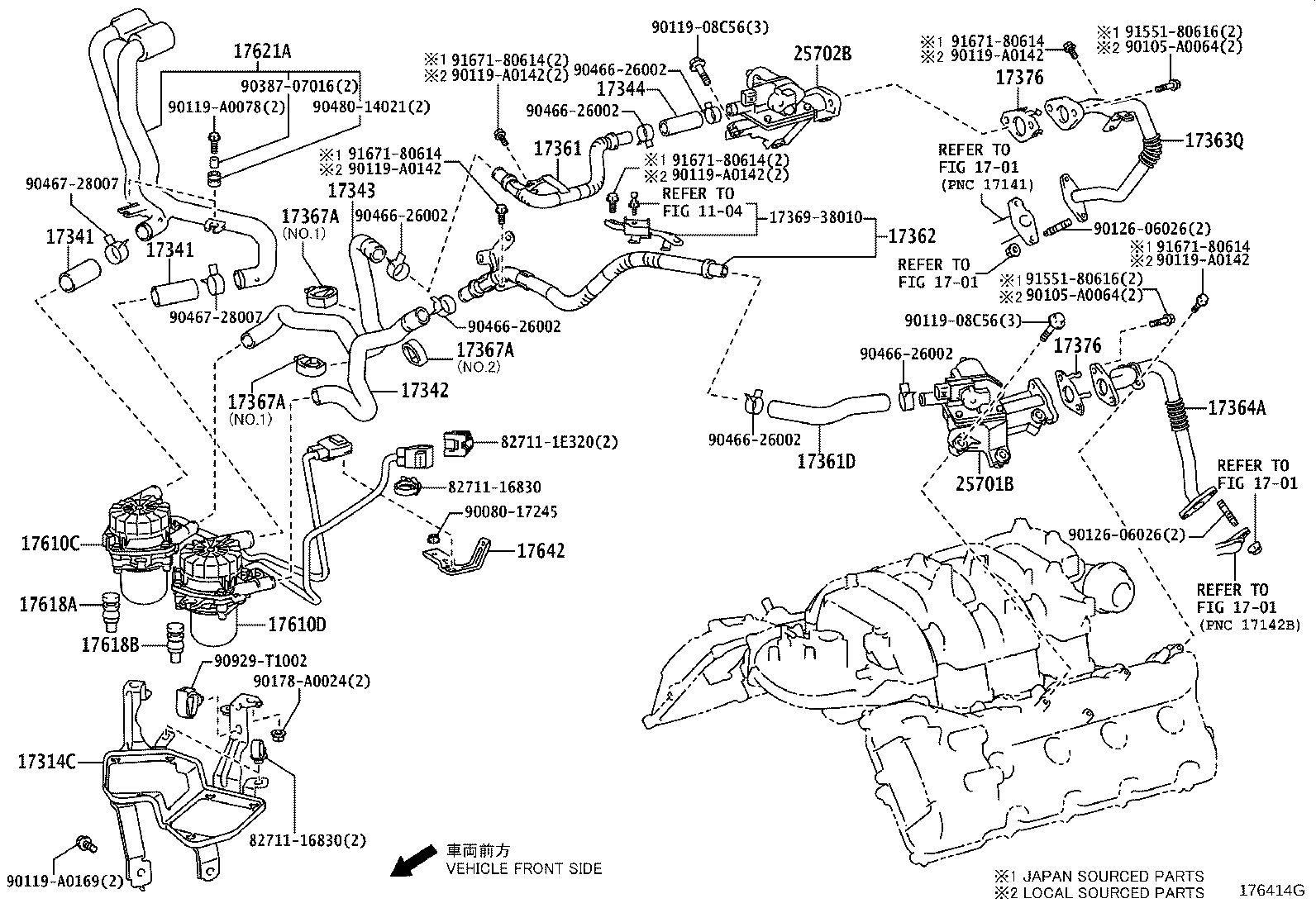

Click highlighted areas on diagram

diagram 1104 1701 1701 1701 1701 17314C 17341 17341 17342 17343 17344 17361 17361D 17362 17363Q 17364A 17367A 17367A 17367A 1736938010 17376 17376 17610C 17610D 17618A 17618B 17621A 17642 25701B 25702B 8271116830 8271116830 827111E320 9008017245 90105A0064 90105A0064 9011908C56 9011908C56 90119A0078 90119A0142 90119A0142 90119A0142 90119A0142 90119A0142 90119A0169 9012606026 9012606026 90178A0024 9038707016 9046626002 9046626002 9046626002 9046626002 9046626002 9046626002 9046728007 9046728007 9048014021 90929T1002 9155180616 9155180616 9167180614 9167180614 9167180614 9167180614 9167180614
Part # Description Qty Price
17314C - BRACKET, AIR PUMP
17314-0S010

1URFE..UPK6#

 1
17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341-0S010

1URFE,3UR#..UPK6#,USK6#

 2
17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341-0S010

1URFE,3UR#..UPK6#,USK6#

 2
17342 - HOSE, NO.2(FOR AIR INJECTION SYSTEM)
17342-0S010

1URFE,3UR#..UPK6#,USK6#

 1
17343 - HOSE, NO.3(FOR AIR INJECTION SYSTEM)
17343-0S010

1URFE,3UR#..UPK6#,USK6#

 1
17344 - HOSE, NO.4(FOR AIR INJECTION SYSTEM)
17341-38050

1URFE..UPK6#

 1
17361 - TUBE, AIR
17361-38010

1URFE..UPK6#

 1
17361D - HOSE, NO.2(FOR AIR TUBE)
17342-38070

1URFE..UPK6#

 1
17362 - TUBE, AIR, NO.2
17362-38020

1URFE..UPK6#

 1
17363Q - TUBE, AIR, NO.3
17363-38020

1URFE..UPK6#

 1
17364A - TUBE, AIR NO.4
17364-38010

1URFE..UPK6#

 1
17367A - CLAMP, AIR INJECTION HOSE, NO.2
90929-A1003

1URFE,3UR#..UPK6#,USK6#

NO.2

 1
90929-A1002

1URFE,3UR#..UPK6#,USK6#

NO.1

 2
17367A - CLAMP, AIR INJECTION HOSE, NO.2
90929-A1003

1URFE,3UR#..UPK6#,USK6#

NO.2

 1
90929-A1002

1URFE,3UR#..UPK6#,USK6#

NO.1

 2
17367A - CLAMP, AIR INJECTION HOSE, NO.2
90929-A1003

1URFE,3UR#..UPK6#,USK6#

NO.2

 1
90929-A1002

1URFE,3UR#..UPK6#,USK6#

NO.1

 2
17376 - GASKET, AIR TUBE, NO.1
17376-38030

1URFE..UPK6#

 2
17376 - GASKET, AIR TUBE, NO.1
17376-38030

1URFE..UPK6#

 2
17610C - PUMP ASSY, AIR
17610-0S010

1URFE..UPK6#

 1
17610D - PUMP ASSY, AIR, NO.1
17610-0S010

1URFE,2UZFE..UCK6#,UPK6#

 1
17618A - INSULATOR, AIR PUMP
17618-0C010

1URFE,3UR#..UPK6#,USK6#

 3
17618B - INSULATOR, AIR PUMP, NO.1
17618-0C010

1URFE,2UZFE,3UR#..UCK6#,UPK6#,USK6#

 3
17621A - INLET, AIR PUMP
17621-0S011

1URFE,3UR#..UPK6#,USK6#

 1
17621-0S012

1URFE..UPK6#

 1
17642 - BRACKET, AIR PUMP WIRE
17642-0S010

1URFE,3UR#..UPK6#,USK6#

 1
25701B - VALVE SET, EMISSION CONTROL, NO.1
25702-38050

1URFE..UPK6#

 1
25702B - VALVE SET, EMISSION CONTROL, NO.2
25701-38100

1URFE..UPK6#

 1
Common parts
17369-38010
82711-16830
82711-1E320
90080-17245
90105-A0064
90119-08C56
90119-A0078
90119-A0142
90119-A0169
90126-06026
90178-A0024
90387-07016
90466-26002
90467-28007
90480-14021
90929-T1002
91551-80616
91671-80614
Linked diagrams
1104
1701
