UPK60L-GKTSKA (2009)

Toyota Sequoia

Production Apr 2009 - Aug 2012
Engine 1URFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0904-1208)1URFE

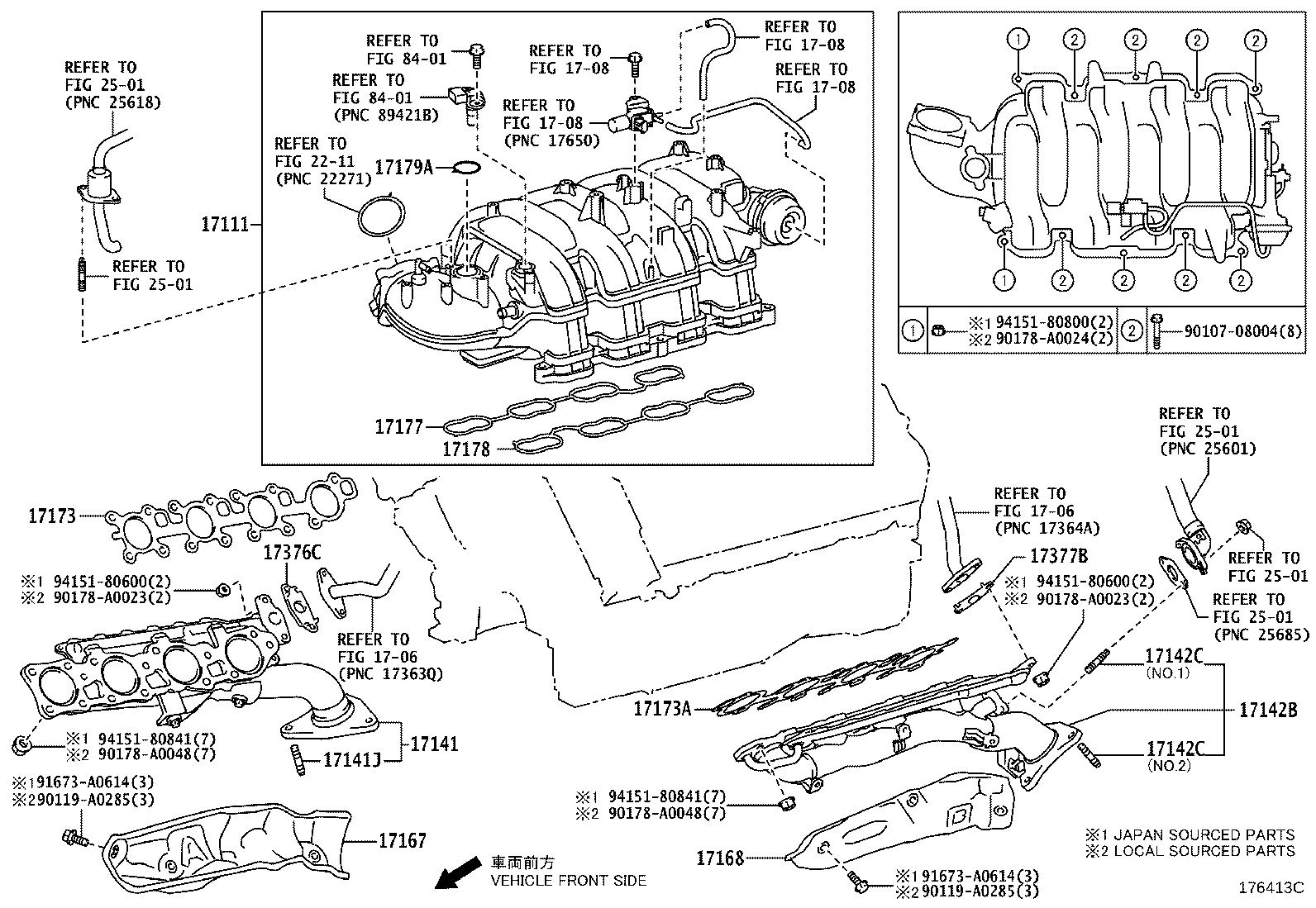

Click highlighted areas on diagram

diagram 1706 1706 1708 1708 1708 1708 17111 17141 17141J 17142B 17142C 17142C 17167 17168 17173 17173A 17177 17178 17179A 17376C 17377B 2211 2501 2501 2501 2501 2501 8401 8401 9010708004 90119A0285 90119A0285 90178A0023 90178A0023 90178A0024 90178A0048 90178A0048 91673A0614 91673A0614 9415180600 9415180600 9415180800 9415180841 9415180841
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17120-0S030

1URFE..UPK6#

 1
17141 - MANIFOLD, EXHAUST
17140-38040

1URFE..UPK6#

 1
17141J - BOLT, STUD(FOR EXHAUST MANIFOLD, RH)
90126-10033

1URFE..UPK6#

 3
17142B - MANIFOLD, EXHAUST, LH
17150-38040

1URFE..UPK6#

 1
17142C - BOLT, STUD(FOR EXHAUST MANIFOLD, LH)
90126-10033

1URFE..UPK6#

NO.2

 3
90126-08053

1URFE..UPK6#

NO.1

 2
17142C - BOLT, STUD(FOR EXHAUST MANIFOLD, LH)
90126-10033

1URFE..UPK6#

NO.2

 3
90126-08053

1URFE..UPK6#

NO.1

 2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-38140

1URFE..UPK6#

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-38150

1URFE..UPK6#

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-38020

1URFE..UPK6#

 1
17173A - GASKET, EXHAUST MANIFOLD TO HEAD, LH
17173-38020

1URFE..UPK6#

 1
17179A - GASKET, INTAKE MANIFOLD, NO.2
17179-0S010

1URFE..UPK6#

 1
17376C - GASKET, AIR TUBE
17377-38010

1URFE,3UR#..UPK6#,USK6#

 1
17377-0S010

1URFE..UPK6#

(L)

 1
17377-38010

1URFE..UPK6#

(J)

 1
17377B - GASKET, AIR TUBE, NO.2
17377-38010

1URFE,3UR#..UPK6#,USK6#

 1
17377-0S010

1URFE..UPK6#

(L)

 1
17377-38010

1URFE..UPK6#

(J)

 1
Common parts
90107-08004
90119-A0285
90178-A0023
90178-A0024
90178-A0048
91673-A0614
94151-80600
94151-80800
94151-80841
Linked diagrams
1706
1708
2211
2501
8401
