UPK60L-GKTSKA (2009)

Toyota Sequoia

Production Apr 2009 - Aug 2012
Engine 1URFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0904- )1URFE

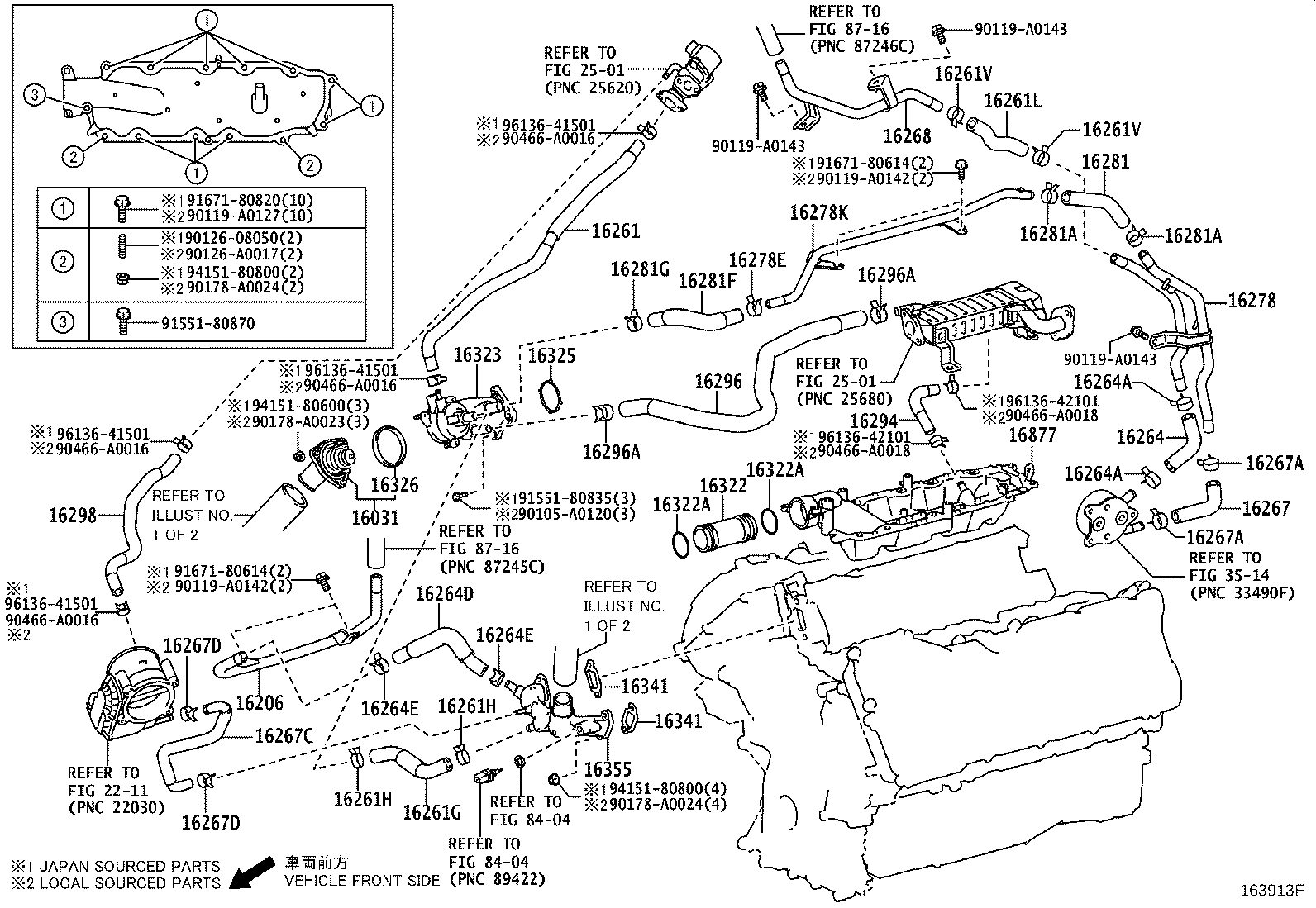

Click highlighted areas on diagram

diagram 16031 16206 16261 16261G 16261H 16261H 16261L 16261V 16261V 16264 16264A 16264A 16264D 16264E 16264E 16267 16267A 16267A 16267C 16267D 16267D 16268 16278 16278E 16278K 16281 16281A 16281A 16281F 16281G 16294 16296 16296A 16296A 16298 16322 16322A 16322A 16323 16325 16326 16341 16341 16355 16877 2211 2501 2501 3514 8404 8404 8716 8716 90105A0120 90119A0127 90119A0142 90119A0142 90119A0143 90119A0143 90119A0143 9012608050 90126A0017 90178A0023 90178A0024 90178A0024 90466A0016 90466A0016 90466A0016 90466A0016 90466A0018 90466A0018 9155180835 9155180870 9167180614 9167180614 9167180820 9415180600 9415180800 9415180800 9613641501 9613641501 9613641501 9613641501 9613642101 9613642101
Part # Description Qty Price
16031 - WATER INLET SUB-ASSY, W/THERMOSTAT
16031-38010

1URFE,3UR#..UPK6#,USK6#

 1
16031-38010

1URFE..UPK6#

(J)

 1
16031-0S010

1URFE..UPK6#

(L)

 1
16206 - PIPE SUB-ASSY, WATER BY-PASS
16206-38070

1URFE..UPK6#

(J)

 1
16206-0S020

1URFE..UPK6#

(L)

 1
16261 - HOSE, WATER BY-PASS
16299-38010

1URFE..UPK6#

 1
16261G - HOSE, WATER BY-PASS, NO.1
16261-38020

1URFE..UPK6#

 1
16261-38020

1URFE..UPK6#

TOWING PACKAGE-WITH

 1
16261-38020

1URFE..UPK60

MEXICO SPEC&TOWING PACKAGE-WITHOUT

 1
16261H - CLIP(FOR WATER BY-PASS HOSE NO.1)
90466-A0018

1URFE..UPK6#

(L)

 2
96136-52101

1URFE,3UR#..UPK6#,USK6#

 2
96136-42101

1URFE..UPK6#

(J)

 2
16261H - CLIP(FOR WATER BY-PASS HOSE NO.1)
90466-A0018

1URFE..UPK6#

(L)

 2
96136-52101

1URFE,3UR#..UPK6#,USK6#

 2
96136-42101

1URFE..UPK6#

(J)

 2
16261L - HOSE, WATER BY-PASS
16261-0S020

1URFE..UPK6#

 1
16261V - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96136-42501

1URFE..UPK6#

 2
16261V - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96136-42501

1URFE..UPK6#

 2
16264 - HOSE, WATER BY-PASS, NO.2
16264-0S020

1URFE..UPK6#

 1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90466-A0023

1URFE..UPK6#

 2
96136-42501

1URFE..UPK6#

 2
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90466-A0023

1URFE..UPK6#

 2
96136-42501

1URFE..UPK6#

 2
16264D - HOSE, WATER BY-PASS, NO.2
16264-38080

1URFE..UPK6#

 1
16264E - CLIP(FOR WATER BY-PASS HOSE NO.2)
96136-42501

1URFE..UPK6#

(J)

 2
96136-42501

1URFE,3UR#..UPK6#,USK6#

 2
90466-A0023

1URFE..UPK6#

(L)

 2
16264E - CLIP(FOR WATER BY-PASS HOSE NO.2)
96136-42501

1URFE..UPK6#

(J)

 2
96136-42501

1URFE,3UR#..UPK6#,USK6#

 2
90466-A0023

1URFE..UPK6#

(L)

 2
16267 - HOSE, WATER BY-PASS, NO.3
16267-0S020

1URFE..UPK6#

 1
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
96136-42501

1URFE..UPK6#

 2
90466-A0023

1URFE..UPK6#

 2
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
96136-42501

1URFE..UPK6#

 2
90466-A0023

1URFE..UPK6#

 2
16267C - HOSE, WATER BY-PASS, NO.4
16281-38010

1URFE..UPK6#

 1
16267D - CLIP(FOR WATER BY-PASS HOSE NO.4)
96136-41501

1URFE,3UR#..UPK6#,USK6#

 2
90466-A0016

1URFE..UPK6#

(L)

 2
96136-41501

1URFE..UPK6#

(J)

 2
16267D - CLIP(FOR WATER BY-PASS HOSE NO.4)
96136-41501

1URFE,3UR#..UPK6#,USK6#

 2
90466-A0016

1URFE..UPK6#

(L)

 2
96136-41501

1URFE..UPK6#

(J)

 2
16268 - PIPE, WATER BY-PASS, NO.1
16268-0S020

1URFE..UPK6#

 1
16278 - PIPE, WATER BY-PASS, NO.2
16278-0S020

1URFE..UPK6#

 1
16278E - CLIP(FOR WATER BY-PASS HOSE)
96136-42501

1URFE..UPK6#

 1
16278K - PIPE, WATER BY-PASS, NO.2
16278-38020

1URFE..UPK6#

 1
16281 - HOSE, WATER BY-PASS, NO.4
16281-0S020

1URFE..UPK6#

 1
16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
96136-42501

1URFE..UPK6#

 2
90466-A0023

1URFE..UPK6#

 2
16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
96136-42501

1URFE..UPK6#

 2
90466-A0023

1URFE..UPK6#

 2
16281F - HOSE, WATER BY-PASS, NO.5
16282-38050

1URFE..UPK6#

 1
16281G - CLIP(FOR WATER BY-PASS HOSE NO.5)
96136-42501

1URFE..UPK6#

 1
90466-A0023

1URFE..UPK6#

(L)

 1
96136-42501

1URFE..UPK6#

(J)

 1
16294 - HOSE, WATER BY-PASS, NO.11
16294-38010

1URFE..UPK6#

 1
16296 - HOSE, WATER BY-PASS, NO.8
16296-38040

1URFE..UPK6#

 1
16296-38040

1URFE..UPK6#

TOWING PACKAGE-WITH

 1
16296-38050

1URFE..UPK6#

 1
16296-38050

1URFE..UPK60

MEXICO SPEC&TOWING PACKAGE-WITHOUT

 1
16296A - CLIP(FOR WATER BY-PASS HOSE NO.8)
96136-52101

1URFE..UPK6#

 2
96136-42101

1URFE..UPK6#

(J)

 2
90466-A0018

1URFE..UPK6#

(L)

 2
16296A - CLIP(FOR WATER BY-PASS HOSE NO.8)
96136-52101

1URFE..UPK6#

 2
96136-42101

1URFE..UPK6#

(J)

 2
90466-A0018

1URFE..UPK6#

(L)

 2
16298 - HOSE, WATER BY-PASS, NO.12
16298-38010

1URFE..UPK6#

 1
16298-38020

1URFE..UPK6#

 1
16322 - PIPE, WATER INLET
16322-38010

1URFE,3UR#..UPK6#,USK6#

 1
16322-38010

1URFE..UPK6#

(J)

 1
16322-0S010

1URFE..UPK6#

(L)

 1
16322A - RING, O(FOR WATER INLET)
96761-35035

1URFE..UPK6#

 2
16322A - RING, O(FOR WATER INLET)
96761-35035

1URFE..UPK6#

 2
16323 - HOUSING, WATER INLET
16323-38050

1URFE..UPK6#

 1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-38010

1URFE..UPK6#

 1
16326 - GASKET, WATER INLET HOUSING, NO.2
16326-38010

1URFE..UPK6#

 1
16341 - GASKET, WATER OUTLET
16341-38030

1URFE..UPK6#

 2
16341 - GASKET, WATER OUTLET
16341-38030

1URFE..UPK6#

 2
16355 - JOINT, WATER BY-PASS, FRONT
16355-38040

1URFE..UPK6#

 1
16877 - COVER, HEAT EXCHANGER, NO.1
16870-38050

1URFE..UPK6#

 1
Common parts
90105-A0120
90119-A0127
90119-A0142
90119-A0143
90126-08050
90126-A0017
90178-A0023
90178-A0024
90466-A0016
90466-A0018
91551-80835
91551-80870
91671-80614
91671-80820
94151-80600
94151-80800
96136-41501
96136-42101
Linked diagrams
2211
2501
3514
8404
8716

ILLUST NO. 2 OF 2(0904- )1URFE

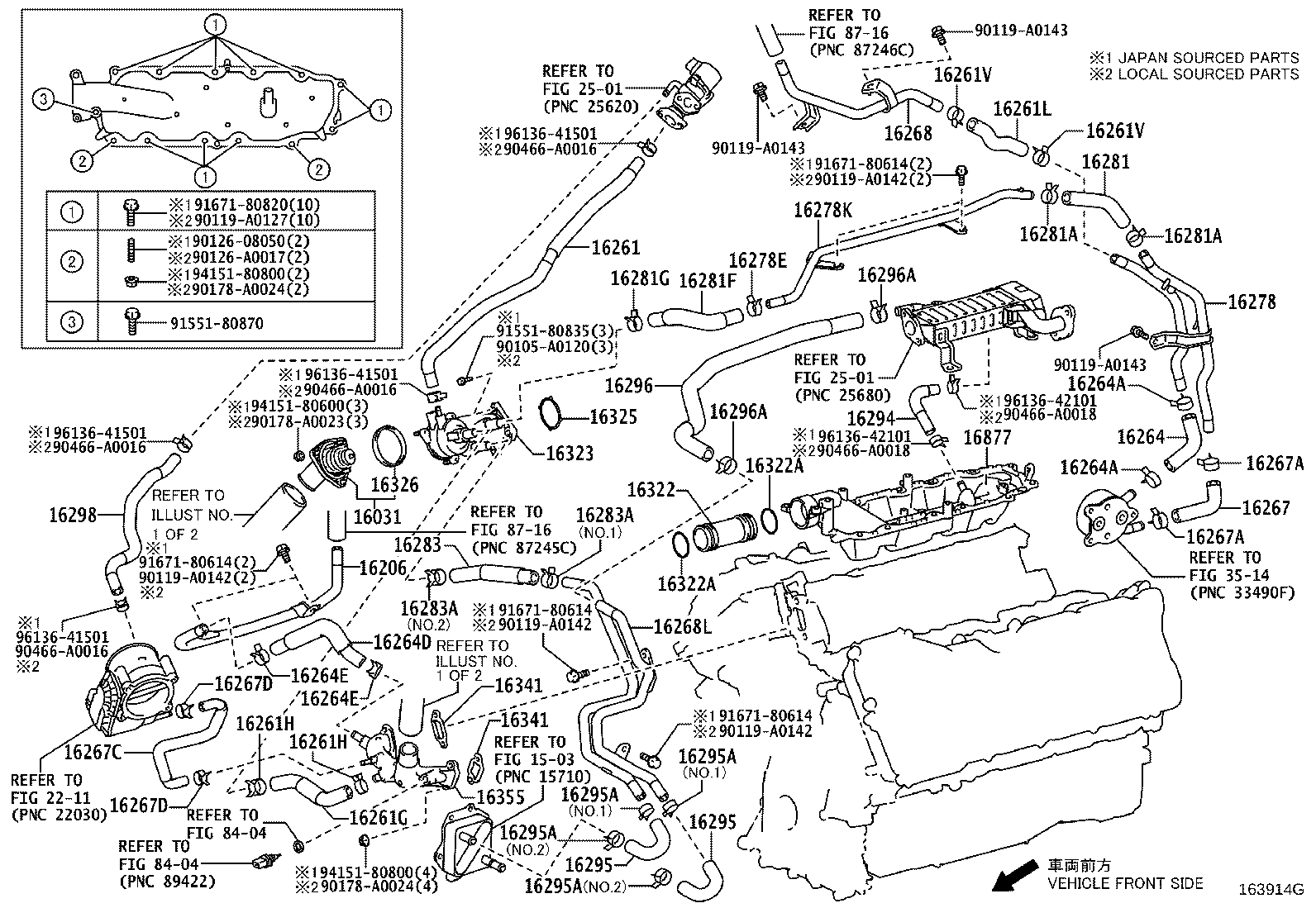

Click highlighted areas on diagram
