UPK60L-GKTSKA (2009)

Toyota Sequoia

Production Apr 2009 - Aug 2012
Engine 1URFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0904- )1URFE

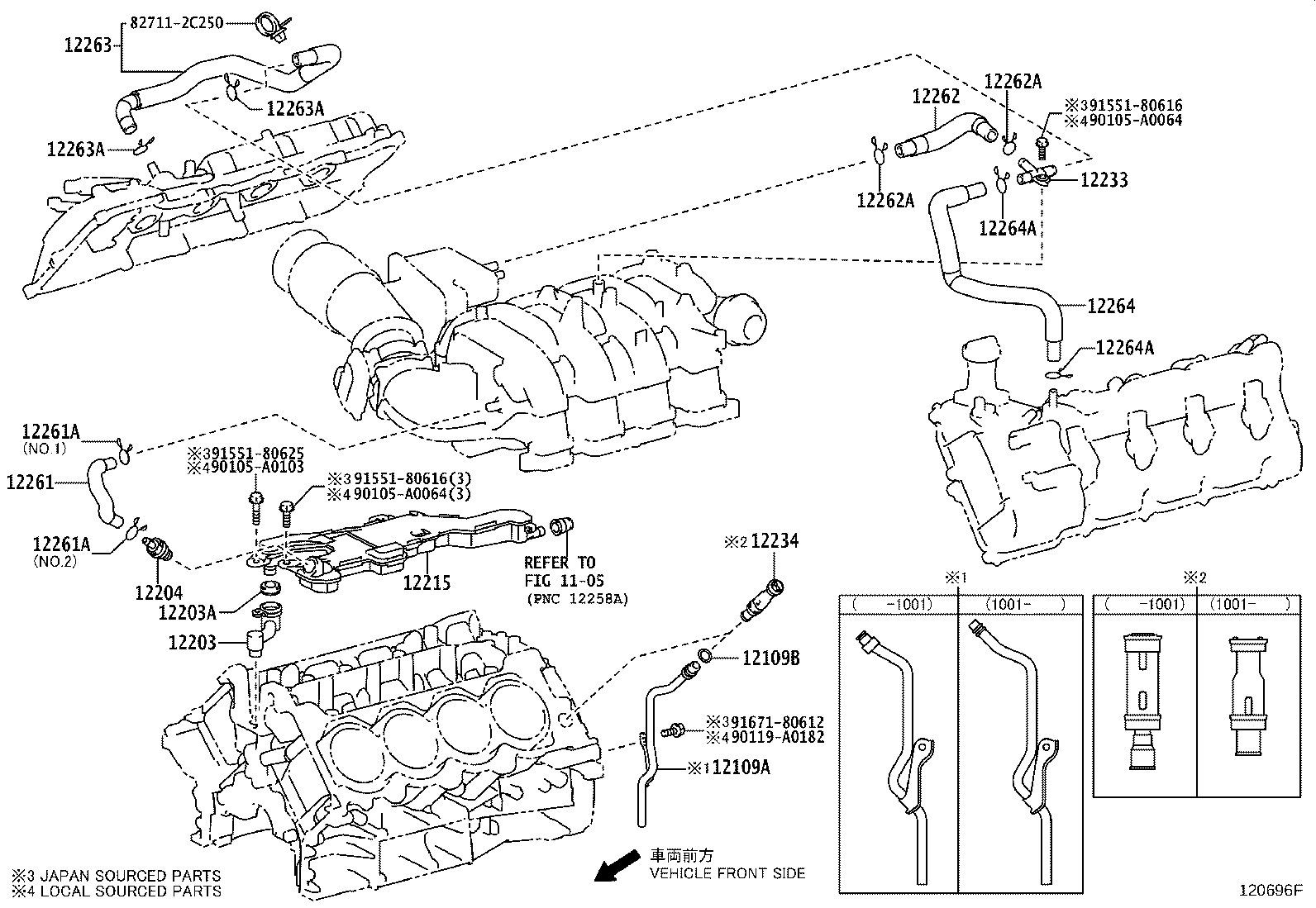

Click highlighted areas on diagram

diagram 1105 12109A 12109B 12203 12203A 12204 12215 12233 12234 12261 12261A 12261A 12262 12262A 12262A 12263 12263A 12263A 12264 12264A 12264A 827112C250 90105A0064 90105A0064 90105A0103 90119A0182 9155180616 9155180616 9155180625 9167180612
Part # Description Qty Price
12109A - PIPE SUB-ASSY, OIL DRAIN
12109-38050

1URFE..UPK6#

 1
12109-38020

1URFE..UPK6#

 1
12203 - PIPE SUB-ASSY, VENTILATION
12203-38010

1URFE,3UR#..UPK6#,USK6#

 1
12203-0S010

1URFE..UPK6#

(L)

 1
12203-38010

1URFE..UPK6#

(J)

 1
12203A - GASKET(FOR VENTILATION PIPE)
12273-38020

1URFE..UPK6#

 1
12204 - VALVE SUB-ASSY, VENTILATION
12204-38030

1URFE..UPK6#

 1
12215 - SEPARATOR, CASE
12215-38020

1URFE..UPK6#

 1
12233 - CONNECTOR, VENTILATION NO.1
12233-0S010

1URFE..UPK6#

(L)

 1
12233-38010

1URFE,3UR#..UPK6#,USK6#

 1
12233-38010

1URFE..UPK6#

(J)

 1
12234 - CONNECTOR, VENTILATION NO.2
12233-38020

1URFE..UPK6#

 1
12233-38040

1URFE..UPK6#

 1
12261 - HOSE, VENTILATION
12261-38080

1URFE..UPK6#

 1
12262 - HOSE, VENTILATION, NO.2
12262-0S020

1URFE..UPK6#

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-19003

1URFE..UPK6#

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-19003

1URFE..UPK6#

 2
12263 - HOSE, VENTILATION, NO.3
12263-38020

1URFE..UPK6#

 1
12263A - CLIP(FOR VENTILATION HOSE)
90467-19003

1URFE..UPK6#

 2
12263A - CLIP(FOR VENTILATION HOSE)
90467-19003

1URFE..UPK6#

 2
12264 - HOSE, VENTILATION, NO.4
12262-38070

1URFE..UPK6#

 1
12264A - CLIP(FOR VENTILATION HOSE)
90467-19003

1URFE..UPK6#

 2
12264A - CLIP(FOR VENTILATION HOSE)
90467-19003

1URFE..UPK6#

 2
Common parts
82711-2C250
90105-A0064
90105-A0103
90119-A0182
91551-80616
91551-80625
91671-80612
Linked diagrams
1105
