UPK60L-GKTSKA (2009)

Toyota Sequoia

Production Apr 2009 - Aug 2012
Engine 1URFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0904- )1URFE

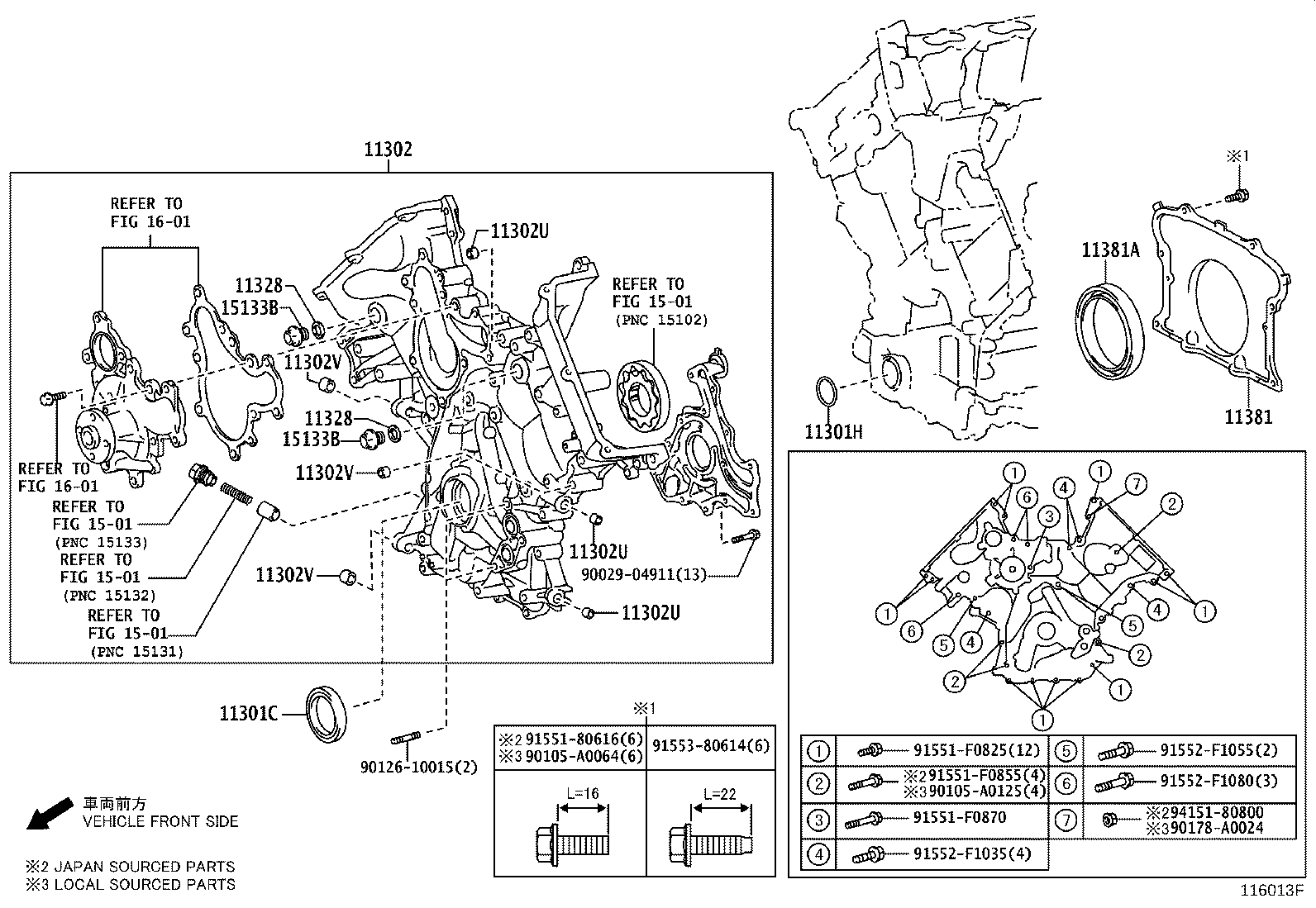

Click highlighted areas on diagram

diagram 11301C 11301H 11302 11302U 11302U 11302U 11302V 11302V 11302V 11328 11328 11381 11381A 1501 1501 1501 1501 15133B 15133B 1601 1601 9002904911 90105A0064 90105A0125 9012610015 90178A0024 9155180616 91551F0825 91551F0855 91551F0870 91552F1035 91552F1055 91552F1080 9155380614 9415180800
Part # Description Qty Price
11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
90311-A0005

1URFE..UPK6#

(L)

 1
90311-42036

1URFE..UPK6#

(J)

 1
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11310-0S020

1URFE..UPK6#

(L)

 1
11310-38110

1URFE..UPK6#

(J)

 1
11302U - PIN, RING
90253-11021

1URFE..UPK6#

 3
11302U - PIN, RING
90253-11021

1URFE..UPK6#

 3
11302U - PIN, RING
90253-11021

1URFE..UPK6#

 3
11302V - PIN, RING, NO.1
90253-13017

1URFE..UPK6#

 3
11302V - PIN, RING, NO.1
90253-13017

1URFE..UPK6#

 3
11302V - PIN, RING, NO.1
90253-13017

1URFE..UPK6#

 3
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-38030

1URFE..UPK6#

 2
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-38030

1URFE..UPK6#

 2
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-38020

1URFE..UPK6#

 1
11381A - SEAL, ENGINE REAR OIL
90311-A0002

1URFE..UPK6#

(L)

 1
90311-95012

1URFE,3UR#..UPK6#,USK6#

 1
90311-95012

1URFE..UPK6#

(J)

 1
15133B - PLUG, OIL PUMP RELIEF VALVE
15133-38071

1URFE..UPK6#

 2
15133B - PLUG, OIL PUMP RELIEF VALVE
15133-38071

1URFE..UPK6#

 2
Common parts
90029-04911
90105-A0064
90105-A0125
90126-10015
90178-A0024
91551-80616
91551-F0825
91551-F0855
91551-F0870
91552-F1035
91552-F1055
91552-F1080
91553-80614
94151-80800
Linked diagrams
1501
1601
