UPK60L-GKTSKA (2009)

Toyota Sequoia

Production Apr 2009 - Aug 2012
Engine 1URFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

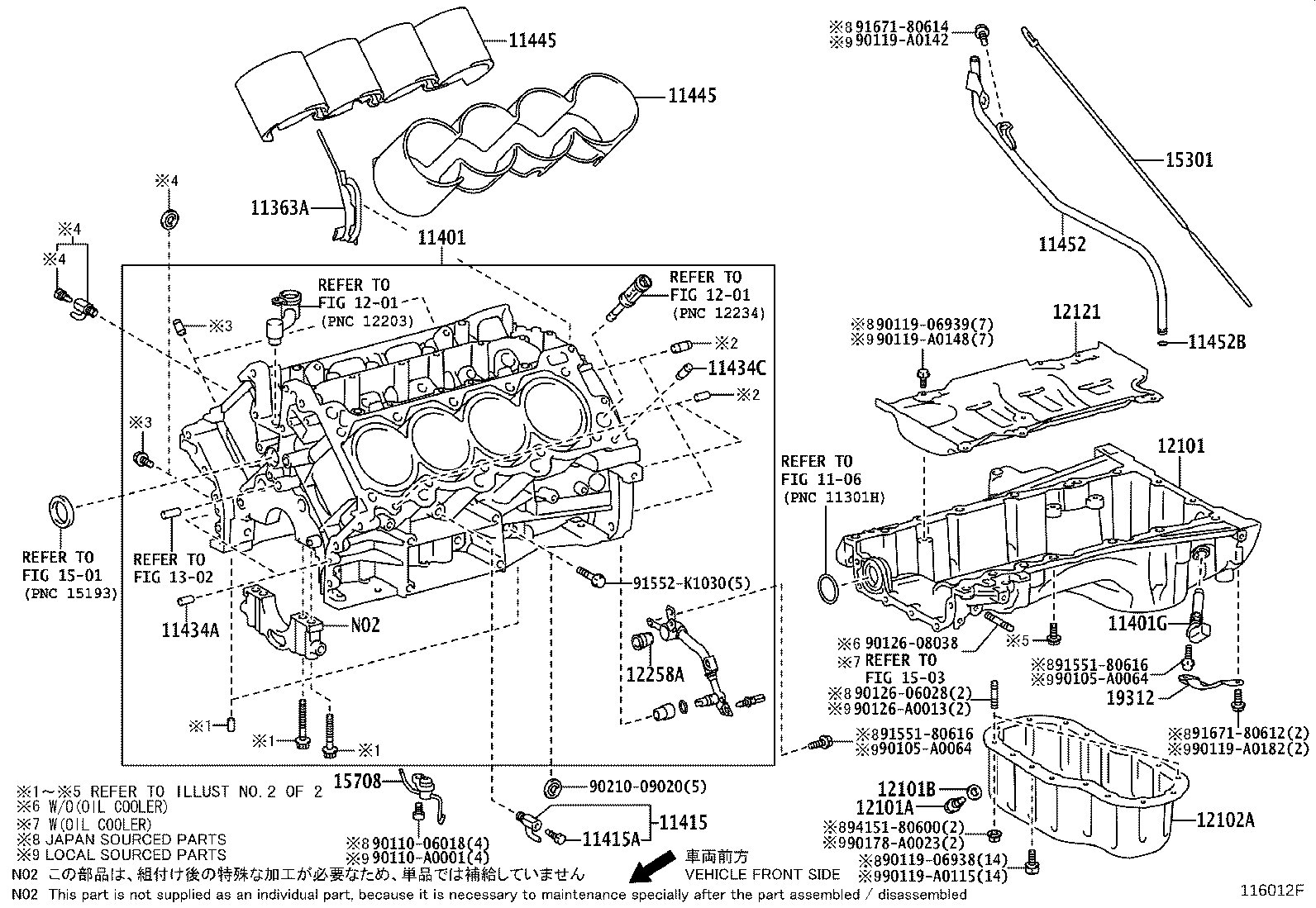

ILLUST NO. 1 OF 2(0904-1208)1URFE

Click highlighted areas on diagram

diagram 1106 11363A 11401 11401G 11415 11415A 11434A 11434C 11445 11445 11452 11452B 1201 1201 12101 12101A 12101B 12102A 12121 12258A 1302 1501 1503 15301 15708 19312 90105A0064 90105A0064 9011006018 90110A0001 9011906938 9011906939 90119A0115 90119A0142 90119A0148 90119A0182 9012606028 9012608038 90126A0013 90178A0023 9021009020 9155180616 9155180616 91552K1030 9167180612 9167180614 9415180600
Part # Description Qty Price
11363A - COVER, FLYWHEEL HOUSING SIDE
11363-38020

1URFE..UPK6#

 1
11401 - BLOCK SUB-ASSY, CYLINDER
11401-09736

1URFE..UPK6#

(L)

 1
11401-09735

1URFE..UPK6#

(L)

 1
11401-80788

1URFE..UPK6#

(J)

 1
11401-80789

1URFE..UPK6#

(J)

 1
11401G - SENSOR, CRANK POSITION
90919-05071

1URFE..UPK6#

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09129

1URFE..UPK6#

 2
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09087

1URFE..UPK6#

 2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08120

1URFE..UPK6#

L=18,OD=8

 4
11445 - SPACER, CYLINDER BLOCK WATER JACKET
11445-0S010

1URFE..UPK6#

 2
11445 - SPACER, CYLINDER BLOCK WATER JACKET
11445-0S010

1URFE..UPK6#

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-0S020

1URFE..UPK6#

 1
11452B - RING, O(FOR OIL LEVEL GAGE GUIDE)
96721-19010

1URFE..UPK6#

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012

1URFE..UPK6#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031

1URFE..UPK6#

 1
12102A - PAN SUB-ASSY, OIL, NO.2
12102-0S010

1URFE..UPK6#

 1
12121 - PLATE, OIL PAN BAFFLE, NO.1
12121-38070

1URFE..UPK6#

(J)

 1
12121-38070

1URFE,3UR#..UPK6#,USK6#

 1
12121-0S010

1URFE..UPK6#

(L)

 1
12258A - GASKET, OIL RETURN PIPE
12269-38010

1URFE..UPK6#

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-0S030

1URFE..UPK6#

 1
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-38020

1URFE..UPK6#

 4
19312 - PROTECTOR, CRANK POSITION SENSOR
19312-38010

1URFE..UPK6#

 1
Common parts
90105-A0064
90110-06018
90110-A0001
90119-06938
90119-06939
90119-A0115
90119-A0142
90119-A0148
90119-A0182
90126-06028
90126-08038
90126-A0013
90178-A0023
90210-09020
91551-80616
91552-K1030
91671-80612
91671-80614
94151-80600
Linked diagrams
1106
1201
1302
1501
1503
