UPK60L-GKTSKA (2009)
Toyota Sequoia

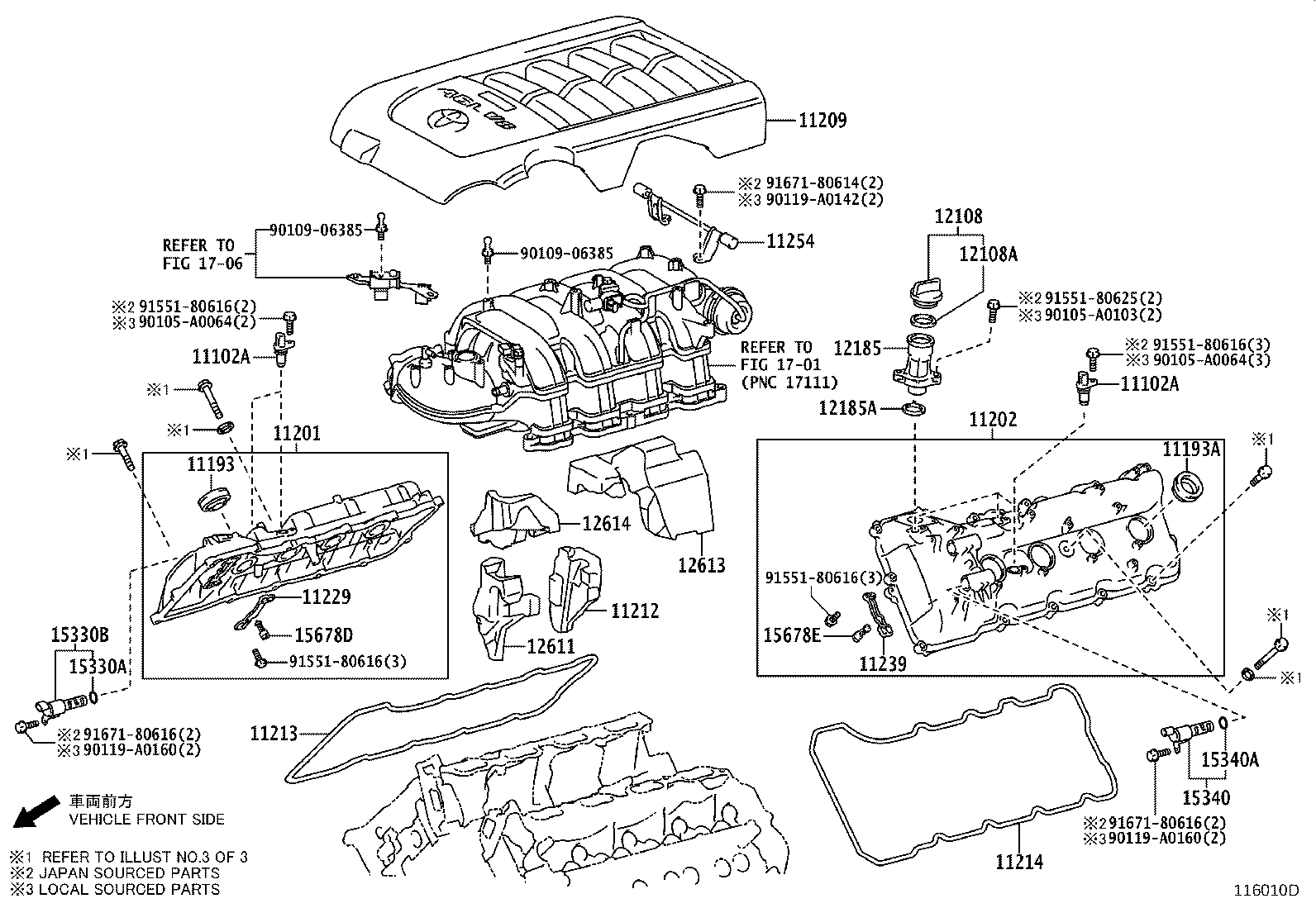

ILLUST NO. 2 OF 3(0904- )1URFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11102A - SENSOR, CAMSHAFT POSITION | ||||
| 90919-05060 |
1URFE..UPK6# |
5 | ||
| 11102A - SENSOR, CAMSHAFT POSITION | ||||
| 90919-05060 |
1URFE..UPK6# |
5 | ||
| 11193 - GASKET, SPARK PLUG TUBE | ||||
| 11193-70010 |
1URFE..UPK6# (J) |
4 | ||
| 11193-0A010 |
1URFE..UPK6# (L) |
4 | ||
| 11193-0A010 |
1URFE,3UR#..UPK6#,USK6# |
4 | ||
| 11193-70010 |
1URFE,3UR#..UPK6#,USK6# |
4 | ||
| 11193A - GASKET, SPARK PLUG TUBE, LH | ||||
| 11193-0A010 |
1URFE..UPK6# (L) |
4 | ||
| 11193-70010 |
1URFE,3UR#..UPK6#,USK6# |
4 | ||
| 11193-70010 |
1URFE..UPK6# (J) |
4 | ||
| 11193-0A010 |
1URFE,3UR#..UPK6#,USK6# |
4 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-0S010 |
1URFE..UPK6# (L) |
1 | ||
| 11201-0S011 |
1URFE..UPK6# |
1 | ||
| 11201-38070 |
1URFE..UPK6# (J) |
1 | ||
| 11202 - COVER SUB-ASSY, CYLINDER HEAD, LH | ||||
| 11202-38050 |
1URFE..UPK6# (J) |
1 | ||
| 11202-0S010 |
1URFE..UPK6# (L) |
1 | ||
| 11202-0S011 |
1URFE..UPK6# |
1 | ||
| 11209 - COVER SUB-ASSY, V-BANK | ||||
| 11209-0S020 |
1URFE..UPK6# |
1 | ||
| 11209-0S021 |
1URFE..UPK6# |
1 | ||
| 11212 - COVER, CYLINDER HEAD, NO.2 | ||||
| 12612-0S020 |
1URFE..UPK6# (L) |
1 | ||
| 12612-38020 |
1URFE..UPK6# (J) |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-38020 |
1URFE,3UR#..UPK6#,USK6# |
1 | ||
| 11213-38020 |
1URFE..UPK6# (J) |
1 | ||
| 11213-0S010 |
1URFE..UPK6# (L) |
1 | ||
| 11214 - GASKET, CYLINDER HEAD COVER, NO.2 | ||||
| 11214-38010 |
1URFE..UPK6# (J) |
1 | ||
| 11214-38010 |
1URFE,3UR#..UPK6#,USK6# |
1 | ||
| 11214-0S010 |
1URFE..UPK6# (L) |
1 | ||
| 11229 - GASKET, CYLINDER HEAD COVER, NO.3 | ||||
| 11229-38010 |
1URFE..UPK6# |
1 | ||
| 11239 - GASKET, CLINDER HEAD CONER, NO.4 | ||||
| 11229-38010 |
1URFE..UPK6# |
1 | ||
| 11254 - BRACKET, V-BANK COVER, NO.1 | ||||
| 11254-38040 |
1URFE..UPK6# |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-0P021 |
1URFE..UPK6# (L) |
1 | ||
| 12180-0P020 |
1URFE..UPK6# (L) |
1 | ||
| 12180-31010 |
1URFE..UPK6# (J) |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90080-43025 |
1URFE..UPK6# (L) |
1 | ||
| 90430-35001 |
1URFE..UPK6# (J) |
1 | ||
| 12185 - HOUSING, OIL FILLER CAP | ||||
| 12185-38011 |
1URFE..UPK6# |
1 | ||
| 12185A - GASKET, OIL FILLER CAP HOUSING | ||||
| 12196-38010 |
1URFE..UPK6# |
1 | ||
| 12611 - COVER, ENGINE, NO.1 | ||||
| 12611-0S020 |
1URFE..UPK6# (L) |
1 | ||
| 12611-38030 |
1URFE..UPK6# (J) |
1 | ||
| 12613 - COVER, ENGINE, NO.3 | ||||
| 12613-38030 |
1URFE..UPK6# (J) |
1 | ||
| 12613-0S020 |
1URFE..UPK6# (L) |
1 | ||
| 12614 - COVER, ENGINE, NO.4 | ||||
| 12614-38010 |
1URFE..UPK6# (J) |
1 | ||
| 12614-0S010 |
1URFE..UPK6# (L) |
1 | ||
| 15330A - RING, O(FOR CAM TIMING OIL CONTROL VALVE) | ||||
| 90068-14030 |
1URFE..UPK6# (L) |
2 | ||
| 90099-14137 |
1URFE..UPK6# (J) |
2 | ||
| 15330B - VALVE ASSY, CAM TIMING OIL CONTROL, RH | ||||
| 15330-0S010 |
1URFE..UPK6# (L) |
2 | ||
| 15330-38010 |
1URFE..UPK6# (J) |
2 | ||
| 15340 - VALVE ASSY, CAM TIMING OIL CONTROL, LH | ||||
| 15330-38010 |
1URFE..UPK6# (J) |
2 | ||
| 15330-0S010 |
1URFE..UPK6# (L) |
2 | ||
| 15340A - RING, O(FOR CAM TIMING OIL CONTROL VALVE) | ||||
| 90099-14137 |
1URFE..UPK6# (J) |
2 | ||
| 90068-14030 |
1URFE..UPK6# (L) |
2 | ||
| 15678D - FILTER, OIL CONTROL VALVE, RH | ||||
| 15678-46020 |
1URFE..UPK6# |
1 | ||
| 15678E - FILTER, OIL CONTROL VALVE, LH | ||||
| 15678-46020 |
1URFE..UPK6# |
1 | ||
| Common parts | ||||
| 90105-A0064 | ||||
| 90105-A0103 | ||||
| 90109-06385 | ||||
| 90119-A0142 | ||||
| 90119-A0160 | ||||
| 91551-80616 | ||||
| 91551-80625 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 1706 | ||||

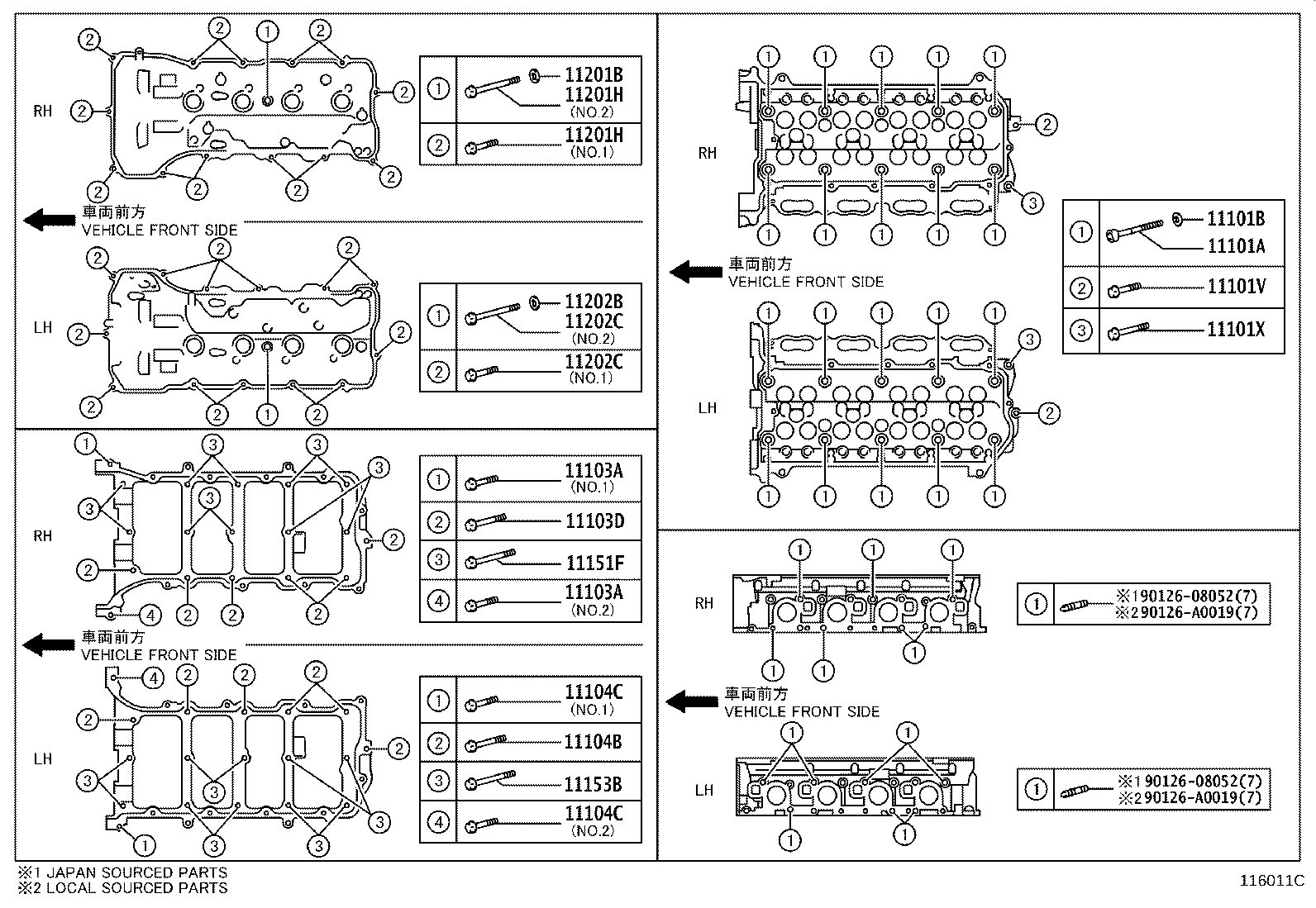

ILLUST NO. 3 OF 3(0904- )1URFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02164 |
1URFE..UPK6# |
20 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-11034 |
1URFE..UPK6# |
20 | ||
| 11101V - BOLT(FOR CYLINDER HEAD SET SUB) | ||||
| 91551-80825 |
1URFE..UPK6# (J) |
2 | ||
| 91551-80825 |
1URFE,3UR#..UPK6#,USK6# |
2 | ||
| 90105-A0127 |
1URFE..UPK6# (L) |
2 | ||
| 11101X - BOLT(FOR CYLINDER HEAD SET SUB) | ||||
| 90105-A0125 |
1URFE..UPK6# (L) |
2 | ||
| 91551-F0855 |
1URFE..UPK6# (J) |
2 | ||
| 91551-F0855 |
1URFE,3UR#..UPK6#,USK6# |
2 | ||
| 11103A - BOLT(FOR CAMSHAFT HOUSING SET) | ||||
| 91551-80625 |
1URFE,3UR#..UPK6#,USK6# NO.1 |
1 | ||
| 90105-A0103 |
1URFE..UPK6# NO.1,(L) |
1 | ||
| 91551-80625 |
1URFE..UPK6# NO.1,(J) |
1 | ||
| 91551-L0830 |
1URFE..UPK6# NO.2 |
1 | ||
| 11103A - BOLT(FOR CAMSHAFT HOUSING SET) | ||||
| 91551-80625 |
1URFE,3UR#..UPK6#,USK6# NO.1 |
1 | ||
| 90105-A0103 |
1URFE..UPK6# NO.1,(L) |
1 | ||
| 91551-80625 |
1URFE..UPK6# NO.1,(J) |
1 | ||
| 91551-L0830 |
1URFE..UPK6# NO.2 |
1 | ||
| 11103D - BOLT(FOR CAMSHAFT HOUSING TO CYLINDER HEAD, RH) | ||||
| 91551-G0845 |
1URFE,3UR#..UPK6#,USK6# |
6 | ||
| 91551-G0845 |
1URFE..UPK6# (J) |
6 | ||
| 90105-A0149 |
1URFE..UPK6# (L) |
6 | ||
| 11104B - BOLT(FOR CAMSHAFT HOUSING TO CYLINDER HEAD, LH) | ||||
| 91551-G0845 |
1URFE,3UR#..UPK6#,USK6# |
6 | ||
| 91551-G0845 |
1URFE..UPK6# (J) |
6 | ||
| 90105-A0149 |
1URFE..UPK6# (L) |
6 | ||
| 11104C - BOLT(FOR CAMSHAFT HOUSING SET LH) | ||||
| 90105-A0103 |
1URFE..UPK6# NO.1,(L) |
1 | ||
| 91551-L0830 |
1URFE..UPK6# NO.2 |
1 | ||
| 91551-80625 |
1URFE,3UR#..UPK6#,USK6# NO.1 |
1 | ||
| 91551-80625 |
1URFE..UPK6# NO.1,(J) |
1 | ||
| 11104C - BOLT(FOR CAMSHAFT HOUSING SET LH) | ||||
| 90105-A0103 |
1URFE..UPK6# NO.1,(L) |
1 | ||
| 91551-L0830 |
1URFE..UPK6# NO.2 |
1 | ||
| 91551-80625 |
1URFE,3UR#..UPK6#,USK6# NO.1 |
1 | ||
| 91551-80625 |
1URFE..UPK6# NO.1,(J) |
1 | ||
| 11151F - BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.2) | ||||
| 91551-G0865 |
1URFE..UPK6# |
10 | ||
| 11153B - BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.2) | ||||
| 91551-G0865 |
1URFE..UPK6# |
10 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-08045 |
1URFE..UPK6# |
1 | ||
| 11201H - BOLT(FOR CYLINDER HEAD COVER) | ||||
| 91551-80870 |
1URFE..UPK6# NO.2 |
1 | ||
| 91551-A0625 |
1URFE..UPK6# NO.1 |
13 | ||
| 11201H - BOLT(FOR CYLINDER HEAD COVER) | ||||
| 91551-80870 |
1URFE..UPK6# NO.2 |
1 | ||
| 91551-A0625 |
1URFE..UPK6# NO.1 |
13 | ||
| 11202B - WASHER, SEAL(FOR CYLINDER HEAD COVER, LH) | ||||
| 90210-08045 |
1URFE..UPK6# |
1 | ||
| 11202C - BOLT(FOR CYLINDER HEAD COVER LH) | ||||
| 91551-80870 |
1URFE..UPK6# NO.2 |
1 | ||
| 91551-A0625 |
1URFE..UPK6# NO.1 |
13 | ||
| 11202C - BOLT(FOR CYLINDER HEAD COVER LH) | ||||
| 91551-80870 |
1URFE..UPK6# NO.2 |
1 | ||
| 91551-A0625 |
1URFE..UPK6# NO.1 |
13 | ||
| Common parts | ||||
| 90126-08052 | ||||
| 90126-A0019 | ||||
