UCK65L-GKASKA (2007)

Toyota Sequoia

Production Nov 2007 - Apr 2009
Engine 2UZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0711- )2UZFE

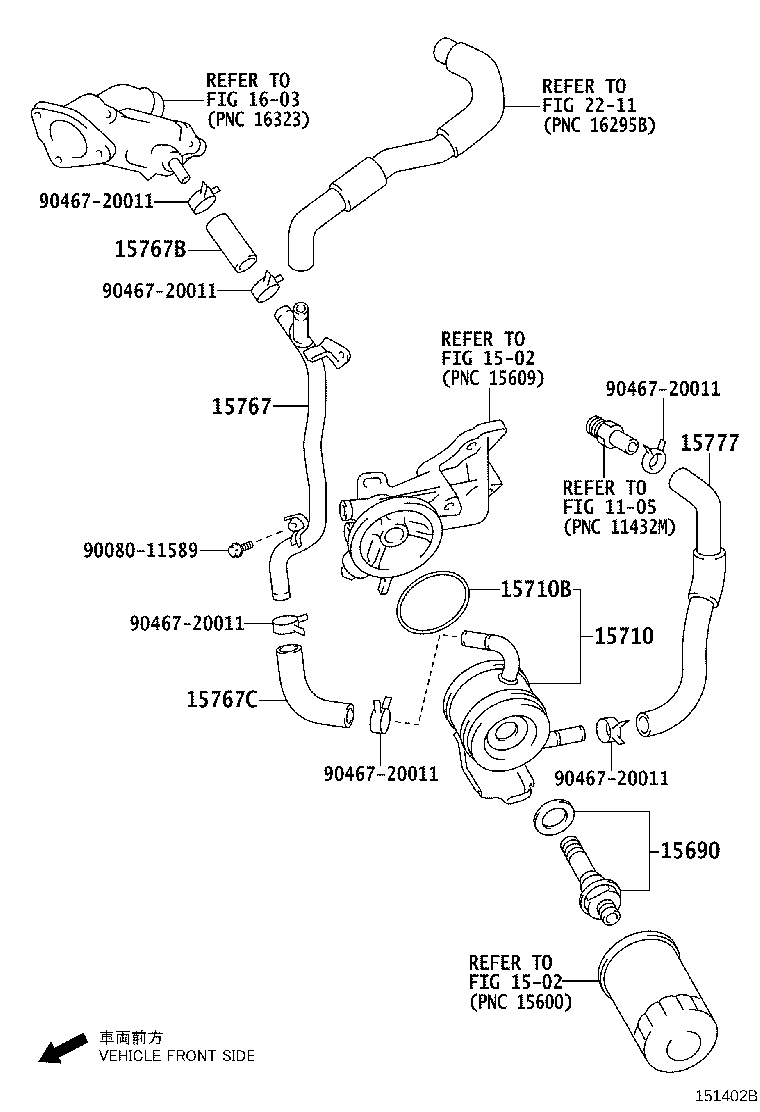

Click highlighted areas on diagram

diagram 1105 1502 1502 15690 15710 15710B 15767 15767B 15767C 15777 1603 2211 9008011589 9046720011 9046720011 9046720011 9046720011 9046720011 9046720011
Part # Description Qty Price
15690 - VALVE ASSY, OIL COOLER RELIEF
15695-50010

2UZFE..UCK6#

 1
15710 - COOLER ASSY, OIL
15710-50090

2UZFE..UCK6#

 1
15710B - RING, O(FOR OIL COOLER)
90301-67004

2UZFE..UCK6#

 1
15767 - PIPE, OIL COOLER
15767-0F011

2UZFE..UCK6#

 1
15767B - HOSE, WATER BY-PASS, NO.4
16281-0F010

2UZFE..UCK6#

 1
15767C - HOSE, WATER BY-PASS, NO.5
16282-0F010

2UZFE..UCK6#

 1
15777 - HOSE, OIL COOLER
15777-50100

2UZFE..UCK6#

 1
Common parts
90080-11589
90467-20011
Linked diagrams
1105
1502
1603
2211
