UCK65L-GKASKA (2007)

Toyota Sequoia

Production Nov 2007 - Apr 2009
Engine 2UZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0711-0904)2UZFE

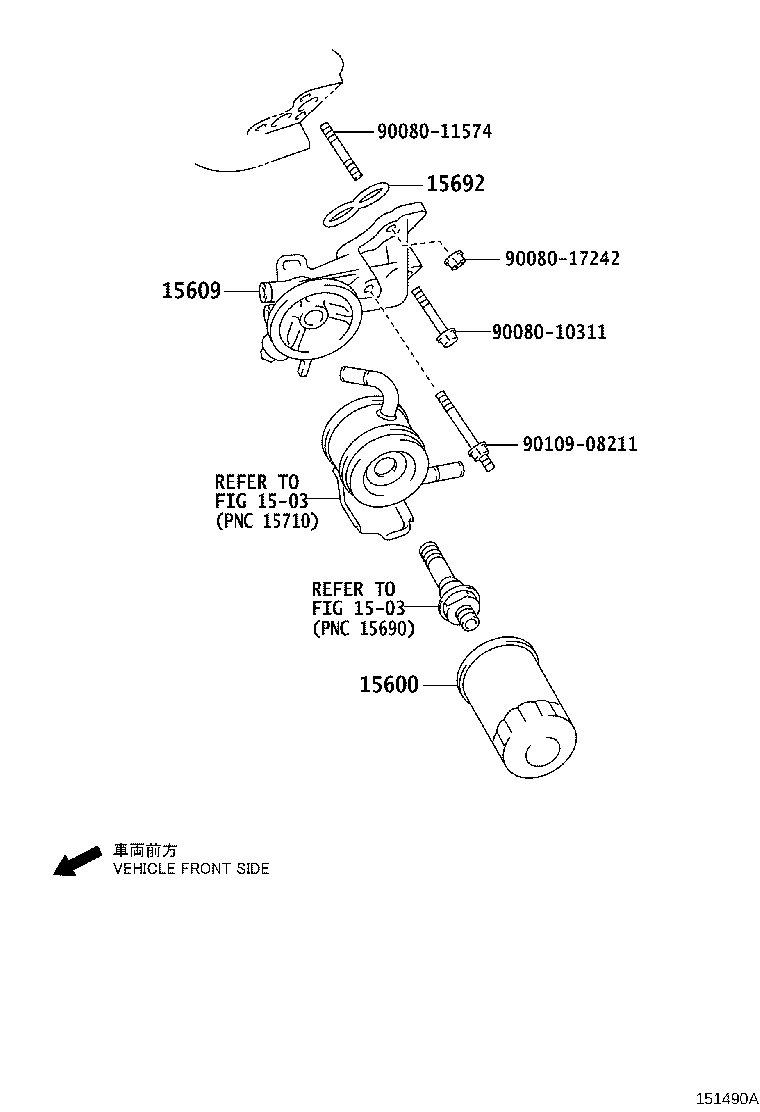

Click highlighted areas on diagram

diagram 1503 1503 15600 15609 15692 9008010311 9008011574 9008017242 9010908211
Part # Description Qty Price
15600 - FILTER ASSY, OIL
90915-20004

2UZFE..UCK6#

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-50110

2UZFE..UCK6#

 1
15692 - GASKET, OIL FILTER BRACKET
15692-50020

2UZFE..UCK6#

 1
Common parts
90080-10311
90080-11574
90080-17242
90109-08211
Linked diagrams
1503
