UCK65L-GKALKA (2007)
Toyota Sequoia
Production
Nov 2007
-
Apr 2009
Engine
2UZFE
Transmission
5FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

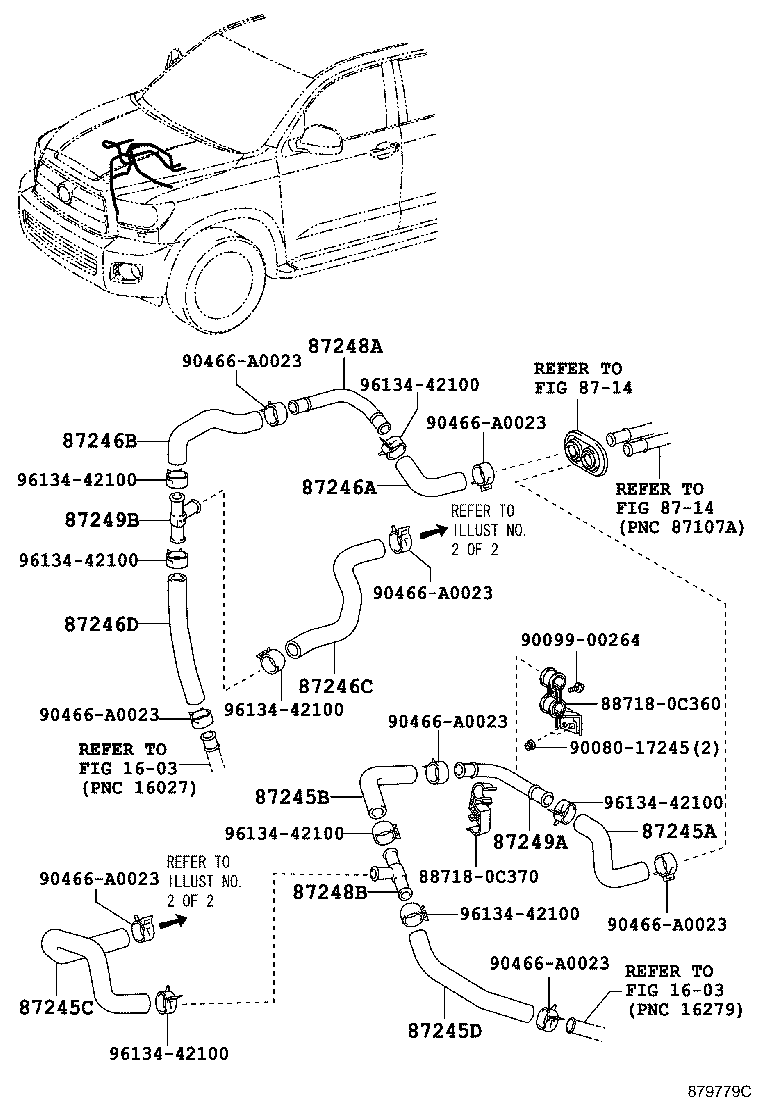

ILLUST NO. 1 OF 2(0711- )UCK6#
Click highlighted areas on diagram
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-0C260 |
UCK6# |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-0C360 |
UCK6# |
1 | ||
| 87245C - HOSE, HEATER WATER ,INLET C | ||||
| 87245-0C370 |
UCK6# |
1 | ||
| 87245D - HOSE, HEATER WATER, INLET D | ||||
| 87245-0C380 |
UCK6# |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-0C270 |
UCK6# |
1 | ||
| 87246B - HOSE, HEATER WATER, OUTLET B | ||||
| 87245-0C330 |
UCK6# |
1 | ||
| 87246C - HOSE, HEATER WATER, OUTLET C | ||||
| 87245-0C340 |
UCK6# |
1 | ||
| 87246D - HOSE, HEATER WATER, OUTLET D | ||||
| 87245-0C350 |
UCK6# |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87248-0C090 |
UCK6# |
1 | ||
| 87248B - PIPE, HEATER WATER INLET, B | ||||
| 87248-08030 |
UCK6# |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87248-0C080 |
UCK6# |
1 | ||
| 87249B - PIPE, HEATER WATER OUTLET, B | ||||
| 87248-08030 |
UCK6# |
1 | ||
| Common parts | ||||
| 88718-0C360 | ||||
| 88718-0C370 | ||||
| 90080-17245 | ||||
| 90099-00264 | ||||
| 90466-A0023 | ||||
| 96134-42100 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 8714 | ||||
ILLUST NO. 2 OF 2(0711- )
Click highlighted areas on diagram
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87245 - HOSE, HEATER WATER, INLET | ||||
| 87245-0C230 |
UCK6#,USK6# |
1 | ||
| 87245-0C450 |
UCK6# |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-0C310 |
UCK6#,UPK6#,USK6# |
1 | ||
| 87245H - HOSE, HEATER WATER, INLET H | ||||
| 87245-0C300 |
UCK6#,UPK6#,USK6# |
1 | ||
| 87246 - HOSE, HEATER WATER, OUTLET | ||||
| 87245-0C220 |
UCK6#,USK6# |
1 | ||
| 87245-0C450 |
UCK6# |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-0C320 |
UCK6#,UPK6#,USK6# |
1 | ||
| 87246G - HOSE, HEATER WATER, OUTLET G | ||||
| 87245-0C290 |
UCK6#,UPK6#,USK6# |
1 | ||
| 87248 - PIPE SUB-ASSY, WATER | ||||
| 87248-0C070 |
UCK6# |
1 | ||
| 87248C - PIPE, HEATER WATER INLET, C | ||||
| 87248-0C110 |
UCK6#,UPK6#,USK6# |
1 | ||
| 87248D - PIPE, HEATER WATER INLET, D | ||||
| 87248-0C130 |
UCK6#,UPK6#,USK6# |
1 | ||
| 87249C - PIPE, HEATER WATER OUTLET, C | ||||
| 87248-0C100 |
UCK6#,UPK6#,USK6# |
1 | ||
| 87249D - PIPE, HEATER WATER OUTLET, D | ||||
| 87248-0C120 |
UCK6#,UPK6#,USK6# |
1 | ||
| Common parts | ||||
| 88718-08530 | ||||
| 88718-08560 | ||||
| 88718-0C550 | ||||
| 88718-0C560 | ||||
| 88718-0C570 | ||||
| 88718-0C580 | ||||
| 88718-0C590 | ||||
| 88718-0C600 | ||||
| 88718-0C610 | ||||
| 90080-17245 | ||||
| 90099-00264 | ||||
| 90466-A0022 | ||||
| 96134-52100 | ||||
| Linked diagrams | ||||
| 8714 | ||||
