UCK45L-GKSSKA (2000)

Toyota Sequoia

Production Sep 2000 - Aug 2004
Engine 2UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0009- )

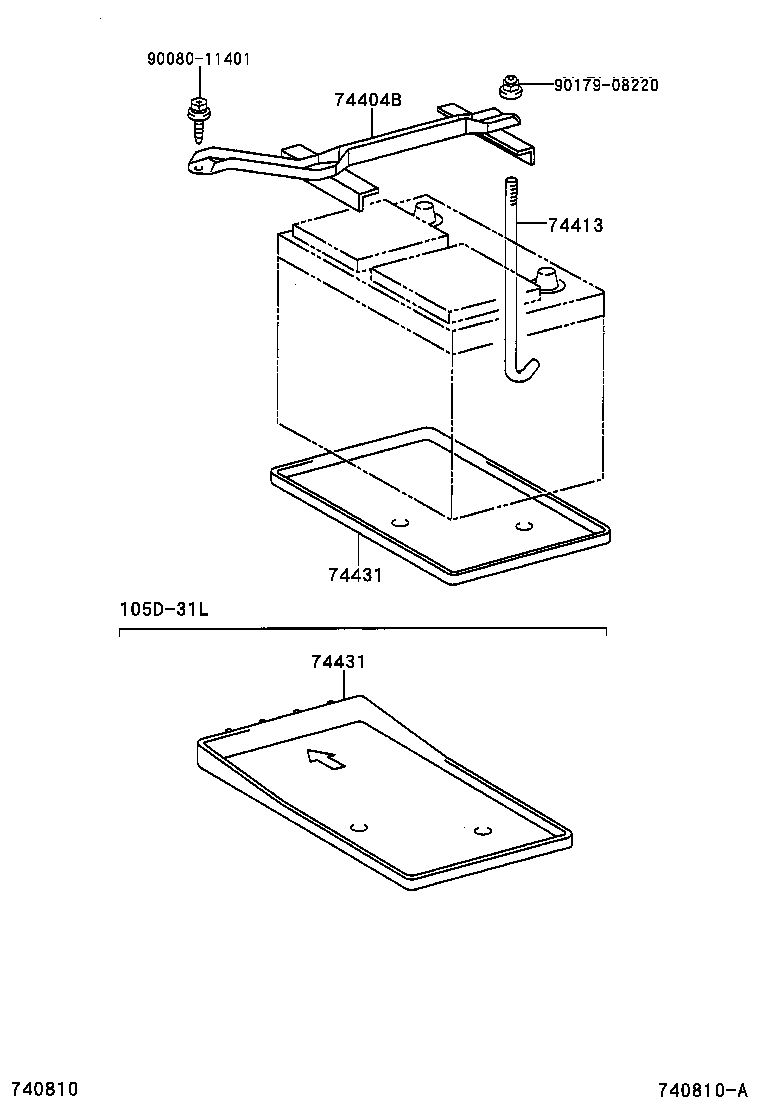

Click highlighted areas on diagram

diagram 74404B 74413 74431 74431 9008011401 9017908220
Part # Description Qty Price
74404B - CLAMP SUB-ASSY, BATTERY
74404-0C020

UCK35,45

 1
74413 - BOLT, BATTERY CLAMP
74451-0C010

UCK35,45

 1
74431 - TRAY, BATTERY
74431-03010

UCK35,45..4HC

W(BATTERY=80D26L)

 1
74431-0C010

UCK35,45

W(BATTERY=105D31L)

 1
74431 - TRAY, BATTERY
74431-03010

UCK35,45..4HC

W(BATTERY=80D26L)

 1
74431-0C010

UCK35,45

W(BATTERY=105D31L)

 1
Common parts
90080-11401
90179-08220
