UCK45L-GKSSKA (2000)
Toyota Sequoia

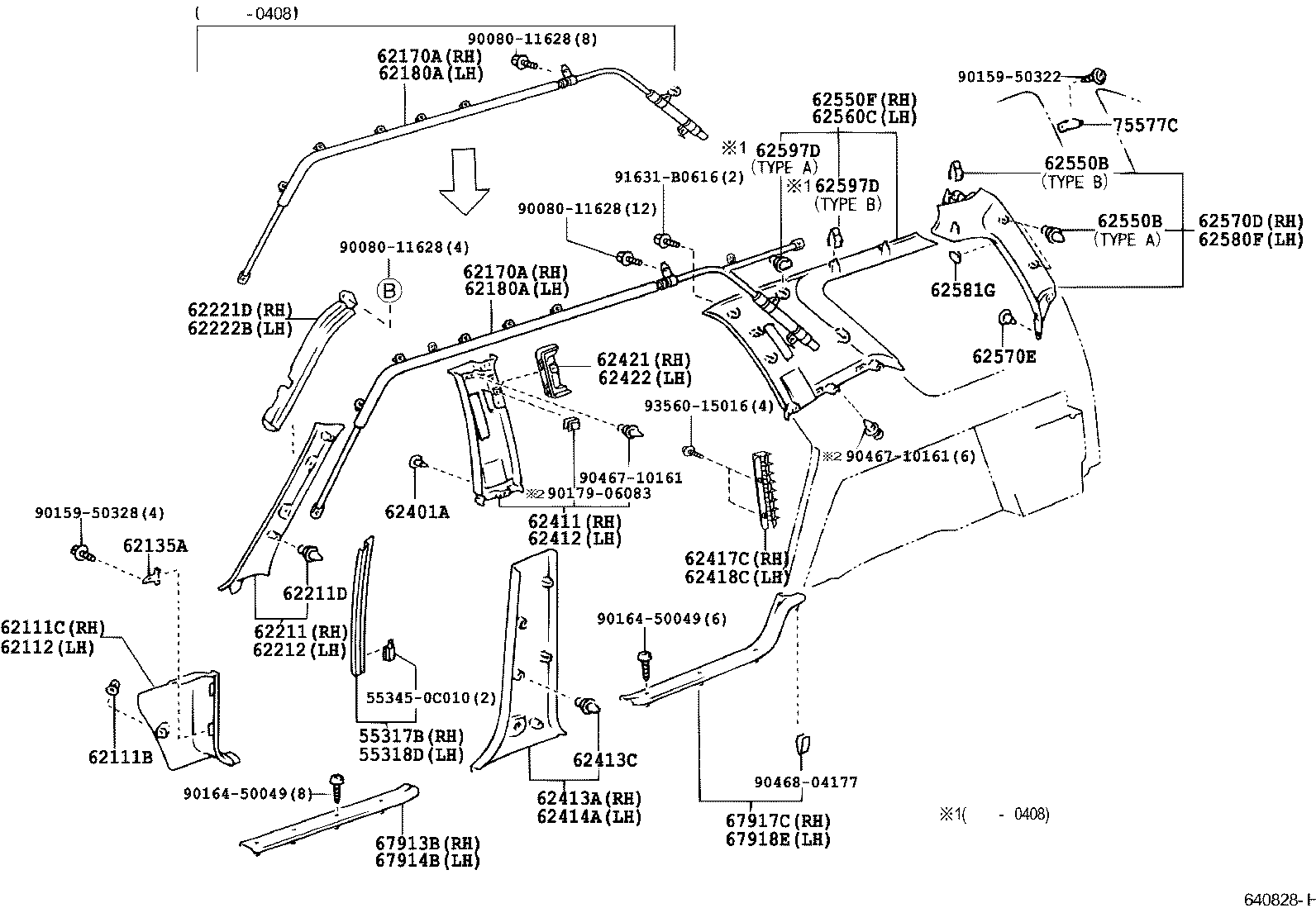

ILLUST NO. 1 OF 2(0009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55317B - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-0C010B0 |
UCK35,45 MD.CHARCOAL,TRIM1# |
1 | ||
| 55317-0C010E0 |
UCK35,45 MD.OAK,TRIM4# |
1 | ||
| 55318D - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-0C010E0 |
UCK35,45 MD.OAK,TRIM4# |
1 | ||
| 55318-0C010B0 |
UCK35,45 MD.CHARCOAL,TRIM1# |
1 | ||
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 90467-0505122 |
UCK35,45 BLACK,TRIM1#,4# |
2 | ||
| 62111C - BOARD, COWL SIDE TRIM, RH | ||||
| 62111-0C020B0 |
UCK35,45 MD.CHARCOAL,TRIM1# |
1 | ||
| 62111-0C020E0 |
UCK35,45 MD.OAK,TRIM4# |
1 | ||
| 62112 - BOARD, COWL SIDE TRIM, LH | ||||
| 62112-0C020B0 |
UCK35,45 MD.CHARCOAL,TRIM1# |
1 | ||
| 62112-0C020E0 |
UCK35,45 MD.OAK,TRIM4# |
1 | ||
| 62135A - RETAINER, COWL SIDE COVER | ||||
| 62135-34040 |
UCK35,45..4HC |
4 | ||
| 62135-0C010 |
UCK35,45 |
4 | ||
| 62170A - AIR BAG ASSY, CURTAIN SHIELD, RH | ||||
| 62170-0C010 |
UCK35,45 |
1 | ||
| 62170A - AIR BAG ASSY, CURTAIN SHIELD, RH | ||||
| 62170-0C010 |
UCK35,45 |
1 | ||
| 62180A - AIR BAG ASSY, CURTAIN SHIELD, LH | ||||
| 62180-0C010 |
UCK35,45 |
1 | ||
| 62180A - AIR BAG ASSY, CURTAIN SHIELD, LH | ||||
| 62180-0C010 |
UCK35,45 |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62210-0C020E0 |
UCK35,45 W(*80,CURTAIN SHIELD),MD.OAK,TRIM4# |
1 | ||
| 62210-0C010E0 |
UCK35,45 MD.OAK,TRIM4# |
1 | ||
| 62210-0C010B0 |
UCK35,45 MD.CHARCOAL,TRIM1# |
1 | ||
| 62210-0C020B0 |
UCK35,45 W(*80,CURTAIN SHIELD),MD.CHARCOAL,TRIM1# |
1 | ||
| 62211D - CLIP(FOR FRONT BODY PILLAR GARNISH) | ||||
| 90467-08179 |
UCK35,45 |
2 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62220-0C010E0 |
UCK35,45 MD.OAK,TRIM4# |
1 | ||
| 62220-0C020B0 |
UCK35,45 W(*80,CURTAIN SHIELD),MD.CHARCOAL,TRIM1# |
1 | ||
| 62220-0C020E0 |
UCK35,45 W(*80,CURTAIN SHIELD),MD.OAK,TRIM4# |
1 | ||
| 62220-0C010B0 |
UCK35,45 MD.CHARCOAL,TRIM1# |
1 | ||
| 62221D - COVER, FRONT PILLAR GARNISH, RH | ||||
| 62221-0C020 |
UCK35,45..4HC |
1 | ||
| 62222B - COVER, FRONT PILLAR GARNISH, LH | ||||
| 62222-0C020 |
UCK35,45..4HC |
1 | ||
| 62401A - CLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER) | ||||
| 90467-07106 |
UCK35,45 |
2 | ||
| 90467-A0016E0 |
UCK35,45 MD.OAK,TRIM4# |
2 | ||
| 90467-A0016B0 |
UCK35,45 MD.CHARCOAL,TRIM1# |
2 | ||
| 62411 - GARNISH, CENTER PILLAR, RH | ||||
| 62410-0C020E0 |
UCK35,45 MD.OAK,TRIM4# |
1 | ||
| 62410-0C010E0 |
UCK35,45 MD.OAK,TRIM4# |
1 | ||
| 62410-0C020B0 |
UCK35,45 MD.CHARCOAL,TRIM1# |
1 | ||
| 62410-0C010B0 |
UCK35,45 MD.CHARCOAL,TRIM1# |
1 | ||
| 62412 - GARNISH, CENTER PILLAR, LH | ||||
| 62420-0C010B0 |
UCK35,45 MD.CHARCOAL,TRIM1# |
1 | ||
| 62420-0C020B0 |
UCK35,45 MD.CHARCOAL,TRIM1# |
1 | ||
| 62420-0C020E0 |
UCK35,45 MD.OAK,TRIM4# |
1 | ||
| 62420-0C010E0 |
UCK35,45 MD.OAK,TRIM4# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-0C010E0 |
UCK35,45 MD.OAK,TRIM4# |
1 | ||
| 62413-0C010B0 |
UCK35,45 MD.CHARCOAL,TRIM1# |
1 | ||
| 62413C - CLIP (FOR CENTER LOWER GARNISH) | ||||
| 90467-10161 |
UCK35,45 |
8 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-0C010B0 |
UCK35,45 MD.CHARCOAL,TRIM1# |
1 | ||
| 62414-0C010E0 |
UCK35,45 MD.OAK,TRIM4# |
1 | ||
| 62417C - PAD, CENTER PILLAR, RH | ||||
| 62417-0C030 |
UCK35,45 |
1 | ||
| 62418C - PAD, CENTER PILLAR, LH | ||||
| 62418-0C030 |
UCK35,45 |
1 | ||
| 62421 - COVER, CENTER PILLAR GARNISH, RH | ||||
| 62421-0C010E0 |
UCK35,45 W(*80,CURTAIN SHIELD),MD.OAK,TRIM4# |
1 | ||
| 74637-0C010B0 |
UCK35,45 MD.CHARCOAL,TRIM1# |
1 | ||
| 74637-0C010E0 |
UCK35,45 MD.OAK,TRIM4# |
1 | ||
| 62421-0C010B0 |
UCK35,45 W(*80,CURTAIN SHIELD),MD.CHARCOAL,TRIM1# |
1 | ||
| 62422 - COVER, CENTER PILLAR GARNISH, LH | ||||
| 74638-0C010B0 |
UCK35,45 MD.CHARCOAL,TRIM1# |
1 | ||
| 62422-0C010B0 |
UCK35,45 W(*80,CURTAIN SHIELD),MD.CHARCOAL,TRIM1# |
1 | ||
| 62422-0C010E0 |
UCK35,45 W(*80,CURTAIN SHIELD),MD.OAK,TRIM4# |
1 | ||
| 74638-0C010E0 |
UCK35,45 MD.OAK,TRIM4# |
1 | ||
| 62550B - CLIP(FOR REAR WINDOW SIDE GARNISH) | ||||
| 90468-05125 |
UCK35,45 TYPE B:REFER ILLUST. |
2 | ||
| 90467-10168 |
UCK35,45 TYPE A:REFER ILLUST. |
4 | ||
| 62550B - CLIP(FOR REAR WINDOW SIDE GARNISH) | ||||
| 90468-05125 |
UCK35,45 TYPE B:REFER ILLUST. |
2 | ||
| 90467-10168 |
UCK35,45 TYPE A:REFER ILLUST. |
4 | ||
| 62550F - GARNISH ASSY, REAR WINDOW SIDE, RH | ||||
| 62550-0C010B0 |
UCK35,45 MD.CHARCOAL,TRIM1# |
1 | ||
| 62550-0C010E0 |
UCK35,45 MD.OAK,TRIM4# |
1 | ||
| 62560C - GARNISH ASSY, REAR WINDOW SIDE, LH | ||||
| 62560-0C010B0 |
UCK35,45 MD.CHARCOAL,TRIM1# |
1 | ||
| 62560-0C010E0 |
UCK35,45 MD.OAK,TRIM4# |
1 | ||
| 62570D - GARNISH ASSY, REAR WINDOW SIDE, NO.2 RH | ||||
| 62570-0C010E0 |
UCK35,45 MD.OAK,TRIM4# |
1 | ||
| 62570-0C010B0 |
UCK35,45 MD.CHARCOAL,TRIM1# |
1 | ||
| 62570E - CLIP, REAR WINDOW SIDE GARNISH | ||||
| 90467-07106 |
UCK35,45 |
6 | ||
| 90467-A0016B0 |
UCK35,45 MD.CHARCOAL,TRIM1# |
6 | ||
| 90467-A0016E0 |
UCK35,45 MD.OAK,TRIM4# |
6 | ||
| 62580F - GARNISH ASSY, REAR WINDOW SIDE, NO.2 LH | ||||
| 62580-0C010B0 |
UCK35,45 MD.CHARCOAL,TRIM1# |
1 | ||
| 62580-0C010E0 |
UCK35,45 MD.OAK,TRIM4# |
1 | ||
| 62581G - COVER, QUARTER PILLAR, RH | ||||
| 62581-0C010E0 |
UCK35,45 MD.OAK,TRIM4# |
2 | ||
| 62581-0C010B0 |
UCK35,45 MD.CHARCOAL,TRIM1# |
2 | ||
| 62597D - CLIP | ||||
| 90467-10168 |
UCK35,45 TYPE A:REFER ILLUST. |
14 | ||
| 90468-05125 |
UCK35,45 TYPE B:REFER ILLUST. |
4 | ||
| 62597D - CLIP | ||||
| 90467-10168 |
UCK35,45 TYPE A:REFER ILLUST. |
14 | ||
| 90468-05125 |
UCK35,45 TYPE B:REFER ILLUST. |
4 | ||
| 67913B - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-0C030B0 |
UCK35,45 MD.CHARCOAL,TRIM1# |
1 | ||
| 67913-0C030E0 |
UCK35,45 MD.OAK,TRIM4# |
1 | ||
| 67914B - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-0C030E0 |
UCK35,45 MD.OAK,TRIM4# |
1 | ||
| 67914-0C030B0 |
UCK35,45 MD.CHARCOAL,TRIM1# |
1 | ||
| 67917C - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-0C010B0 |
UCK35,45 MD.CHARCOAL,TRIM1# |
1 | ||
| 67917-0C010E0 |
UCK35,45 MD.OAK,TRIM4# |
1 | ||
| 67918E - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-0C010B0 |
UCK35,45 MD.CHARCOAL,TRIM1# |
1 | ||
| 67918-0C010E0 |
UCK35,45 MD.OAK,TRIM4# |
1 | ||
| 75577C - BRACKET, ROOF SIDE GARNISH | ||||
| 75577-0C010 |
UCK35,45 |
1 | ||
| Common parts | ||||
| 55345-0C010 | ||||
| 90080-11628 | ||||
| 90159-50322 | ||||
| 90159-50328 | ||||
| 90164-50049 | ||||
| 90179-06083 | ||||
| 90467-10161 | ||||
| 90468-04177 | ||||
| 91631-B0616 | ||||
| 93560-15016 | ||||

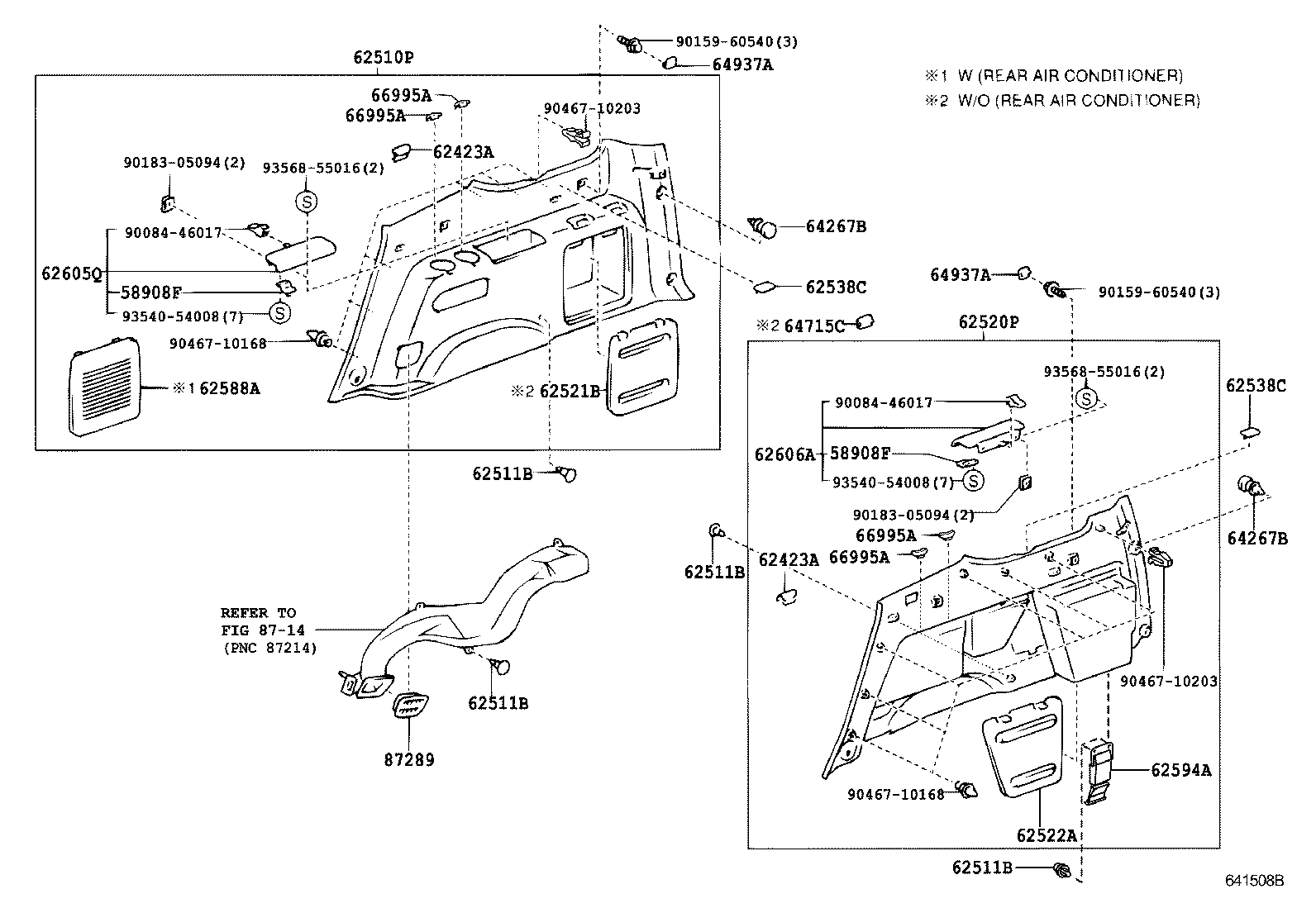

ILLUST NO. 2 OF 2(0009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58908F - LOCK SUB-ASSY, QUARTER TRIM LID | ||||
| 58908-32040 |
UCK35,45 |
2 | ||
| 58908F - LOCK SUB-ASSY, QUARTER TRIM LID | ||||
| 58908-32040 |
UCK35,45 |
2 | ||
| 62423A - HOOK, SIDE WINDOW GARNISH | ||||
| 62423-0C010B0 |
UCK35,45 MD.CHARCOAL,TRIM1# |
4 | ||
| 62423-0C010E0 |
UCK35,45 MD.OAK,TRIM4# |
4 | ||
| 62423A - HOOK, SIDE WINDOW GARNISH | ||||
| 62423-0C010B0 |
UCK35,45 MD.CHARCOAL,TRIM1# |
4 | ||
| 62423-0C010E0 |
UCK35,45 MD.OAK,TRIM4# |
4 | ||
| 62510P - PANEL ASSY, QUARTER TRIM, FRONT RH | ||||
| 62510-0C020B0 |
UCK35,45..SR5 MD.CHARCOAL,TRIM1# |
1 | ||
| 62510-0C020E0 |
UCK35,45..SR5 MD.OAK,TRIM4# |
1 | ||
| 62510-0C030E0 |
UCK35,45 W(REAR AIR CONDITIONER),MD.OAK,TRIM4# |
1 | ||
| 62510-0C030B0 |
UCK35,45 W(REAR AIR CONDITIONER),MD.CHARCOAL,TRIM1# |
1 | ||
| 62511B - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-07076B5 |
UCK35,45 MD.CHARCOAL,TRIM1# |
2 | ||
| 90467-07076E4 |
UCK35,45 DK. OAK,TRIM4# |
2 | ||
| 90467-A0016E0 |
UCK35,45 MD.OAK,TRIM4# |
2 | ||
| 90467-A0016B0 |
UCK35,45 MD.CHARCOAL,TRIM1# |
2 | ||
| 62511B - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-07076B5 |
UCK35,45 MD.CHARCOAL,TRIM1# |
2 | ||
| 90467-07076E4 |
UCK35,45 DK. OAK,TRIM4# |
2 | ||
| 90467-A0016E0 |
UCK35,45 MD.OAK,TRIM4# |
2 | ||
| 90467-A0016B0 |
UCK35,45 MD.CHARCOAL,TRIM1# |
2 | ||
| 62511B - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-07076B5 |
UCK35,45 MD.CHARCOAL,TRIM1# |
2 | ||
| 90467-07076E4 |
UCK35,45 DK. OAK,TRIM4# |
2 | ||
| 90467-A0016E0 |
UCK35,45 MD.OAK,TRIM4# |
2 | ||
| 90467-A0016B0 |
UCK35,45 MD.CHARCOAL,TRIM1# |
2 | ||
| 62511B - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-07076B5 |
UCK35,45 MD.CHARCOAL,TRIM1# |
2 | ||
| 90467-07076E4 |
UCK35,45 DK. OAK,TRIM4# |
2 | ||
| 90467-A0016E0 |
UCK35,45 MD.OAK,TRIM4# |
2 | ||
| 90467-A0016B0 |
UCK35,45 MD.CHARCOAL,TRIM1# |
2 | ||
| 62520P - PANEL ASSY, QUARTER TRIM, FRONT LH | ||||
| 62520-0C020B0 |
UCK35,45 MD.CHARCOAL,TRIM1# |
1 | ||
| 62520-0C020E0 |
UCK35,45 MD.OAK,TRIM4# |
1 | ||
| 62521B - COVER, QUARTER TRIM, RH | ||||
| 62521-0C010E0 |
UCK35,45..SR5 MD.OAK,TRIM4# |
1 | ||
| 62521-0C010B0 |
UCK35,45..SR5 MD.CHARCOAL,TRIM1# |
1 | ||
| 62522A - COVER, QUARTER TRIM, LH | ||||
| 62522-0C010E0 |
UCK35,45 MD.OAK,TRIM4# |
1 | ||
| 62522-0C010B0 |
UCK35,45 MD.CHARCOAL,TRIM1# |
1 | ||
| 62538C - COVER, QUARTER TRIM, HOLE | ||||
| 62538-0C010B0 |
UCK35,45 MD.CHARCOAL,TRIM1# |
2 | ||
| 62539-0C010E0 |
UCK35,45 W(THIRD SEAT),MD.OAK,TRIM4# |
2 | ||
| 62539-0C010B0 |
UCK35,45 W(THIRD SEAT),MD.CHARCOAL,TRIM1# |
2 | ||
| 62538-0C010E0 |
UCK35,45 MD.OAK,TRIM4# |
2 | ||
| 62538C - COVER, QUARTER TRIM, HOLE | ||||
| 62538-0C010B0 |
UCK35,45 MD.CHARCOAL,TRIM1# |
2 | ||
| 62539-0C010E0 |
UCK35,45 W(THIRD SEAT),MD.OAK,TRIM4# |
2 | ||
| 62539-0C010B0 |
UCK35,45 W(THIRD SEAT),MD.CHARCOAL,TRIM1# |
2 | ||
| 62538-0C010E0 |
UCK35,45 MD.OAK,TRIM4# |
2 | ||
| 62588A - COVER, SIDE HEATER, LOWER | ||||
| 62588-0C010E0 |
UCK35,45 MD.OAK,TRIM4# |
1 | ||
| 62588-0C010B0 |
UCK35,45 MD.CHARCOAL,TRIM1# |
1 | ||
| 62605Q - LID SUB-ASSY, QUARTER TRIM, RH | ||||
| 62605-0C010E0 |
UCK35,45 MD.OAK,TRIM4# |
1 | ||
| 62605-0C010B0 |
UCK35,45 MD.CHARCOAL,TRIM1# |
1 | ||
| 62606A - LID SUB-ASSY, QUARTER TRIM, LH | ||||
| 62606-0C010E0 |
UCK35,45 MD.OAK,TRIM4# |
1 | ||
| 62606-0C010B0 |
UCK35,45 MD.CHARCOAL,TRIM1# |
1 | ||
| 64267B - HOOK, PACKAGE HOLDER NET | ||||
| 64267-0C010E0 |
UCK35,45 MD.OAK,TRIM4# |
4 | ||
| 64267-0C010B0 |
UCK35,45 MD.CHARCOAL,TRIM1# |
4 | ||
| 64267B - HOOK, PACKAGE HOLDER NET | ||||
| 64267-0C010E0 |
UCK35,45 MD.OAK,TRIM4# |
4 | ||
| 64267-0C010B0 |
UCK35,45 MD.CHARCOAL,TRIM1# |
4 | ||
| 64715C - COVER, DECK SIDE TRIM, LH | ||||
| 64715-0C010B0 |
UCK35,45..SR5 MD.CHARCOAL,TRIM1# |
1 | ||
| 64715-0C010E0 |
UCK35,45..SR5 MD.OAK,TRIM4# |
1 | ||
| 64937A - CAP, TONNEAU COVER HOLDER, NO.1 | ||||
| 64937-0C010B0 |
UCK35,45 MD.CHARCOAL,TRIM1# |
4 | ||
| 64937-0C010E0 |
UCK35,45 MD.OAK,TRIM4# |
4 | ||
| 64937A - CAP, TONNEAU COVER HOLDER, NO.1 | ||||
| 64937-0C010B0 |
UCK35,45 MD.CHARCOAL,TRIM1# |
4 | ||
| 64937-0C010E0 |
UCK35,45 MD.OAK,TRIM4# |
4 | ||
| 66995A - RETAINER, CUP HOLDER | ||||
| 66995-0C010 |
UCK35,45 |
12 | ||
| 66995A - RETAINER, CUP HOLDER | ||||
| 66995-0C010 |
UCK35,45 |
12 | ||
| 66995A - RETAINER, CUP HOLDER | ||||
| 66995-0C010 |
UCK35,45 |
12 | ||
| 66995A - RETAINER, CUP HOLDER | ||||
| 66995-0C010 |
UCK35,45 |
12 | ||
| 87289 - BEZEL, RR HEATER REGISTER | ||||
| 87289-0C010E0 |
UCK35,45 MD.OAK,TRIM4# |
1 | ||
| 87289-0C010B0 |
UCK35,45 MD.CHARCOAL,TRIM1# |
1 | ||
| Common parts | ||||
| 90084-46017 | ||||
| 90159-60540 | ||||
| 90183-05094 | ||||
| 90467-10168 | ||||
| 90467-10203 | ||||
| 93540-54008 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 8714 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
