UCK45L-GKSSKA (2000)

Toyota Sequoia

Production Sep 2000 - Aug 2004
Engine 2UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0009- )

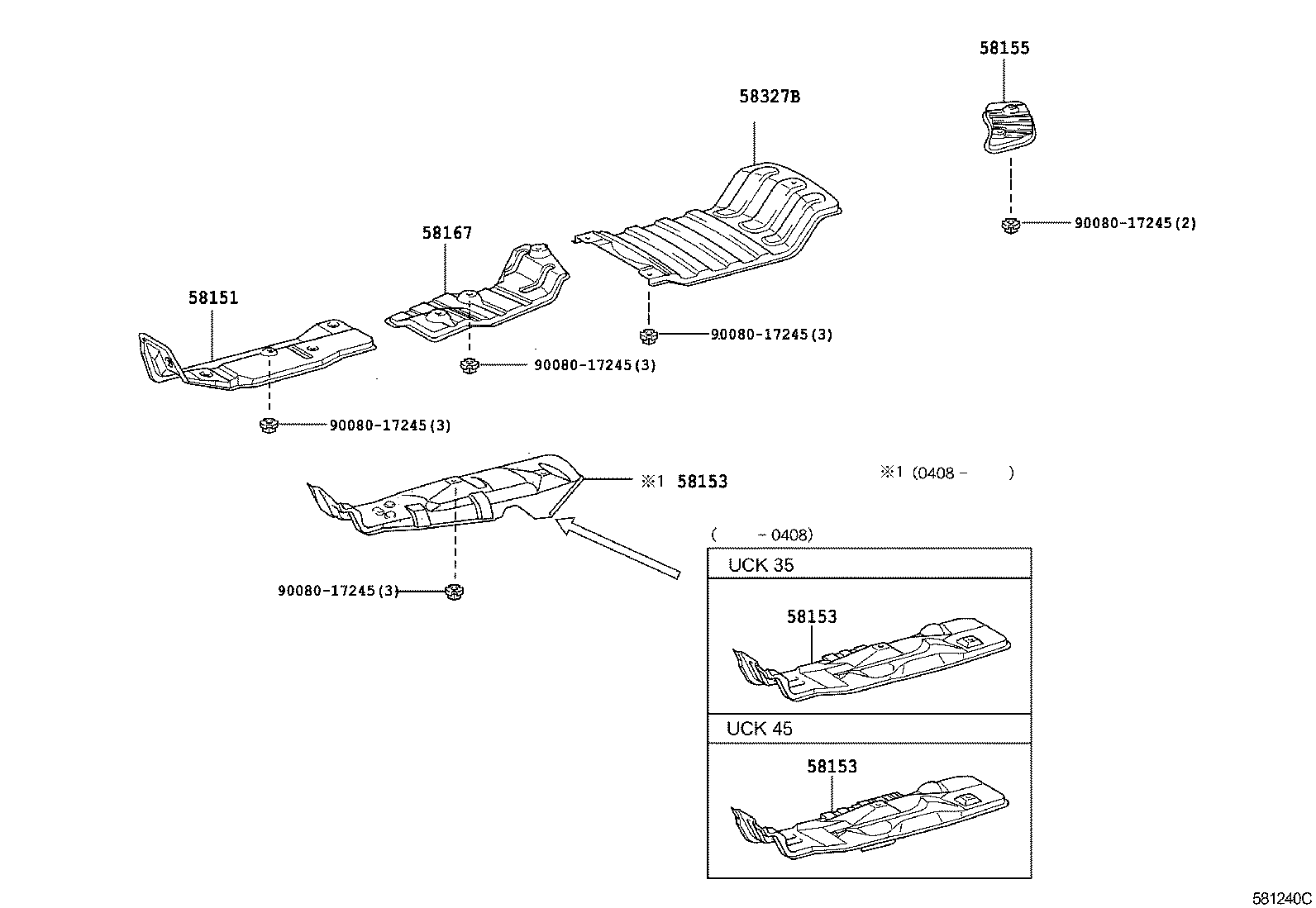

Click highlighted areas on diagram

diagram 58151 58153 58153 58153 58155 58167 58327B 9008017245 9008017245 9008017245 9008017245 9008017245
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-0C010

UCK35,45

 1
58153 - INSULATOR, FRONT FLOOR HEAT, NO.2
58042-0C010

UCK45

 1
58153 - INSULATOR, FRONT FLOOR HEAT, NO.2
58042-0C010

UCK45

 1
58153 - INSULATOR, FRONT FLOOR HEAT, NO.2
58042-0C010

UCK45

 1
58155 - INSULATOR, FRONT FLOOR HEAT, NO.3
58155-0C010

UCK35,45

 1
58167 - INSULATOR, FRONT FLOOR HEAT, NO.1 SUB
58167-0C020

UCK35,45

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-0C030

UCK35,45

 1
Common parts
90080-17245
