UCK45L-GKSSKA (2000)

Toyota Sequoia

Production Sep 2000 - Aug 2004
Engine 2UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0009- )

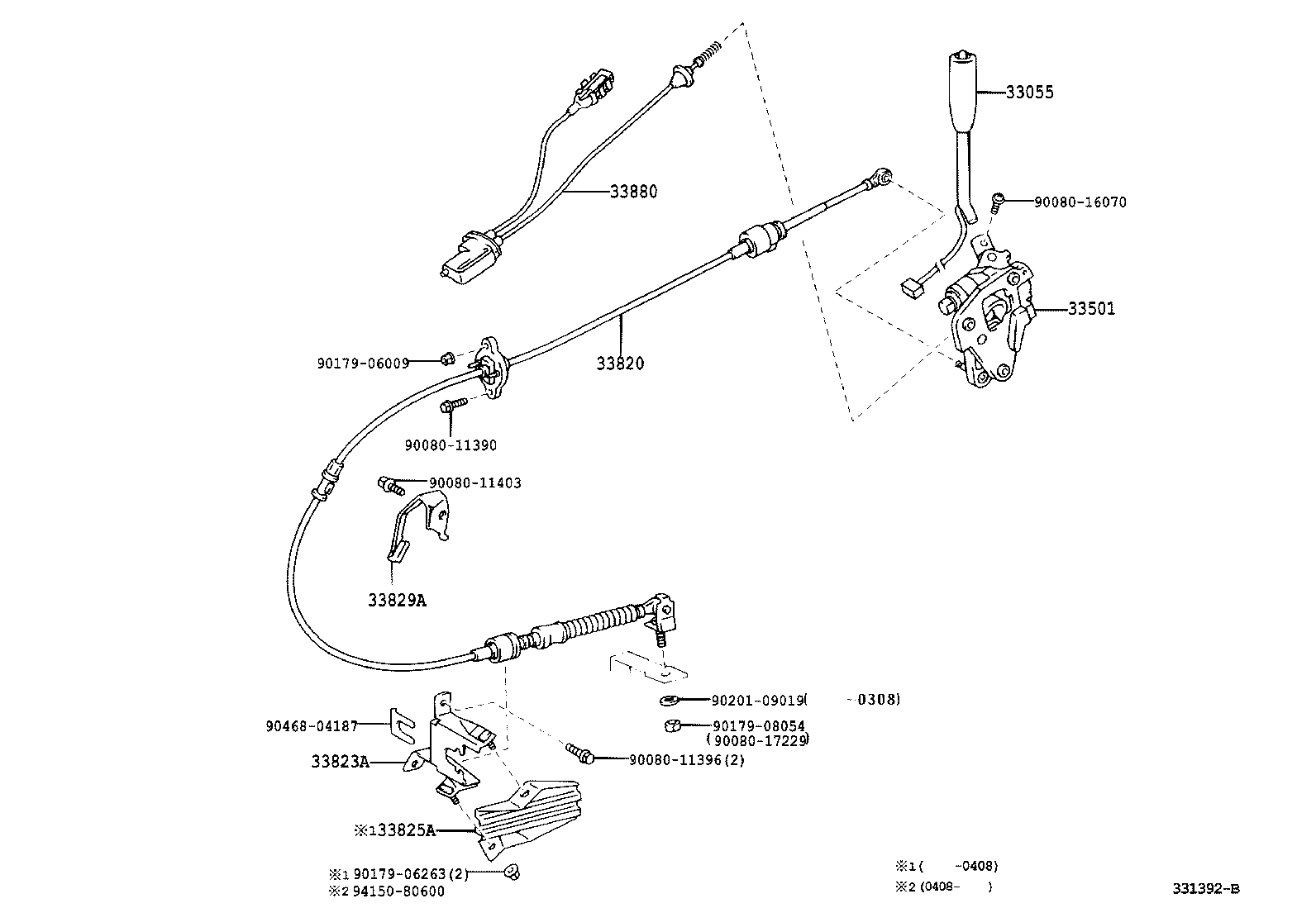

Click highlighted areas on diagram

diagram 33055 33501 33820 33823A 33825A 33829A 33880 9008011390 9008011396 9008011403 9008016070 9008017229 9017906009 9017906263 9017908054 9020109019 9046804187 9415080600
Part # Description Qty Price
33055 - LEVER SUB-ASSY, COLUMN SHIFT
33055-0C020

UCK35,45

 1
33501 - SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT)
33501-0C020

UCK35,45

 1
33820 - CABLE ASSY, TRANSMISSION CONTROL (FOR COLUMN SHIFT)
33820-0C030

UCK35,45

 1
33823A - BRACKET, TRANSMISSION CONTROL CABLE
33823-34020

UCK35,45

 1
33825A - INSULATOR, TRANSMISSION CONTROL CABLE
33825-34010

UCK35,45

 1
33829A - SUPPORT, TRANSMISSION CONTROL CABLE
33829-34020

UCK35,45..4HC

 1
33829-0C020

UCK35,45

 1
33880 - CABLE ASSY, PARKING LOCK (FOR COLUMN SHIFT)
33880-0C020

UCK35,45

 1
Common parts
90080-11390
90080-11396
90080-11403
90080-16070
90080-17229
90179-06009
90179-06263
90179-08054
90201-09019
90468-04187
94150-80600
