UCK45L-GKSLKA (2000)

Toyota Sequoia

Production Sep 2000 - Aug 2004
Engine 2UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0009-0408)

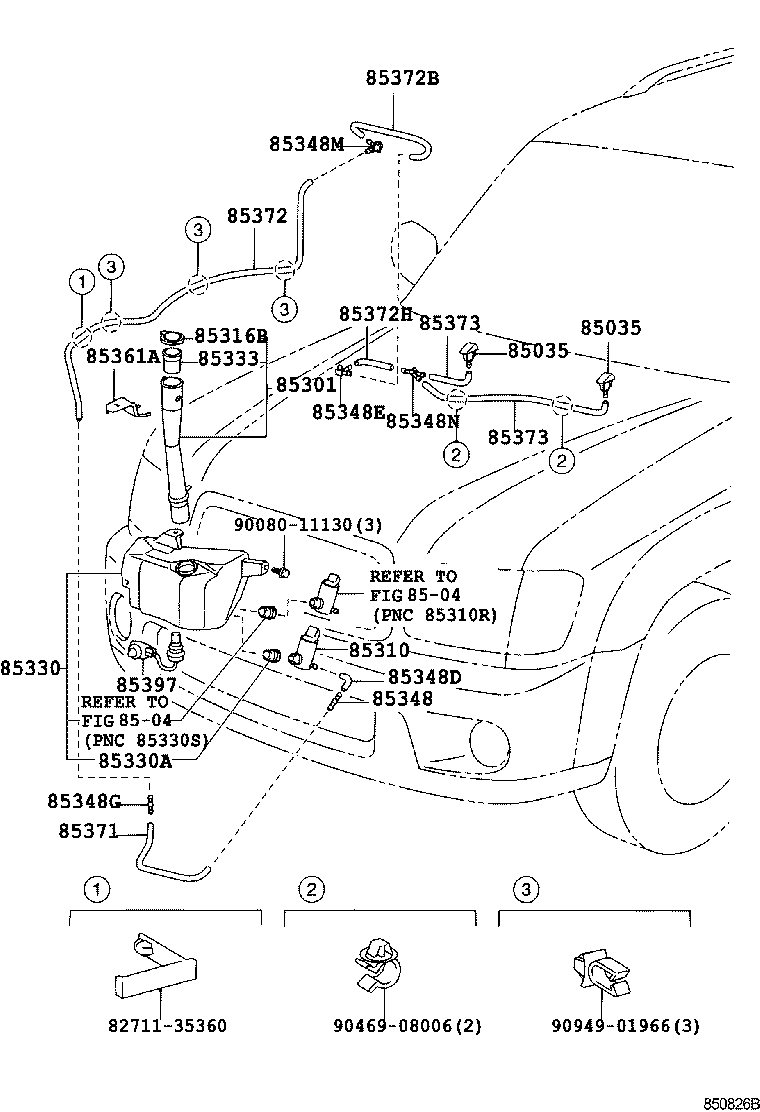

Click highlighted areas on diagram

diagram 8271135360 85035 85035 8504 8504 85301 85310 85316B 85330 85330A 85333 85348 85348D 85348E 85348G 85348M 85348N 85361A 85371 85372 85372B 85372H 85373 85373 85397 9008011130 9046908006 9094901966
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-34020

UCK45

CANADA SPEC

 2
85381-0C010

UCK35,45

 2
85381-52180

UCK35,45

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-34020

UCK45

CANADA SPEC

 2
85381-0C010

UCK35,45

 2
85381-52180

UCK35,45

 2
85301 - INLET SUB-ASSY, WASHER
85301-0C020

UCK35,45

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-0C020

UCK35,45

 1
85316B - CAP, WASHER, INLET
85386-0C010

UCK35,45

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-0C040

UCK35,45

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90068-32002

UCK35,45

 1
85333 - FILTER, WINDSHIELD WASHER JAR
85333-20010

UCK35,45

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

UCK35,45

 1
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-14481

UCK35,45

 1
85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2
85377-32220

UCK35,45

 1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85349-89122

UCK35,45

 1
85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3
85377-34010

UCK35,45

 1
85348N - JOINT, WINDSHIELD WASHER HOSE, NO.4
85378-2B160

UCK35,45

 1
85361A - BRACKET, WINDSHIELD WASHER, NO.1
85361-0C020

UCK35,45

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90068-33011

UCK35,45

*H,L=310

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90068-33017

UCK35,45

L=1280

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90068-33011

UCK35,45

*H,L=340

 1
85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
90068-33011

UCK35,45

*H,L=250

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90068-33011

UCK35,45

*H,L=130,LH,RH

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90068-33011

UCK35,45

*H,L=130,LH,RH

 1
85397 - SWITCH ASSY,LEVEL WARNING
85397-0C030

UCK35,45

 1
Common parts
82711-35360
90080-11130
90469-08006
90949-01966
Linked diagrams
8504
