UCK45L-GKSLKA (2000)
Toyota Sequoia
Production
Sep 2000
-
Aug 2004
Engine
2UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

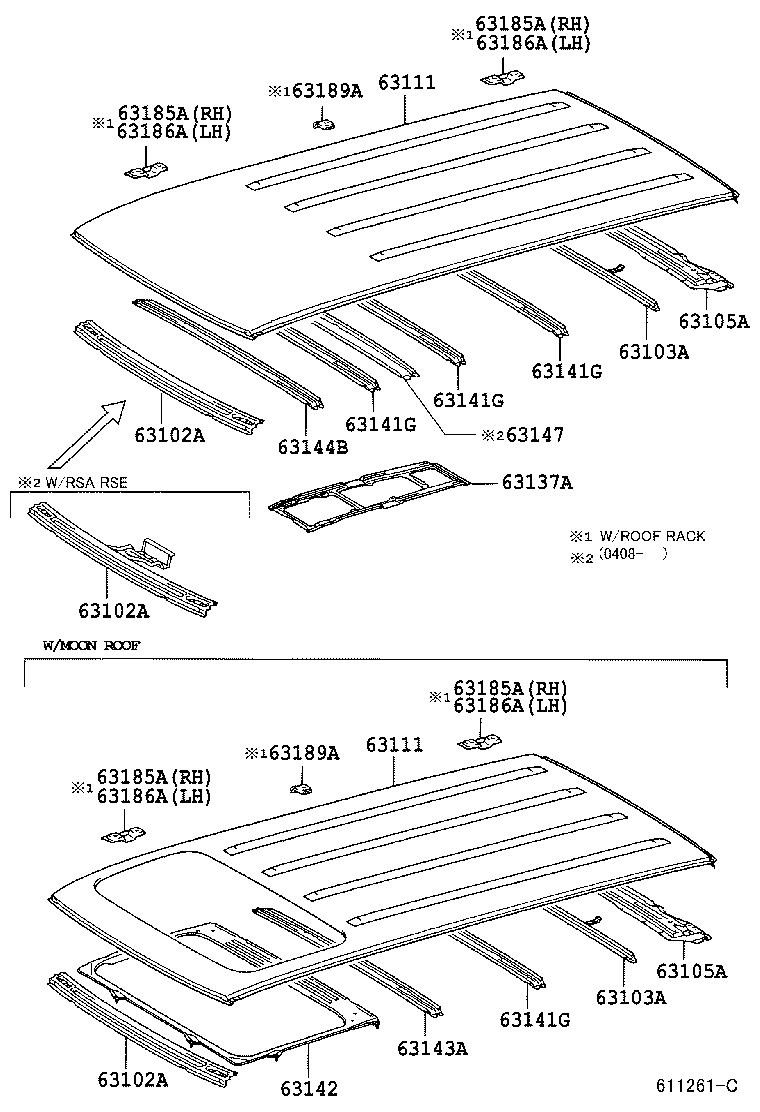

ILLUST NO. 1 OF 3(0009- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-0C900 |
UCK35,45 |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-0C900 |
UCK35,45 |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-0C900 |
UCK35,45 |
1 | ||
| 63103A - REINFORCEMENT SUB-ASSY, ROOF PANEL | ||||
| 63103-0C010 |
UCK35,45 |
1 | ||
| 63103A - REINFORCEMENT SUB-ASSY, ROOF PANEL | ||||
| 63103-0C010 |
UCK35,45 |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-0C901 |
UCK35,45 |
1 | ||
| 63105-0C900 |
UCK35,45 |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-0C901 |
UCK35,45 |
1 | ||
| 63105-0C900 |
UCK35,45 |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-0C030 |
UCK35,45..LIMD |
1 | ||
| 63111-0C040 |
UCK35,45 W(MOON ROOF);W(MOON ROOF & ROOF RACK) |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-0C030 |
UCK35,45..LIMD |
1 | ||
| 63111-0C040 |
UCK35,45 W(MOON ROOF);W(MOON ROOF & ROOF RACK) |
1 | ||
| 63137A - BRACKET, DOME LAMP, NO.1 | ||||
| 63137-0C020 |
UCK35,45 |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-0C030 |
UCK35,45 |
3 | ||
| 63141-0C030 |
UCK35,45 W(MOON ROOF) |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-0C030 |
UCK35,45 |
3 | ||
| 63141-0C030 |
UCK35,45 W(MOON ROOF) |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-0C030 |
UCK35,45 |
3 | ||
| 63141-0C030 |
UCK35,45 W(MOON ROOF) |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-0C030 |
UCK35,45 |
3 | ||
| 63141-0C030 |
UCK35,45 W(MOON ROOF) |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-0C010 |
UCK35,45 |
1 | ||
| 63143A - REINFORCEMENT, ROOF PANEL | ||||
| 63143-0C010 |
UCK35,45 |
1 | ||
| 63144B - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-0C010 |
UCK35,45 |
1 | ||
| 63185A - BRACKET, ROOF RACK, FRONT RH | ||||
| 63185-0C010 |
UCK35,45 |
2 | ||
| 63185A - BRACKET, ROOF RACK, FRONT RH | ||||
| 63185-0C010 |
UCK35,45 |
2 | ||
| 63185A - BRACKET, ROOF RACK, FRONT RH | ||||
| 63185-0C010 |
UCK35,45 |
2 | ||
| 63185A - BRACKET, ROOF RACK, FRONT RH | ||||
| 63185-0C010 |
UCK35,45 |
2 | ||
| 63186A - BRACKET, ROOF RACK, FRONT LH | ||||
| 63185-0C010 |
UCK35,45 |
2 | ||
| 63186A - BRACKET, ROOF RACK, FRONT LH | ||||
| 63185-0C010 |
UCK35,45 |
2 | ||
| 63186A - BRACKET, ROOF RACK, FRONT LH | ||||
| 63185-0C010 |
UCK35,45 |
2 | ||
| 63186A - BRACKET, ROOF RACK, FRONT LH | ||||
| 63185-0C010 |
UCK35,45 |
2 | ||
| 63189A - BRACKET, ROOF RACK, CENTER | ||||
| 63189-0C010 |
UCK35,45 |
2 | ||
| 63189A - BRACKET, ROOF RACK, CENTER | ||||
| 63189-0C010 |
UCK35,45 |
2 | ||

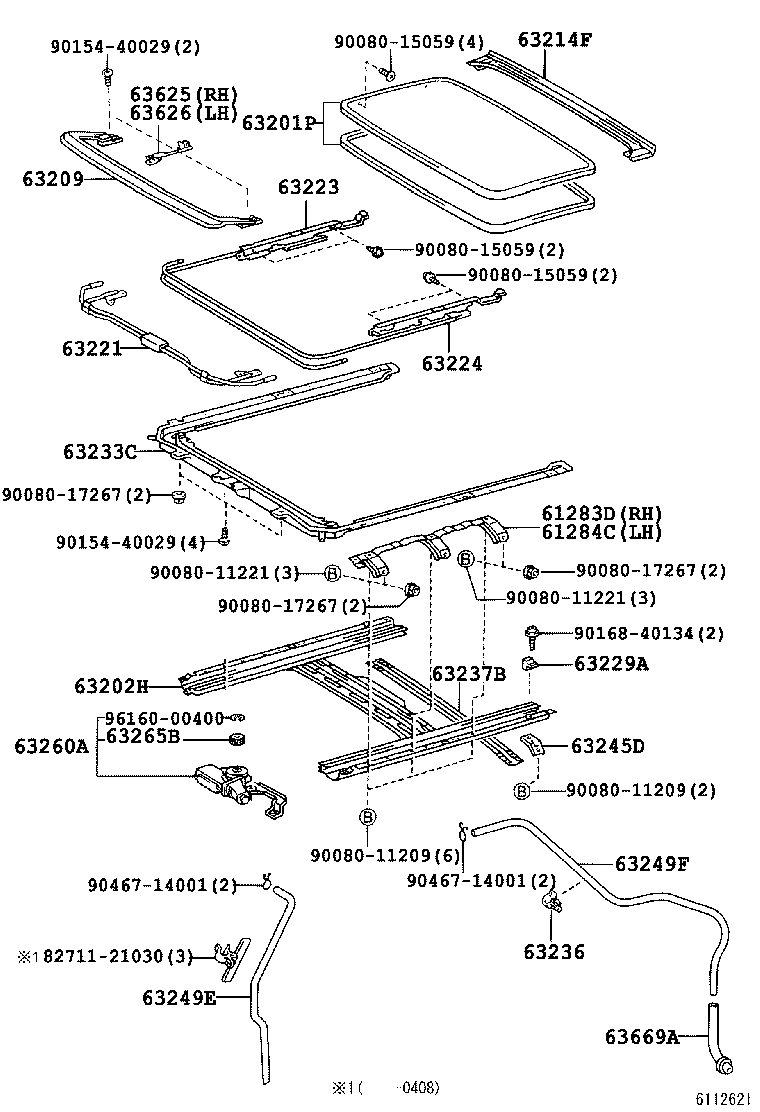

ILLUST NO. 2 OF 3(0009- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61283D - BRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, RH | ||||
| 61283-0C010 |
UCK35,45 |
1 | ||
| 61283-0C011 |
UCK35,45 |
1 | ||
| 61284C - BRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, LH | ||||
| 61284-0C011 |
UCK35,45 |
1 | ||
| 61284-0C010 |
UCK35,45 |
1 | ||
| 63201P - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-0C010 |
UCK35,45 |
1 | ||
| 63202H - RAIL SUB-ASSY, SLIDE ROOF | ||||
| 63202-0C010 |
UCK35,45 |
1 | ||
| 63202-0C011 |
UCK35,45 |
1 | ||
| 63202-0C012 |
UCK35,45 |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-0C010 |
UCK35,45 |
1 | ||
| 63214F - CHANNEL, ROOF DRIP, REAR | ||||
| 63214-0C010 |
UCK35,45 |
1 | ||
| 63221 - CASING, SLIDING ROOF CABLE GUIDE | ||||
| 63221-0C010 |
UCK35,45 |
1 | ||
| 63223 - CABLE, SLIDING ROOF DRIVE, RH | ||||
| 63223-0C010 |
UCK35,45 |
1 | ||
| 63224 - CABLE, SLIDING ROOF DRIVE, LH | ||||
| 63224-0C010 |
UCK35,45 |
1 | ||
| 63229A - STOPPER, SLIDING ROOF SUNSHADE | ||||
| 63229-28030 |
UCK35,45 |
2 | ||
| 63233C - PANEL, SLIDING ROOF HOUSING | ||||
| 63233-0C010 |
UCK35,45 |
1 | ||
| 63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE | ||||
| 63236-34010 |
UCK35,45 |
6 | ||
| 63237B - FRAME, SLIDING ROOF HOUSING, REAR | ||||
| 63237-0C010 |
UCK35,45 |
1 | ||
| 63245D - BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, RH | ||||
| 63245-0C010 |
UCK35,45 |
2 | ||
| 63249E - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-0C010 |
UCK35,45 |
2 | ||
| 63249F - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-0C030 |
UCK35,45 LH |
1 | ||
| 63249-0C020 |
UCK35,45 RH |
1 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-0C010 |
UCK35,45 |
1 | ||
| 63265B - GEAR, SLIDING ROOF DRIVE | ||||
| 63265-30020 |
UCK35,45 |
1 | ||
| 63625 - BLOCK, SLIDING ROOF GUIDE, RH | ||||
| 63625-0C010 |
UCK35,45 |
1 | ||
| 63626 - BLOCK, SLIDING ROOF GUIDE, LH | ||||
| 63626-0C010 |
UCK35,45 |
1 | ||
| 63669A - GROMMET, SLIDING ROOF DRAIN | ||||
| 63669-34010 |
UCK35,45 |
2 | ||
| Common parts | ||||
| 82711-21030 | ||||
| 90080-11209 | ||||
| 90080-11221 | ||||
| 90080-15059 | ||||
| 90080-17267 | ||||
| 90154-40029 | ||||
| 90168-40134 | ||||
| 90467-14001 | ||||
| 96160-00400 | ||||

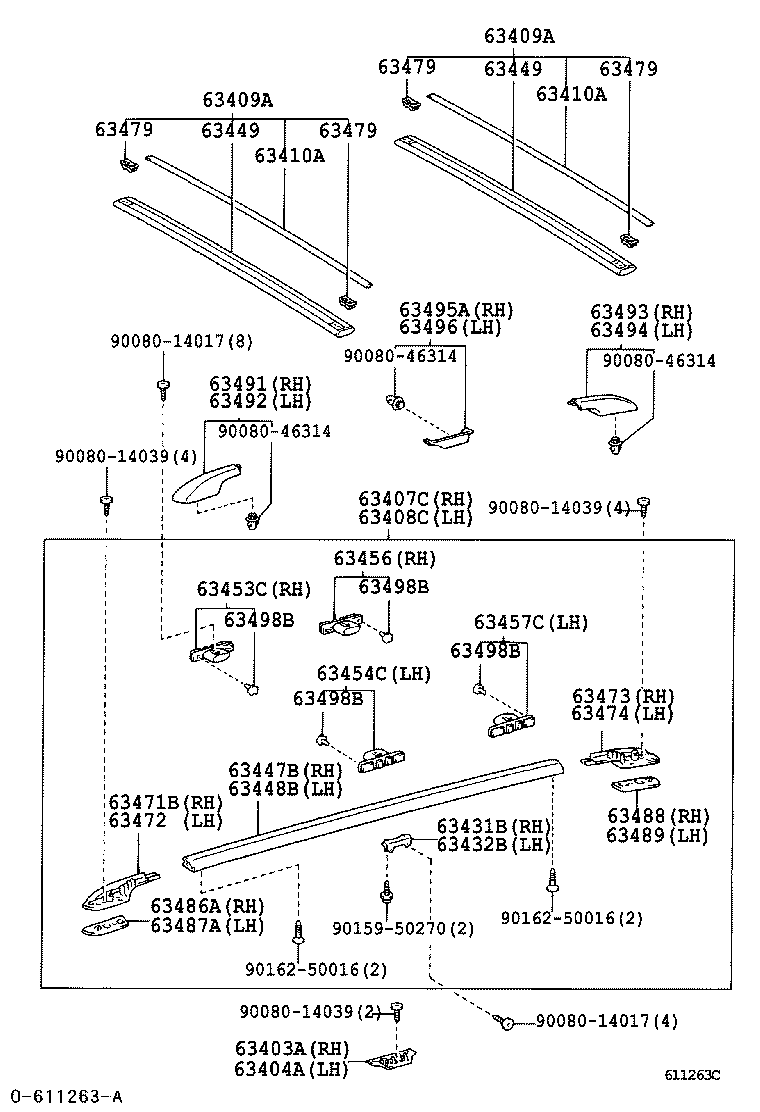

ILLUST NO. 3 OF 3(0009-0301)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63403A - SUPPORT SUB-ASSY, ROOF RACK, CENTER RH | ||||
| 63403-0C010 |
UCK35,45 |
1 | ||
| 63403-0C011 |
UCK35,45 |
1 | ||
| 63404A - SUPPORT SUB-ASSY, ROOF RACK, CENTER LH | ||||
| 63404-0C010 |
UCK35,45 |
1 | ||
| 63404-0C011 |
UCK35,45 |
1 | ||
| 63407C - CARRIER SUB-ASSY, ROOF, RH | ||||
| 63407-0C010 |
UCK35,45 |
1 | ||
| 63407-0C011 |
UCK35,45 |
1 | ||
| 63408C - CARRIER SUB-ASSY, ROOF, LH | ||||
| 63408-0C010 |
UCK35,45 |
1 | ||
| 63408-0C011 |
UCK35,45 |
1 | ||
| 63409A - SUPPORT SUB-ASSY, ROOF RACK, CENTER | ||||
| 63409-0C011 |
UCK35,45 |
2 | ||
| 63409-0C010 |
UCK35,45 |
2 | ||
| 63409A - SUPPORT SUB-ASSY, ROOF RACK, CENTER | ||||
| 63409-0C011 |
UCK35,45 |
2 | ||
| 63409-0C010 |
UCK35,45 |
2 | ||
| 63410A - WEATHERSTRIP, ROOF RACK | ||||
| 63418-0C010 |
UCK35,45 |
2 | ||
| 63410A - WEATHERSTRIP, ROOF RACK | ||||
| 63418-0C010 |
UCK35,45 |
2 | ||
| 63431B - BRACKET, ROOF INNER RACK, NO.1 RH | ||||
| 63431-0C010 |
UCK35,45 |
1 | ||
| 63432B - BRACKET, ROOF INNER RACK, NO.1 LH | ||||
| 63431-0C010 |
UCK35,45 |
1 | ||
| 63447B - BAR, ROOF CARRIER, RH | ||||
| 63447-0C010 |
UCK35,45 |
1 | ||
| 63447-0C011 |
UCK35,45 |
1 | ||
| 63448B - BAR, ROOF CARRIER, LH | ||||
| 63448-0C010 |
UCK35,45 |
1 | ||
| 63448-0C011 |
UCK35,45 |
1 | ||
| 63449 - BAR, ROOF CARRIER SIDE | ||||
| 63449-0C010 |
UCK35,45 |
2 | ||
| 63449-0C011 |
UCK35,45 |
2 | ||
| 63449 - BAR, ROOF CARRIER SIDE | ||||
| 63449-0C010 |
UCK35,45 |
2 | ||
| 63449-0C011 |
UCK35,45 |
2 | ||
| 63453C - STAY, ROOF RACK, FRONT RH | ||||
| 63453-0C010 |
UCK35,45 |
1 | ||
| 63454C - STAY, ROOF RACK, FRONT LH | ||||
| 63454-0C010 |
UCK35,45 |
1 | ||
| 63456 - JOINT, ROOF RACK BAR | ||||
| 63456-0C010 |
UCK35,45 |
1 | ||
| 63457C - JOINT, ROOF RACK BAR, NO.2 | ||||
| 63457-0C010 |
UCK35,45 |
1 | ||
| 63471B - LEG, ROOF RACK, FRONT RH | ||||
| 63471-0C010 |
UCK35,45 |
1 | ||
| 63471-0C011 |
UCK35,45 |
1 | ||
| 63472 - LEG, ROOF RACK, FRONT LH | ||||
| 63472-0C010 |
UCK35,45 |
1 | ||
| 63472-0C011 |
UCK35,45 |
1 | ||
| 63473 - LEG, ROOF RACK, REAR RH | ||||
| 63473-0C011 |
UCK35,45 |
1 | ||
| 63473-0C010 |
UCK35,45 |
1 | ||
| 63474 - LEG, ROOF RACK, REAR LH | ||||
| 63474-0C011 |
UCK35,45 |
1 | ||
| 63474-0C010 |
UCK35,45 |
1 | ||
| 63479 - RETAINER, ROOF INNER RACK | ||||
| 63479-0C010 |
UCK35,45 |
4 | ||
| 63479 - RETAINER, ROOF INNER RACK | ||||
| 63479-0C010 |
UCK35,45 |
4 | ||
| 63479 - RETAINER, ROOF INNER RACK | ||||
| 63479-0C010 |
UCK35,45 |
4 | ||
| 63479 - RETAINER, ROOF INNER RACK | ||||
| 63479-0C010 |
UCK35,45 |
4 | ||
| 63486A - CUSHION, ROOF RACK LEG, FRONT RH | ||||
| 63486-0C010 |
UCK35,45 |
1 | ||
| 63487A - CUSHION, ROOF RACK LEG, FRONT LH | ||||
| 63487-0C010 |
UCK35,45 |
1 | ||
| 63488 - CUSHION, ROOF RACK LEG, REAR RH | ||||
| 63488-0C010 |
UCK35,45 |
1 | ||
| 63489 - CUSHION, ROOF RACK LEG, REAR LH | ||||
| 63489-0C010 |
UCK35,45 |
1 | ||
| 63491 - COVER, ROOF RACK LEG, FRONT RH | ||||
| 63491-0C010 |
UCK35,45 |
1 | ||
| 63491-0C011 |
UCK35,45 |
1 | ||
| 63492 - COVER, ROOF RACK LEG, FRONT LH | ||||
| 63492-0C011 |
UCK35,45 |
1 | ||
| 63492-0C010 |
UCK35,45 |
1 | ||
| 63493 - COVER, ROOF RACK LEG, REAR RH | ||||
| 63493-0C010 |
UCK35,45 |
1 | ||
| 63493-0C011 |
UCK35,45 |
1 | ||
| 63494 - COVER, ROOF RACK LEG, REAR LH | ||||
| 63494-0C011 |
UCK35,45 |
1 | ||
| 63494-0C010 |
UCK35,45 |
1 | ||
| 63495A - COVER, ROOF RACK LEG, CENTER | ||||
| 63495-0C011 |
UCK35,45 |
1 | ||
| 63495-0C010 |
UCK35,45 |
1 | ||
| 63496 - COVER, ROOF RACK LEG, CENTER LH | ||||
| 63496-0C011 |
UCK35,45 |
1 | ||
| 63496-0C010 |
UCK35,45 |
1 | ||
| 63498B - CAP, ROOF CARRIER | ||||
| 63498-0C010 |
UCK35,45 |
4 | ||
| 63498B - CAP, ROOF CARRIER | ||||
| 63498-0C010 |
UCK35,45 |
4 | ||
| 63498B - CAP, ROOF CARRIER | ||||
| 63498-0C010 |
UCK35,45 |
4 | ||
| 63498B - CAP, ROOF CARRIER | ||||
| 63498-0C010 |
UCK35,45 |
4 | ||
| Common parts | ||||
| 90080-14017 | ||||
| 90080-14039 | ||||
| 90080-46314 | ||||
| 90159-50270 | ||||
| 90162-50016 | ||||

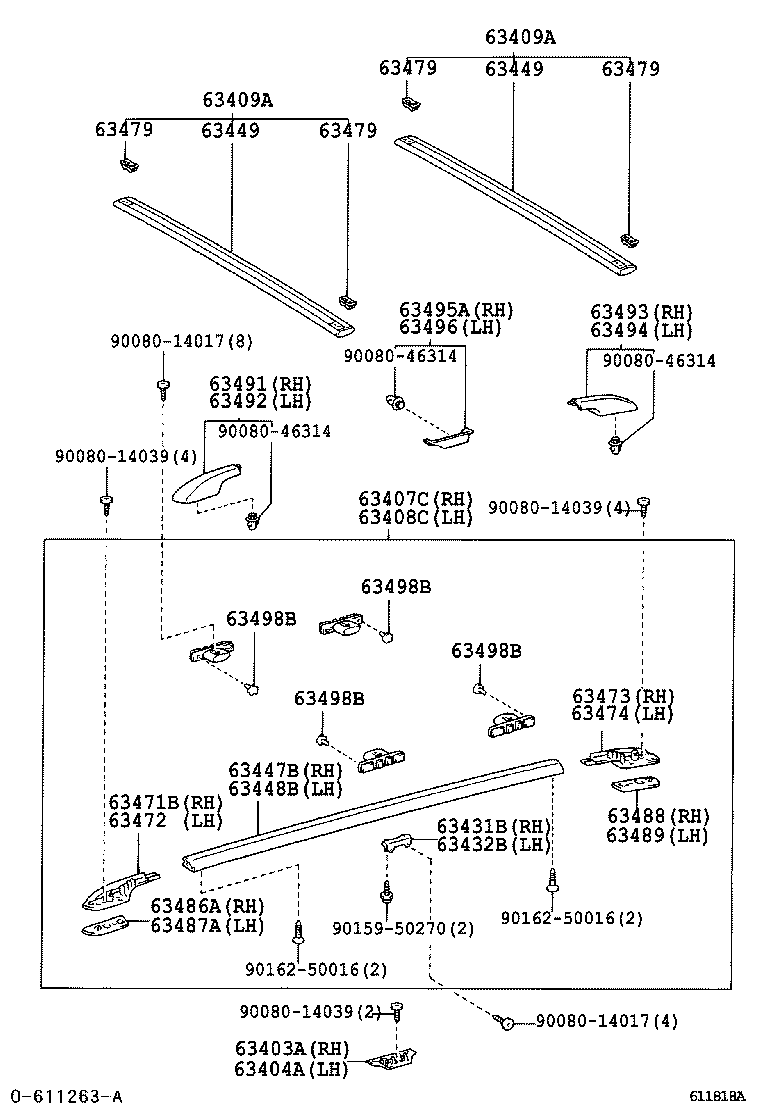

ILLUST NO. 3 OF 3(0301- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63403A - SUPPORT SUB-ASSY, ROOF RACK, CENTER RH | ||||
| 63403-0C010 |
UCK35,45 |
1 | ||
| 63403-0C011 |
UCK35,45 |
1 | ||
| 63404A - SUPPORT SUB-ASSY, ROOF RACK, CENTER LH | ||||
| 63404-0C010 |
UCK35,45 |
1 | ||
| 63404-0C011 |
UCK35,45 |
1 | ||
| 63407C - CARRIER SUB-ASSY, ROOF, RH | ||||
| 63407-0C010 |
UCK35,45 |
1 | ||
| 63407-0C011 |
UCK35,45 |
1 | ||
| 63408C - CARRIER SUB-ASSY, ROOF, LH | ||||
| 63408-0C010 |
UCK35,45 |
1 | ||
| 63408-0C011 |
UCK35,45 |
1 | ||
| 63409A - SUPPORT SUB-ASSY, ROOF RACK, CENTER | ||||
| 63409-0C011 |
UCK35,45 |
2 | ||
| 63409-0C010 |
UCK35,45 |
2 | ||
| 63409A - SUPPORT SUB-ASSY, ROOF RACK, CENTER | ||||
| 63409-0C011 |
UCK35,45 |
2 | ||
| 63409-0C010 |
UCK35,45 |
2 | ||
| 63431B - BRACKET, ROOF INNER RACK, NO.1 RH | ||||
| 63431-0C010 |
UCK35,45 |
1 | ||
| 63432B - BRACKET, ROOF INNER RACK, NO.1 LH | ||||
| 63431-0C010 |
UCK35,45 |
1 | ||
| 63447B - BAR, ROOF CARRIER, RH | ||||
| 63447-0C010 |
UCK35,45 |
1 | ||
| 63447-0C011 |
UCK35,45 |
1 | ||
| 63448B - BAR, ROOF CARRIER, LH | ||||
| 63448-0C010 |
UCK35,45 |
1 | ||
| 63448-0C011 |
UCK35,45 |
1 | ||
| 63449 - BAR, ROOF CARRIER SIDE | ||||
| 63449-0C010 |
UCK35,45 |
2 | ||
| 63449-0C011 |
UCK35,45 |
2 | ||
| 63449 - BAR, ROOF CARRIER SIDE | ||||
| 63449-0C010 |
UCK35,45 |
2 | ||
| 63449-0C011 |
UCK35,45 |
2 | ||
| 63471B - LEG, ROOF RACK, FRONT RH | ||||
| 63471-0C010 |
UCK35,45 |
1 | ||
| 63471-0C011 |
UCK35,45 |
1 | ||
| 63472 - LEG, ROOF RACK, FRONT LH | ||||
| 63472-0C010 |
UCK35,45 |
1 | ||
| 63472-0C011 |
UCK35,45 |
1 | ||
| 63473 - LEG, ROOF RACK, REAR RH | ||||
| 63473-0C011 |
UCK35,45 |
1 | ||
| 63473-0C010 |
UCK35,45 |
1 | ||
| 63474 - LEG, ROOF RACK, REAR LH | ||||
| 63474-0C011 |
UCK35,45 |
1 | ||
| 63474-0C010 |
UCK35,45 |
1 | ||
| 63479 - RETAINER, ROOF INNER RACK | ||||
| 63479-0C010 |
UCK35,45 |
4 | ||
| 63479 - RETAINER, ROOF INNER RACK | ||||
| 63479-0C010 |
UCK35,45 |
4 | ||
| 63479 - RETAINER, ROOF INNER RACK | ||||
| 63479-0C010 |
UCK35,45 |
4 | ||
| 63479 - RETAINER, ROOF INNER RACK | ||||
| 63479-0C010 |
UCK35,45 |
4 | ||
| 63486A - CUSHION, ROOF RACK LEG, FRONT RH | ||||
| 63486-0C010 |
UCK35,45 |
1 | ||
| 63487A - CUSHION, ROOF RACK LEG, FRONT LH | ||||
| 63487-0C010 |
UCK35,45 |
1 | ||
| 63488 - CUSHION, ROOF RACK LEG, REAR RH | ||||
| 63488-0C010 |
UCK35,45 |
1 | ||
| 63489 - CUSHION, ROOF RACK LEG, REAR LH | ||||
| 63489-0C010 |
UCK35,45 |
1 | ||
| 63491 - COVER, ROOF RACK LEG, FRONT RH | ||||
| 63491-0C010 |
UCK35,45 |
1 | ||
| 63491-0C011 |
UCK35,45 |
1 | ||
| 63492 - COVER, ROOF RACK LEG, FRONT LH | ||||
| 63492-0C011 |
UCK35,45 |
1 | ||
| 63492-0C010 |
UCK35,45 |
1 | ||
| 63493 - COVER, ROOF RACK LEG, REAR RH | ||||
| 63493-0C010 |
UCK35,45 |
1 | ||
| 63493-0C011 |
UCK35,45 |
1 | ||
| 63494 - COVER, ROOF RACK LEG, REAR LH | ||||
| 63494-0C011 |
UCK35,45 |
1 | ||
| 63494-0C010 |
UCK35,45 |
1 | ||
| 63495A - COVER, ROOF RACK LEG, CENTER | ||||
| 63495-0C011 |
UCK35,45 |
1 | ||
| 63495-0C010 |
UCK35,45 |
1 | ||
| 63496 - COVER, ROOF RACK LEG, CENTER LH | ||||
| 63496-0C011 |
UCK35,45 |
1 | ||
| 63496-0C010 |
UCK35,45 |
1 | ||
| 63498B - CAP, ROOF CARRIER | ||||
| 63498-0C010 |
UCK35,45 |
4 | ||
| 63498B - CAP, ROOF CARRIER | ||||
| 63498-0C010 |
UCK35,45 |
4 | ||
| 63498B - CAP, ROOF CARRIER | ||||
| 63498-0C010 |
UCK35,45 |
4 | ||
| 63498B - CAP, ROOF CARRIER | ||||
| 63498-0C010 |
UCK35,45 |
4 | ||
| Common parts | ||||
| 90080-14017 | ||||
| 90080-14039 | ||||
| 90080-46314 | ||||
| 90159-50270 | ||||
| 90162-50016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
Unable to retrieve price information.
