UCK45L-GKSLKA (2000)
Toyota Sequoia

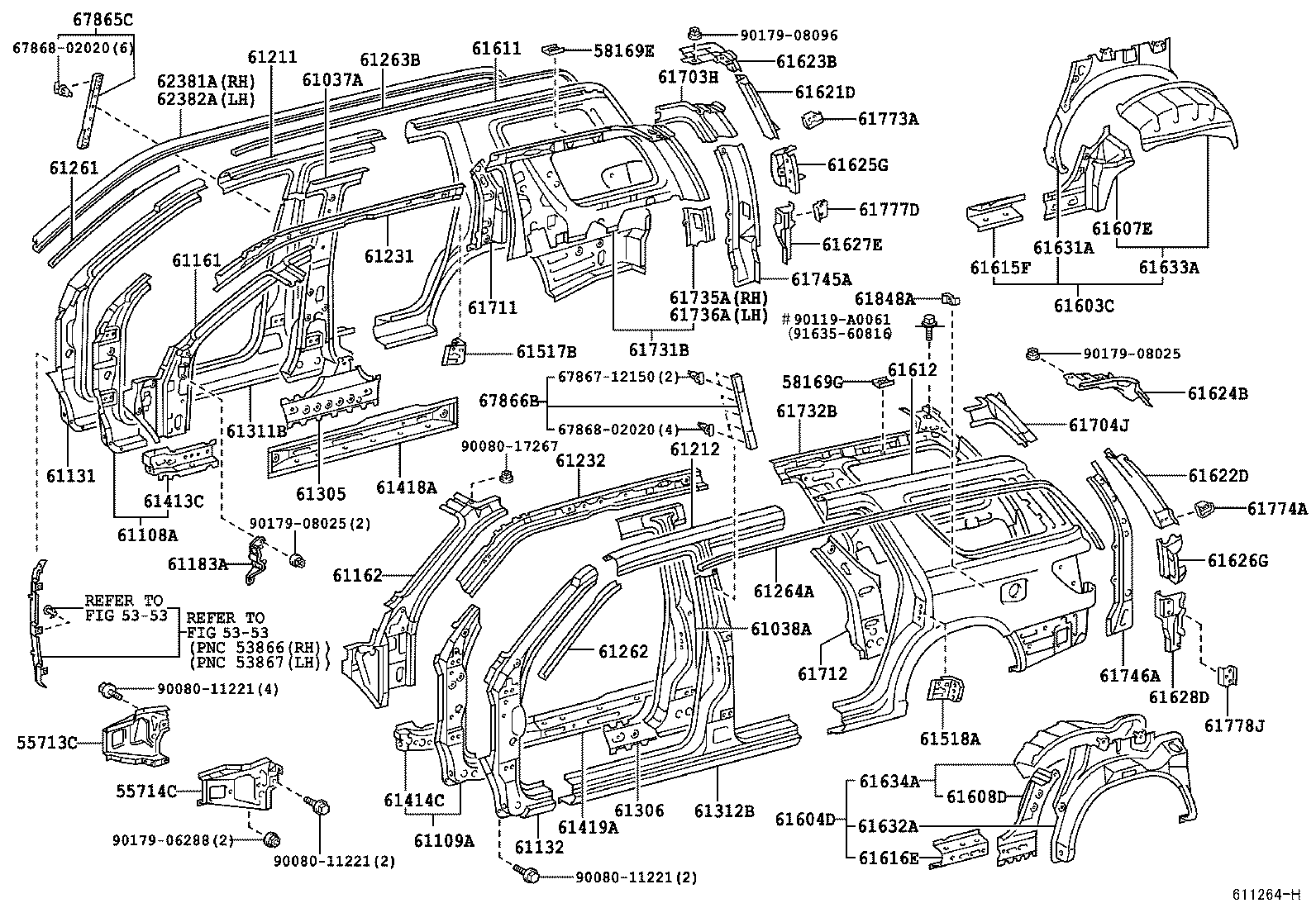

ILLUST NO. 1 OF 2(0009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55713C - PANEL, COWL TOP SIDE, RH | ||||
| 55713-0C020 |
UCK35,45 |
1 | ||
| 55714C - PANEL, COWL TOP SIDE, LH | ||||
| 55714-0C020 |
UCK35,45 |
1 | ||
| 58169E - RETAINER, REAR HEATER MOUNTING | ||||
| 58169-90A00 |
UCK35,45 |
1 | ||
| 58169G - RETAINER, REAR HEATER MOUNTING | ||||
| 58169-90A00 |
UCK35,45 |
1 | ||
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61303-0C012 |
UCK35,45 |
1 | ||
| 61303-0C010 |
UCK35,45 |
1 | ||
| 61303-0C013 |
UCK35,45 |
1 | ||
| 61303-0C011 |
UCK35,45 |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61304-0C010 |
UCK35,45 |
1 | ||
| 61304-0C012 |
UCK35,45 |
1 | ||
| 61304-0C011 |
UCK35,45 |
1 | ||
| 61304-0C013 |
UCK35,45 |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-0C900 |
UCK35,45 |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-0C900 |
UCK35,45 |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-0C030 |
UCK35,45 |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-0C030 |
UCK35,45 |
1 | ||
| 61161 - PILLAR, FRONT BODY, UPPER INNER RH | ||||
| 61023-0C021 |
UCK35,45 |
1 | ||
| 61023-0C022 |
UCK35,45 |
1 | ||
| 61023-0C020 |
UCK35,45 |
1 | ||
| 61162 - PILLAR, FRONT BODY, UPPER INNER LH | ||||
| 61024-0C020 |
UCK35,45 |
1 | ||
| 61024-0C021 |
UCK35,45 |
1 | ||
| 61024-0C022 |
UCK35,45 |
1 | ||
| 61024-0C023 |
UCK35,45 |
1 | ||
| 61183A - BRACKET, INSTRUMENT PANEL SIDE, NO.2 RH | ||||
| 61183-0C010 |
UCK35,45 |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61213-0C011 |
UCK35,45 |
1 | ||
| 61213-0C010 |
UCK35,45 |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61214-0C010 |
UCK35,45 |
1 | ||
| 61214-0C011 |
UCK35,45 |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-34020 |
UCK35,45 |
1 | ||
| 61231-34021 |
UCK35,45 |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-34021 |
UCK35,45 |
1 | ||
| 61232-34020 |
UCK35,45 |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61261-0C010 |
UCK35,45 |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61262-0C010 |
UCK35,45 |
1 | ||
| 61263B - CHANNEL, ROOF DRIP SIDE, FRONT RH | ||||
| 61263-0C030 |
UCK35,45 |
1 | ||
| 61264A - CHANNEL, ROOF DRIP SIDE, FRONT LH | ||||
| 61264-0C030 |
UCK35,45 |
1 | ||
| 61305 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH | ||||
| 61305-0C010 |
UCK35,45 |
1 | ||
| 61306 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH | ||||
| 61306-0C010 |
UCK35,45 |
1 | ||
| 61311B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61411-0C030 |
UCK35,45 |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61412-0C030 |
UCK35,45 |
1 | ||
| 61413C - REINFORCEMENT, ROCKER PANEL, NO.2 RH | ||||
| 61413-0C020 |
UCK35,45 |
1 | ||
| 61414C - REINFORCEMENT, ROCKER PANEL, NO.2 LH | ||||
| 61414-0C020 |
UCK35,45 |
1 | ||
| 61418A - REINFORCEMENT, ROCKER PANEL, RH | ||||
| 61418-0C020 |
UCK35,45 |
1 | ||
| 61419A - REINFORCEMENT, ROCKER PANEL, LH | ||||
| 61419-0C020 |
UCK35,45 |
1 | ||
| 61517B - REINFORCEMENT, QUARTER LOCK PILLAR, RH | ||||
| 61517-0C030 |
UCK35,45 |
1 | ||
| 61518A - REINFORCEMENT, QUARTER LOCK PILLAR, LH | ||||
| 61518-0C030 |
UCK35,45 |
1 | ||
| 61603C - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH | ||||
| 61603-0C902 |
UCK35,45 |
1 | ||
| 61603-0C901 |
UCK35,45 |
1 | ||
| 61603-0C900 |
UCK35,45 W(THIRD SEAT 5:5 SPLIT) |
1 | ||
| 61603-0C903 |
UCK35,45 W(THIRD SEAT 5:5 SPLIT) |
1 | ||
| 61604D - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, LH | ||||
| 61604-0C901 |
UCK35,45 |
1 | ||
| 61604-0C900 |
UCK35,45 W(THIRD SEAT 5:5 SPLIT) |
1 | ||
| 61604-0C903 |
UCK35,45 W(THIRD SEAT 5:5 SPLIT) |
1 | ||
| 61604-0C902 |
UCK35,45 |
1 | ||
| 61607E - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-34010 |
UCK35,45 |
1 | ||
| 61608D - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-34010 |
UCK35,45 |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-0C011 |
UCK35,45 W(QUARTER OUTSIDE MOULDING) |
1 | ||
| 61611-0C030 |
UCK45 CANADA SPEC |
1 | ||
| 61611-0C010 |
UCK35,45 W(QUARTER OUTSIDE MOULDING) |
1 | ||
| 61611-0C031 |
UCK45 CANADA SPEC |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-0C031 |
UCK45 CANADA SPEC |
1 | ||
| 61612-0C010 |
UCK35,45 W(QUARTER OUTSIDE MOULDING) |
1 | ||
| 61612-0C030 |
UCK45 CANADA SPEC |
1 | ||
| 61612-0C011 |
UCK35,45 W(QUARTER OUTSIDE MOULDING) |
1 | ||
| 61615F - REINFORCEMENT, QUARTER PANEL, OUTER RH | ||||
| 61615-34010 |
UCK35,45 |
1 | ||
| 61616E - REINFORCEMENT, QUARTER PANEL, OUTER LH | ||||
| 61616-34010 |
UCK35,45 |
1 | ||
| 61621D - TROUGH, BACK DOOR OPENING, RH | ||||
| 61621-0C010 |
UCK35,45 |
1 | ||
| 61622D - TROUGH, BACK DOOR OPENING, LH | ||||
| 61622-0C010 |
UCK35,45 |
1 | ||
| 61623B - TROUGH, BACK DOOR OPENING, REAR RH | ||||
| 61623-34010 |
UCK35,45 |
1 | ||
| 61624B - TROUGH, BACK DOOR OPENING, REAR LH | ||||
| 61624-34010 |
UCK35,45 |
1 | ||
| 61625G - EXTENSION, QUARTER PANEL, REAR RH | ||||
| 61625-34020 |
UCK35,45 |
1 | ||
| 61626G - EXTENSION, QUARTER PANEL, REAR LH | ||||
| 61626-34020 |
UCK35,45 |
1 | ||
| 61627E - EXTENSION, QUARTER PANEL, REAR LOWER RH | ||||
| 61627-34010 |
UCK35,45 |
1 | ||
| 61628D - EXTENSION, QUARTER PANEL, REAR LOWER LH | ||||
| 61628-34010 |
UCK35,45 |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-0C900 |
UCK35,45 W(THIRD SEAT 5:5 SPLIT) |
1 | ||
| 61631-0C901 |
UCK35,45 |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-0C901 |
UCK35,45 |
1 | ||
| 61632-0C900 |
UCK35,45 W(THIRD SEAT 5:5 SPLIT) |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61633-0C900 |
UCK35,45 |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61634-0C900 |
UCK35,45 |
1 | ||
| 61703H - REINFORCEMENT SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61703-34030 |
UCK35,45 |
1 | ||
| 61704J - REINFORCEMENT SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61704-34030 |
UCK35,45 |
1 | ||
| 61711 - PANEL, ROOF SIDE, OUTER RH | ||||
| 61711-0C010 |
UCK35,45 |
1 | ||
| 61712 - PANEL, ROOF SIDE, OUTER LH | ||||
| 61712-0C010 |
UCK35,45 |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-0C900 |
UCK35,45 |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-34010 |
UCK35,45 |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-34010 |
UCK35,45 |
1 | ||
| 61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH | ||||
| 61745-0C010 |
UCK35,45 |
1 | ||
| 61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH | ||||
| 61746-0C010 |
UCK35,45 |
1 | ||
| 61773A - PATCH, BACK DOOR OPENING, LOWER RH | ||||
| 61773-34010 |
UCK35,45 |
1 | ||
| 61774A - PATCH, BACK DOOR OPENING, LOWER LH | ||||
| 61774-34010 |
UCK35,45 |
1 | ||
| 61777D - RETAINER, BACK DOOR SIDE STOPPER, RH | ||||
| 61777-34010 |
UCK35,45 |
1 | ||
| 61778J - RETAINER, BACK DOOR SIDE STOPPER, LH | ||||
| 61778-34010 |
UCK35,45 |
1 | ||
| 61848A - RETAINER, QUARTER PANEL, LH | ||||
| 61848-34010 |
UCK35,45 |
1 | ||
| 62381A - WEATHERSTRIP, ROOF SIDE RAIL, RH | ||||
| 62381-0C030 |
UCK35,45 |
1 | ||
| 62382A - WEATHERSTRIP, ROOF SIDE RAIL, LH | ||||
| 62382-0C030 |
UCK35,45 |
1 | ||
| 67865C - WEATHERSTRIP, CENTER PILLAR UPPER END, RH | ||||
| 67865-0C010 |
UCK35,45 |
1 | ||
| 67866B - WEATHERSTRIP, CENTER PILLAR UPPER END, LH | ||||
| 67866-0C010 |
UCK35,45 |
1 | ||
| Common parts | ||||
| 67867-12150 | ||||
| 67868-02020 | ||||
| 90080-11221 | ||||
| 90080-17267 | ||||
| 90119-A0061 | ||||
| 90179-06288 | ||||
| 90179-08025 | ||||
| 90179-08096 | ||||
| 91635-60816 | ||||
| Linked diagrams | ||||
| 5353 | ||||

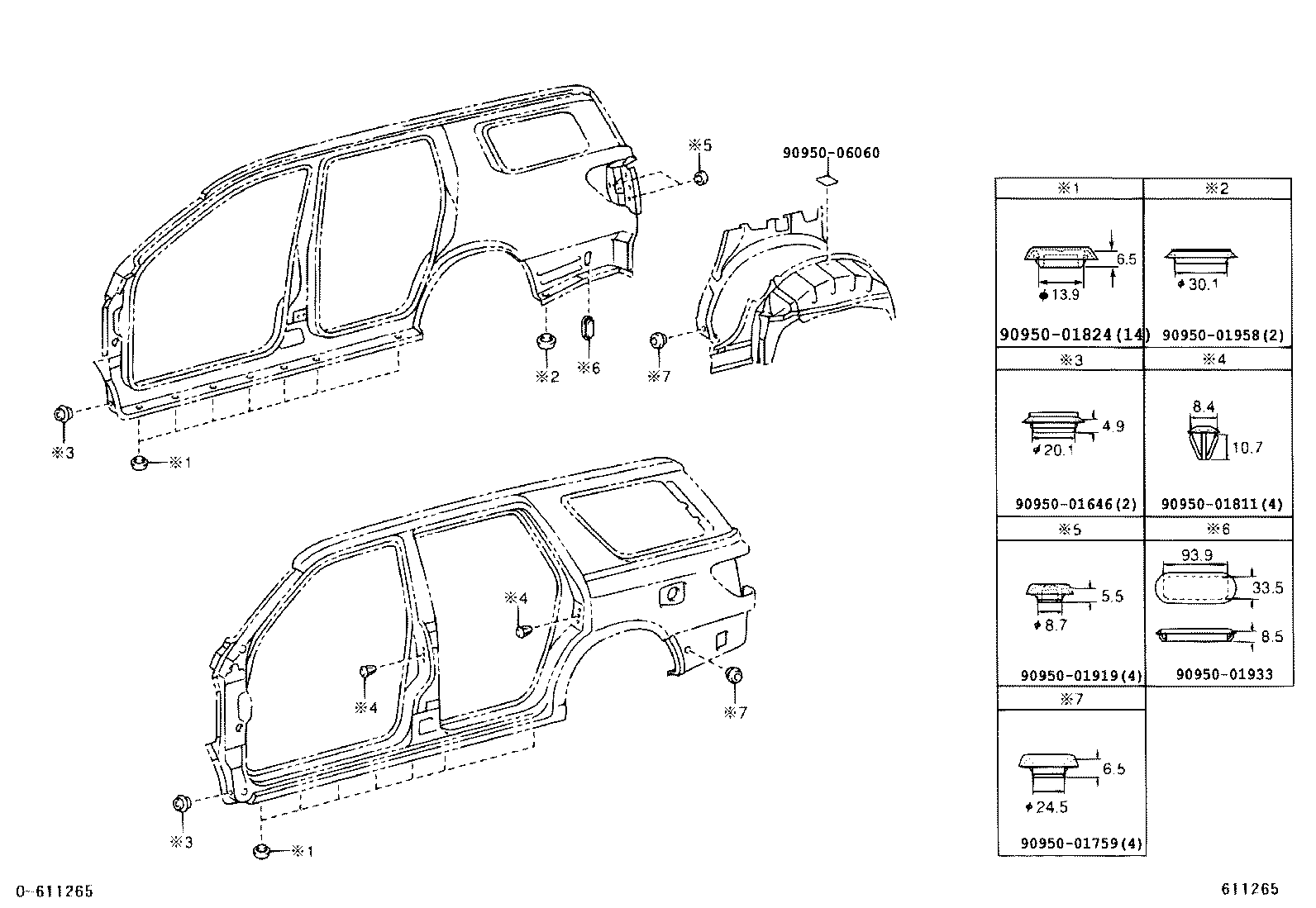

ILLUST NO. 2 OF 2(0009- )
HOLE PLUG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90950-01646 | ||||
| 90950-01759 | ||||
| 90950-01811 | ||||
| 90950-01824 | ||||
| 90950-01919 | ||||
| 90950-01933 | ||||
| 90950-01958 | ||||
| 90950-06060 | ||||
