Toyota Sequoia UCK45 STEERING WHEEL

UCK45L-GKSLKA (2000)

Toyota Sequoia

Production Sep 2000 - Aug 2004

Engine 2UZFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

Click highlighted areas on diagram

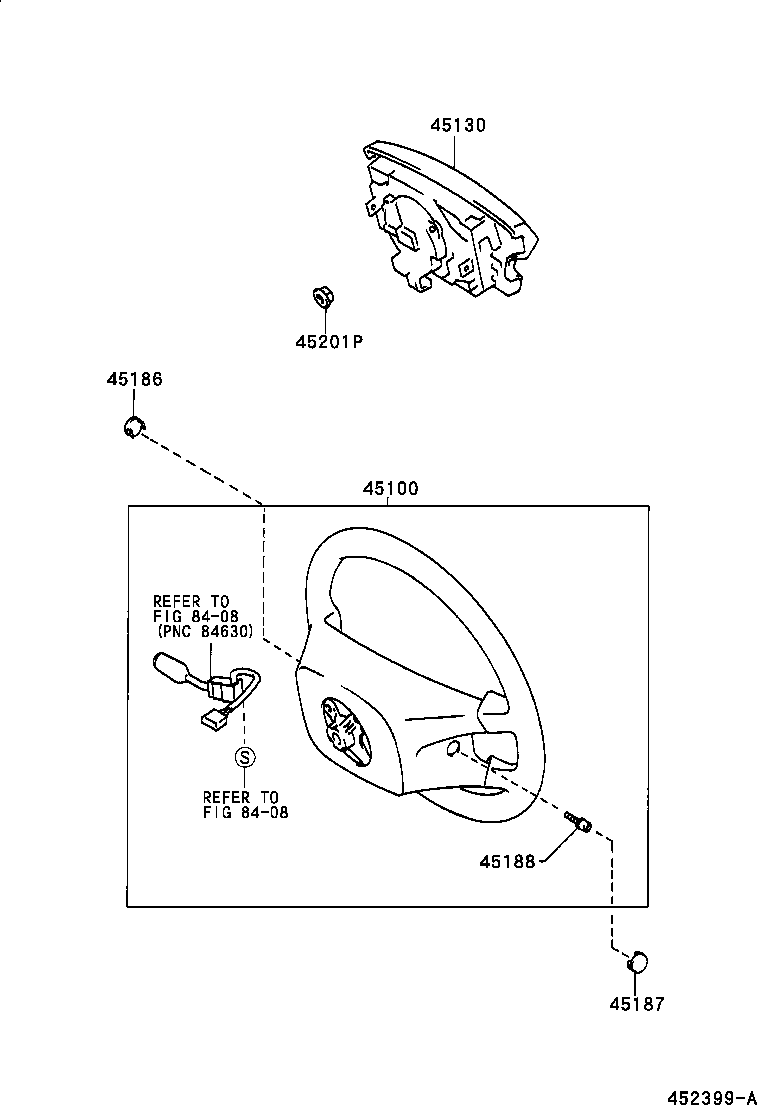

4-SPOKE

Part #	Description	Period	Qty
45100 - WHEEL ASSY, STEERING
45100-0C100B0	UCK35,45 4-SPOKE,LEATHER,DK.CHARCOAL,TRIM1#	09/2000 - 09/2002	1
45100-0C180E0	UCK35,45 4-SPOKE,LEATHER,OAK,TRIM4#	09/2002 - 08/2004	1
45100-0C100E0	UCK35,45 4-SPOKE,LEATHER,OAK,TRIM4#	09/2000 - 09/2002	1
45100-0C180B0	UCK35,45 4-SPOKE,LEATHER,DK.CHARCOAL,TRIM1#	09/2002 - 08/2004	1
45130 - BUTTON ASSY, HORN
45130-0C020B0	UCK35,45 DK.CHARCOAL,TRIM1#	09/2000 - 08/2001	1
45130-0C021E0	UCK35,45 OAK,TRIM4#	08/2001 - 09/2002	1
45130-0C021B0	UCK35,45 DK. CHARCOAL,TRIM1#	08/2001 - 09/2002	1
45130-0C020E0	UCK35,45 OAK,TRIM4#	09/2000 - 08/2001	1
45130-0C041B0	UCK35,45 W(STEERING AUDIO SWITCH),DK.CHARCOAL,TRIM1#	09/2002 - 08/2004	1
45130-0C041E0	UCK35,45 W(STEERING AUDIO SWITCH),OAK,TRIM4#	09/2002 - 08/2004	1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-06070B1	UCK35,45 DK.CHARCOAL,TRIM1#	09/2000 - 09/2002	1
45186-0C020B0	UCK35,45 DK.CHARCOAL,TRIM1#	09/2002 - 08/2004	1
45186-0C020E0	UCK35,45 OAK,TRIM4#	09/2002 - 08/2004	1
45186-06070E0	UCK35,45 OAK,TRIM4#	09/2000 - 09/2002	1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45186-06070E0	UCK35,45 OAK,TRIM4#	09/2000 - 09/2002	1
45187-0C010B0	UCK35,45 DK.CHARCOAL,TRIM1#	09/2002 - 08/2004	1
45186-06070B1	UCK35,45 DK.CHARCOAL,TRIM1#	09/2000 - 09/2002	1
45187-0C010E0	UCK35,45 OAK,TRIM4#	09/2002 - 08/2004	1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-07010	UCK35,45 L=18.5	09/2000 - 08/2004	2
45201P - NUT, STEERING WHEEL SET
90179-12071	UCK35,45	09/2000 - 08/2004	1
Linked diagrams
8408

Click highlighted areas on diagram

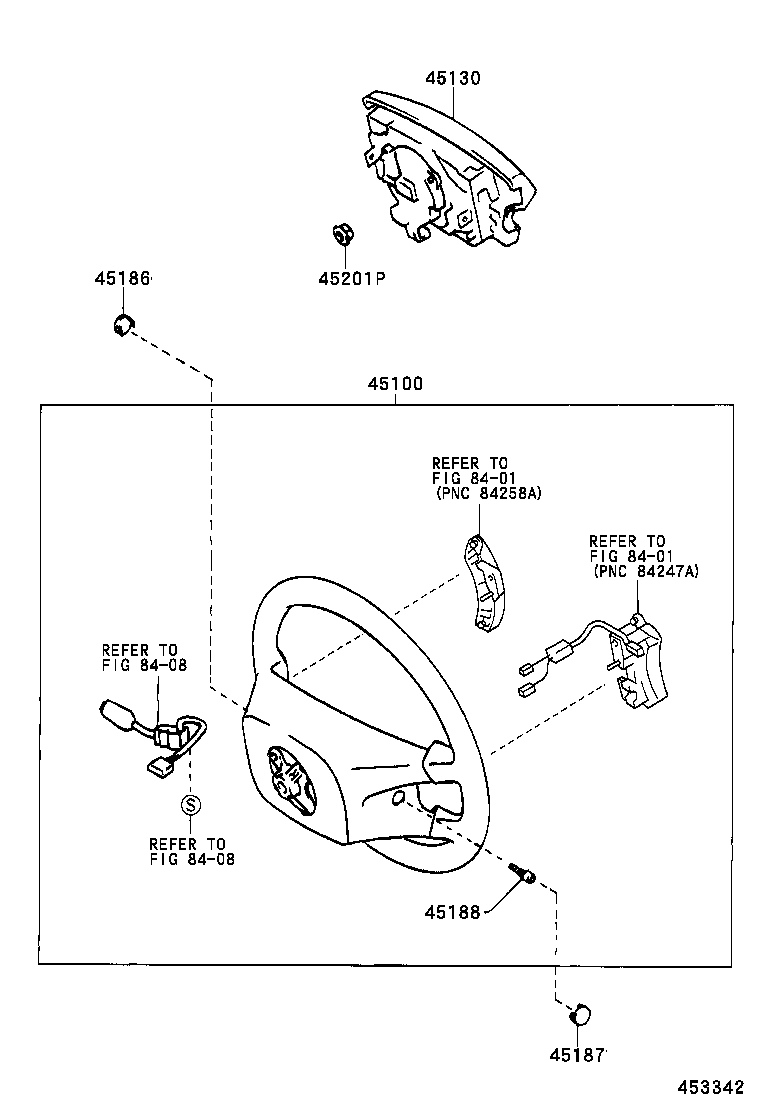

4-SPOKE,W(STEERING AUDIO SWITCH)

Part #	Description	Period	Qty
45100 - WHEEL ASSY, STEERING
45100-0C100B0	UCK35,45 4-SPOKE,LEATHER,DK.CHARCOAL,TRIM1#	09/2000 - 09/2002	1
45100-0C180E0	UCK35,45 4-SPOKE,LEATHER,OAK,TRIM4#	09/2002 - 08/2004	1
45100-0C100E0	UCK35,45 4-SPOKE,LEATHER,OAK,TRIM4#	09/2000 - 09/2002	1
45100-0C180B0	UCK35,45 4-SPOKE,LEATHER,DK.CHARCOAL,TRIM1#	09/2002 - 08/2004	1
45130 - BUTTON ASSY, HORN
45130-0C020B0	UCK35,45 DK.CHARCOAL,TRIM1#	09/2000 - 08/2001	1
45130-0C021E0	UCK35,45 OAK,TRIM4#	08/2001 - 09/2002	1
45130-0C021B0	UCK35,45 DK. CHARCOAL,TRIM1#	08/2001 - 09/2002	1
45130-0C020E0	UCK35,45 OAK,TRIM4#	09/2000 - 08/2001	1
45130-0C041B0	UCK35,45 W(STEERING AUDIO SWITCH),DK.CHARCOAL,TRIM1#	09/2002 - 08/2004	1
45130-0C041E0	UCK35,45 W(STEERING AUDIO SWITCH),OAK,TRIM4#	09/2002 - 08/2004	1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-06070B1	UCK35,45 DK.CHARCOAL,TRIM1#	09/2000 - 09/2002	1
45186-0C020B0	UCK35,45 DK.CHARCOAL,TRIM1#	09/2002 - 08/2004	1
45186-0C020E0	UCK35,45 OAK,TRIM4#	09/2002 - 08/2004	1
45186-06070E0	UCK35,45 OAK,TRIM4#	09/2000 - 09/2002	1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45186-06070E0	UCK35,45 OAK,TRIM4#	09/2000 - 09/2002	1
45187-0C010B0	UCK35,45 DK.CHARCOAL,TRIM1#	09/2002 - 08/2004	1
45186-06070B1	UCK35,45 DK.CHARCOAL,TRIM1#	09/2000 - 09/2002	1
45187-0C010E0	UCK35,45 OAK,TRIM4#	09/2002 - 08/2004	1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-07010	UCK35,45 L=18.5	09/2000 - 08/2004	2
45201P - NUT, STEERING WHEEL SET
90179-12071	UCK35,45	09/2000 - 08/2004	1
Linked diagrams
8401
8408
