UCK45L-GKSLKA (2000)

Toyota Sequoia

Production Sep 2000 - Aug 2004
Engine 2UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0009-0408)

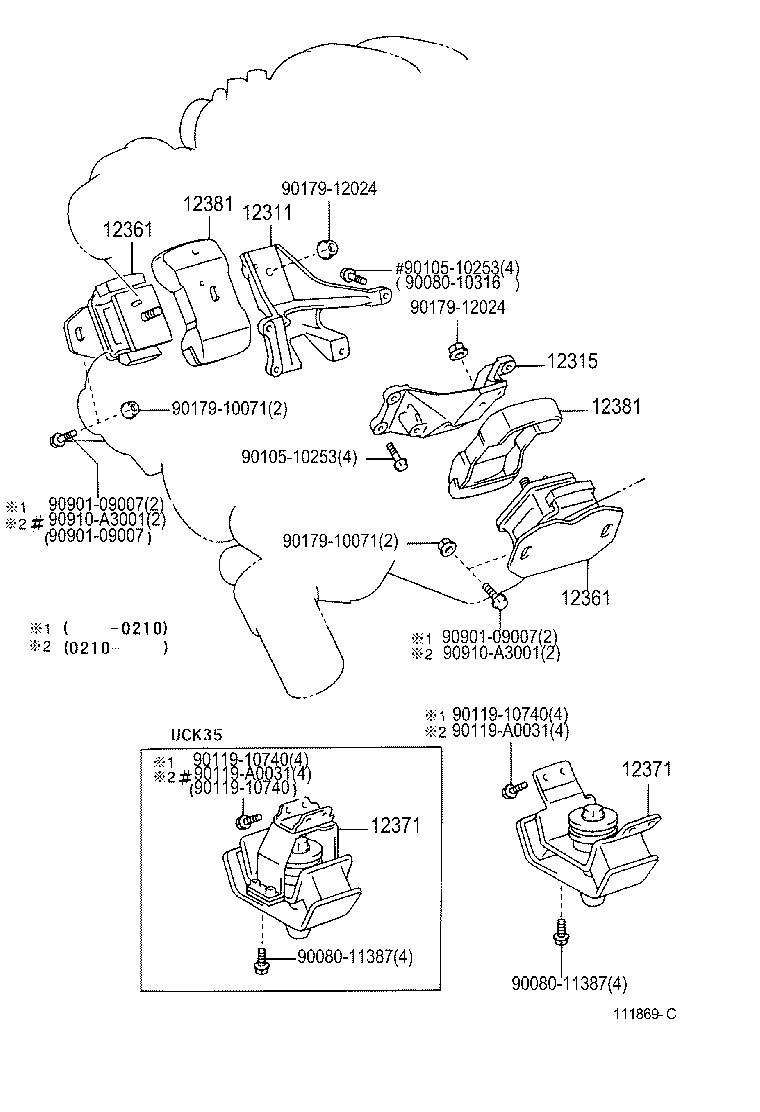

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12371 12381 12381 9008010316 9008011387 9008011387 9010510253 9010510253 9011910740 9011910740 9011910740 90119A0031 90119A0031 9017910071 9017910071 9017912024 9017912024 9090109007 9090109007 9090109007 90910A3001 90910A3001
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-50120

2UZFE..UCK35,45

(J)

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-50090

2UZFE..UCK35,45

(J)

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-50160

2UZFE..UCK35,45

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-50160

2UZFE..UCK35,45

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-50130

2UZFE..UCK45

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-50130

2UZFE..UCK45

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-50120

2UZFE..UCK35,45

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-50120

2UZFE..UCK35,45

 2
Common parts
90080-10316
90080-11387
90105-10253
90119-10740
90119-A0031
90179-10071
90179-12024
90901-09007
90910-A3001
