UCK45L-GKBSKA (2004)
Toyota Sequoia

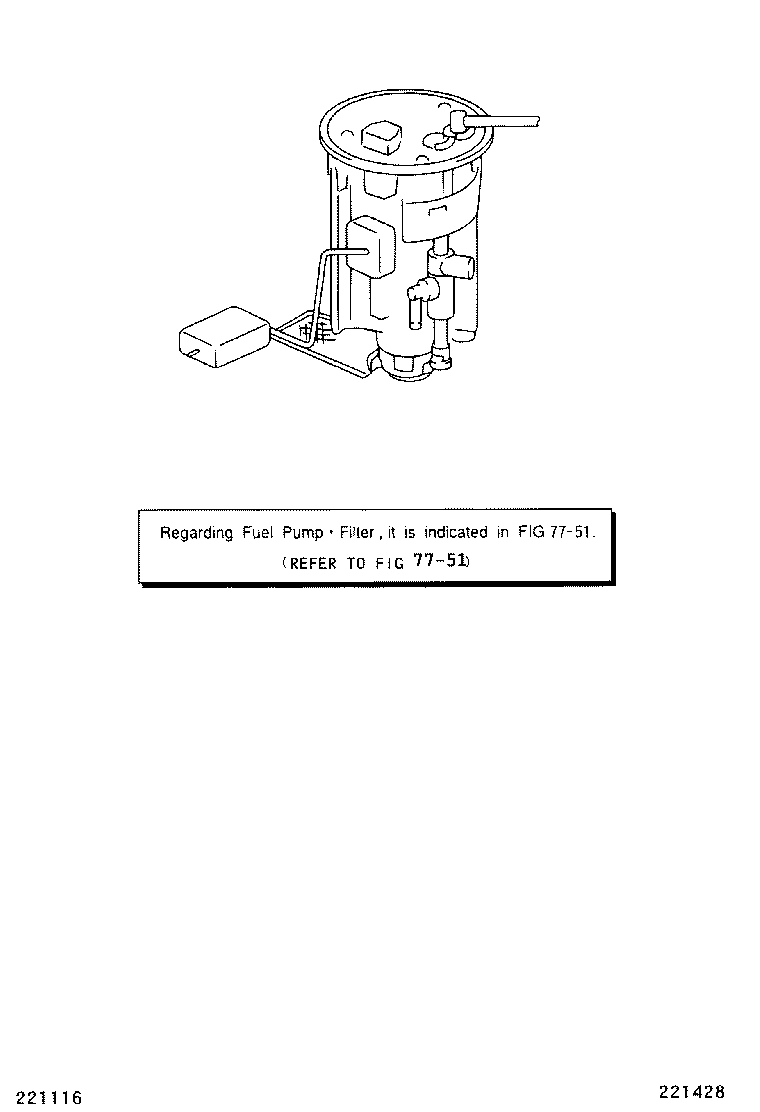

ILLUST NO. 2 OF 2(0408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 7751 | ||||

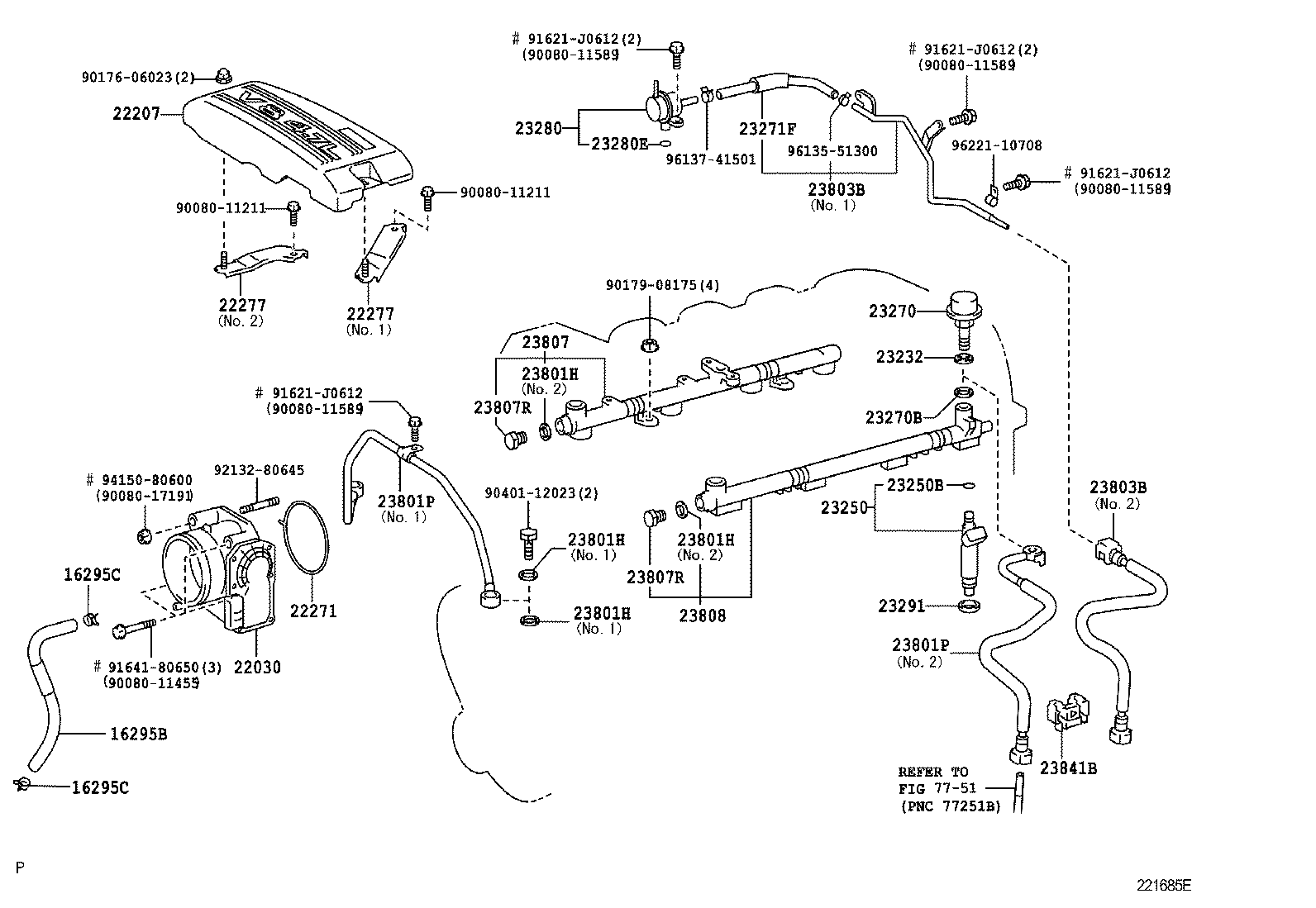

ILLUST NO. 1 OF 2(0408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16295B - HOSE, WATER BY-PASS, NO.7 | ||||
| 16295-50060 |
2UZFE..UCK35,45 |
1 | ||
| 16295-50110 |
2UZFE..UCK35,45 |
1 | ||
| 16295C - CLIP(FOR WATER BY-PASS HOSE NO.7) | ||||
| 90467-20011 |
2UZFE..UCK35,45 |
2 | ||
| 96137-41501 |
2UZFE..UCK35,45 |
2 | ||
| 96135-51300 |
2UZFE..UCK35,45 |
2 | ||
| 96135-51300 |
2UZFE..UCK35,45 |
2 | ||
| 16295C - CLIP(FOR WATER BY-PASS HOSE NO.7) | ||||
| 90467-20011 |
2UZFE..UCK35,45 |
2 | ||
| 96137-41501 |
2UZFE..UCK35,45 |
2 | ||
| 96135-51300 |
2UZFE..UCK35,45 |
2 | ||
| 96135-51300 |
2UZFE..UCK35,45 |
2 | ||
| 22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR | ||||
| 22030-0F010 |
2UZFE..UCK35,45 (L) |
1 | ||
| 22030-50200 |
2UZFE..UCK35,45 (J) |
1 | ||
| 22030-50142 |
2UZFE..UCK35,45 |
1 | ||
| 22207 - COVER SUB-ASSY, THROTTLE BODY | ||||
| 22266-50030 |
2UZFE..UCK35,45 |
1 | ||
| 22266-50040 |
2UZFE..UCK35,45 |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-50042 |
2UZFE..UCK35,45 |
1 | ||
| 22271-50050 |
2UZFE..UCK35,45 |
1 | ||
| 22277 - BRACKET, THROTTLE BODY COVER | ||||
| 22277-50010 |
2UZFE..UCK35,45 NO.1 |
1 | ||
| 22277-50020 |
2UZFE..UCK35,45 NO.2 |
1 | ||
| 22277-50030 |
2UZFE..UCK35,45 NO.1 |
1 | ||
| 22277-50061 |
2UZFE..UCK35,45 NO.2 |
1 | ||
| 22277-50060 |
2UZFE..UCK35,45 NO.2 |
1 | ||
| 22277-50031 |
2UZFE..UCK35,45 NO.1 |
1 | ||
| 22277 - BRACKET, THROTTLE BODY COVER | ||||
| 22277-50010 |
2UZFE..UCK35,45 NO.1 |
1 | ||
| 22277-50020 |
2UZFE..UCK35,45 NO.2 |
1 | ||
| 22277-50030 |
2UZFE..UCK35,45 NO.1 |
1 | ||
| 22277-50061 |
2UZFE..UCK35,45 NO.2 |
1 | ||
| 22277-50060 |
2UZFE..UCK35,45 NO.2 |
1 | ||
| 22277-50031 |
2UZFE..UCK35,45 NO.1 |
1 | ||
| 23232 - GASKET(FOR FUEL PUMP HOSE) | ||||
| 23232-41081 |
2UZFE..UCK35,45 |
1 | ||
| 23232-41081 |
2UZFE..UCK35,45 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-50080 |
2UZFE..UCK35,45 (J) |
8 | ||
| 23209-0F020 |
2UZFE..UCK35,45 (L) |
8 | ||
| 23209-50040 |
2UZFE..UCK35,45 |
8 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07024 |
2UZFE..UCK35,45 |
8 | ||
| 90301-07024 |
2UZFE..UCK35,45 |
8 | ||
| 90301-07037 |
2UZFE..UCK35,45 |
8 | ||
| 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION | ||||
| 23270-50010 |
2UZFE..UCK35,45 |
1 | ||
| 23270-50010 |
2UZFE..UCK35,45 |
1 | ||
| 23270B - GASKET(FOR PULSATION DAMPER HOSE) | ||||
| 90430-12026 |
2UZFE..UCK35,45 |
1 | ||
| 90430-12026 |
2UZFE..UCK35,45 |
1 | ||
| 23271F - HOSE, FUEL | ||||
| 95337-08009 |
2UZFE..UCK35,45 |
1 | ||
| 23271-50160 |
2UZFE..UCK35,45 |
1 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-50050 |
2UZFE..UCK35,45 |
1 | ||
| 23280-50050 |
2UZFE..UCK35,45 |
1 | ||
| 23280E - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-07037 |
2UZFE..UCK35,45 |
1 | ||
| 90301-07037 |
2UZFE..UCK35,45 |
1 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-41010 |
2UZFE..UCK35,45 |
8 | ||
| 23291-41010 |
2UZFE..UCK35,45 |
8 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-12026 |
2UZFE..UCK35,45 NO.1 |
4 | ||
| 90430-12026 |
2UZFE..UCK35,45 NO.1 |
4 | ||
| 90430-14008 |
2UZFE..UCK35,45 NO.2 |
2 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-12026 |
2UZFE..UCK35,45 NO.1 |
4 | ||
| 90430-12026 |
2UZFE..UCK35,45 NO.1 |
4 | ||
| 90430-14008 |
2UZFE..UCK35,45 NO.2 |
2 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-12026 |
2UZFE..UCK35,45 NO.1 |
4 | ||
| 90430-12026 |
2UZFE..UCK35,45 NO.1 |
4 | ||
| 90430-14008 |
2UZFE..UCK35,45 NO.2 |
2 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-12026 |
2UZFE..UCK35,45 NO.1 |
4 | ||
| 90430-12026 |
2UZFE..UCK35,45 NO.1 |
4 | ||
| 90430-14008 |
2UZFE..UCK35,45 NO.2 |
2 | ||
| 23801P - PIPE SUB-ASSY, FUEL, NO.1 | ||||
| 23801-50070 |
2UZFE..UCK35,45 NO.1 |
1 | ||
| 23801-50020 |
2UZFE..UCK35,45 NO.1 |
1 | ||
| 23801-50030 |
2UZFE..UCK35,45 (J),NO.2 |
1 | ||
| 23801-0F020 |
2UZFE..UCK35,45 (L),NO.2 |
1 | ||
| 23801-50050 |
2UZFE..UCK35,45 NO.2 |
1 | ||
| 23801-50071 |
2UZFE..UCK35,45 NO.1 |
1 | ||
| 23801P - PIPE SUB-ASSY, FUEL, NO.1 | ||||
| 23801-50070 |
2UZFE..UCK35,45 NO.1 |
1 | ||
| 23801-50020 |
2UZFE..UCK35,45 NO.1 |
1 | ||
| 23801-50030 |
2UZFE..UCK35,45 (J),NO.2 |
1 | ||
| 23801-0F020 |
2UZFE..UCK35,45 (L),NO.2 |
1 | ||
| 23801-50050 |
2UZFE..UCK35,45 NO.2 |
1 | ||
| 23801-50071 |
2UZFE..UCK35,45 NO.1 |
1 | ||
| 23803B - PIPE SUB-ASSY, FUEL, NO.3 | ||||
| 23803-50100 |
2UZFE..UCK35,45 |
1 | ||
| 23803-0F020 |
2UZFE..UCK35,45 NO.2 |
1 | ||
| 23803-50130 |
2UZFE..UCK35,45 NO.1 |
1 | ||
| 23803B - PIPE SUB-ASSY, FUEL, NO.3 | ||||
| 23803-50100 |
2UZFE..UCK35,45 |
1 | ||
| 23803-0F020 |
2UZFE..UCK35,45 NO.2 |
1 | ||
| 23803-50130 |
2UZFE..UCK35,45 NO.1 |
1 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23807-0F020 |
2UZFE..UCK35,45 (L) |
1 | ||
| 23807-50050 |
2UZFE..UCK35,45 |
1 | ||
| 23807-50080 |
2UZFE..UCK35,45 (J) |
1 | ||
| 23807R - PLUG, FUEL DELIVARY PIPE | ||||
| 90341-14032 |
2UZFE..UCK35,45 |
2 | ||
| 23807R - PLUG, FUEL DELIVARY PIPE | ||||
| 90341-14032 |
2UZFE..UCK35,45 |
2 | ||
| 23808 - PIPE SUB-ASSY, FUEL DELIVERY, NO.2 | ||||
| 23808-50040 |
2UZFE..UCK35,45 |
1 | ||
| 23808-0F020 |
2UZFE..UCK35,45 (L) |
1 | ||
| 23808-50070 |
2UZFE..UCK35,45 (J) |
1 | ||
| 23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI) | ||||
| 23841-0F010 |
2UZFE..UCK35,45 |
1 | ||
| Common parts | ||||
| 90080-11211 | ||||
| 90080-11455 | ||||
| 90080-11589 | ||||
| 90080-17191 | ||||
| 90176-06023 | ||||
| 90179-08175 | ||||
| 90401-12023 | ||||
| 91621-J0612 | ||||
| 91641-80650 | ||||
| 92132-80645 | ||||
| 94150-80600 | ||||
| 96135-51300 | ||||
| 96137-41501 | ||||
| 96221-10708 | ||||
| Linked diagrams | ||||
| 7751 | ||||
