UCK45L-GKBSKA (2004)
Toyota Sequoia

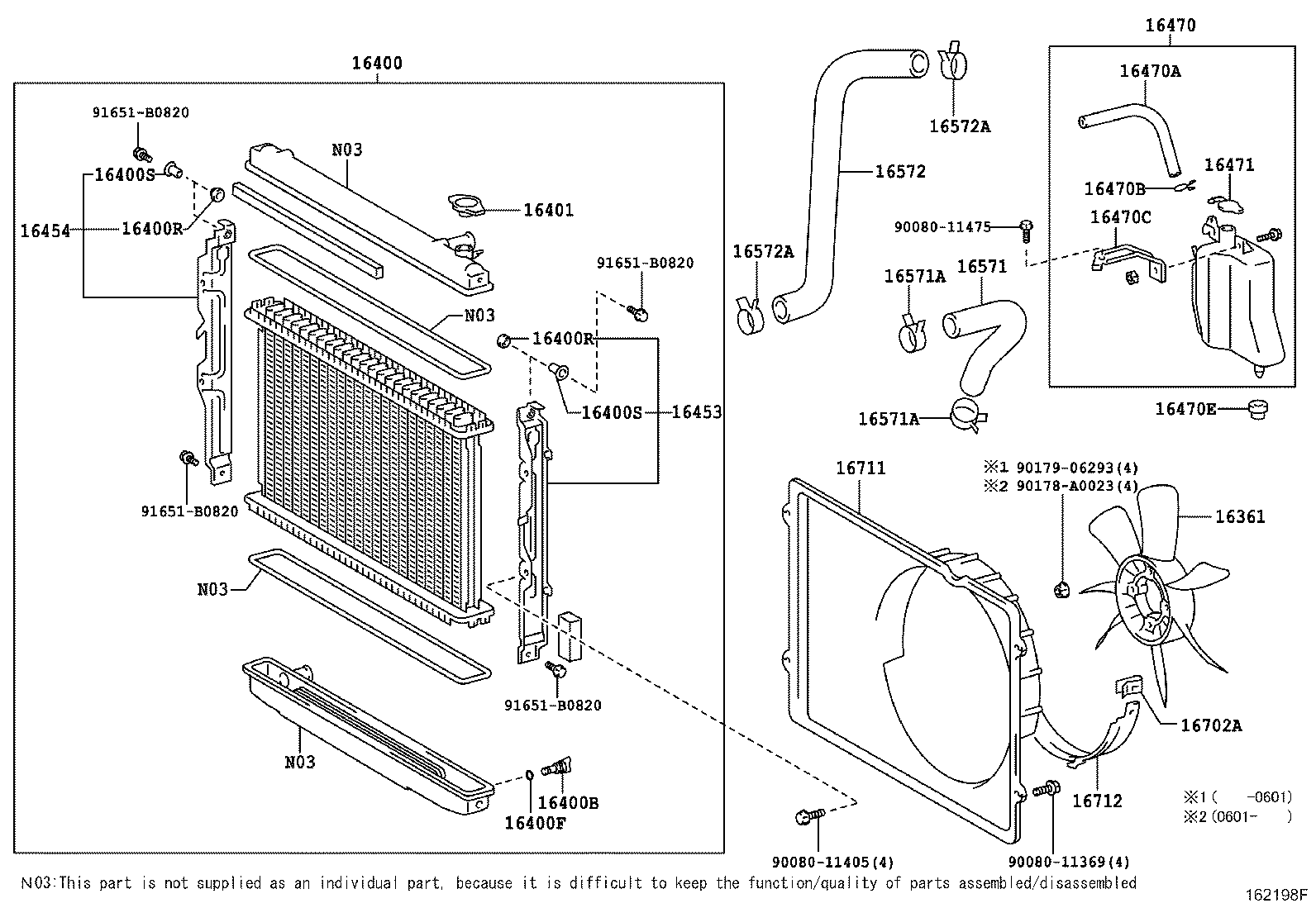

ILLUST NO. 1 OF 2(0408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-50080 |
2UZFE..UCK35,45 |
1 | ||
| 16361-50110 |
2UZFE..UCK35,45 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-0F040 |
2UZFE..UCK35,45 |
1 | ||
| 16400-0F030 |
2UZFE..UCK35,45 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
2UZFE..UCK35,45 |
1 | ||
| 23322-54010 |
2UZFE..UCK35,45 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
2UZFE..UCK35,45 |
1 | ||
| 16492-21050 |
2UZFE..UCK35,45 |
1 | ||
| 16400R - BUSHING(FOR RADIATOR) | ||||
| 16444-0F020 |
2UZFE..UCK35,45 |
2 | ||
| 16444-0F020 |
2UZFE..UCK35,45 |
2 | ||
| 16400R - BUSHING(FOR RADIATOR) | ||||
| 16444-0F020 |
2UZFE..UCK35,45 |
2 | ||
| 16444-0F020 |
2UZFE..UCK35,45 |
2 | ||
| 16400S - COLLAR(FOR RADIATOR) | ||||
| 16445-75180 |
2UZFE..UCK35,45 |
2 | ||
| 16445-75180 |
2UZFE..UCK35,45 |
2 | ||
| 16400S - COLLAR(FOR RADIATOR) | ||||
| 16445-75180 |
2UZFE..UCK35,45 |
2 | ||
| 16445-75180 |
2UZFE..UCK35,45 |
2 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-72090 |
2UZFE..UCK35,45 |
1 | ||
| 16401-72090 |
2UZFE..UCK35,45 |
1 | ||
| 16453 - PLATE, RADIATOR SIDE | ||||
| 16453-0F030 |
2UZFE..UCK35,45 |
1 | ||
| 16453-0F030 |
2UZFE..UCK35,45 |
1 | ||
| 16454 - PLATE, RADIATOR SIDE | ||||
| 16454-0F030 |
2UZFE..UCK35,45 |
1 | ||
| 16454-0F030 |
2UZFE..UCK35,45 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-0F010 |
2UZFE..UCK35,45 |
1 | ||
| 16470-0F010 |
2UZFE..UCK35,45 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90080-44115 |
2UZFE..UCK35,45 *H,L=220 |
1 | ||
| 90080-44115 |
2UZFE..UCK35,45 *H,L=220 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-12058 |
2UZFE..UCK35,45 |
2 | ||
| 90467-12058 |
2UZFE..UCK35,45 |
1 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16402-0F010 |
2UZFE..UCK35,45 |
1 | ||
| 16402-0F010 |
2UZFE..UCK35,45 |
1 | ||
| 16470E - GROMMET, RADIATOR RESERVE TANK HOSE | ||||
| 90480-25025 |
2UZFE..UCK35,45 |
1 | ||
| 90480-25025 |
2UZFE..UCK35,45 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-03010 |
2UZFE..UCK35,45 |
1 | ||
| 16471-03010 |
2UZFE..UCK35,45 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-0F020 |
2UZFE..UCK35,45 |
1 | ||
| 16571-0F030 |
2UZFE..UCK35,45 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-41005 |
2UZFE..UCK35,45 |
2 | ||
| 90466-41003 |
2UZFE..UCK35,45 |
2 | ||
| 90466-41003 |
2UZFE..UCK35,45 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-41005 |
2UZFE..UCK35,45 |
2 | ||
| 90466-41003 |
2UZFE..UCK35,45 |
2 | ||
| 90466-41003 |
2UZFE..UCK35,45 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-0F010 |
2UZFE..UCK35,45 |
1 | ||
| 16572-0F010 |
2UZFE..UCK35,45 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-41003 |
2UZFE..UCK35,45 |
2 | ||
| 90466-41005 |
2UZFE..UCK35,45 |
2 | ||
| 90466-41003 |
2UZFE..UCK35,45 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-41003 |
2UZFE..UCK35,45 |
2 | ||
| 90466-41005 |
2UZFE..UCK35,45 |
2 | ||
| 90466-41003 |
2UZFE..UCK35,45 |
2 | ||
| 16702A - CLIP(FOR FAN SHROUD NO.2) | ||||
| 90468-06092 |
2UZFE..UCK35,45 |
2 | ||
| 90468-06092 |
2UZFE..UCK35,45 |
2 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-0F030 |
2UZFE..UCK35,45 |
1 | ||
| 16711-0F030 |
2UZFE..UCK35,45 |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-0F030 |
2UZFE..UCK35,45 |
1 | ||
| 16712-0F030 |
2UZFE..UCK35,45 |
1 | ||
| Common parts | ||||
| 90080-11369 | ||||
| 90080-11405 | ||||
| 90080-11475 | ||||
| 90178-A0023 | ||||
| 90179-06293 | ||||
| 91651-B0820 | ||||
