UCK35L-GKSSKA (2000)

Toyota Sequoia

Production Sep 2000 - Aug 2004
Engine 2UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0009-0408)

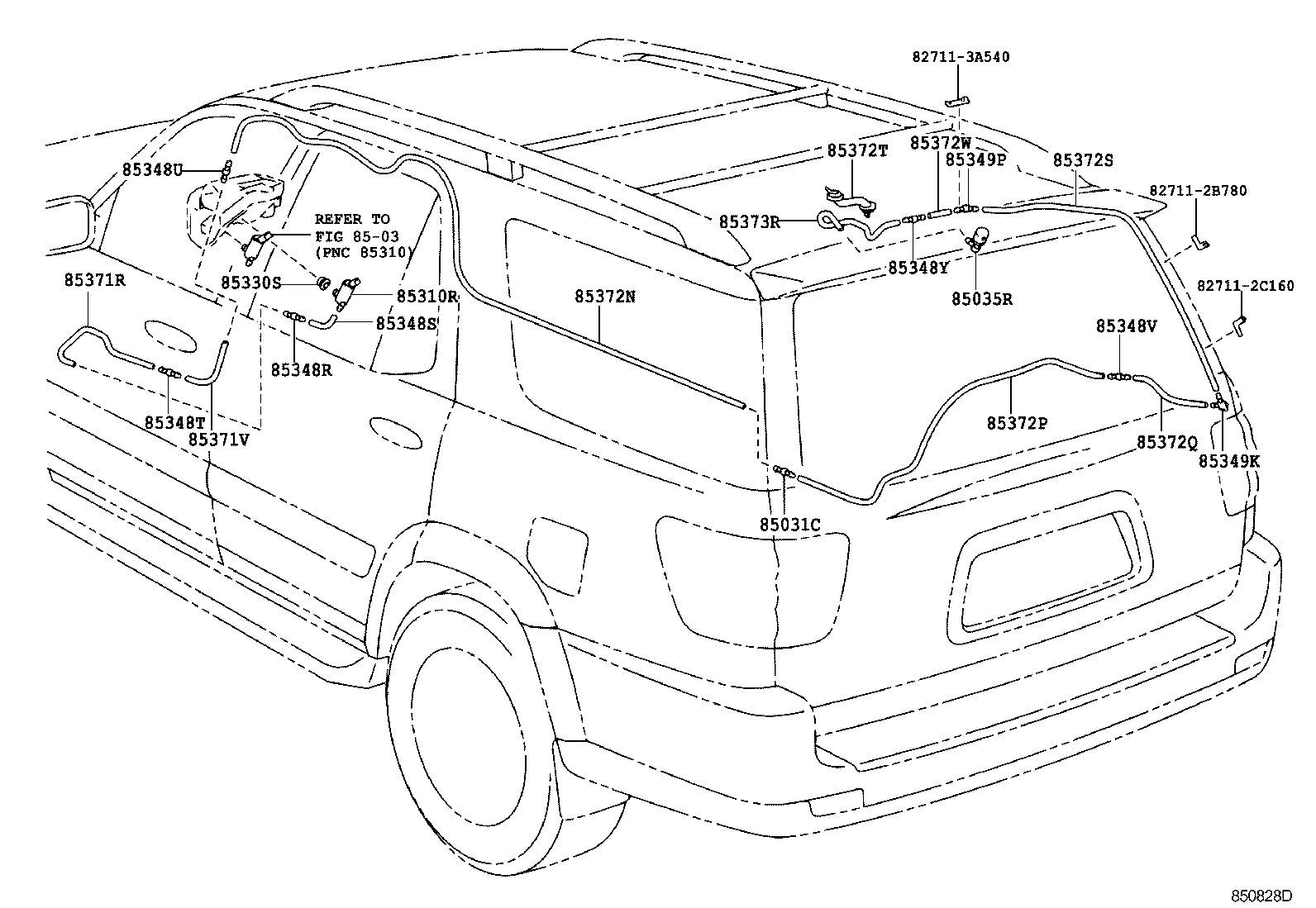

Click highlighted areas on diagram

diagram 827112B780 827112C160 827113A540 8503 85031C 85035R 85310R 85330S 85348R 85348S 85348T 85348U 85348V 85348Y 85349K 85349P 85371R 85371V 85372N 85372P 85372Q 85372S 85372T 85372W 85373R
Part # Description Qty Price
85031C - VALVE SUB-ASSY, WASHER
85375-12520

UCK35,45

 1
85035R - NOZZLE SUB-ASSY, REAR WASHER
85391-34010

UCK35,45

 1
85310R - MOTOR ASSY, REAR WASHER
85340-0C010

UCK35,45

 1
85330S - BUSH, REAR WASHER JAR
90068-32002

UCK35,45

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-89122

UCK35,45

 1
85348S - JOINT, REAR WASHER ELBOW, NO.1
85355-14481

UCK35,45

 1
85348T - JOINT, REAR WASHER HOSE, NO.2
85349-89122

UCK35,45

 1
85348U - JOINT, REAR WASHER HOSE, NO.3
85349-89122

UCK35,45

 1
85348V - JOINT, REAR WASHER HOSE, NO.4
85349-89122

UCK35,45

 1
85348Y - JOINT, REAR WASHER HOSE, NO.5
85349-89122

UCK35,45

 1
85349K - JOINT, REAR WASHER ELBOW, NO.2
85375-33070

UCK35,45

 1
85349P - JOINT, REAR WASHER ELBOW, NO.3
85375-14560

UCK35,45

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90068-59015

UCK35,45

L=200

 1
85371V - HOSE, REAR WASHER (FROM JOINT TO JOINT)
90068-33019

UCK35,45

L=40

 1
85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
90068-59013

UCK35,45

L=3150

 1
85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
90068-59014

UCK35,45

L=1770

 1
85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
90068-33011

UCK35,45

*H,L=400

 1
85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
85319-0C030

UCK35,45

L=615

 1
85372T - GROMMET, WASHER
85373-45010

UCK35,45

 1
85372W - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
90068-33018

UCK35,45

L=70

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90068-33016

UCK35,45

L=300

 1
Common parts
82711-2B780
82711-2C160
82711-3A540
Linked diagrams
8503
