Toyota Sequoia UCK35 FRONT DISC BRAKE CALIPER & DUST COVER

Manufacturers Home
Toyota
US
SEQUOIA
UCK35L-GKSSKA (2000)
4705 - FRONT DISC BRAKE CALIPER & DUST COVER

UCK35L-GKSSKA (2000)

Toyota Sequoia

Production Sep 2000 - Aug 2004

Engine 2UZFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(0009-0209)

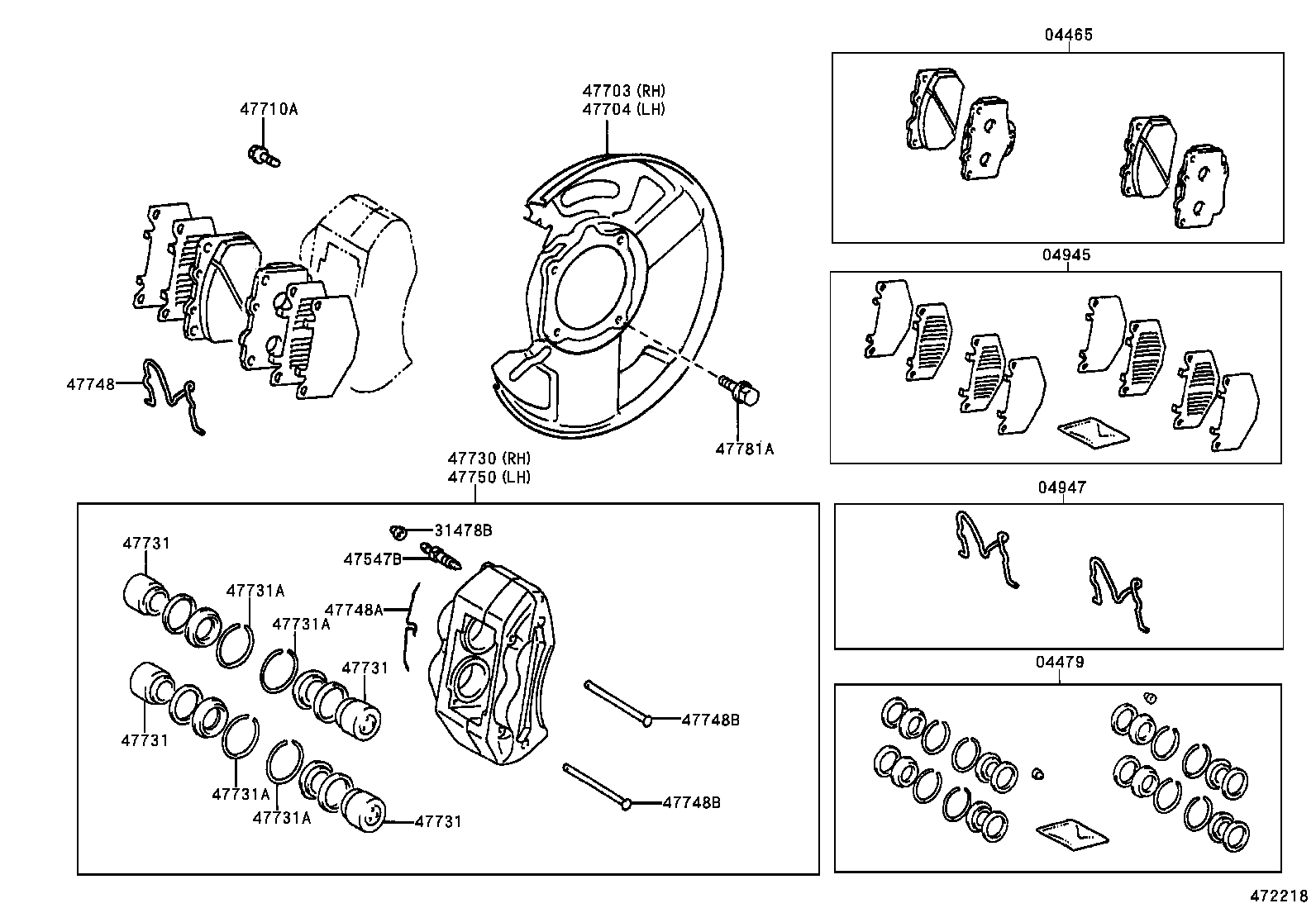

Click highlighted areas on diagram

Part #	Description	Period	Qty
04465 - PAD KIT, DISC BRAKE, FRONT
04465-35290	UCK35,45 MARK SUMITOMO PS558H	09/2002 - 08/2004	1
04465-0C012	UCK35,45 SUMITOMO PS534	09/2000 - 09/2002	1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-0C020	UCK35,45	12/2001 - 09/2002	1
04479-60080	UCK35,45	09/2002 - 08/2004	1
04479-0C010	UCK35,45	09/2000 - 12/2001	1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-35080	UCK35,45	09/2002 - 08/2004	1
04945-04010	UCK35,45	09/2000 - 09/2002	1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-0C010	UCK35,45	09/2000 - 09/2002	1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010	UCK35,45	09/2000 - 09/2002	2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
90080-93012	UCK35,45..4HC	09/2000 - 09/2002	2
47547-04010	UCK35,45	09/2002 - 08/2004	2
47703 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH
47703-34031	UCK35,45	11/2003 - 08/2004	1
47703-0C011	UCK35,45	01/2002 - 09/2002	1
47703-0C020	UCK35,45 (L)	09/2002 - 11/2003	1
47703-34030	UCK35,45 (J)	09/2002 - 11/2003	1
47703-0C010	UCK35,45	09/2000 - 01/2002	1
47704 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH
47704-0C011	UCK35,45	01/2002 - 09/2002	1
47704-34030	UCK35,45 (J)	09/2002 - 11/2003	1
47704-0C020	UCK35,45 (L)	09/2002 - 11/2003	1
47704-0C010	UCK35,45	09/2000 - 01/2002	1
47704-34031	UCK35,45	11/2003 - 08/2004	1
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90080-10298	UCK35,45 *12-1.25PX32-24	09/2002 - 08/2004	4
90080-10129	UCK35,45 *12-1.25PX35-27	09/2000 - 09/2002	4
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-0C010	UCK35,45	09/2000 - 12/2001	1
47730-0C020	UCK35,45	09/2002 - 08/2004	2
47730-0C011	UCK35,45	12/2001 - 09/2002	1
47731 - PISTON, FRONT DISC BRAKE
47731-0C020	UCK35,45	09/2002 - 08/2004	8
47731-0C010	UCK35,45..4HC	09/2000 - 12/2001	8
47731-35040	UCK35,45..4HC	12/2001 - 09/2002	8
47731 - PISTON, FRONT DISC BRAKE
47731-0C020	UCK35,45	09/2002 - 08/2004	8
47731-0C010	UCK35,45..4HC	09/2000 - 12/2001	8
47731-35040	UCK35,45..4HC	12/2001 - 09/2002	8
47731 - PISTON, FRONT DISC BRAKE
47731-0C020	UCK35,45	09/2002 - 08/2004	8
47731-0C010	UCK35,45..4HC	09/2000 - 12/2001	8
47731-35040	UCK35,45..4HC	12/2001 - 09/2002	8
47731 - PISTON, FRONT DISC BRAKE
47731-0C020	UCK35,45	09/2002 - 08/2004	8
47731-0C010	UCK35,45..4HC	09/2000 - 12/2001	8
47731-35040	UCK35,45..4HC	12/2001 - 09/2002	8
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90080-52102	UCK35,45..4HC	09/2000 - 09/2002	8
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90080-52102	UCK35,45..4HC	09/2000 - 09/2002	8
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90080-52102	UCK35,45..4HC	09/2000 - 09/2002	8
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90080-52102	UCK35,45..4HC	09/2000 - 09/2002	8
47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)
47748-0C010	UCK35,45	09/2000 - 08/2004	2
47748A - CLIP(FOR FRONT DISC BRAKE ANTI-RATTLE)
90080-46209	UCK35,45..4HC	09/2000 - 09/2002	2
47748B - PIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)
90240-06158	UCK35,45	09/2002 - 08/2004	4
90080-24077	UCK35,45..4HC	09/2000 - 09/2002	4
47748B - PIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)
90240-06158	UCK35,45	09/2002 - 08/2004	4
90080-24077	UCK35,45..4HC	09/2000 - 09/2002	4
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-0C010	UCK35,45	09/2000 - 12/2001	1
47750-0C011	UCK35,45	12/2001 - 09/2002	1
47750-0C020	UCK35,45	09/2002 - 08/2004	2
47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
90080-11370	UCK35,45	09/2000 - 08/2004	8

(0209- )

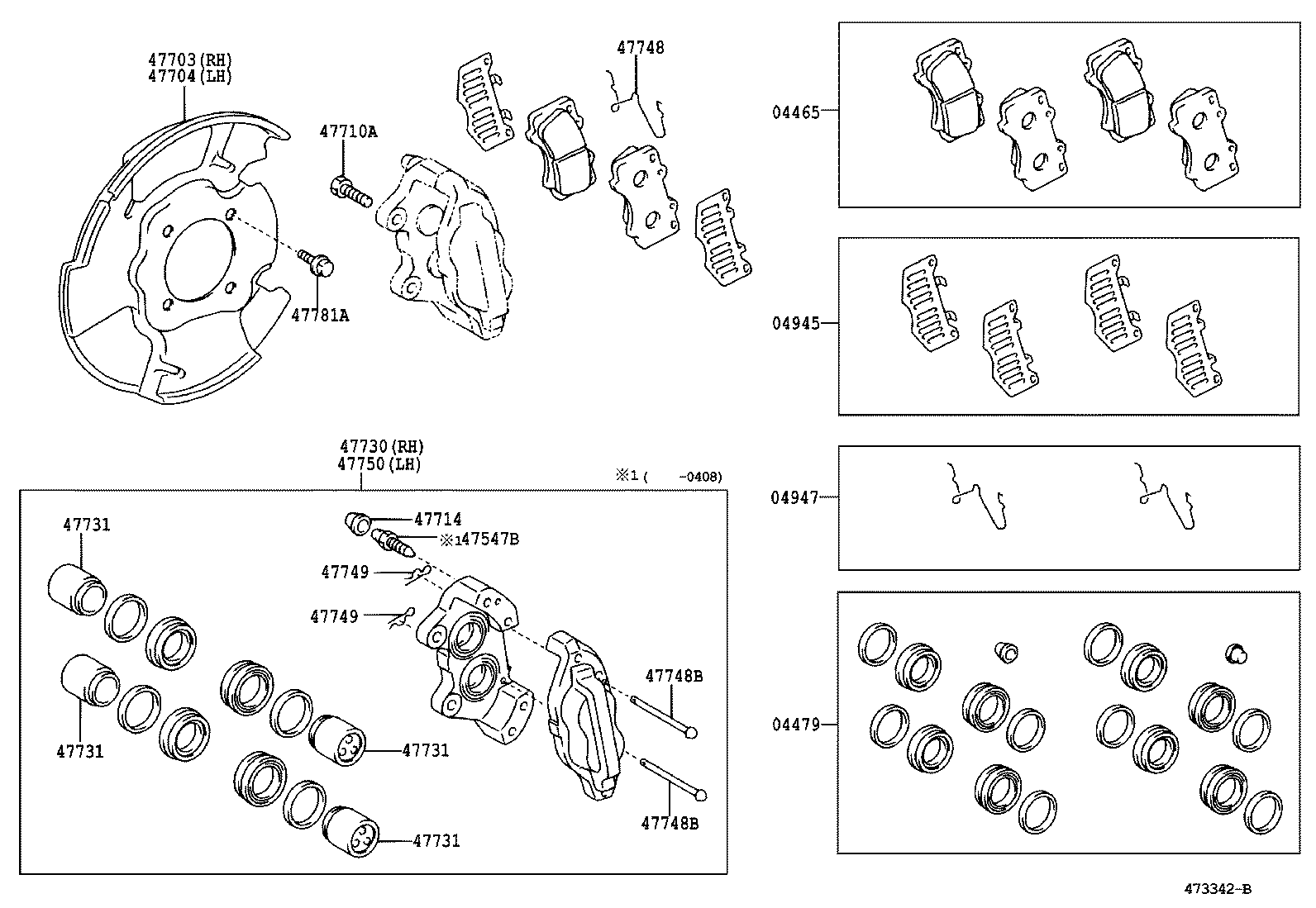

Click highlighted areas on diagram

Part #	Description	Period	Qty
04465 - PAD KIT, DISC BRAKE, FRONT
04465-35290	UCK35,45 MARK SUMITOMO PS558H	09/2002 - 08/2004	1
04465-0C012	UCK35,45 SUMITOMO PS534	09/2000 - 09/2002	1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-0C020	UCK35,45	12/2001 - 09/2002	1
04479-60080	UCK35,45	09/2002 - 08/2004	1
04479-0C010	UCK35,45	09/2000 - 12/2001	1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-35080	UCK35,45	09/2002 - 08/2004	1
04945-04010	UCK35,45	09/2000 - 09/2002	1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-0C010	UCK35,45	09/2000 - 09/2002	1
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
90080-93012	UCK35,45..4HC	09/2000 - 09/2002	2
47547-04010	UCK35,45	09/2002 - 08/2004	2
47703 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH
47703-34031	UCK35,45	11/2003 - 08/2004	1
47703-0C011	UCK35,45	01/2002 - 09/2002	1
47703-0C020	UCK35,45 (L)	09/2002 - 11/2003	1
47703-34030	UCK35,45 (J)	09/2002 - 11/2003	1
47703-0C010	UCK35,45	09/2000 - 01/2002	1
47704 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH
47704-0C011	UCK35,45	01/2002 - 09/2002	1
47704-34030	UCK35,45 (J)	09/2002 - 11/2003	1
47704-0C020	UCK35,45 (L)	09/2002 - 11/2003	1
47704-0C010	UCK35,45	09/2000 - 01/2002	1
47704-34031	UCK35,45	11/2003 - 08/2004	1
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90080-10298	UCK35,45 *12-1.25PX32-24	09/2002 - 08/2004	4
90080-10129	UCK35,45 *12-1.25PX35-27	09/2000 - 09/2002	4
47714 - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010	UCK35,45	09/2002 - 08/2004	2
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-0C010	UCK35,45	09/2000 - 12/2001	1
47730-0C020	UCK35,45	09/2002 - 08/2004	2
47730-0C011	UCK35,45	12/2001 - 09/2002	1
47731 - PISTON, FRONT DISC BRAKE
47731-0C020	UCK35,45	09/2002 - 08/2004	8
47731-0C010	UCK35,45..4HC	09/2000 - 12/2001	8
47731-35040	UCK35,45..4HC	12/2001 - 09/2002	8
47731 - PISTON, FRONT DISC BRAKE
47731-0C020	UCK35,45	09/2002 - 08/2004	8
47731-0C010	UCK35,45..4HC	09/2000 - 12/2001	8
47731-35040	UCK35,45..4HC	12/2001 - 09/2002	8
47731 - PISTON, FRONT DISC BRAKE
47731-0C020	UCK35,45	09/2002 - 08/2004	8
47731-0C010	UCK35,45..4HC	09/2000 - 12/2001	8
47731-35040	UCK35,45..4HC	12/2001 - 09/2002	8
47731 - PISTON, FRONT DISC BRAKE
47731-0C020	UCK35,45	09/2002 - 08/2004	8
47731-0C010	UCK35,45..4HC	09/2000 - 12/2001	8
47731-35040	UCK35,45..4HC	12/2001 - 09/2002	8
47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)
47748-0C010	UCK35,45	09/2000 - 08/2004	2
47748B - PIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)
90240-06158	UCK35,45	09/2002 - 08/2004	4
90080-24077	UCK35,45..4HC	09/2000 - 09/2002	4
47748B - PIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)
90240-06158	UCK35,45	09/2002 - 08/2004	4
90080-24077	UCK35,45..4HC	09/2000 - 09/2002	4
47749 - CLIP, PIN HOLD
47749-50030	UCK35,45..4HC	09/2002 - 10/2002	4
47749-35040	UCK35,45	10/2002 - 08/2004	4
47749 - CLIP, PIN HOLD
47749-50030	UCK35,45..4HC	09/2002 - 10/2002	4
47749-35040	UCK35,45	10/2002 - 08/2004	4
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-0C010	UCK35,45	09/2000 - 12/2001	1
47750-0C011	UCK35,45	12/2001 - 09/2002	1
47750-0C020	UCK35,45	09/2002 - 08/2004	2
47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
90080-11370	UCK35,45	09/2000 - 08/2004	8

UCK35L-GKSSKA (2000)

(0009-0209)

(0209- )
