UCK35L-GKSLKA (2000)
Toyota Sequoia
Production
Sep 2000
-
Aug 2004
Engine
2UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0009- )

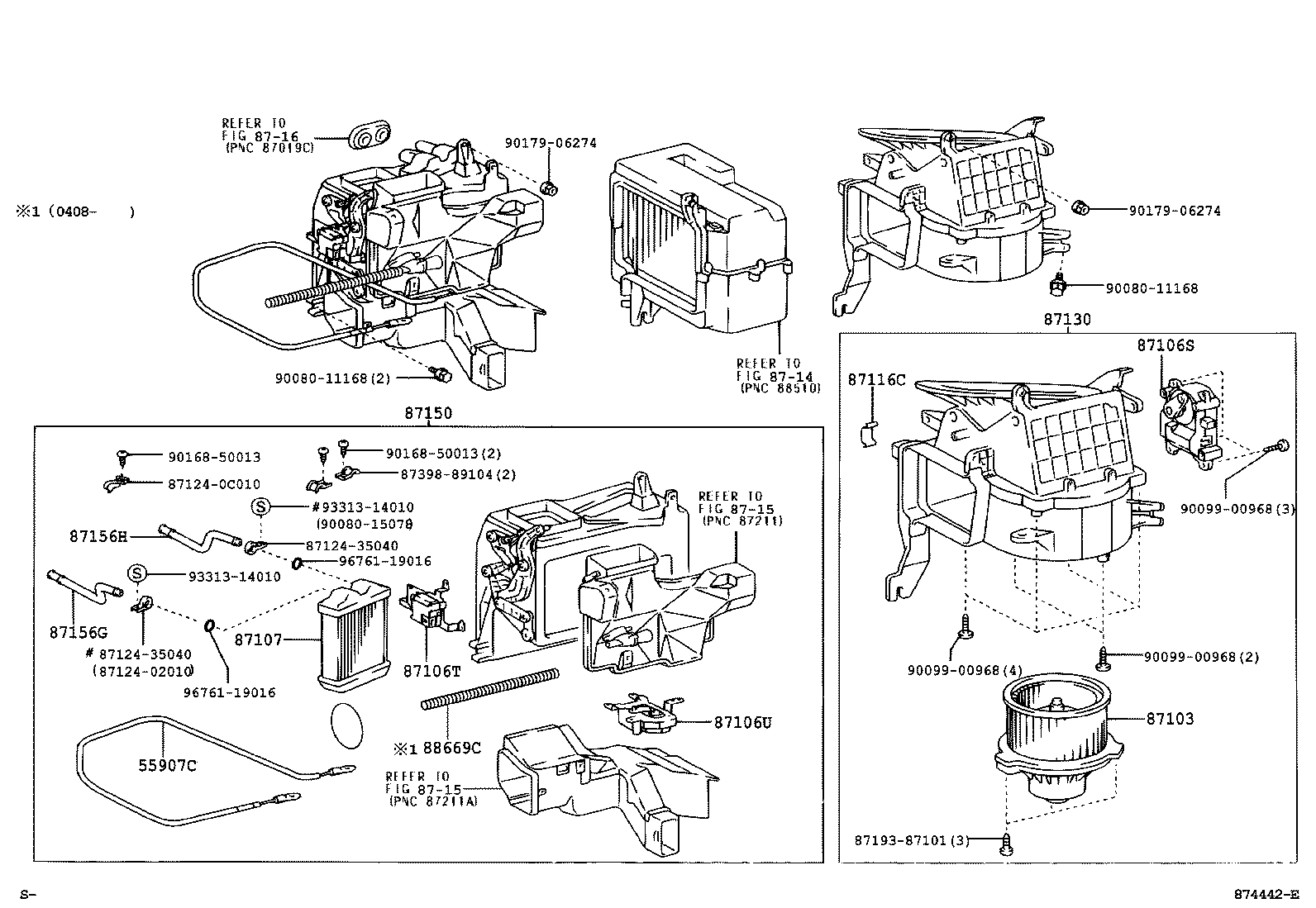

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55907C - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 87286-0C010 |
UCK35,45 |
1 | ||
| 87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN | ||||
| 87103-0C020 |
UCK35,45 |
1 | ||
| 87106S - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION) | ||||
| 87106-0C020 |
UCK35,45 |
1 | ||
| 87106T - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-0C030 |
UCK35,45 |
1 | ||
| 87106U - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-0C040 |
UCK35,45 |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-0C020 |
UCK35,45 |
1 | ||
| 87116C - SPRING, HOLDING (FOR HEATER BLOWER) | ||||
| 87116-04020 |
UCK35,45 |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-0C020 |
UCK35,45 |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-0C020 |
UCK35,45 |
1 | ||
| 87156G - PIPE, HEATER WATER, NO.1 | ||||
| 87156-0C030 |
UCK35,45 |
1 | ||
| 87156H - PIPE, HEATER WATER, NO.2 | ||||
| 87156-0C040 |
UCK35,45 |
1 | ||
| Common parts | ||||
| 87124-02010 | ||||
| 87124-0C010 | ||||
| 87124-35040 | ||||
| 87193-87101 | ||||
| 87398-89104 | ||||
| 90080-11168 | ||||
| 90080-15078 | ||||
| 90099-00968 | ||||
| 90168-50013 | ||||
| 90179-06274 | ||||
| 93313-14010 | ||||
| 96761-19016 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8715 | ||||
| 8716 | ||||
