UCK35L-GKSLKA (2000)

Toyota Sequoia

Production Sep 2000 - Aug 2004
Engine 2UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0009- )

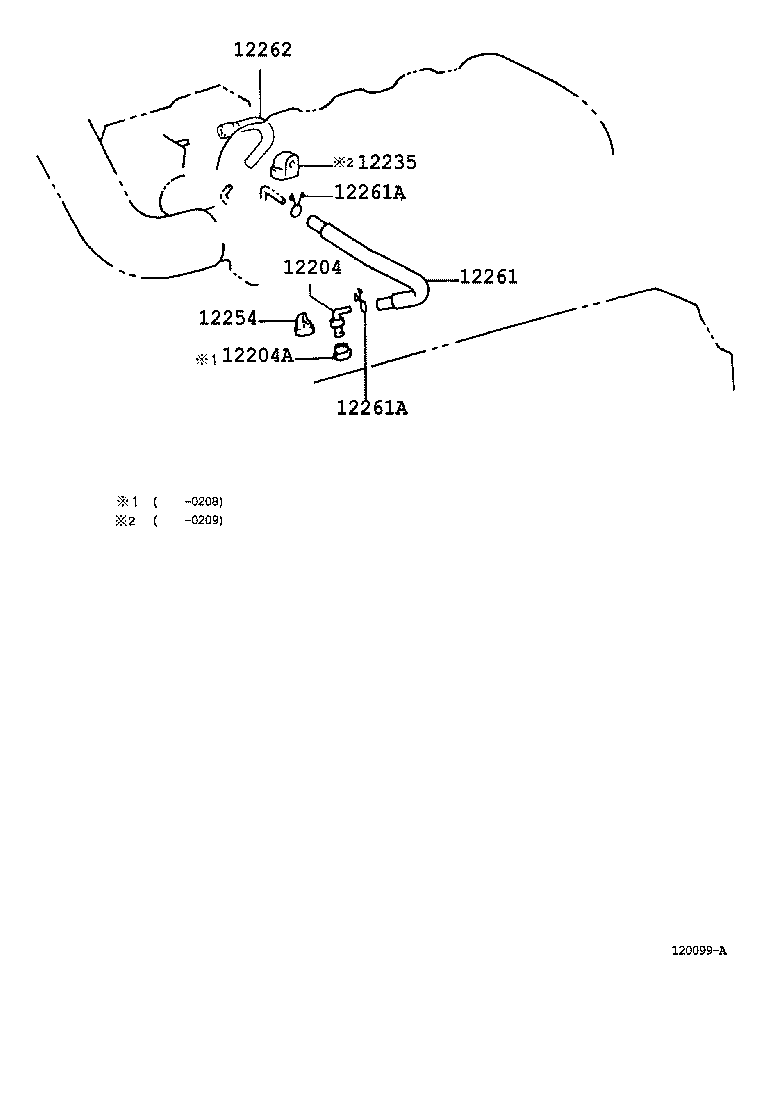

Click highlighted areas on diagram

diagram 12204 12204A 12235 12254 12261 12261A 12261A 12262
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-50020

2UZFE..UCK35,45

 1
12204-50030

2UZFE..UCK35,45

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18001

2UZFE..UCK35,45

 1
12235 - CAP, VENTILATION
12235-50010

2UZFE..UCK35,45

 1
12254 - COVER, VENTILATION VALVE
12236-50010

2UZFE..UCK35,45

 1
12261 - HOSE, VENTILATION
12261-50050

2UZFE..UCK35,45

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-15021

2UZFE..UCK35,45

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-15021

2UZFE..UCK35,45

 2
12262 - HOSE, VENTILATION, NO.2
12262-0F020

2UZFE..UCK35,45

 1
12262-0F021

2UZFE..UCK35,45

 1
