UCK35L-GKBSKA (2004)
Toyota Sequoia

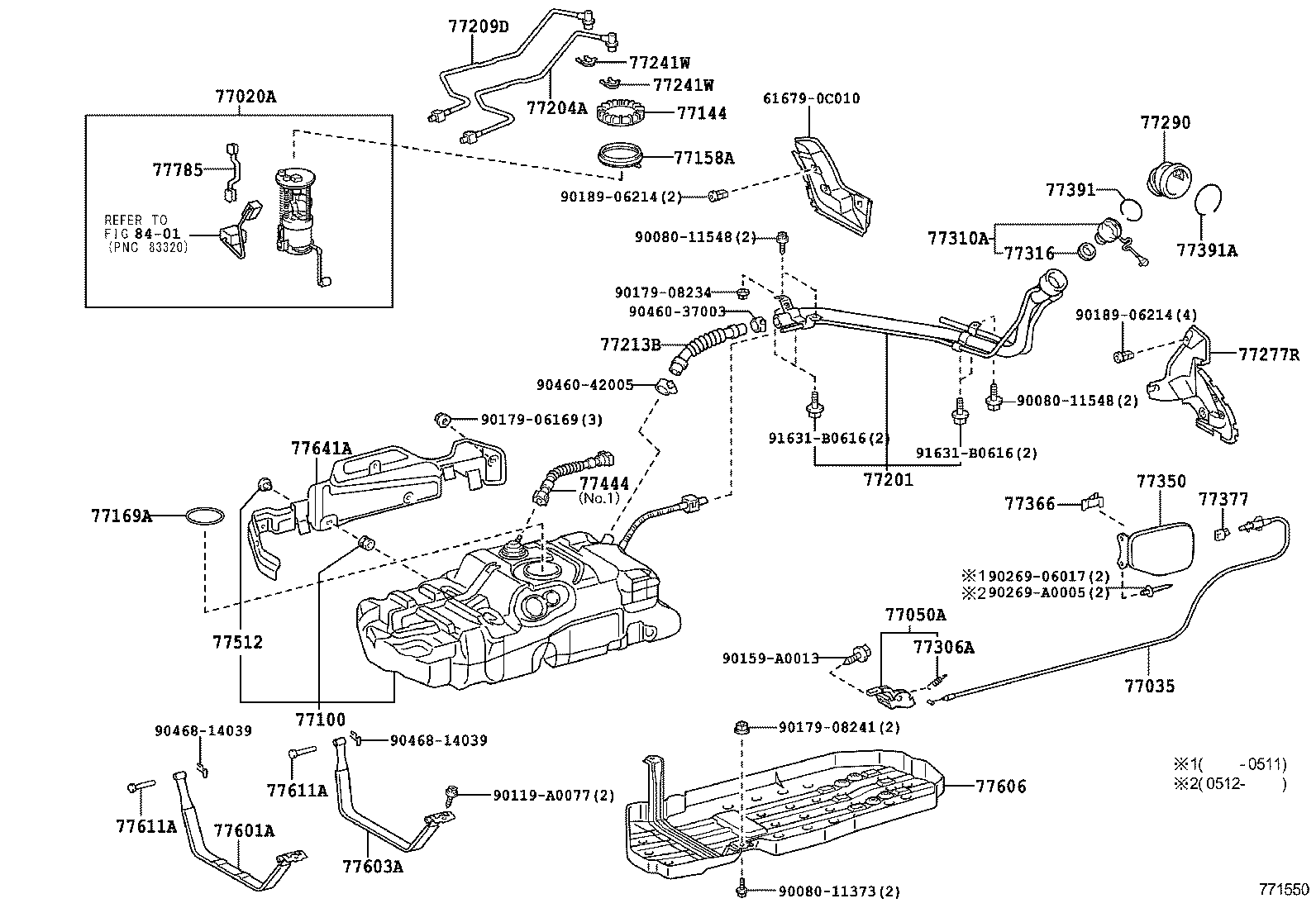

ILLUST NO. 1 OF 2(0408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-0C061 |
UCK35,45 |
1 | ||
| 77020-0C060 |
UCK35,45 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-0C020 |
UCK35,45 |
1 | ||
| 77050A - CONTROL OPENER ASSY, FUEL LID LOCK | ||||
| 77050-0C020 |
UCK35,45 |
1 | ||
| 77050-0C010 |
UCK35,45 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-0C040 |
UCK35,45 |
1 | ||
| 77001-0C020 |
UCK35,45 |
1 | ||
| 77001-0C040 |
UCK35,45 |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-08010 |
UCK35,45 |
1 | ||
| 77144-08010 |
UCK35,45 |
1 | ||
| 77158A - SUPPORT, TANK SUCTION TUBE | ||||
| 77158-08010 |
UCK35,45 |
1 | ||
| 77158-08010 |
UCK35,45 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-0C010 |
UCK35,45 |
1 | ||
| 77169-0C010 |
UCK35,45 |
1 | ||
| 77169-04010 |
UCK35,45 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-0C020 |
UCK35,45 |
1 | ||
| 77201-0C030 |
UCK35,45 |
1 | ||
| 77204A - TUBE, FUEL TANK RETURN | ||||
| 77204-0C020 |
UCK35,45 |
1 | ||
| 77204-0C020 |
UCK35,45 |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-0C020 |
UCK35,45 |
1 | ||
| 77209-0C040 |
UCK35,45 |
1 | ||
| 77209-0C040 |
UCK35,45 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-0C020 |
UCK35,45 L=394 |
1 | ||
| 77213-0C050 |
UCK35,45 |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-02010 |
UCK35,45 |
2 | ||
| 77241-02010 |
UCK35,45 |
1 | ||
| 77241-02010 |
UCK35,45 |
2 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-02010 |
UCK35,45 |
2 | ||
| 77241-02010 |
UCK35,45 |
1 | ||
| 77241-02010 |
UCK35,45 |
2 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-0C010 |
UCK35,45 |
1 | ||
| 77277-0C010 |
UCK35,45 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-0C060 |
UCK35,45 |
1 | ||
| 77291-0C020 |
UCK35,45 |
1 | ||
| 77306A - SPRING, FUEL LID OPEN LEVER | ||||
| 90506-09004 |
UCK35,45 |
1 | ||
| 90506-09004 |
UCK35,45 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-33070 |
UCK35,45 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-33042 |
UCK35,45 |
1 | ||
| 77316-06010 |
UCK35,45 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-0C011 |
UCK35,45 |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-53010 |
UCK35,45 |
1 | ||
| 77360-33020 |
UCK35,45 |
1 | ||
| 77360-33020 |
UCK35,45 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-AA010 |
UCK35,45 |
1 | ||
| 77377-AA010 |
UCK35,45 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
UCK35,45 |
1 | ||
| 77391-12020 |
UCK35,45 |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-33010 |
UCK35,45 |
1 | ||
| 77391-33010 |
UCK35,45 |
1 | ||
| 77444 - HOSE, FUEL TANK VENT | ||||
| 77404-0C030 |
UCK35,45 NO.2 |
1 | ||
| 77404-04020 |
UCK35,45 NO.1 |
1 | ||
| 77512 - BRACKET, FUEL TANK, REAR | ||||
| 77512-35140 |
UCK35,45 |
3 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-0C010 |
UCK35,45 |
1 | ||
| 77601-34050 |
UCK35,45 |
1 | ||
| 77603A - BAND SUB-ASSY, FUEL TANK, NO.2 | ||||
| 77603-0C010 |
UCK35,45 |
1 | ||
| 77603-34050 |
UCK35,45 |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-0C030 |
UCK35,45 |
1 | ||
| 77606-0C010 |
UCK35,45 |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-34030 |
UCK35,45 |
2 | ||
| 77653-34030 |
UCK35,45 |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-34030 |
UCK35,45 |
2 | ||
| 77653-34030 |
UCK35,45 |
2 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77697-0C010 |
UCK35,45 |
1 | ||
| 77697-0C010 |
UCK35,45 |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-0C020 |
UCK35,45 |
1 | ||
| 77785-0C020 |
UCK35,45 |
1 | ||
| Common parts | ||||
| 61679-0C010 | ||||
| 90080-11373 | ||||
| 90080-11548 | ||||
| 90119-A0077 | ||||
| 90159-A0013 | ||||
| 90179-06169 | ||||
| 90179-08234 | ||||
| 90179-08241 | ||||
| 90189-06214 | ||||
| 90269-06017 | ||||
| 90269-A0005 | ||||
| 90460-37003 | ||||
| 90460-42005 | ||||
| 90468-14039 | ||||
| 91631-B0616 | ||||
| Linked diagrams | ||||
| 8401 | ||||

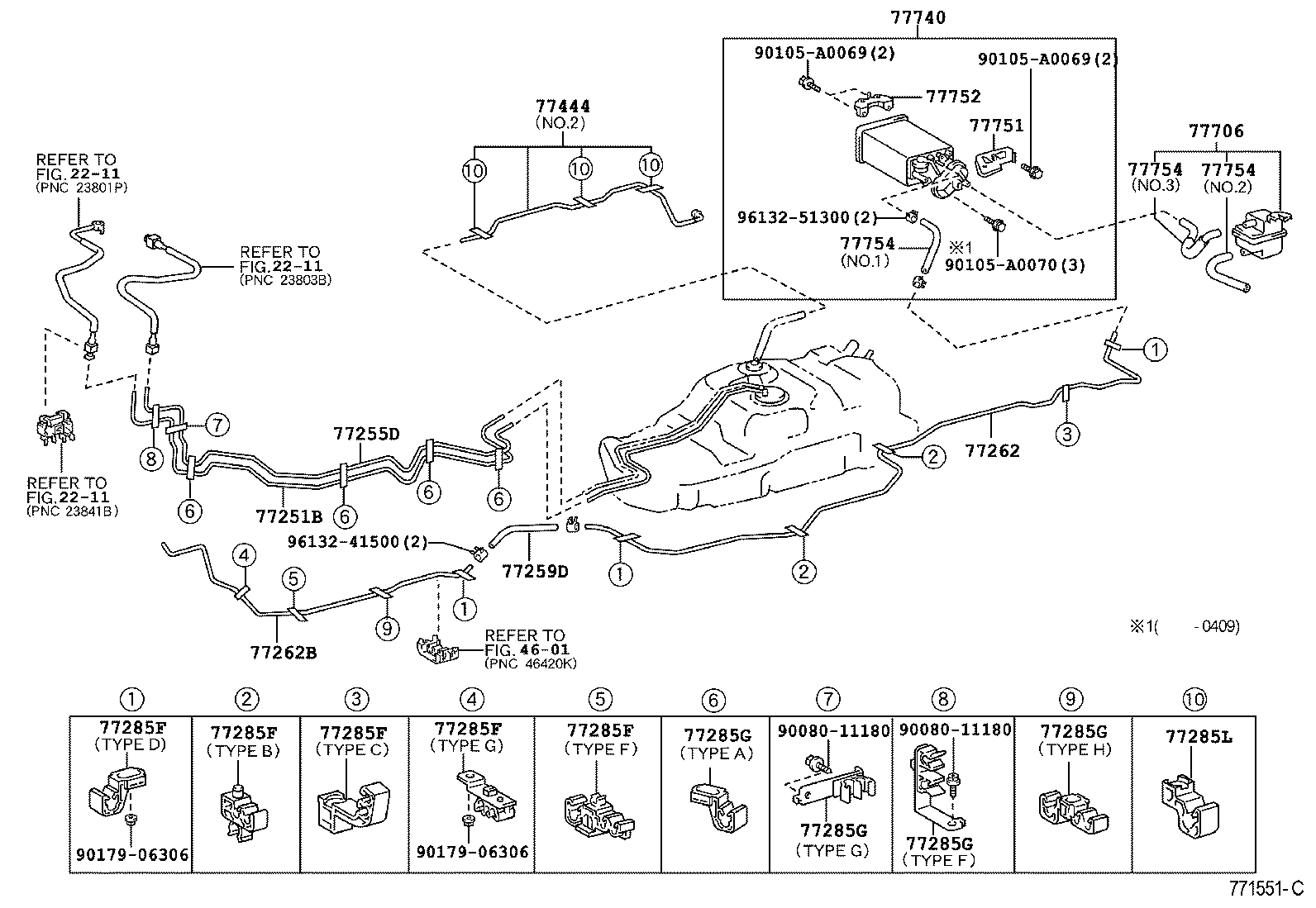

ILLUST NO. 2 OF 2(0408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-0C030 |
UCK35,45 |
1 | ||
| 77251-0C040 |
UCK35,45 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-0C030 |
UCK35,45 |
1 | ||
| 77255-0C070 |
UCK35,45 |
1 | ||
| 77259D - HOSE, FUEL, NO.1 | ||||
| 77259-0C130 |
UCK35,45 |
1 | ||
| 77259-0C130 |
UCK35,45 |
1 | ||
| 77262 - TUBE, FUEL EMISSION, NO.2 | ||||
| 77262-0C020 |
UCK35,45 |
1 | ||
| 77262-0C080 |
UCK35,45 |
1 | ||
| 77262B - TUBE, FUEL TANK TO CANISTER, NO.2 | ||||
| 77262-0C030 |
UCK35,45 |
1 | ||
| 77262-0C070 |
UCK35,45 |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-34140 |
UCK35,45 TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 77285-34240 |
UCK35,45 TYPE F:REFER TO ILLUSTRATION |
1 | ||
| 77285-34020 |
UCK35,45 TYPE D:REFER TO ILLUSTRATION |
3 | ||
| 77285-34150 |
UCK35,45 TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 77285-34250 |
UCK35,45 TYPE A:REFER TO ILLUSTRATION |
3 | ||
| 77285-34160 |
UCK35,45 TYPE C:REFER ILLUST. |
1 | ||
| 77285-34240 |
UCK35,45 TYPE F:REFER ILLUST. |
1 | ||
| 77285-34230 |
UCK35,45 TYPE G:REFER ILLUST. |
1 | ||
| 77285-34150 |
UCK35,45 TYPE B:REFER ILLUST. |
2 | ||
| 77285-34160 |
UCK35,45 TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 77285-34250 |
UCK35,45 TYPE A:REFER ILLUST. |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-34140 |
UCK35,45 TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 77285-34240 |
UCK35,45 TYPE F:REFER TO ILLUSTRATION |
1 | ||
| 77285-34020 |
UCK35,45 TYPE D:REFER TO ILLUSTRATION |
3 | ||
| 77285-34150 |
UCK35,45 TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 77285-34250 |
UCK35,45 TYPE A:REFER TO ILLUSTRATION |
3 | ||
| 77285-34160 |
UCK35,45 TYPE C:REFER ILLUST. |
1 | ||
| 77285-34240 |
UCK35,45 TYPE F:REFER ILLUST. |
1 | ||
| 77285-34230 |
UCK35,45 TYPE G:REFER ILLUST. |
1 | ||
| 77285-34150 |
UCK35,45 TYPE B:REFER ILLUST. |
2 | ||
| 77285-34160 |
UCK35,45 TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 77285-34250 |
UCK35,45 TYPE A:REFER ILLUST. |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-34140 |
UCK35,45 TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 77285-34240 |
UCK35,45 TYPE F:REFER TO ILLUSTRATION |
1 | ||
| 77285-34020 |
UCK35,45 TYPE D:REFER TO ILLUSTRATION |
3 | ||
| 77285-34150 |
UCK35,45 TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 77285-34250 |
UCK35,45 TYPE A:REFER TO ILLUSTRATION |
3 | ||
| 77285-34160 |
UCK35,45 TYPE C:REFER ILLUST. |
1 | ||
| 77285-34240 |
UCK35,45 TYPE F:REFER ILLUST. |
1 | ||
| 77285-34230 |
UCK35,45 TYPE G:REFER ILLUST. |
1 | ||
| 77285-34150 |
UCK35,45 TYPE B:REFER ILLUST. |
2 | ||
| 77285-34160 |
UCK35,45 TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 77285-34250 |
UCK35,45 TYPE A:REFER ILLUST. |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-34140 |
UCK35,45 TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 77285-34240 |
UCK35,45 TYPE F:REFER TO ILLUSTRATION |
1 | ||
| 77285-34020 |
UCK35,45 TYPE D:REFER TO ILLUSTRATION |
3 | ||
| 77285-34150 |
UCK35,45 TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 77285-34250 |
UCK35,45 TYPE A:REFER TO ILLUSTRATION |
3 | ||
| 77285-34160 |
UCK35,45 TYPE C:REFER ILLUST. |
1 | ||
| 77285-34240 |
UCK35,45 TYPE F:REFER ILLUST. |
1 | ||
| 77285-34230 |
UCK35,45 TYPE G:REFER ILLUST. |
1 | ||
| 77285-34150 |
UCK35,45 TYPE B:REFER ILLUST. |
2 | ||
| 77285-34160 |
UCK35,45 TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 77285-34250 |
UCK35,45 TYPE A:REFER ILLUST. |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-34140 |
UCK35,45 TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 77285-34240 |
UCK35,45 TYPE F:REFER TO ILLUSTRATION |
1 | ||
| 77285-34020 |
UCK35,45 TYPE D:REFER TO ILLUSTRATION |
3 | ||
| 77285-34150 |
UCK35,45 TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 77285-34250 |
UCK35,45 TYPE A:REFER TO ILLUSTRATION |
3 | ||
| 77285-34160 |
UCK35,45 TYPE C:REFER ILLUST. |
1 | ||
| 77285-34240 |
UCK35,45 TYPE F:REFER ILLUST. |
1 | ||
| 77285-34230 |
UCK35,45 TYPE G:REFER ILLUST. |
1 | ||
| 77285-34150 |
UCK35,45 TYPE B:REFER ILLUST. |
2 | ||
| 77285-34160 |
UCK35,45 TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 77285-34250 |
UCK35,45 TYPE A:REFER ILLUST. |
1 | ||
| 77285G - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-34060 |
UCK35,45 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 77285-34031 |
UCK35,45 TYPE A:REFER TO ILLUSTRATION |
5 | ||
| 77285-34190 |
UCK35,45 TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 77285-0C010 |
UCK35,45 TYPE F:REFER ILLUST. |
1 | ||
| 77285-0C020 |
UCK35,45 TYPE G:REFER ILLUST. |
1 | ||
| 77285-34080 |
UCK35,45 TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 77285-34200 |
UCK35,45 TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 77285-34220 |
UCK35,45 TYPE H:REFER ILLUST. |
1 | ||
| 77285-34031 |
UCK35,45 TYPE A:REFER ILLUST. |
4 | ||
| 77285G - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-34060 |
UCK35,45 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 77285-34031 |
UCK35,45 TYPE A:REFER TO ILLUSTRATION |
5 | ||
| 77285-34190 |
UCK35,45 TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 77285-0C010 |
UCK35,45 TYPE F:REFER ILLUST. |
1 | ||
| 77285-0C020 |
UCK35,45 TYPE G:REFER ILLUST. |
1 | ||
| 77285-34080 |
UCK35,45 TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 77285-34200 |
UCK35,45 TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 77285-34220 |
UCK35,45 TYPE H:REFER ILLUST. |
1 | ||
| 77285-34031 |
UCK35,45 TYPE A:REFER ILLUST. |
4 | ||
| 77285G - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-34060 |
UCK35,45 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 77285-34031 |
UCK35,45 TYPE A:REFER TO ILLUSTRATION |
5 | ||
| 77285-34190 |
UCK35,45 TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 77285-0C010 |
UCK35,45 TYPE F:REFER ILLUST. |
1 | ||
| 77285-0C020 |
UCK35,45 TYPE G:REFER ILLUST. |
1 | ||
| 77285-34080 |
UCK35,45 TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 77285-34200 |
UCK35,45 TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 77285-34220 |
UCK35,45 TYPE H:REFER ILLUST. |
1 | ||
| 77285-34031 |
UCK35,45 TYPE A:REFER ILLUST. |
4 | ||
| 77285G - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-34060 |
UCK35,45 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 77285-34031 |
UCK35,45 TYPE A:REFER TO ILLUSTRATION |
5 | ||
| 77285-34190 |
UCK35,45 TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 77285-0C010 |
UCK35,45 TYPE F:REFER ILLUST. |
1 | ||
| 77285-0C020 |
UCK35,45 TYPE G:REFER ILLUST. |
1 | ||
| 77285-34080 |
UCK35,45 TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 77285-34200 |
UCK35,45 TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 77285-34220 |
UCK35,45 TYPE H:REFER ILLUST. |
1 | ||
| 77285-34031 |
UCK35,45 TYPE A:REFER ILLUST. |
4 | ||
| 77285L - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-0C030 |
UCK35,45 |
3 | ||
| 77444 - HOSE, FUEL TANK VENT | ||||
| 77404-0C030 |
UCK35,45 NO.2 |
1 | ||
| 77404-04020 |
UCK35,45 NO.1 |
1 | ||
| 77706 - FILTER SUB-ASSY, CHARCOAL CANISTER | ||||
| 77706-0C020 |
UCK35,45 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-0C030 |
UCK35,45 |
1 | ||
| 77740-0C011 |
UCK35,45 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-0C010 |
UCK35,45 |
1 | ||
| 77751-0C030 |
UCK35,45 |
1 | ||
| 77752 - BRACKET, CHARCOAL CANISTER SUPPORT | ||||
| 77752-0C010 |
UCK35,45 |
1 | ||
| 77752-0C030 |
UCK35,45 |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-0C020 |
UCK35,45 L=290 |
1 | ||
| 77754-0C050 |
UCK35,45 L=200,NO.1 |
1 | ||
| 77754-0C070 |
UCK35,45 NO.3 |
1 | ||
| 77754-0C060 |
UCK35,45 NO.2 |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-0C020 |
UCK35,45 L=290 |
1 | ||
| 77754-0C050 |
UCK35,45 L=200,NO.1 |
1 | ||
| 77754-0C070 |
UCK35,45 NO.3 |
1 | ||
| 77754-0C060 |
UCK35,45 NO.2 |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-0C020 |
UCK35,45 L=290 |
1 | ||
| 77754-0C050 |
UCK35,45 L=200,NO.1 |
1 | ||
| 77754-0C070 |
UCK35,45 NO.3 |
1 | ||
| 77754-0C060 |
UCK35,45 NO.2 |
1 | ||
| Common parts | ||||
| 90080-11180 | ||||
| 90105-A0069 | ||||
| 90105-A0070 | ||||
| 90179-06306 | ||||
| 96132-41500 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 2211 | ||||
| 4601 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
