ZSP110L-AHPRKA (2007)

Toyota Scion Xd

Production Jun 2007 - Jul 2014
Engine 2ZRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0706- )

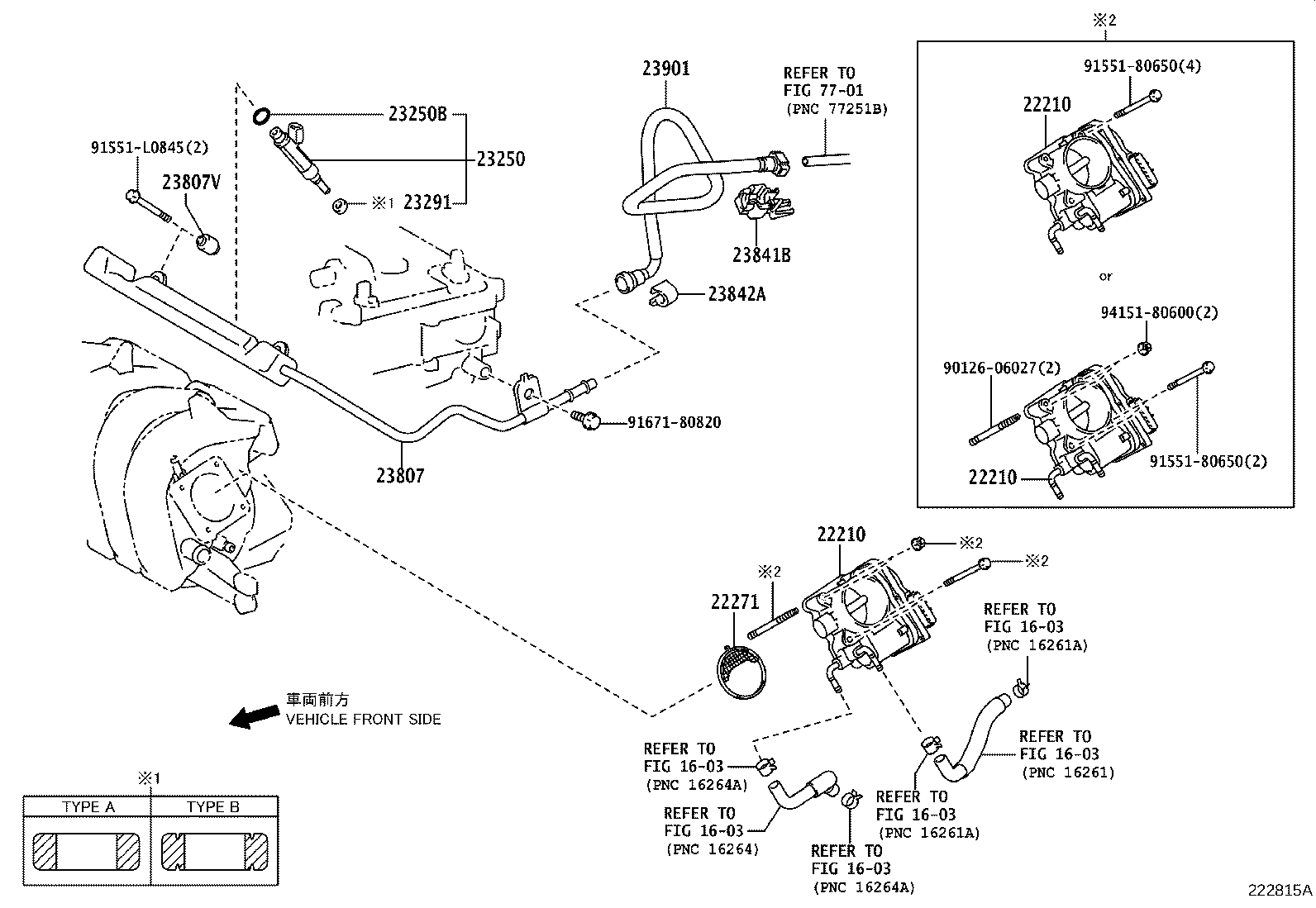

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 1603 1603 22210 22210 22210 22271 23250 23250B 23291 23807 23807V 23841B 23842A 23901 7701 9012606027 9155180650 9155180650 91551L0845 9167180820 9415180600
Part # Description Qty Price
22210 - BODY ASSY, THROTTLE
22030-37020

2ZRFE..ZSP110

 1
22030-37080

2ZRFE..ZSP110

 1
22030-37020

2ZRFE..ZSP110..USA

 1
22030-37040

2ZRFE..ZSP110

 1
22210 - BODY ASSY, THROTTLE
22030-37020

2ZRFE..ZSP110

 1
22030-37080

2ZRFE..ZSP110

 1
22030-37020

2ZRFE..ZSP110..USA

 1
22030-37040

2ZRFE..ZSP110

 1
22210 - BODY ASSY, THROTTLE
22030-37020

2ZRFE..ZSP110

 1
22030-37080

2ZRFE..ZSP110

 1
22030-37020

2ZRFE..ZSP110..USA

 1
22030-37040

2ZRFE..ZSP110

 1
22271 - GASKET, THROTTLE BODY
22271-75031

2ZRFE..ZSP110

(J)

 2
22271-0D051

2ZRFE..ZSP110

(L)

 1
22271-75031

2ZRFE..ZSP110

(J)

 1
22271-75031

2ZRFE..ZSP110..USA

(J)

 1
23250 - INJECTOR ASSY, FUEL
23209-39146

2ZRFE..ZSP110

 4
23209-39145

2ZRFE..ZSP110

 4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07037

2ZRFE..ZSP110

 4
23291 - INSULATOR, INJECTOR VIBRATION
23291-28020

2ZRFE..ZSP110

 4
23291-23010

2ZRFE..ZSP110

 4
23291-41010

2ZRFE..ZSP110

 4
23291-23010

2ZRFE..ZSP110

TYPE A:REFER ILLUST.

 4
23291-28020

2ZRFE..ZSP110

TYPE B:REFER ILLUST.

 4
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23814-37051

2ZRFE..ZSP110

 1
23814-37050

2ZRFE..ZSP110

 1
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
23891-37010

2ZRFE..ZSP110

 2
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-21050

2ZRFE..ZSP110

 1
23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI)
23842-22020

2ZRFE..ZSP110

 1
23901 - TUBE SUB-ASSY, FUEL
23901-37050

2ZRFE..ZSP110

 1
Common parts
90126-06027
91551-80650
91551-L0845
91671-80820
94151-80600
Linked diagrams
1603
7701
